Specifications:
- Weighing capacity [Max]: 20000 kg
- Measuring range force [Max] (N): 200 kN

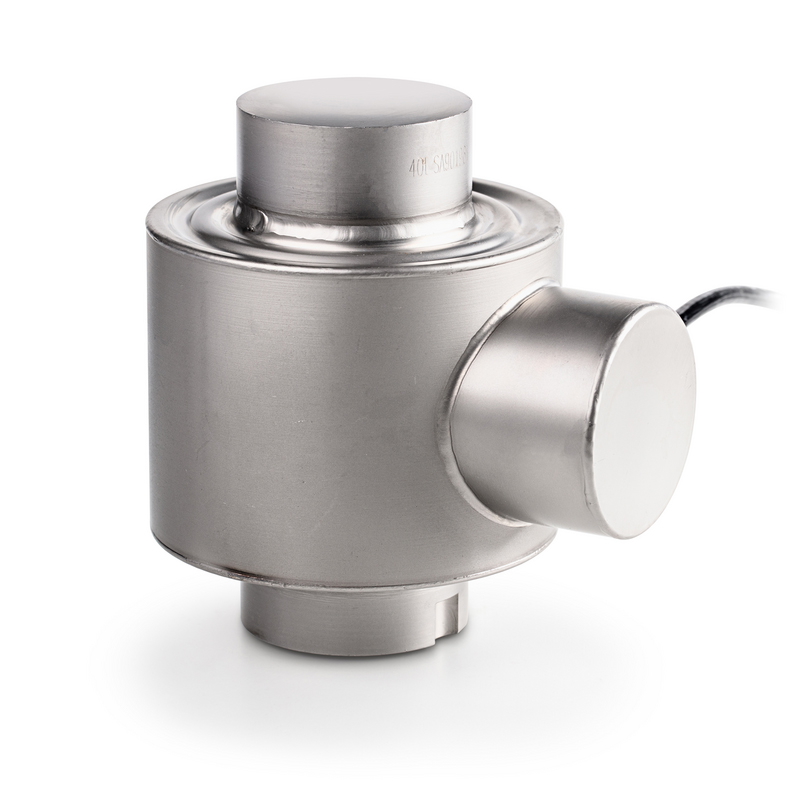

- Design: Load cell
- Directions of force: compression
- Measuring applications: force, mass
- Load cell – Combined error: 0,023%
- Load cell OIML class: C3
- Load cell – Resolution (verifiable): 3000 e
- Load cell – Y-value: 10000
Applications:
- Vehicle Scales: Weighing vehicles to determine their total mass.
- Weigh Hoppers: Measuring the weight of materials in hoppers during processing.
- Vehicle Testing Equipment: Assessing forces during vehicle testing procedures.
- Test Stands: Conducting force measurements in laboratory or industrial test setups.
