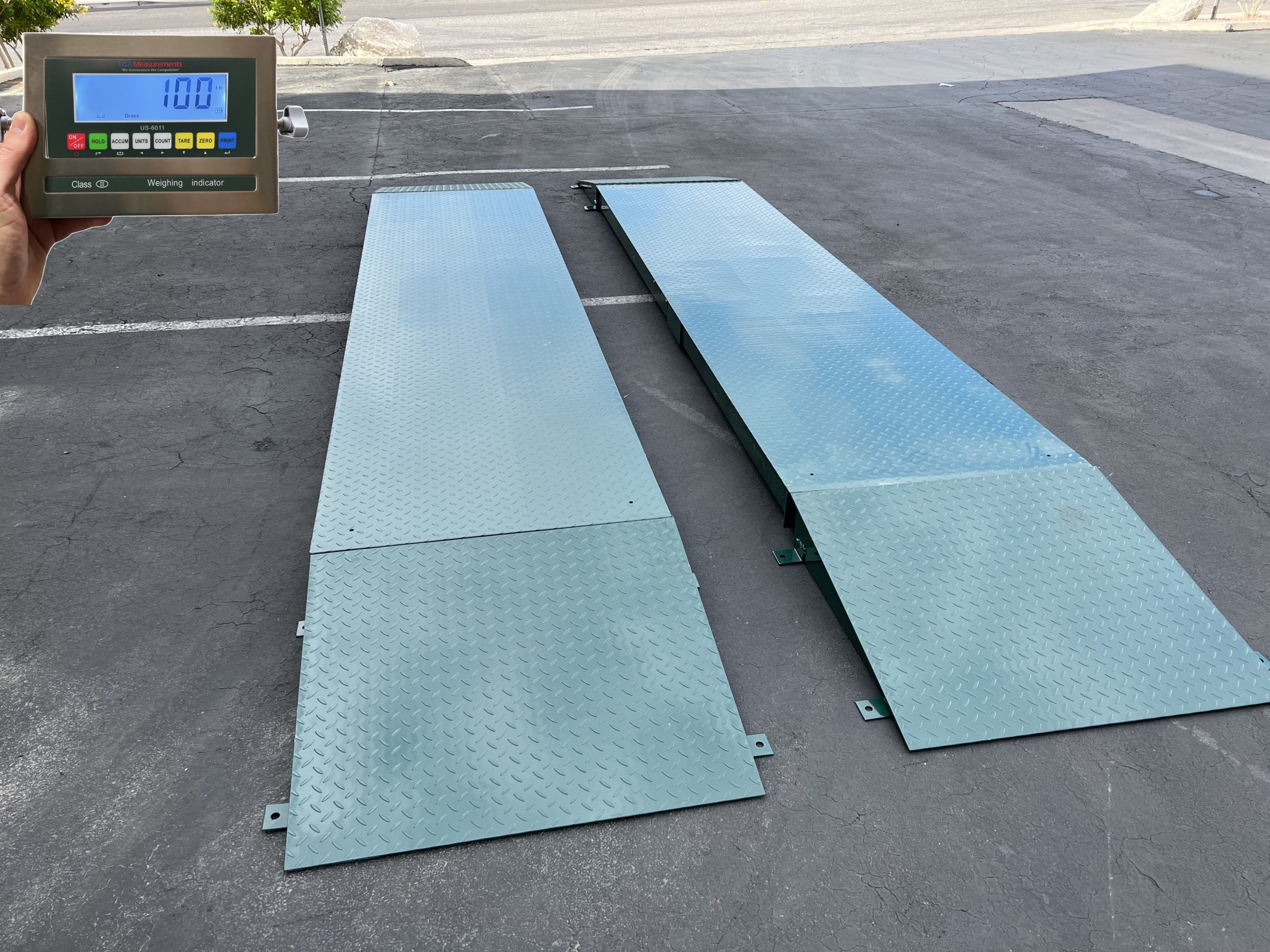

USA Measurements “Green Dragon” Axle scales are easily portable with a forklift or other lifting device, while ensuring durability, reliability, and consistent accuracy. The US-AX series Axle scales measure each individual axle weight of the truck. Weighing vehicles is easy by pulling each axle onto the platform, capturing each axle weight, and then providing a gross vehicle weight.
Scale Features:
- Used to avoid overweight tickets
- Ensures Trucks are not Underloaded
- Designed with Heavy Duty Steel Construction
- Diamond Plated Steel Deck with Robust Steel Plate
- Lowest Profile Axle Scale 5.5″ Height and Adjustable
- 300% Overload Protection to Ensure Durability
- Includes (2) 50′ Stainless Steel Cables (Wireless Available)
- Includes (4) 25″ Long Ramps to Roll On/Off Truck Scale
- Scales can be use Above Ground or Flush Mounted
- Outdoor Safe for Wet Environments
- Mounting Plates to Fix Scale in Concrete Floor
- Portable Using Forklift or Skid Steer
- Powder Coated with our Military Green Color
- Custom Sizes Available
- Unit Weight 12′ Axle Scale: 650 lb per pad
- 5 Year Manufacturer Warranty on Steel Frame
- 2 Year Manufacturer Warranty on Electronics
US-6011SS Indicator Features:
- US-6011SS indicator with LCD display
- 1″ Tall backlit display
- Includes Rechargeable battery (up to 100 hrs)
- Metal casing
- AC adapter included
- Multiple weighing units: (lb/kg/g/oz/lb:oz)
- Gross/Tare/Pre-Set Tare/Zero
- Multiple Hold functions
- Count weighing
- Accumulation weighing
- Overload / Underload alarm
- Splash proof keyboard and display
Models / Capacity / Accuracy / Size:
- US-AX1230 Capacity 80,000 lb x 10 lb / 12’x30″ per platform
Common Applications:
- Military Use
- Recycling
- Trucking Companies
- Remote Job Sites
- Logging & Lumber Business
- Temporary Job Site / Clean Ups
- Weighing Forklifts / Bobcat / Skid Steer
Options:
- Thermal Printer
- Label Printer
- Indoor Remote Display 3″ Digits
- Indoor Remote Display 5″ Digits
- Outdoor Remote Display 6″ Digits
- Software
- Indicator Stand (stainless steel)
- Heavy Duty Indicator Stand
- Certificate of Calibration
- Indicator with 4-20ma Output
- Indicator with Setpoint / Relay Function
- Replacement Leveling Feet for Axle Scale
