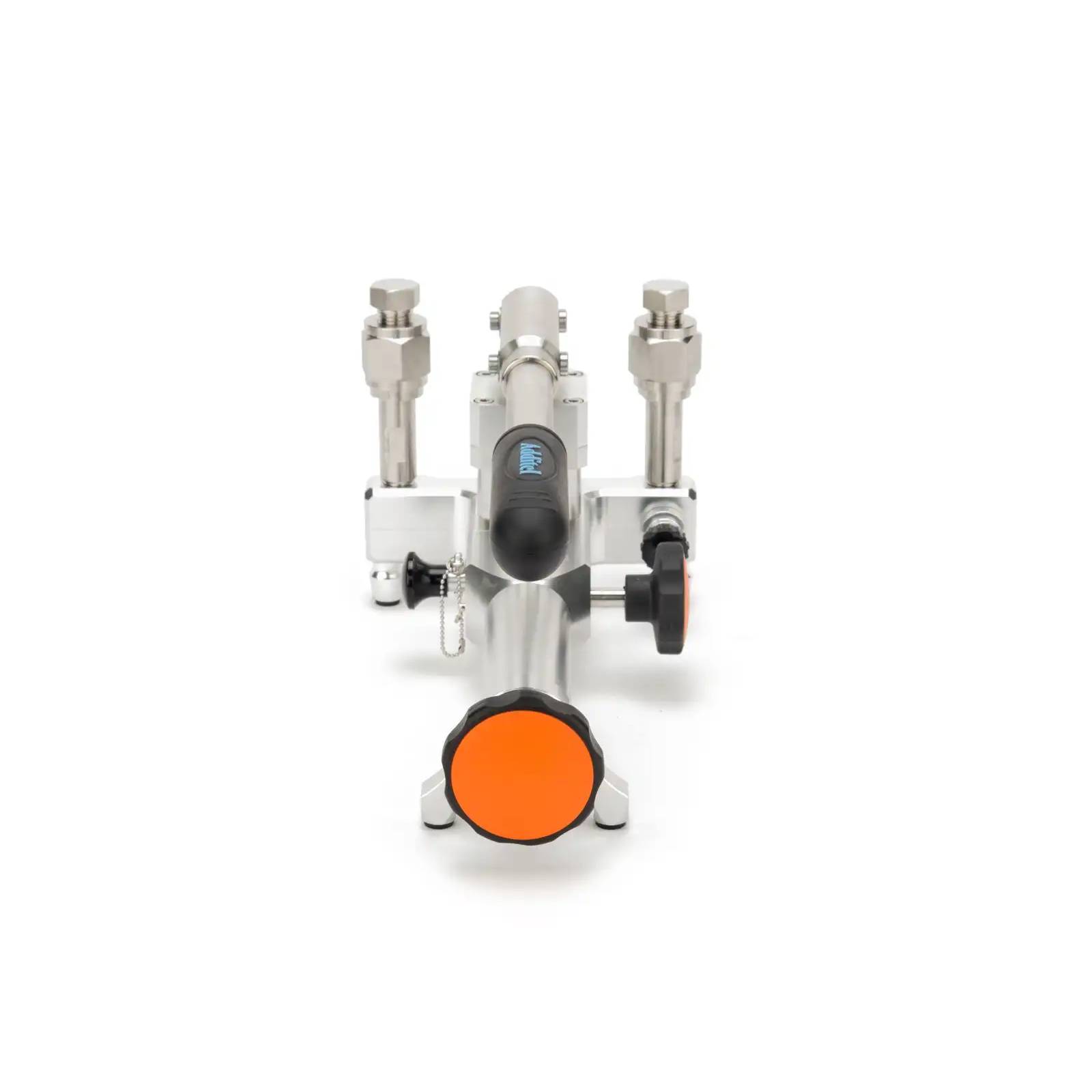

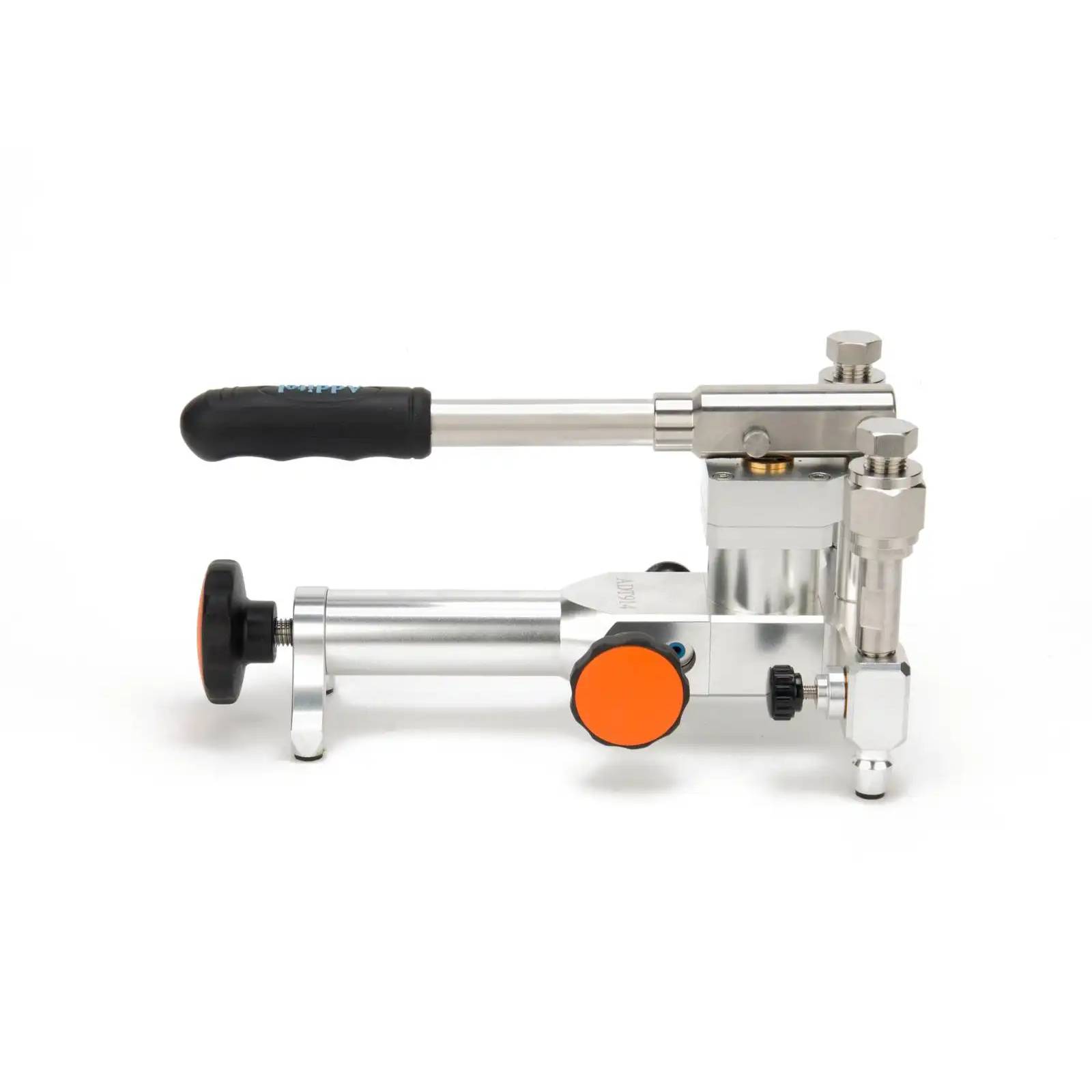

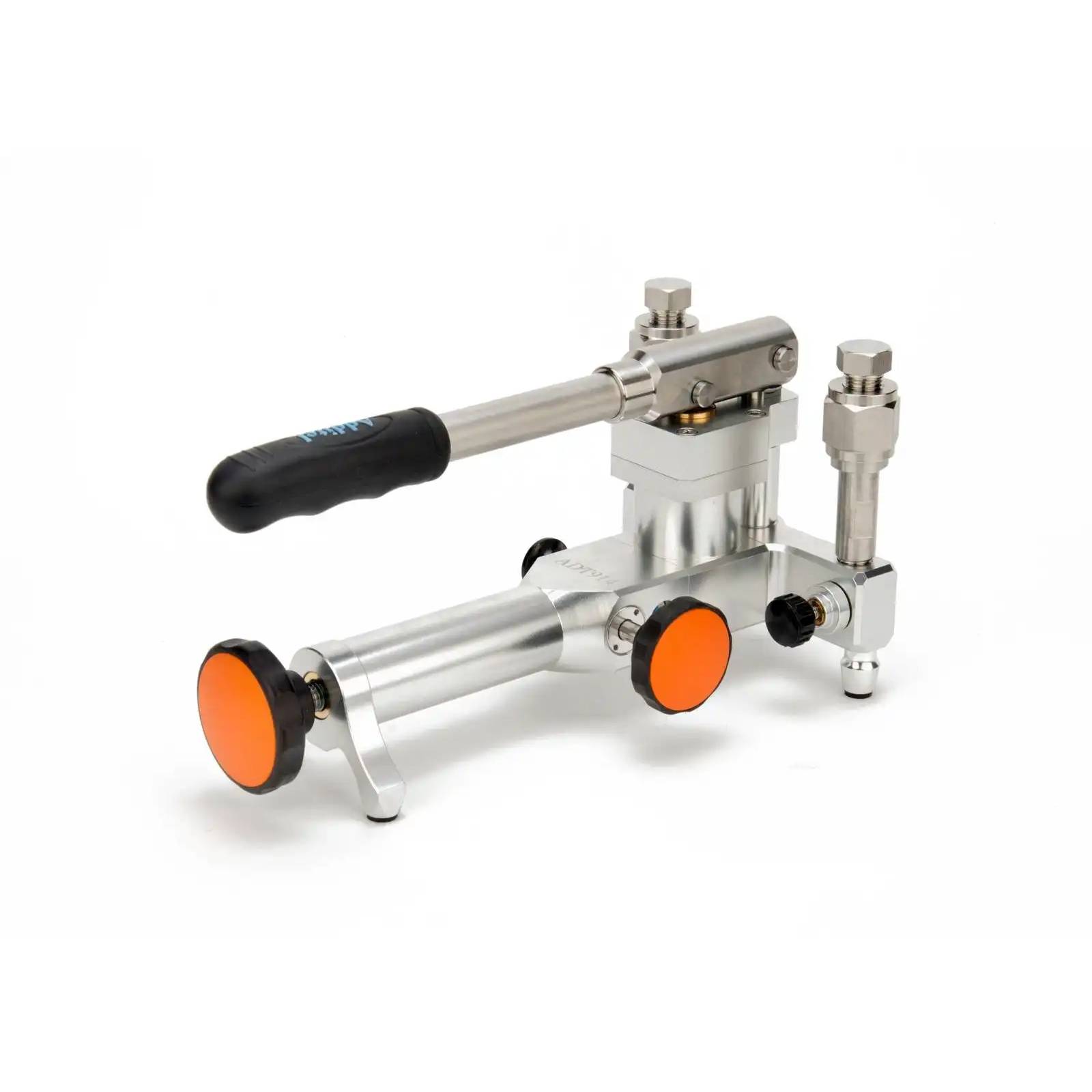

Additel 914A Handheld Pneumatic Pressure Test Pump

Features:

• Portable: Only 3.3 lb (1.5 kg)
• Adjustment Resolution: 10 Pa (0.1 mbar). High-quality screw press for fine pressure adjustment
• Great Stability: A specially designed shut-off valve makes the pressure as stable as possible during calibration
• Durable and Minimal Maintenance: Built-in gas-liquid isolator protects the pump from moisture and dirt
• Easy-to-use: Hand-tight Quick Connectors Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches

Specifications:

• Media: Air.
• Generated Pressure Range: 95% vacuum to 375 psi (25 bar) positive pressure
• Adjustment Resolution: 10 Pa (0.1 mbar).
• Material: Ram/adapters: SS
• Body: SS, aluminum
• Seals: Buna-N, PTFE, Copper Alloy
• Piston volume: 1.6 in 3 (27 ml)
• Connection: Hand-tight connectors for both test gauge and reference gauge.
• Connection: 1/4NPT female, 1/2NPT female, 1/4BSP female,
• Connection: 1/2BSP female, or M20X1.5 female
• Dimensions: Height: 5.12” (130 mm)
• Dimensions: Base: 9.45” (240 mm) x 4.72” (120 mm)
• Dimensions: Weight: 3.3 lb (1.5 kg).
• Warranty: 1 year

Resources:

• 914A Handheld Pneumatic Pressure Test Pump Datasheet
• Pressure Test Pump Selection Guide
• 914A User Manual
