Specifications:
- Weighing capacity [Max]: 600 kg

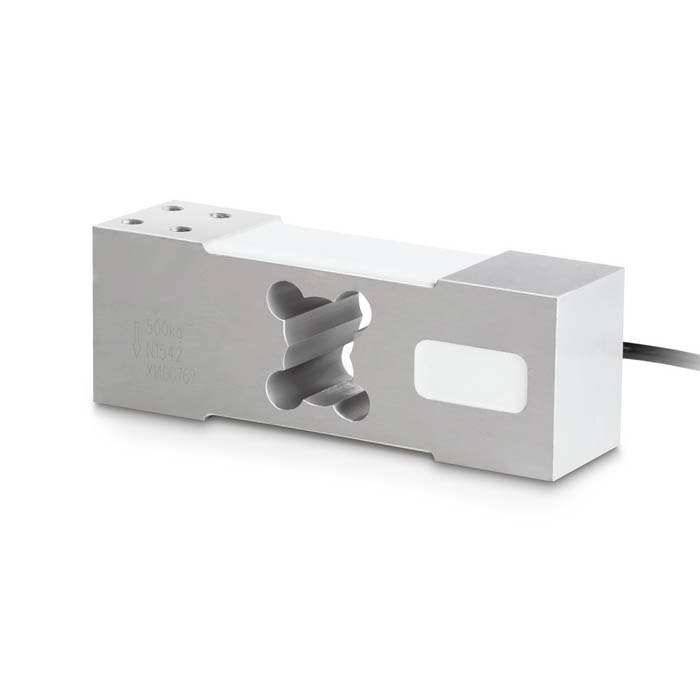

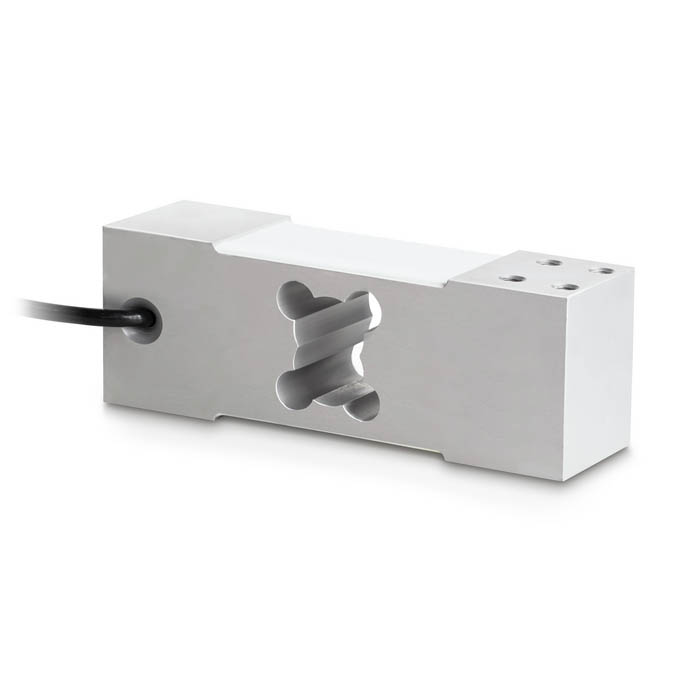

- Design: Singlepoint load cell
- Directions of force: compression
- Measuring applications: mass
- Load cell – Combined error: 0.02%
- Load cell OIML class: C3
- Load cell – Resolution (verifiable): 3000 e
- Load cell – Y-value: 10000
- Load cell – characteristic value – nominal: 2 mV/V
- IP protection – complete device: IP65
- Material: aluminium
- Load cell connection: 6-wire
- Cable length: 3 m
- Mounting – force application: 4 × threaded hole M8
- Mounting – force dissipation: 4 × threaded hole M8
Applications:
- Price-Computing Scales: Ideal for retail environments where accurate pricing based on weight is essential.
- Bench Scales: Suitable for laboratory and industrial settings where space is limited but precise weighing is necessary.
- Platform Scales: Can be integrated into larger weighing platforms for heavier loads, up to 600 kg.
- Counting Scales: Useful in inventory management for counting items based on weight.
- Industrial Weighing Systems: Applicable in manufacturing and processing industries for quality control and batching processes.
- Medical Weighing Equipment: Suitable for medical scales requiring high precision.
- Food Processing Scales: Appropriate for weighing ingredients in food production, ensuring compliance with weight-based regulations.
