Standard Features:

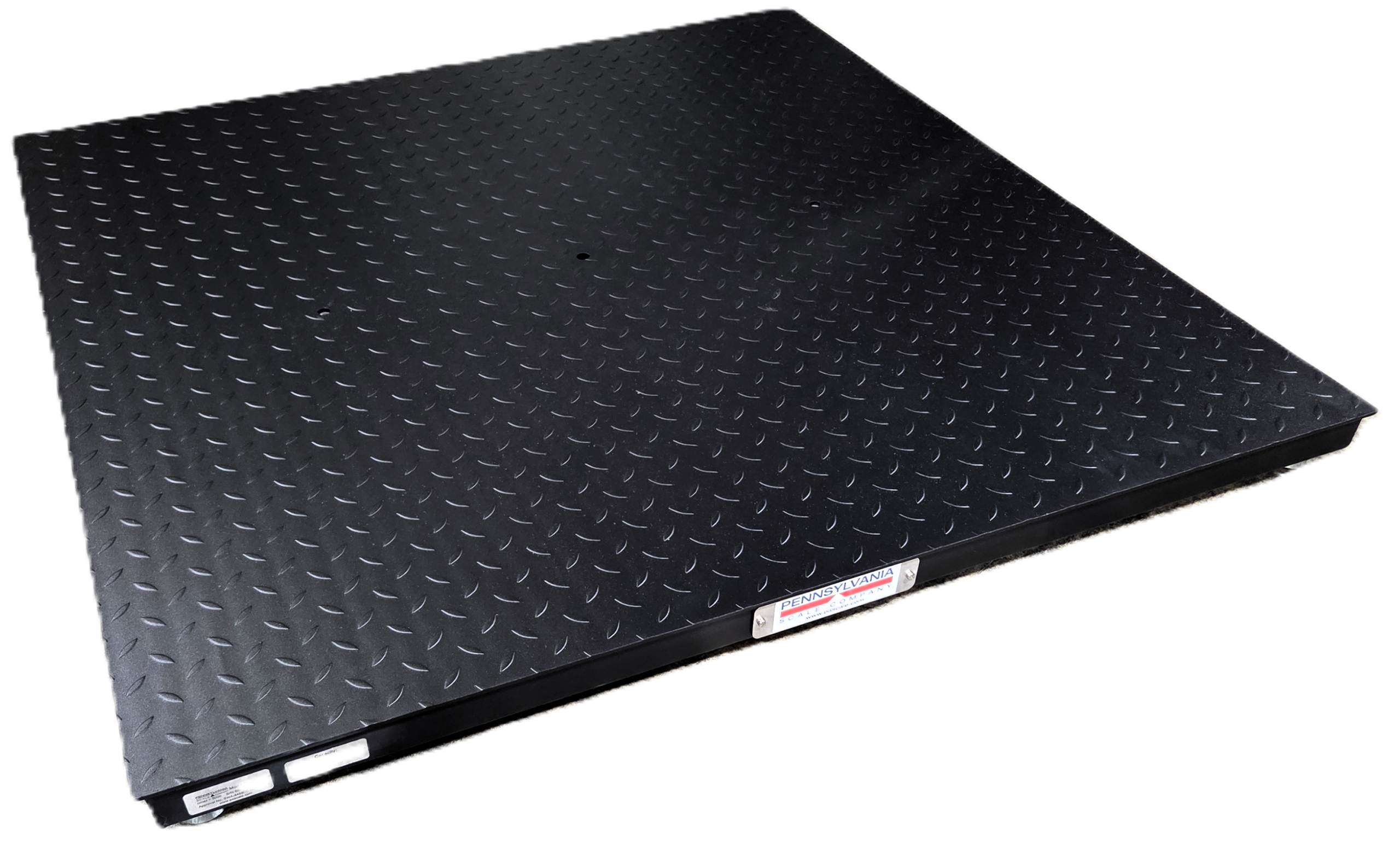

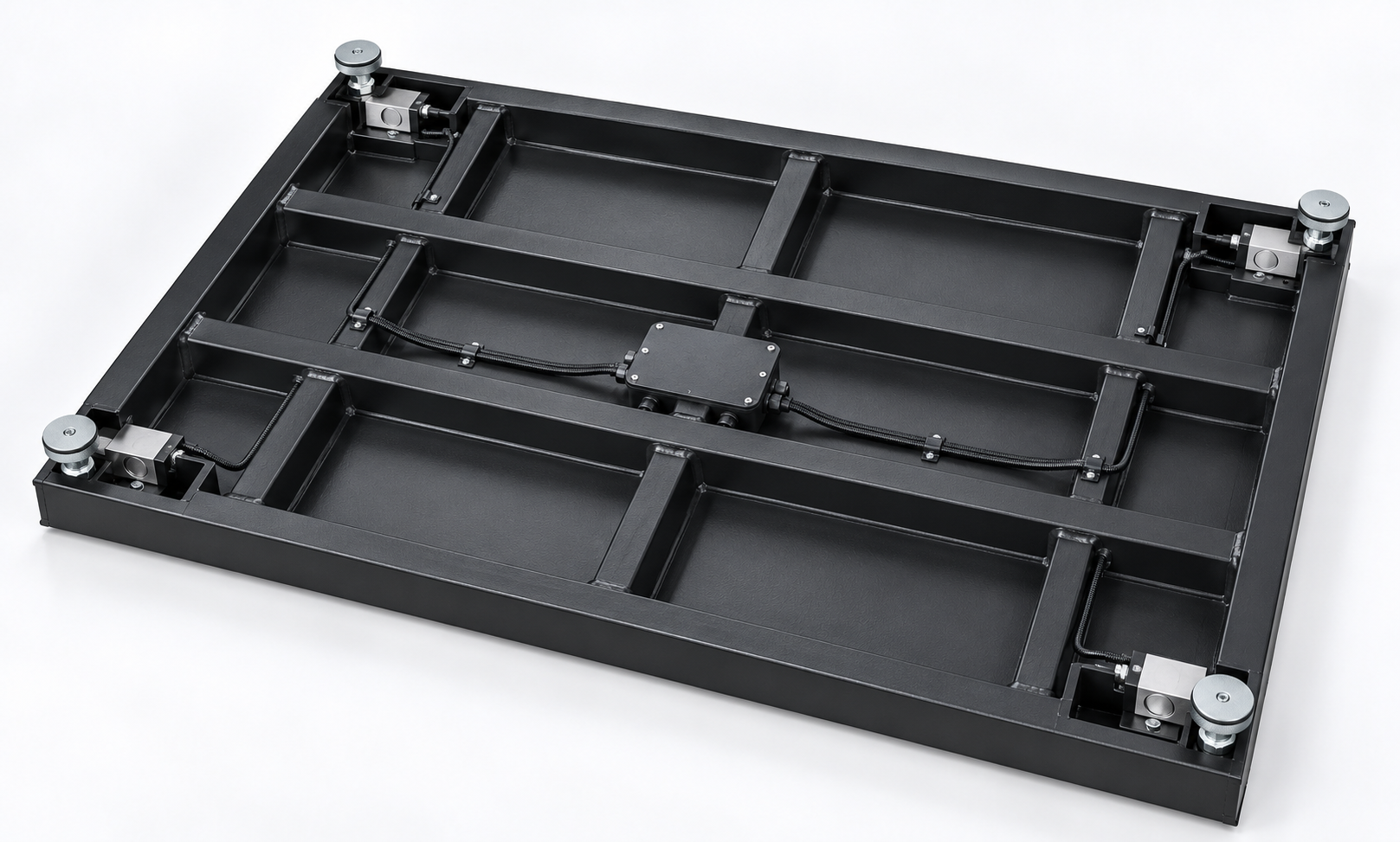

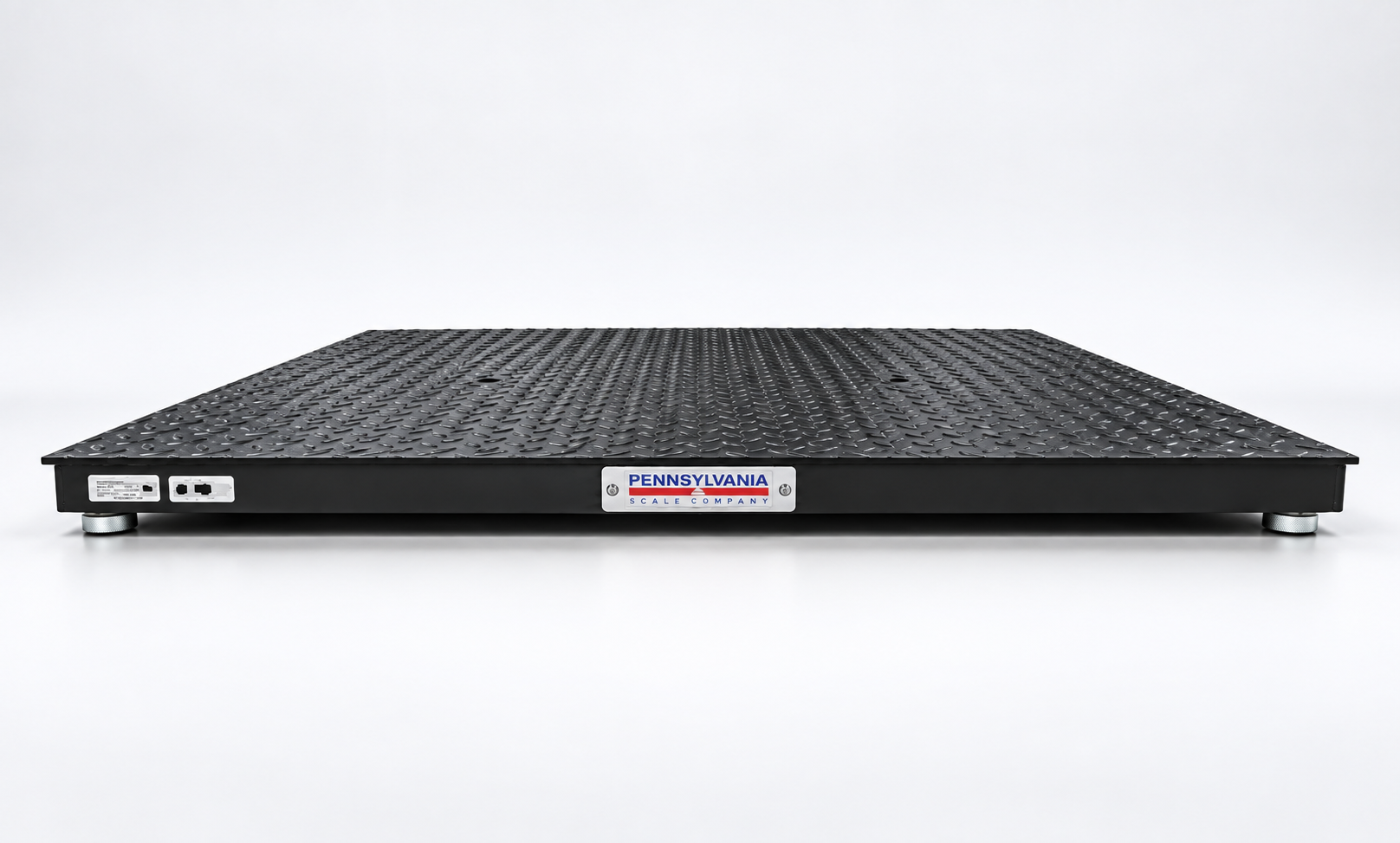

- Super heavy-duty industrial design with full tube steel frame and rugged diamond plate deck — built for demanding industrial, warehouse, and manufacturing environments

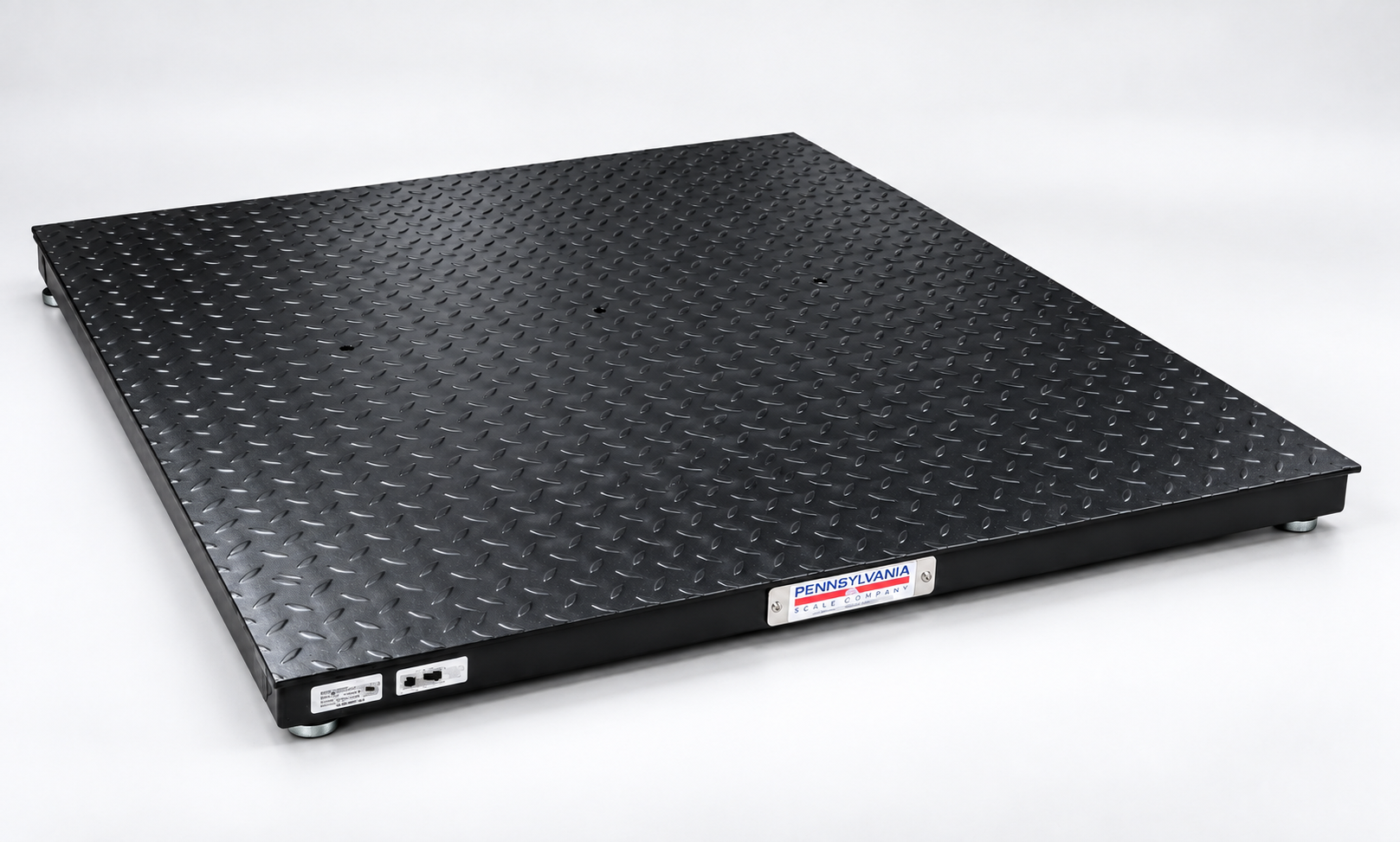

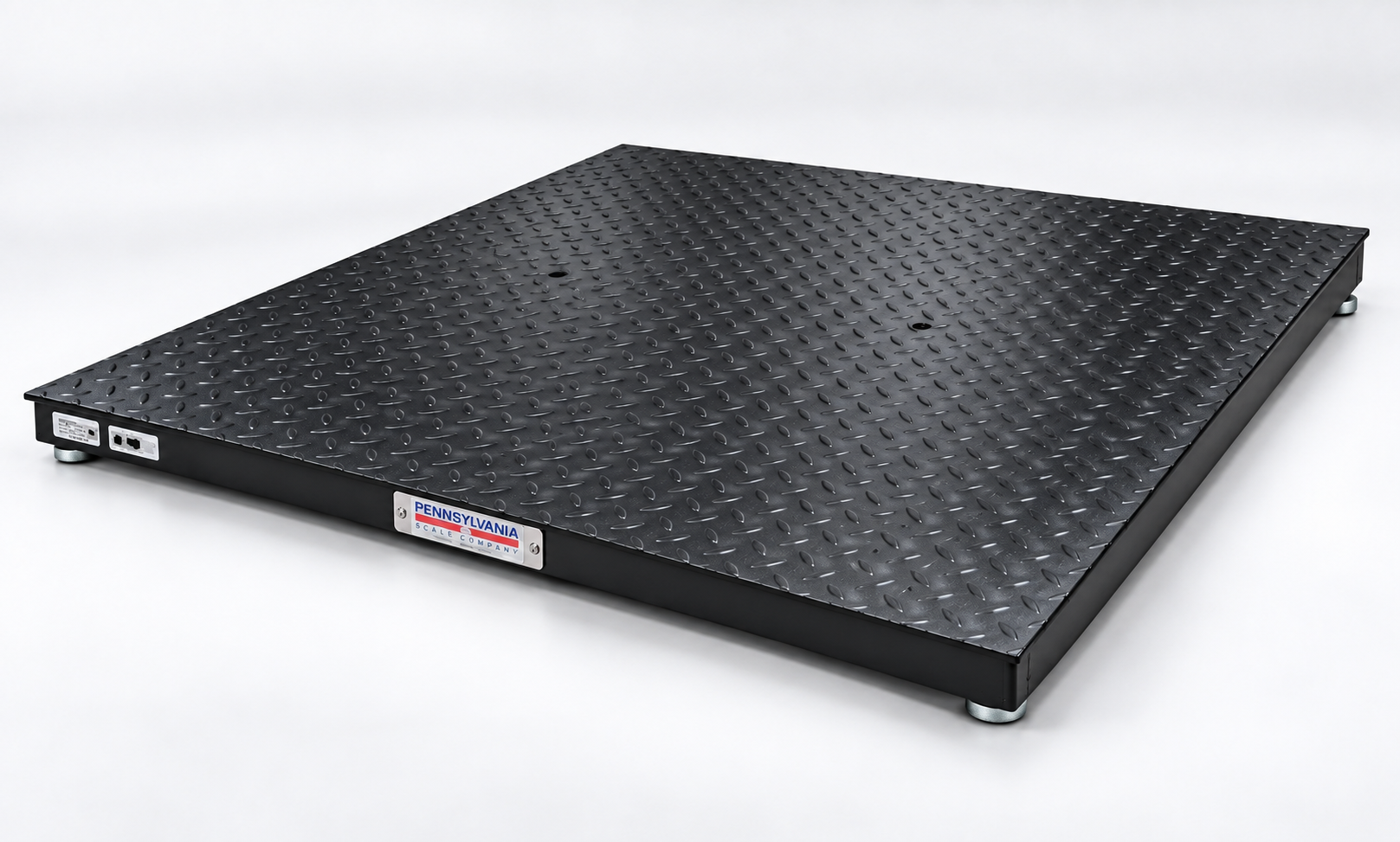

- M6600 models: mild steel construction with powder coated or epoxy paint finish

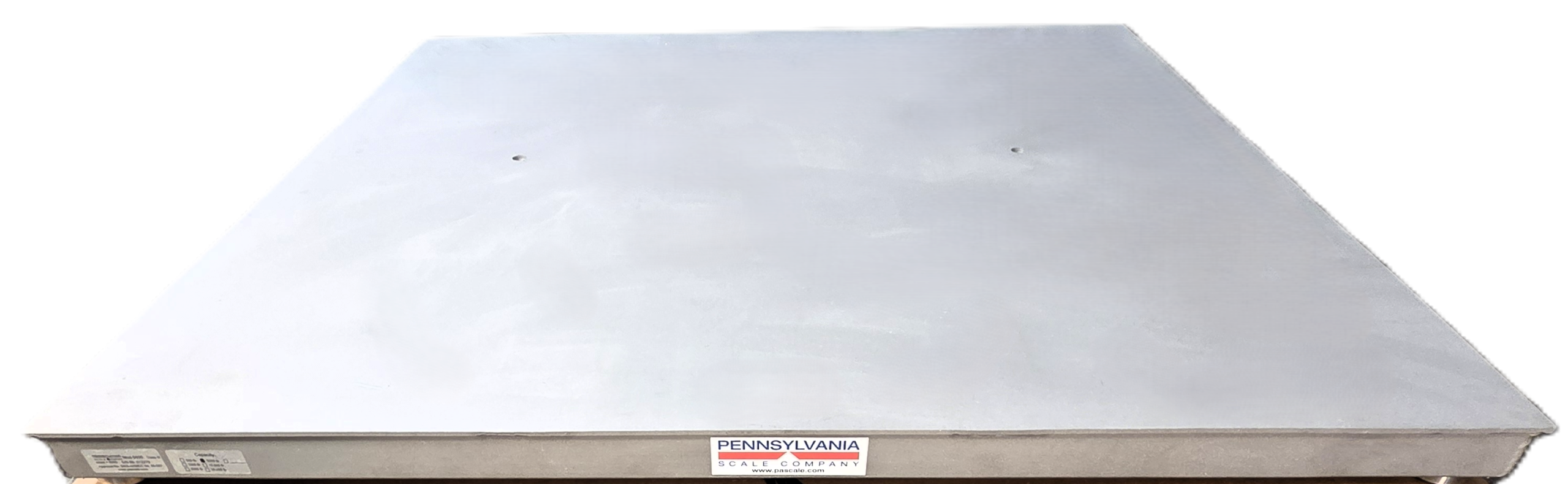

- SS6600 models: full IP68 washdown protection — all 304 stainless steel including frame, deck, load cells, hardware, and remote SS NEMA 4X summing card j-box
- Platform sizes from 18"×24" up to 120"×120" and larger — custom sizes and configurations available
- Capacities from 1,000 lbs up to 40,000 lbs (M6600); 1,000–20,000 lbs (SS6600)
- High performance load cells and summing card for outstanding weighing and parts counting accuracy

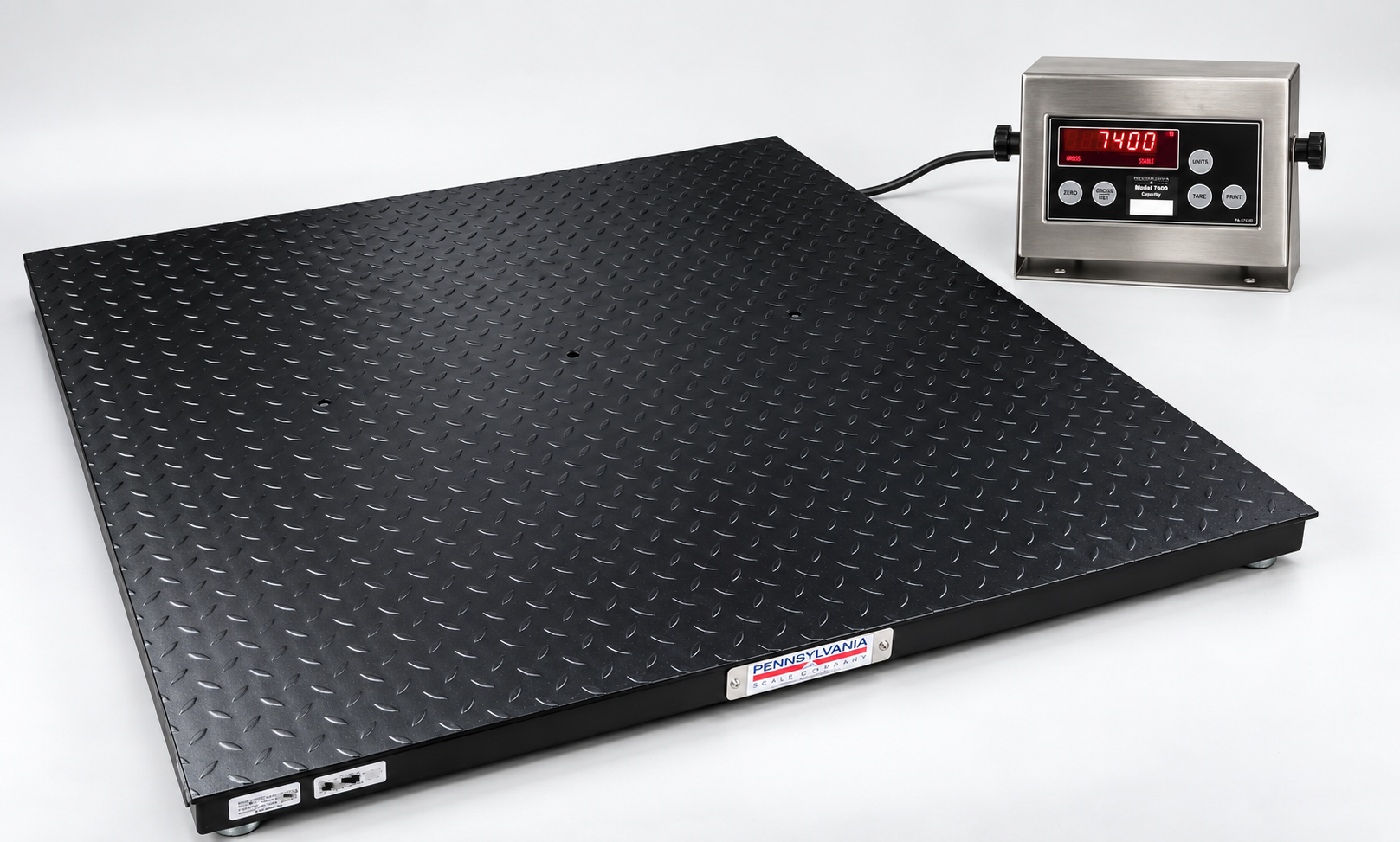

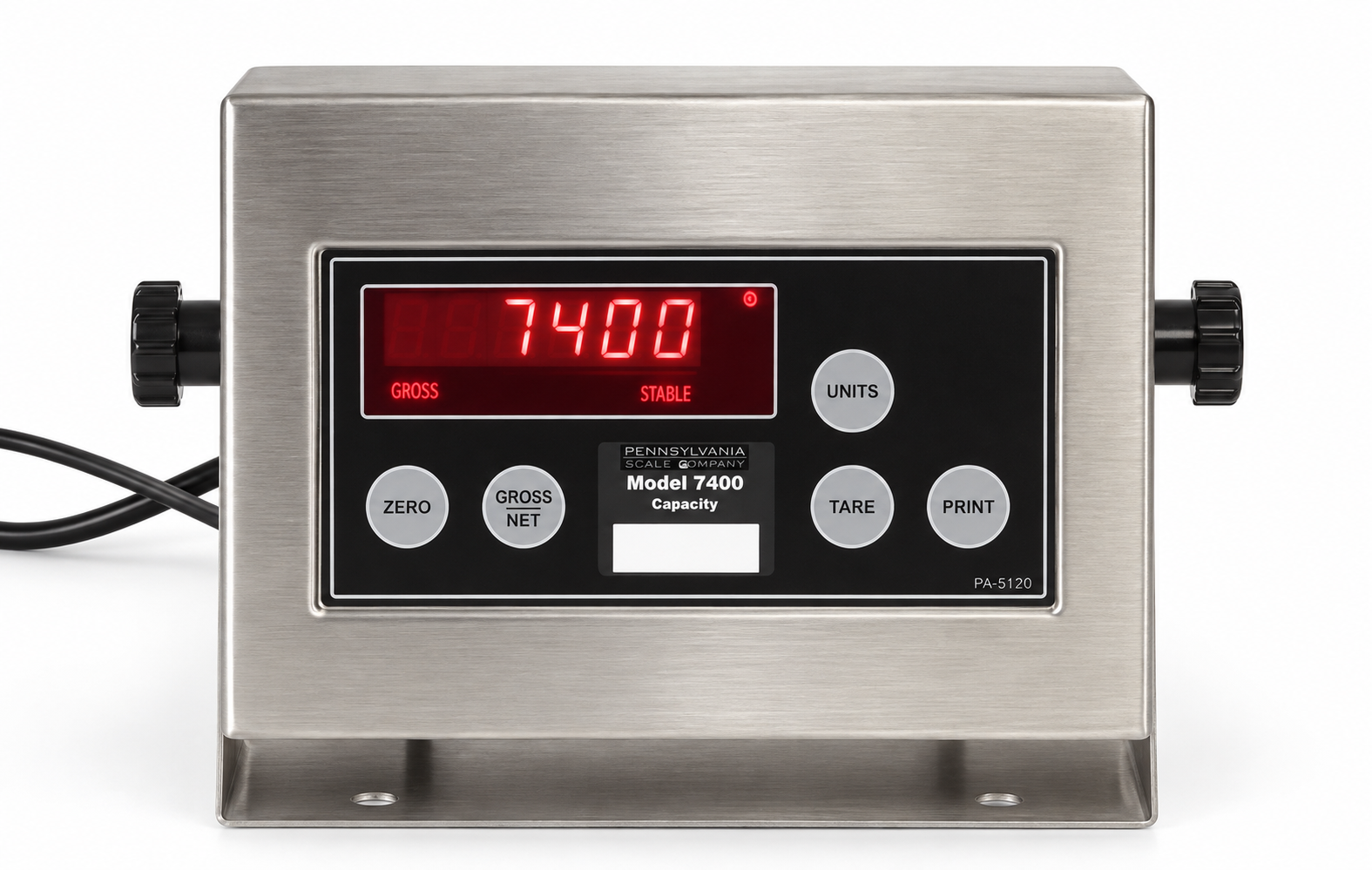

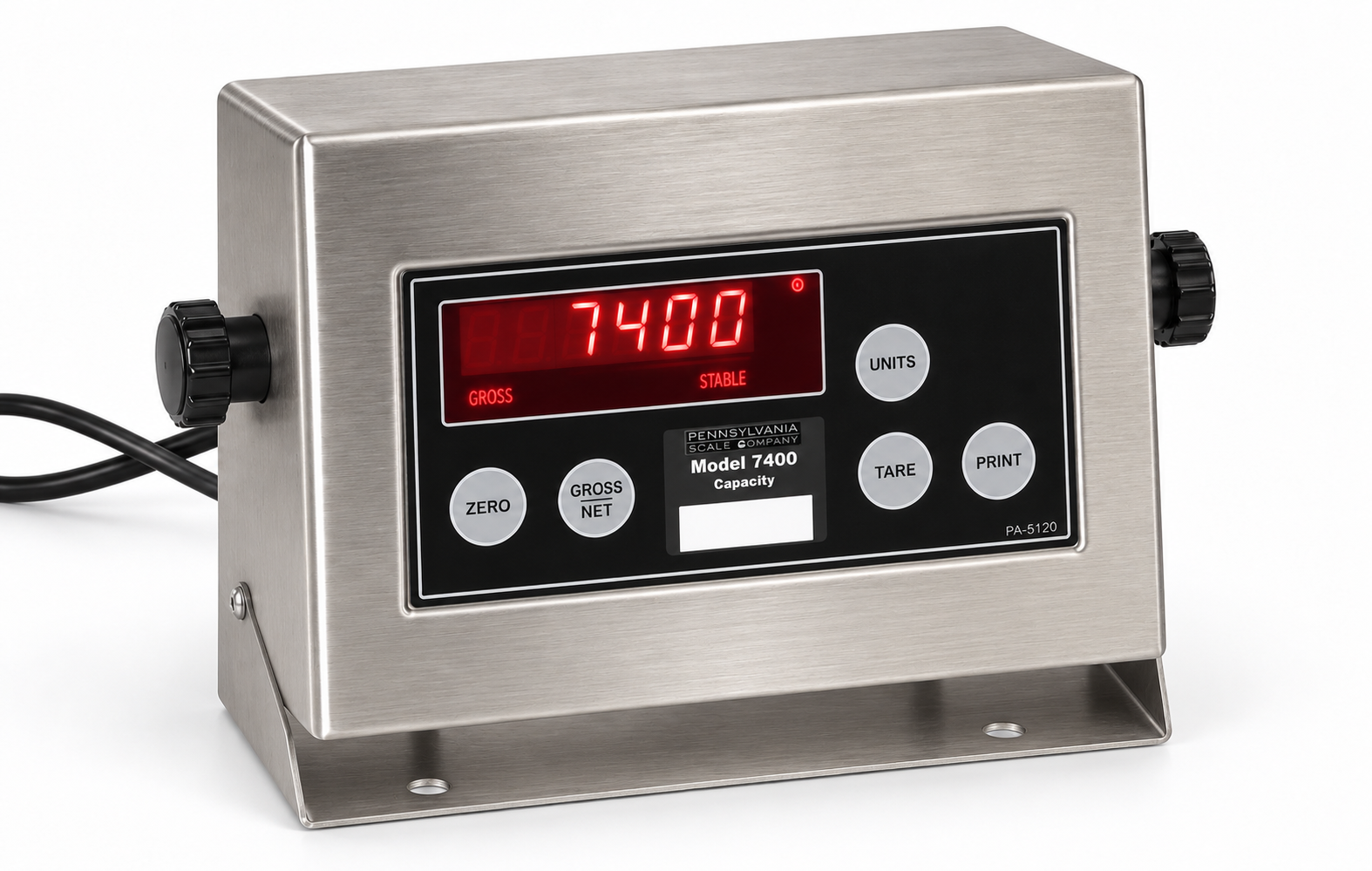

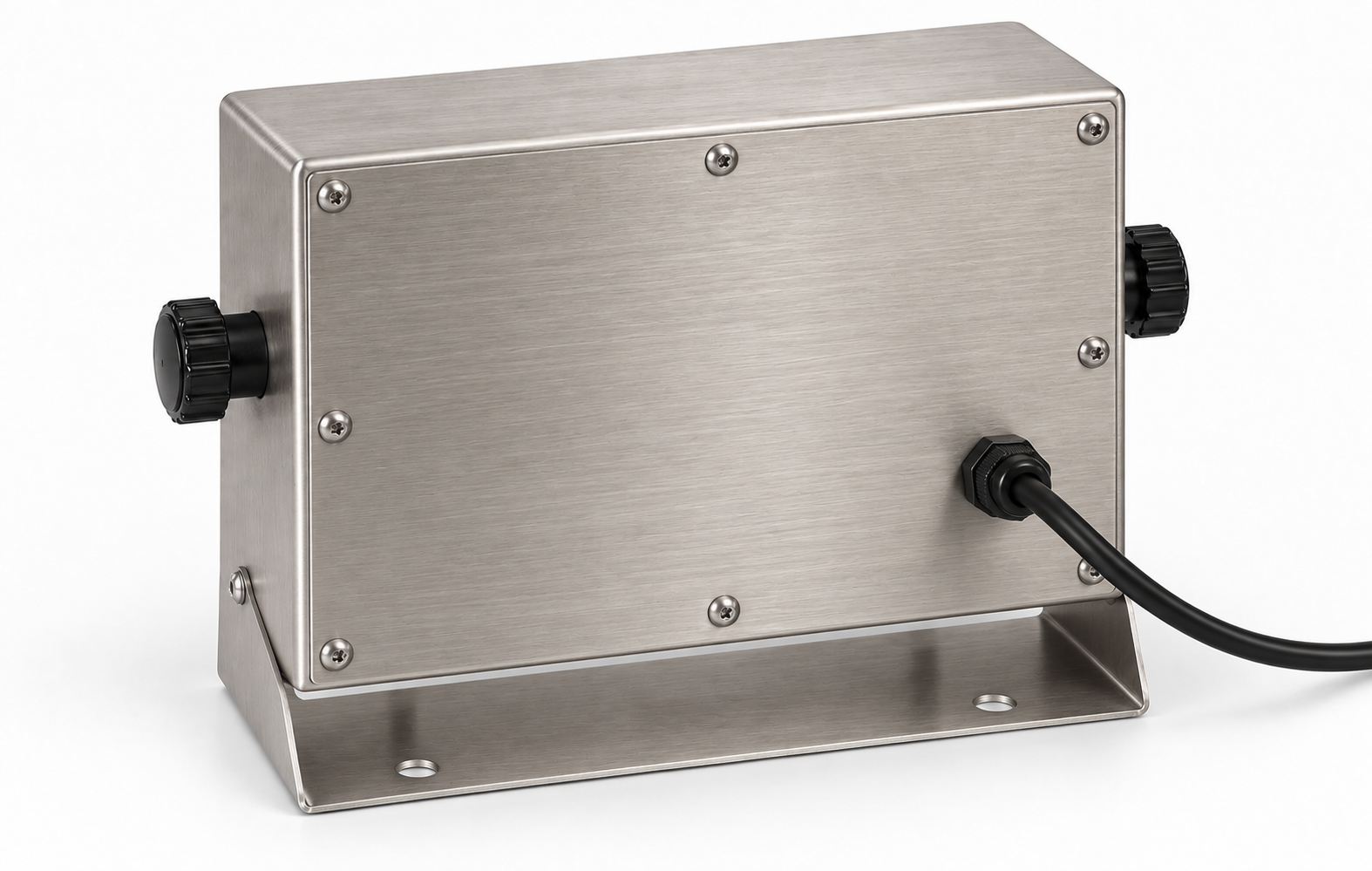

- 20' cable with CPC quick disconnect — connects to all Pennsylvania Scale digital indicators and counting scales; dual base option available
- 100%+ overload protection
- NTEP approved for legal-for-trade use — NTEP COC 90-097A3; Measurement Canada COC S.WA-4456 Rev. 3 Rev. 4
- Operating temperature: 14°F to 104°F (-10°C to 40°C)
- Optional accessories: ramps, pit frames, bumper guards, forklift skids, indicator columns, FM/IS configuration
- Five-year limited warranty
- Designed and manufactured in the USA — Pennsylvania Scale Company, Lancaster, PA since 1908
Model Comparison:
| Specification | M6600 — Mild Steel | SS6600 — Stainless Steel |
|---|---|---|
| Construction | Full tube steel frame, diamond plate deck | All 304 stainless steel — frame, deck, load cells, hardware |
| Finish | Powder coated or epoxy paint | Shot blast smooth deckplate |
| Washdown Protection | Standard | IP68 — fully sealed |
| Summing Box | Standard | Remote SS NEMA 4X j-box (included) |
| Load Cells | High performance steel | 304 stainless steel (hermetic sealed upgrade available) |
| Available Sizes | 18"×24" to 120"×120" and larger | 24"×24" to 60"×60" (priced); larger by quote |
| Capacity Range | 1,000 – 40,000 lb | 1,000 – 20,000 lb (priced); larger by quote |
| Overload Protection | 100%+ | 100%+ |
| NTEP Approved | Yes — Legal for Trade | Yes — Legal for Trade |
| Made in USA | Yes | Yes |
| Warranty | 5 years | 5 years |
