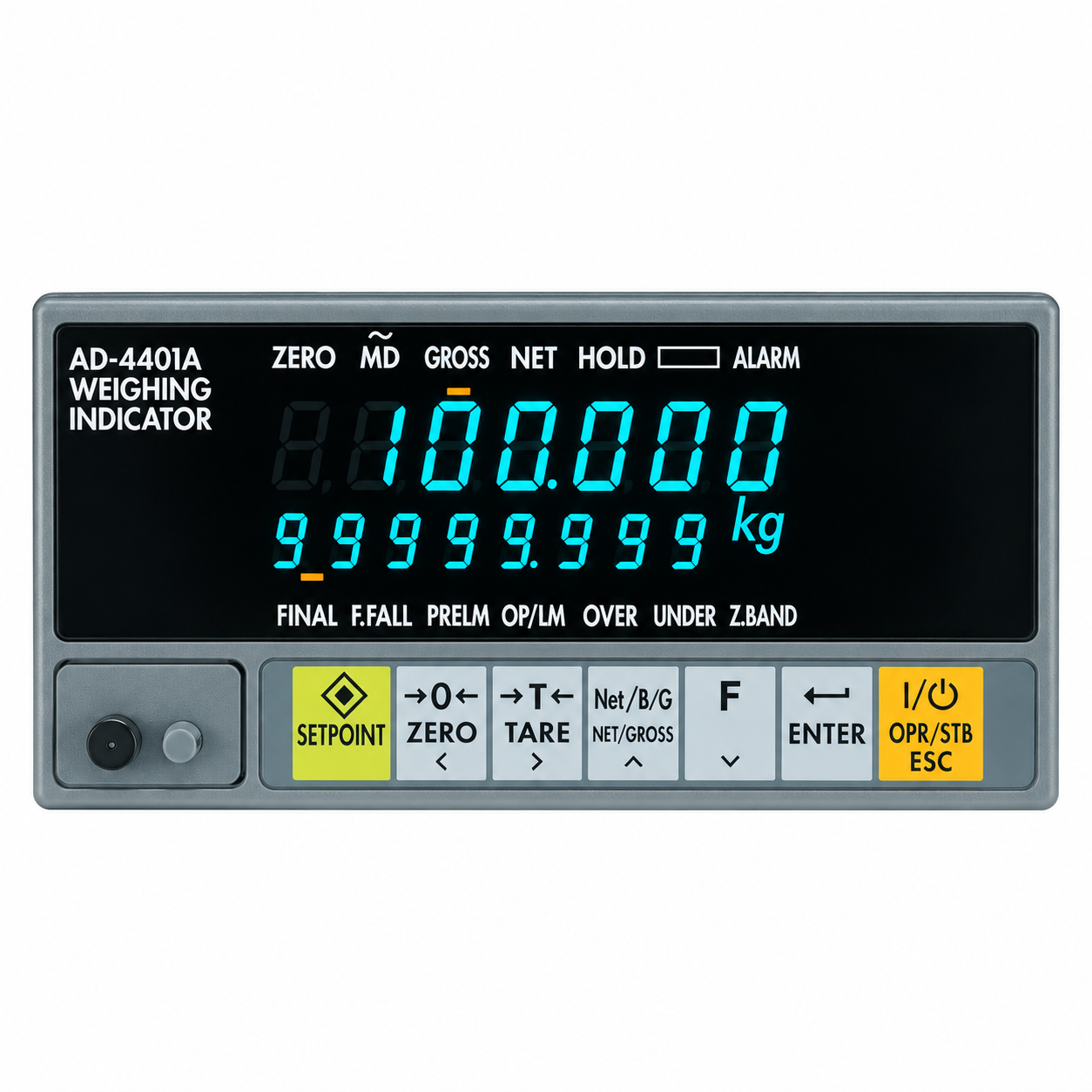

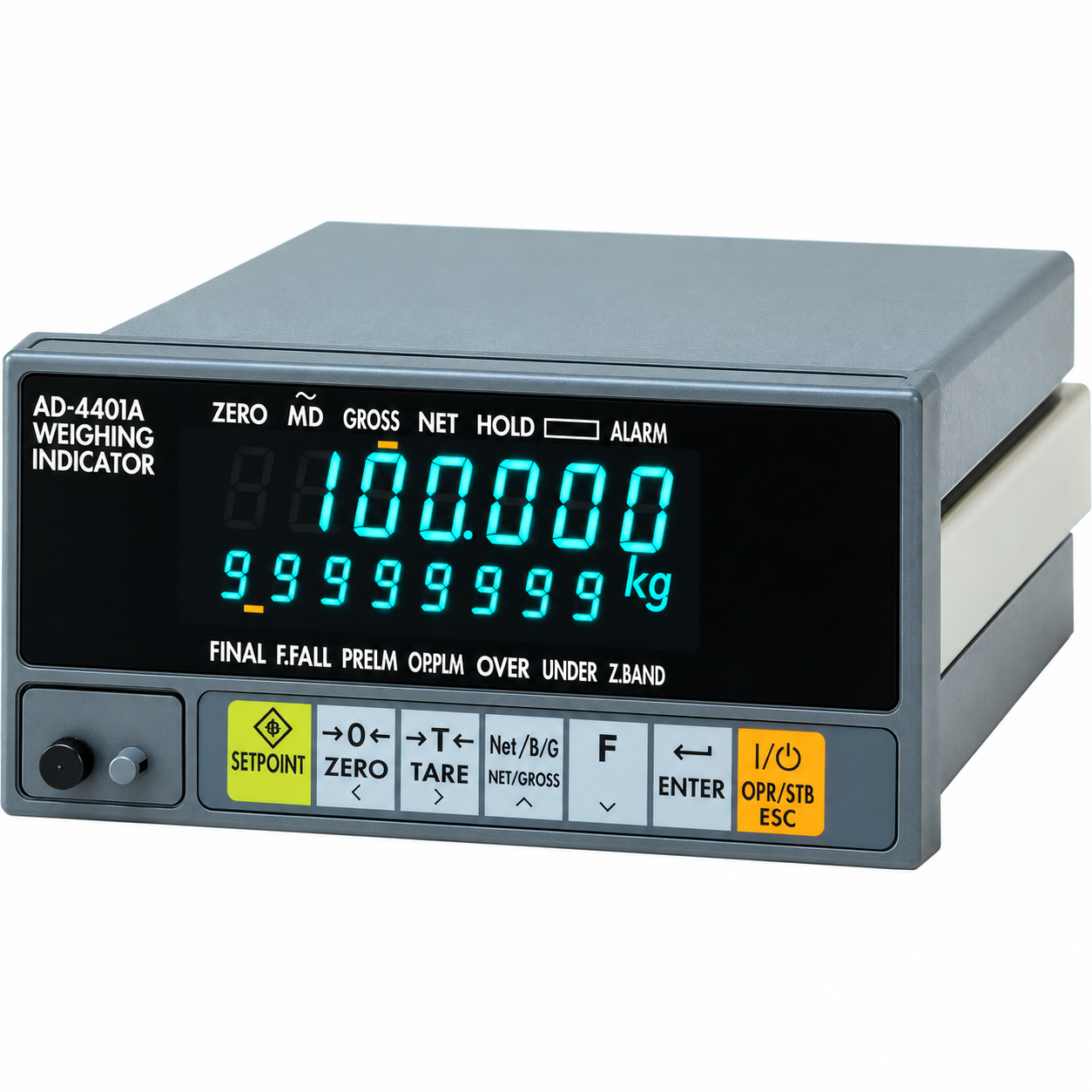

The AD-4401A is a compact DIN-size weighing indicator built for industrial batching, loss-in-weight, check weighing, and static weighing applications. It is a direct replacement for the AD-4401, retaining the same panel cutout size, connector locations, and default settings while adding A&D’s High-Performance Digital Filter for environments with vibration or movement. If you are already running an AD-4401 system, upgrading to the AD-4401A requires no rewiring and no changes to connected devices. The indicator handles the full weighing sequence and data transmission for batching systems, with Modbus-RTU and Modbus-TCP connectivity available via the Ethernet option. Includes free shipping.
Key Features
- High-Performance Digital Filter (HPDF) — accurate weighing in high-vibration environments without extra mechanical isolation
- 100 samples/second high-speed A/D conversion with up to 1,000,000 counts of internal resolution
- 16,000-count external display resolution; 0.3 µV/d sensitivity for precise measurement
- Fuzzy logic and Automatic Free Fall Compensation (AFFC) for consistently accurate batching
- 8 built-in weighing and batching modes including weigh-in and loss-in-weight
- Sub-display for real-time setpoint feedback and simplified calibration
- Supplementary flow function for accurate performance on each batch cycle
- Automatic weight accumulation and count accumulation
- Hold and peak-hold functions; user-programmable timers and alarms
- IP-65 splash-proof front panel and keypad
- Compact DIN-size housing (144 × 72 mm panel cutout) for easy control panel installation
- Digital Span Calibration for remote technical support
- Drop-in replacement for AD-4401 — same size, connectors, and default settings
Model Specifications
| Specification | AD-4401A Base Unit |
AD-4401A-01 Parallel BCD Output |
AD-4401A-03 RS-422/485 Serial |
AD-4401A-04 RS-232C Serial |
AD-4401A-07 Analog Output |
AD-4401-10 Adapter Bracket |
AD-4401A-23 Ethernet |
|---|---|---|---|---|---|---|---|
| Price | $1,840 | $2,220 | $2,195 | $2,170 | $2,365 | $2,080 | $2,260 |
| Option Add-On | — | Parallel BCD Output (Open Collector) | RS-422/485 Serial Interface | RS-232C Serial Interface | Analog Output (4~20 mA) | Adapter Bracket (replaces AD-4323) | Ethernet (Modbus-RTU/TCP) |
| Display | Bright VFD (fluorescent), 6-digit main + sub-display | ||||||
| Display Resolution | Up to 16,000 counts (external); up to 1,000,000 counts (A/D) | ||||||
| Sampling Rate | 100 times/second | ||||||
| Sensitivity | 0.3 µV/d | ||||||
| Front Panel Rating | IP-65 splash-proof | ||||||
| Housing | Compact DIN-size | ||||||
| Dimensions (W × H × D) | 144 × 72 × 197 mm | ||||||
| Power Supply | 100–240 V AC (±10%/−15%), 50/60 Hz ±5% | ||||||
| Operating Temperature | -10°C to +40°C (<85% RH, non-condensing) | ||||||
| Certifications | CE, OIML | ||||||
