Features:
Eliminates Interferences
- Easy ION switch allows built-in fan-less internal ionizer to neutralize electrostatically charged objects instantly at no additional costs
- Large breeze chamber is flexible enough to adjust to all sample vessels small or large
- Anti-static glass coating blocks outside electrical interferences
- Auto response adjustment allows balance to auto or manually stabilize FAST, MID, SLOW depending on draft &vibration influences
- Built in environmental sensors monitor and display the temperature, humidity and atmospheric pressure
Superior Functionality
- Illuminated back-mounted spirit level bubble helps reduce leveling time and increase accuracy & precision
- One touch Full Digital Calibration (internal & external) ensures balance is calibrated onsite for the best performance
- Auto Self Calibration will detect changes in ambient temperature and auto calibrate.
Diverse Data Solutions
- Data Memory up to 200 points
- GLP/GMP/GCP/ISO compliant reports with Manufacturer, Model, Serial, Balance ID, Time/Date, Mass Std, Signature space
- Comes standard with USB and RS-232C with Optional Bluetooth and LAN Ethernet Interface with WinCT-Plus software
- AD1688 Data Logger hand held device allows storage up to 5,000 pt with time/date and direct output via USB
Specifications:
- Model: BM-5, BM-5D, BM-20, BM-22, BM-252, BM-200, BM-300, BM-500
- Weighing capacity: 5.2 g, 2.1 / 5.2 g*1, 22 g, 5.1 g / 22 g*1, 250 g, 220 g, 320 g, 520 g
- Readability: 0.001 mg, 0.001/0.01 mg, 0.001 mg, 0.001 / 0.01 mg, 0.01 mg, 0.1 mg
- Repeatability (Standard Deviation): 0.0012 mg*2, 0.01 / 0.04 mg*2, 0.0025 mg*2, 0.004*2 /0.01 mg, 0.03 mg
(for 100 g), 0.1 mg, 0.2 mg - Linearity: ±0.010 mg, ±0.010 /±0.02 mg, ±0.010 mg, ±0.010 /±0.02 mg, ±0.010 mg, ±0.2 mg, ±0.3 mg, ±0.5 mg
- Minimum weight (typical)*3: 2.0 mg, 5.0 mg, 3.0 mg, 5.0 mg, 20 mg, 120 mg
- Stabilization time (set to FAST): ~10 sec, ~8 /10 sec, ~10 sec, ~8 /10 sec, ~8 sec, ~3.5 sec.
- Sensitivity drift (10 °C to 30 °C): ±2 ppm / °C: (When automatic self calibration is not used )
- Operating temperature: 5 °C to 40 °C (41 °F to 104 °F), 85% RH or less (non-condensation)
- Display refresh rate: 5 times / sec or 10 times / sec
- Measurement Units (Display mode): g, mg, oz, ozt, ct, momme, dwt, GN, tael*4, tola*4, messghal, pieces (counting mode), % (percent mode), Specific gravity
- Counting mode: Minimum unit mass = 0.1 mg / Number of samples = 10, 25, 50 or 100 pieces
- Percent mode: Minimum 100% ref. mass = 10.0 mg / Minimum 100% display = 0.01%, 0.1%, 1% (depends on the reference mass stored)
- Internal Memory: 200 sets weighing data / 100 sets with date & time / 50 sets of calibration data
- External Data Logger: Store up to 5,000 weighing results with date & time to AD-1688 (standard)
- Data Output: GLP / GMP / GCP / ISO compliant. Outputs: balance manufacturer, model, s/n, balance identification number, data, time of calibration, mass used, and space for signature.

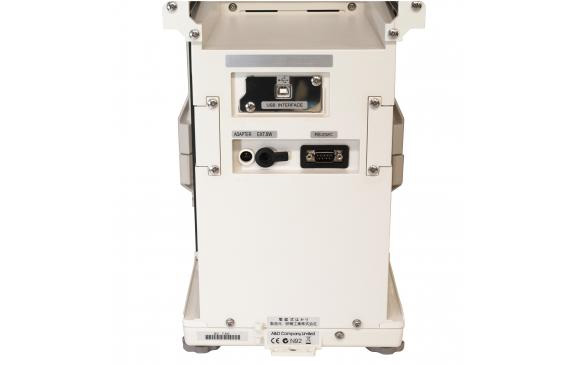

- Standard interface: RS-232C, Quick USB, External key plug for optional foot switch (SW:128)
- Internal calibration: Motor-driven internal calibration
- External calibration masses (g): 5, 2, 1 / 20, 10, 5, 2, 1 / 200, 100, 50, 20, 10 / 200, 100, 50 / 300, 200, 100, 50/ 500, 300, 200, 100, 50
- Ionizer electrode pin life: ~10,000 hours of continuous use. (User replaceable)
- Weighing pan diameter: 25 mm (50 mm, 95 mm for weighing filter optional) 90 mm
- Power consumption: ~30 VA (supplied by the AC adapter)
- External dimensions / Weight: 690(W) × 860(D) × 630(H) mm 24kg (include AD-1676) / 259 (W) x 466 (D) x 326 (H) mm / 10 kg
- Standard accessories: AD-1676 tabletop draft enclosure (BM5/5D only), Gold coated pans (Ø50 mm and Ø95 mm) for weighing filters, Aluminum pans 3 sizes – 10 each, AX-BM-032 microtube holder, AD-1688 weighing data logger, AD-1689 tweezers, AX-BM-033 dust storage cover AD-1688 weighing data logger, AD-1689 tweezers × 1, AX-BM-033 dust storage cover
Model/Capacity/Readability/Pan Size:
- BM-5: 5.2 g / 0.001 mg / Ø 0.98″
- BM-5D: 2.1 / 5.2 g*1 / 0.001/0.01 mg / Ø 0.98″
- BM-20: 22 g / 0.001 mg / Ø 0.98″
- BM-22: 5.1 g / 22 g*1 /0.001 / 0.01 mg / Ø 0.98″
- BM-252: 250 g / 0.01 mg / Ø 3.54″
- BM-200: 220 g /0.01 mg / Ø 3.54″
- BM-300: 320 g / Ø 3.54″
- BM-500: 520 g / Ø 3.54″
