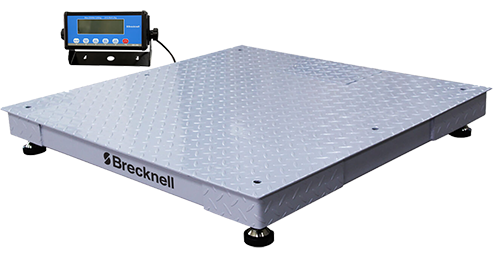

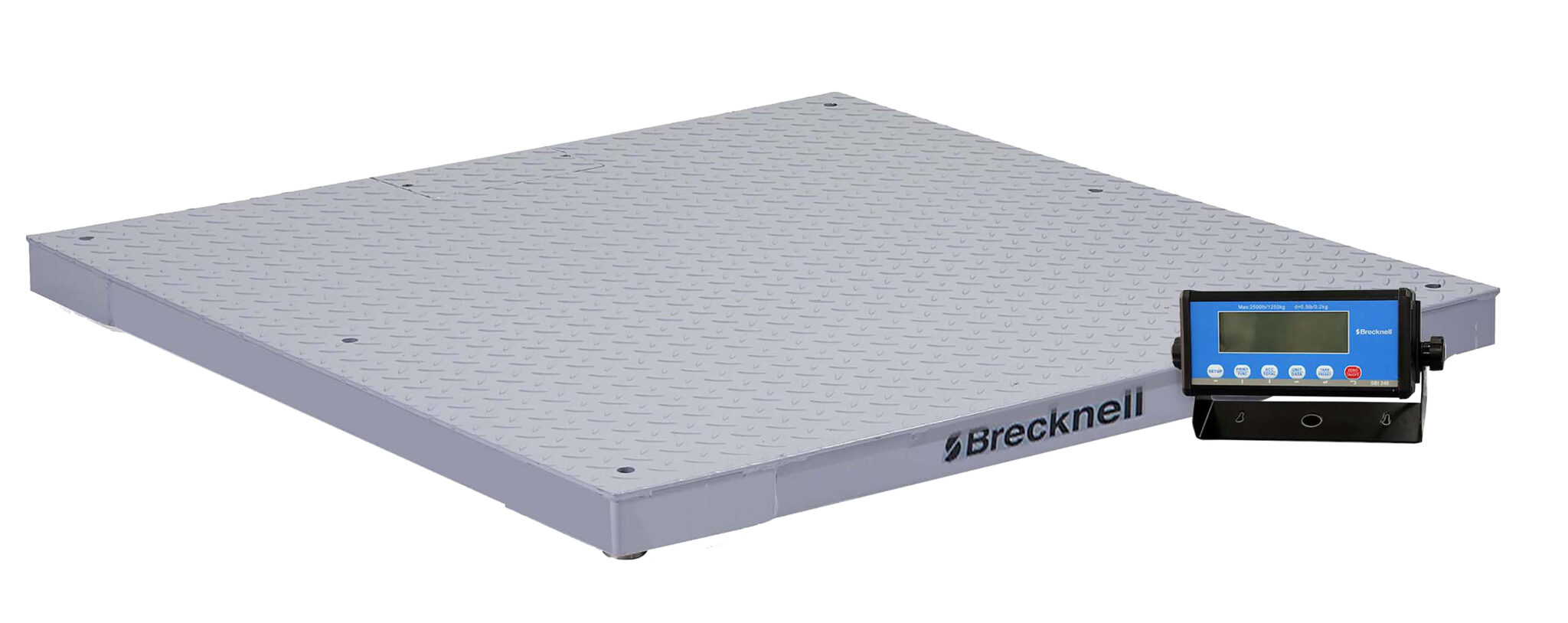

The Brecknell DCSB Pegasus is one of the most trusted low-profile industrial floor scales in North America — rugged enough for daily pallet weighing on the dock but accurate enough for NTEP legal-for-trade applications. The 3.1" platform height eliminates the need for a ramp in most pallet jack and forklift operations, and the IP67-rated load cells hold up to hose-down cleaning and wet environments. The SBI-240 LCD indicator ships pre-calibrated with USB and RS-232 ports, and the entire system is ready to use out of the box.
Standard Features:
- NTEP certified — COC #02-070, legal for trade
- 3.1" low-profile platform — pallet jack friendly, no ramp required in most applications
- (4) IP67-sealed alloy tool steel load cells — wash-down safe
- Anti-slip checker plate steel platform with structural channel ribbing
- 150% overload protection
- SBI-240 LCD indicator with 1" backlit display
- USB and RS-232 connectivity
- 15 ft cable included
- Factory pre-calibrated — ready to use out of the box
- Adjustable leveling feet included
- Functions: parts counting, totaling, percentage weighing, checkweighing
- 1-year manufacturer warranty
Applications:
- Shipping dock and receiving — weigh pallets directly off the pallet jack
- Warehouse inventory and freight weighing
- Manufacturing — batch and in-process weighing
- Food processing and agricultural operations
- Legal-for-trade commercial weighing
What's Included:
- DCSB platform scale
- SBI-240 LCD indicator
- 15 ft connection cable
- Adjustable leveling feet
- AC power adapter
Specifications:
| Specification | DCSB3636 | DCSB4848-05 | DCSB4848-10 | DCSB6060-05 | DCSB6060-10 |
|---|---|---|---|---|---|
| Platform Size | 3'×3' (36"×36") | 4'×4' (48"×48") | 4'×4' (48"×48") | 5'×5' (60"×60") | 5'×5' (60"×60") |
| Capacity | 2,500 lb | 5,000 lb | 10,000 lb | 5,000 lb | 10,000 lb |
| Readability | 0.5 lb | 1 lb | 2 lb | 1 lb | 2 lb |
| NTEP Legal for Trade | Yes — COC #02-070 | Yes — COC #02-070 | Yes — COC #02-070 | Yes — COC #02-070 | Yes — COC #02-070 |
| Platform Height | 3.1" | 3.1" | 3.1" | 3.1" | 3.1" |
| Platform Material | Anti-slip checker plate steel | Anti-slip checker plate steel | Anti-slip checker plate steel | Anti-slip checker plate steel | Anti-slip checker plate steel |
| Load Cells | (4) IP67 alloy tool steel | (4) IP67 alloy tool steel | (4) IP67 alloy tool steel | (4) IP67 alloy tool steel | (4) IP67 alloy tool steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Overload Protection | 150% | 150% | 150% | 150% | 150% |
| Indicator | SBI-240 LCD | SBI-240 LCD | SBI-240 LCD | SBI-240 LCD | SBI-240 LCD |
| Display | 1" LCD backlit | 1" LCD backlit | 1" LCD backlit | 1" LCD backlit | 1" LCD backlit |
| Connectivity | USB + RS-232 | USB + RS-232 | USB + RS-232 | USB + RS-232 | USB + RS-232 |
| Cable Length | 15 ft | 15 ft | 15 ft | 15 ft | 15 ft |
| Calibration | Factory pre-calibrated | Factory pre-calibrated | Factory pre-calibrated | Factory pre-calibrated | Factory pre-calibrated |
| Operating Temp. | 14°F–104°F | 14°F–104°F | 14°F–104°F | 14°F–104°F | 14°F–104°F |
| Warranty | 1-year | 1-year | 1-year | 1-year | 1-year |
