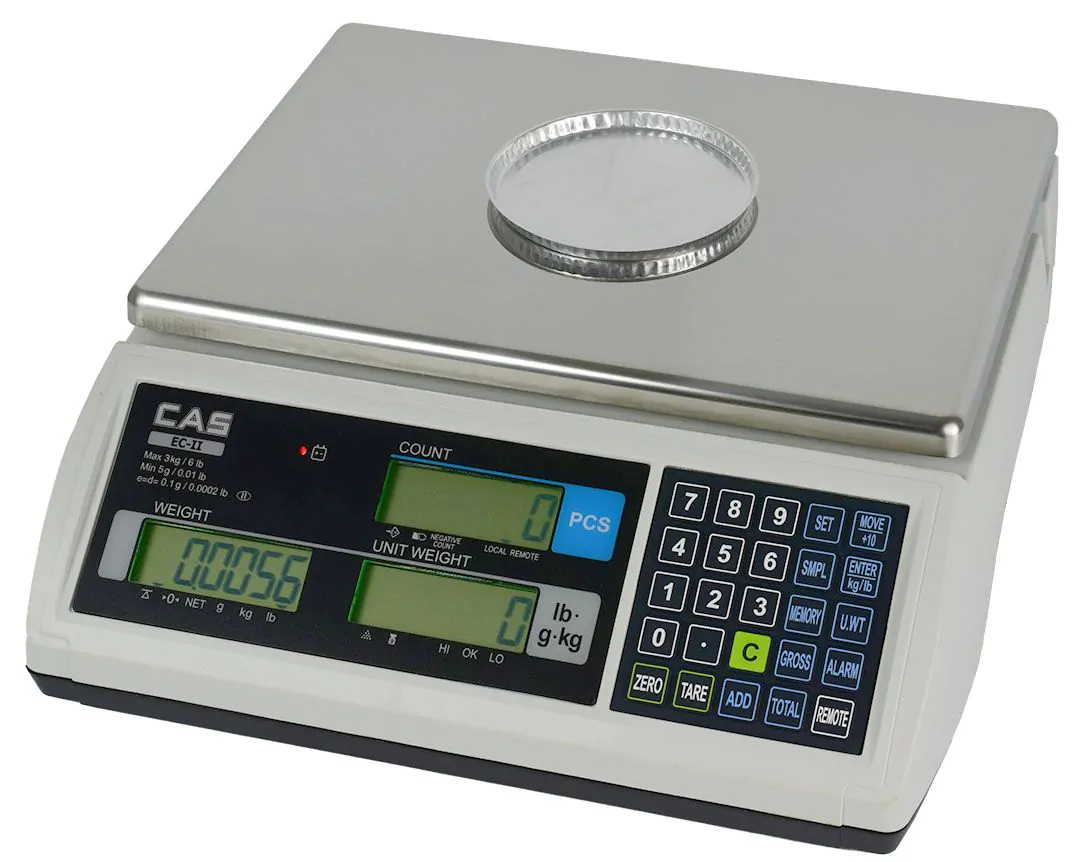

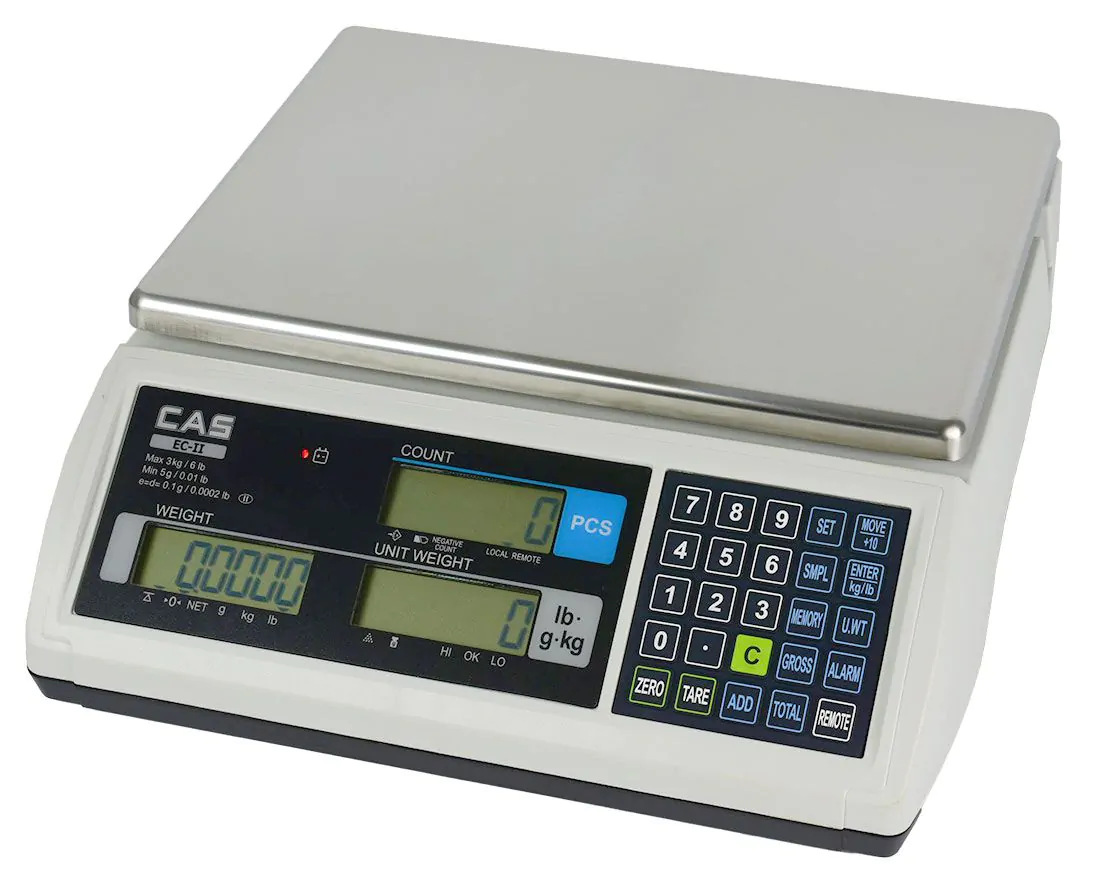

CAS EC2-6, EC2-15, EC2-30, & EC2-60 Counting Scale

The EC-2 Series counting scale is a reliable, easy-to-use solution for fast and accurate parts counting. It helps reduce manual counting errors, improve inventory accuracy, and save valuable labor time in warehouses, manufacturing, and stockroom environments.

The scale works by establishing an average piece weight from a small sample, then automatically converting total weight into an accurate piece count. With multiple capacity options, fine resolution, and a clear LCD display, it delivers consistent results for a wide range of counting applications.

For businesses that handle large volumes of small parts, the EC-2 is a cost-effective tool that speeds up receiving, packing, and inventory control while improving accuracy and efficiency across daily operations.

Features:

• Available in 6 lb, 15 lb, 30 lb, and 60 lb capacities
• Supports connection of a second platform to increase total capacity
• Stores up to 200 preset settings
• Allows simultaneous use of up to four external devices
• Selectable units: lb/kg or lb/g

Specifications:

• Model / SKU: EC-2 Series
• Capacity Options: 3,000 g, 15 lb, 30 lb, 60 lb
• Pole Display: No
• Display Type: LCD
• Weighing Range: Single range
• Units of Measure: lb, kg, grams
• Platform Dimensions: 13″× 13.6″× 4.2″ / 330 mm (W) × 346 mm (D) × 107 mm (H)
• Washdown Rating: Not washdown rated
• Legal for Trade: No
• Measurement Canada Approval: No
• NTEP Certified: No
• Warranty: Two-year warranty
• Mounting Kit: Single mount

What’s in the Box:

• Scale
• Plastic Platter
• Steel Platter
• A/C Adapter
• Load Cell
• Female Connector
• User’s Manual

Applications:

• Parts counting in warehouses – Fast, accurate counting of bolts, nuts, screws, and hardware
• Manufacturing & assembly lines – Inventory control for small components during production
• Inventory management – Verifying quantities for stock audits and cycle counts
• Shipping & fulfillment centers – Counting items before packing and shipment
• Automotive & repair shops – Managing small parts like fasteners, clips, and fittings
• Electronics manufacturing – Counting resistors, capacitors, connectors, and PCB components
• Retail backrooms – Quick receiving and stocking of small packaged goods
• Aerospace & aviation maintenance – Accurate counting of precision hardware and fasteners
• Medical & pharmaceutical supply rooms – Counting non-sterile components and accessories
• Tool cribs & MRO departments – Tracking consumables and replacement parts

Options:

• Light Tower and Relay
• DEP-50 Receipt Printer
• DLP-50 Label Printer
• TMU295 Epson Slip Printer

Models:

• EC2-6: 6 x 0.0002 lbs
• EC2-15: 15 x 0.0005 lbs
• EC2-30: 30 x 0.001 lbs
• EC2-60: 60 x 0.002 lbs

Resources:

• EC-2 Brochure
• EC2 Owners Manual
