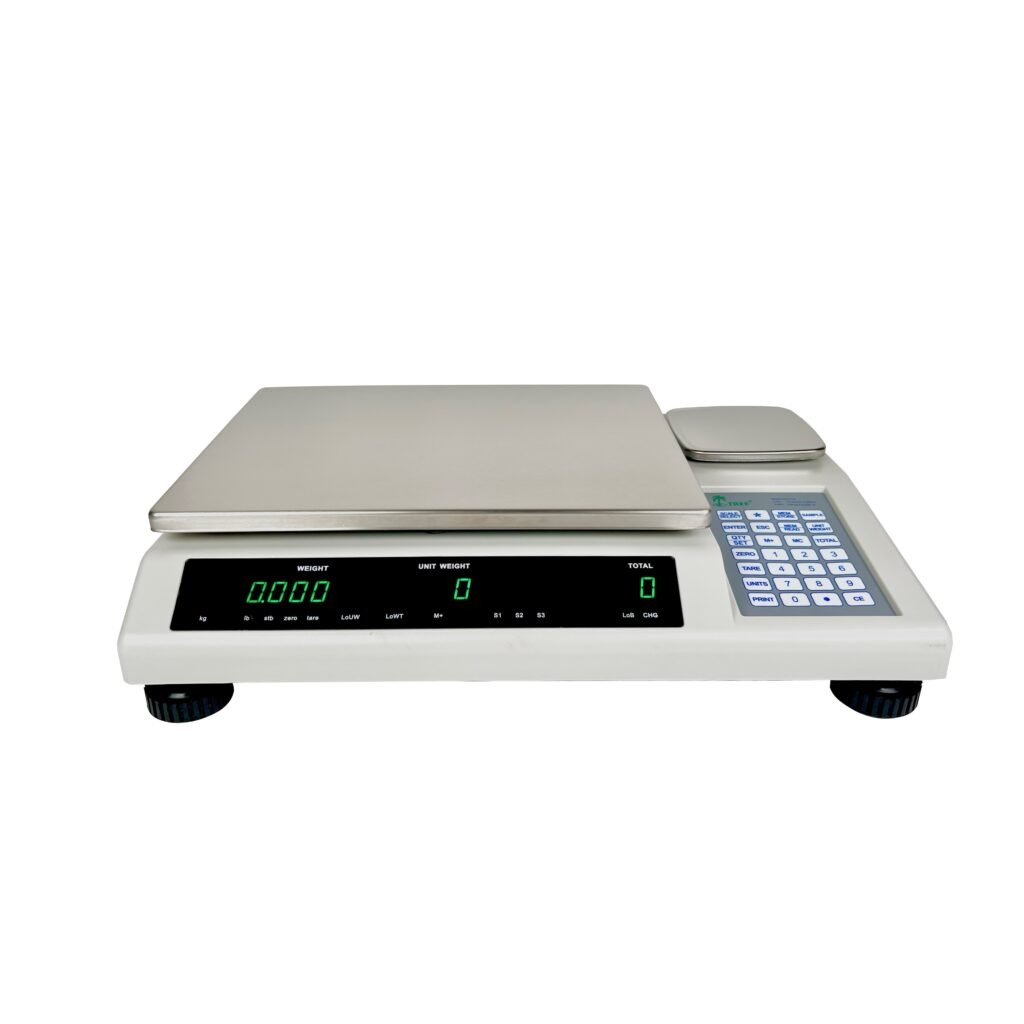

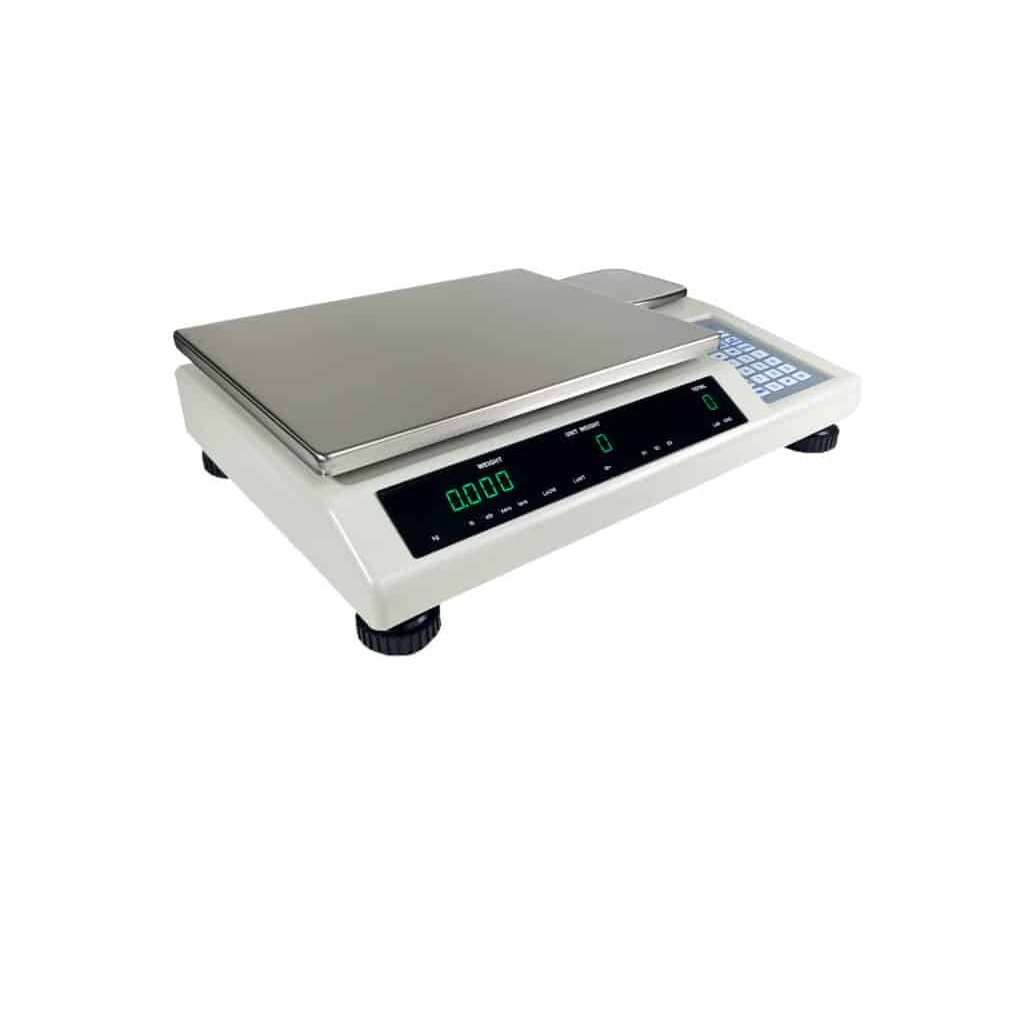

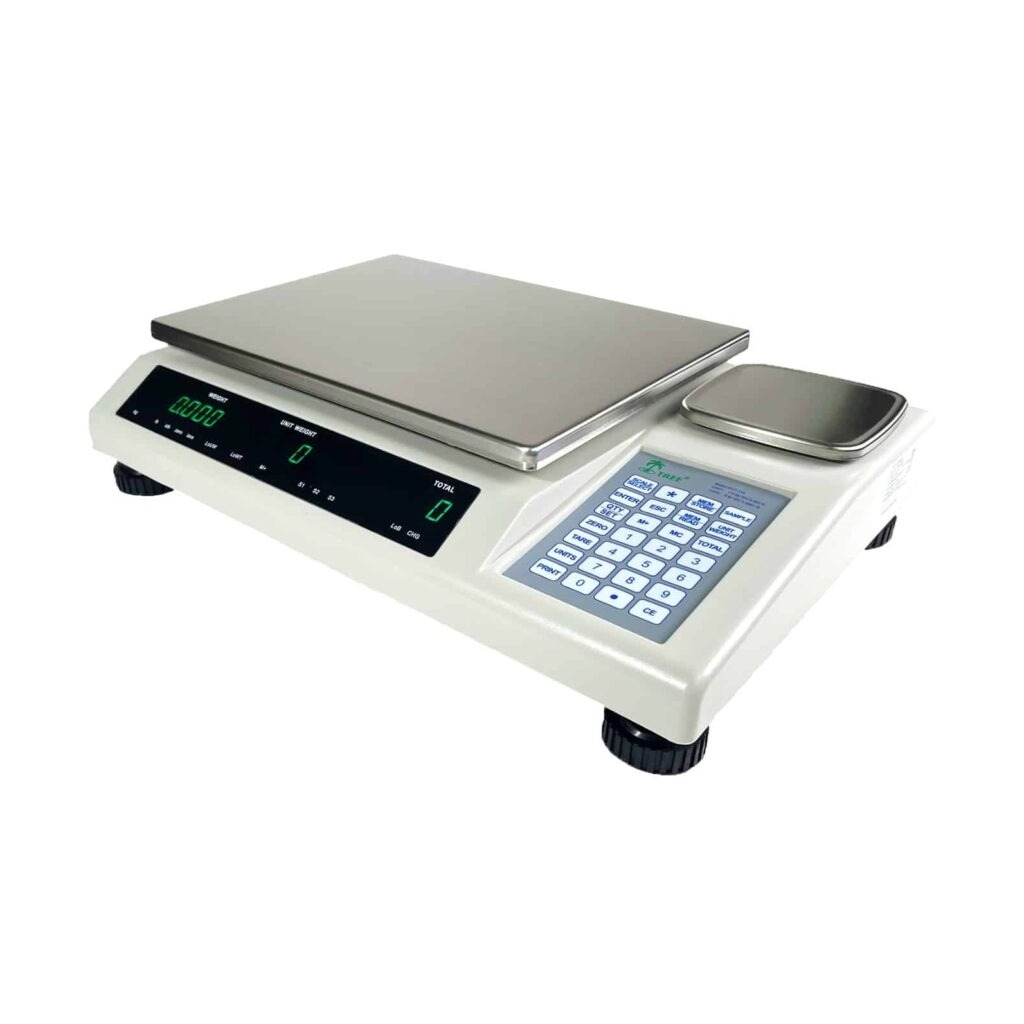

The DCT Series gives you two scales in one chassis: a high-precision counting scale that pairs a 50 lb (DCT-50) or 110 lb (DCT-110) main platform for bulk counting with a small 4.5″ x 4.5″ sample platform that reads down to 0.00005 lb (DCT-50) or 0.0001 lb (DCT-110). The dual-platform design delivers up to 40x the resolution of a single-platform counting scale, which means accurate counts on small high-value parts even when bulk-weighing thousands at a time. Both models include a 28-key keypad with 16-item memory, RS-232 and USB, rechargeable lithium battery, AC adapter, and a 2-year manufacturer warranty.
Capacity Options:
- DCT-50: 50 lb x 0.001 lb main scale / 2 lb x 0.00005 lb sample scale — best for very small, light parts
- DCT-110: 110 lb x 0.002 lb main scale / 5 lb x 0.0001 lb sample scale — best for larger or denser parts
Standard Features:
- Dual-platform counting: bulk count on main + sample on small platter for high-resolution piece weights
- Main platform: 13.5″ x 10″ stainless steel (DCT-50 and DCT-110)
- Sample platform: 4.5″ x 4.5″ stainless steel
- Display: 1.8″ x 11.6″ LED with selectable beeper
- 50,000/40,000 (DCT-50) or 55,000/50,000 (DCT-110) display divisions, 16 million internal resolution
- 24-bit A/D processor, 10 Hz update speed, settling time under 2 seconds, accuracy +/-2d
- Full 28-key numeric keypad with 16-item memory for stored piece weights
- Manual piece weight entry, sampling, and built-in check counting with upper/lower limits
- AnyCAL calibration software — calibrate with any known mass
- Units: lb, kg with selectable unit switching

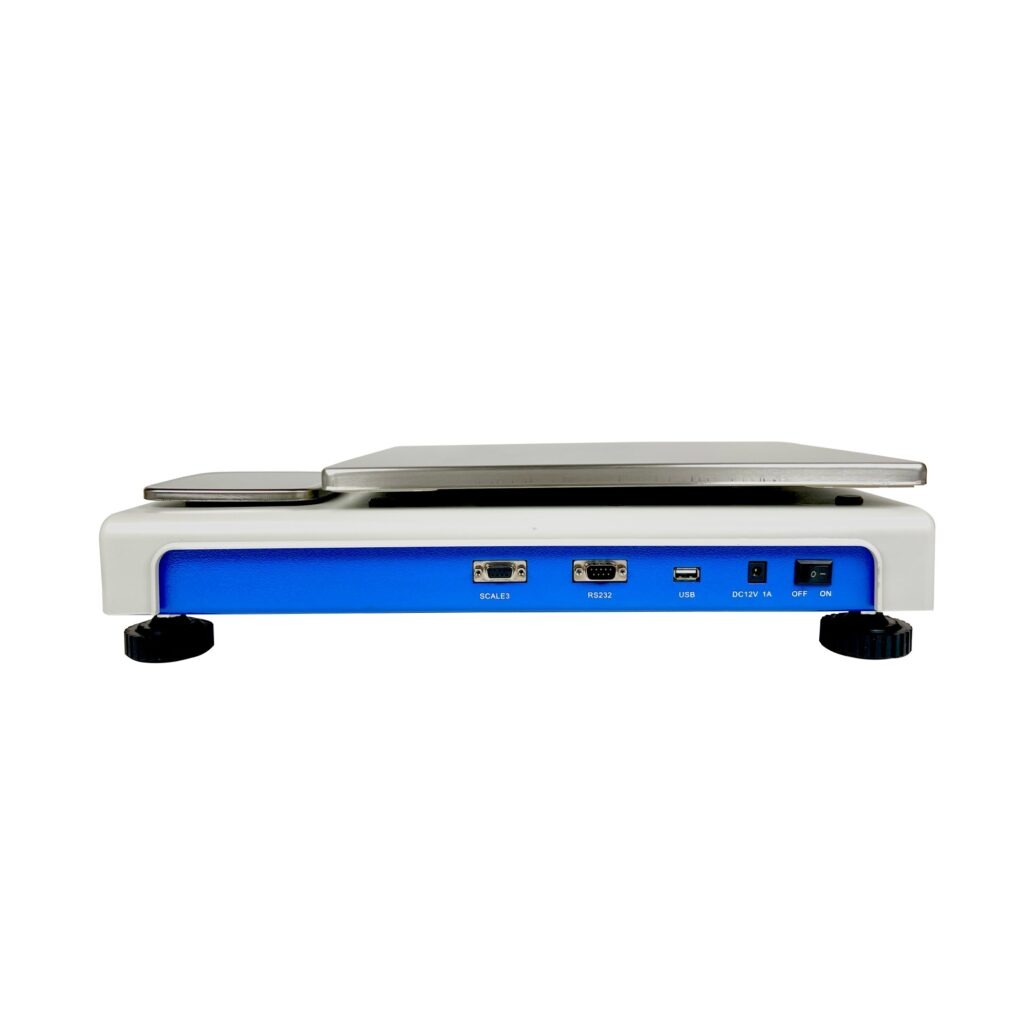

- RS-232 and USB outputs for printer or PC connection
- 7.4V 2200mAh lithium rechargeable battery + 12 VDC AC adapter included
- Operating range: 32°F to 104°F

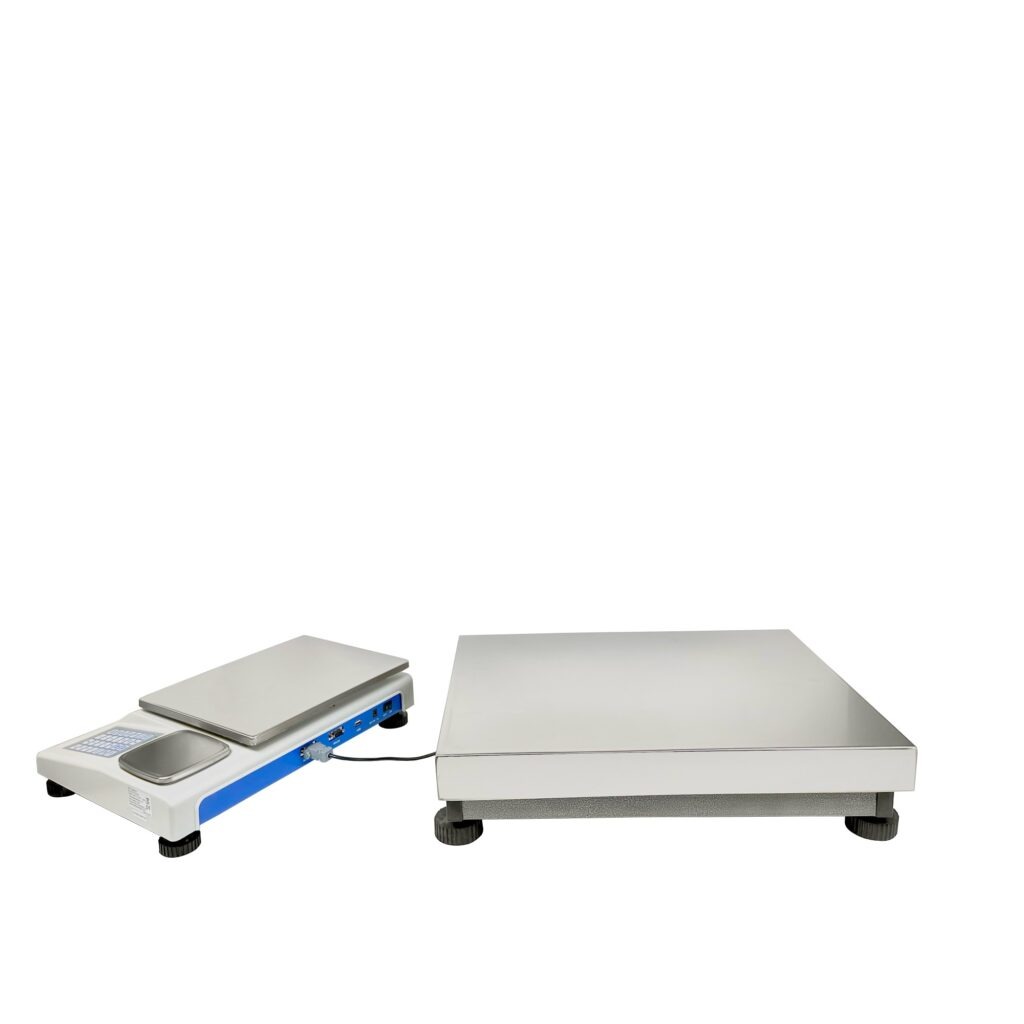

- Optional: LBS Base 3rd scale platform (500 lb x 0.1 lb) for bulk counting of larger items
- 2-year manufacturer warranty
- Non-NTEP (not legal for trade)
Replacement Parts:
- LBS Base — DCT 3rd Scale Add-On Platform (500 lb x 0.1 lb)
- LW Replacement Lithium Battery Pack
- LW Replacement AC Adapter
- LW Replacement Indicator
