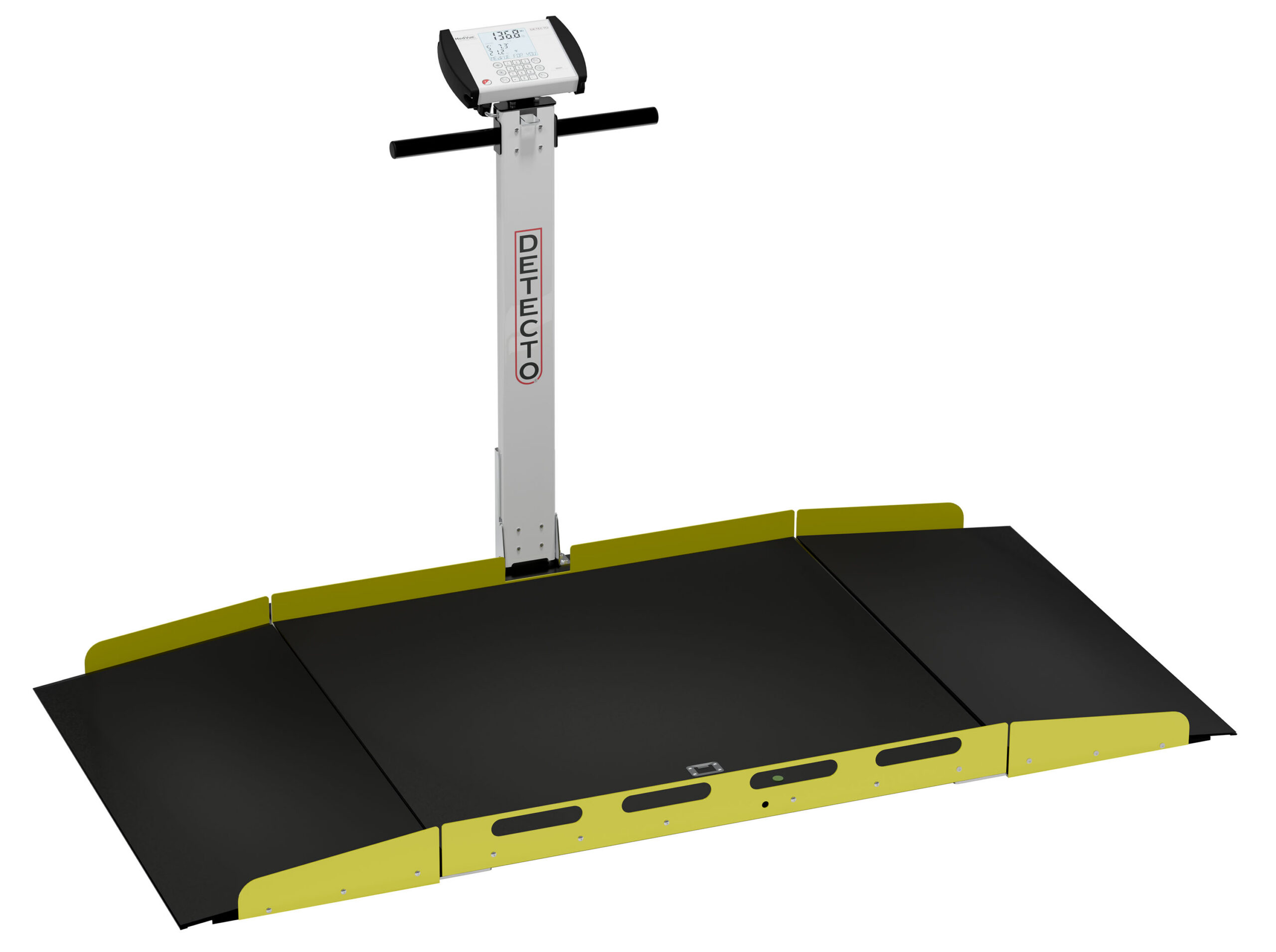

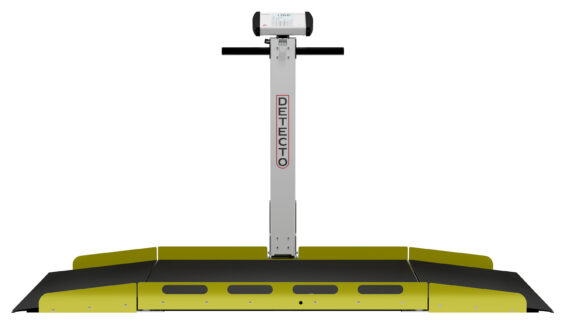

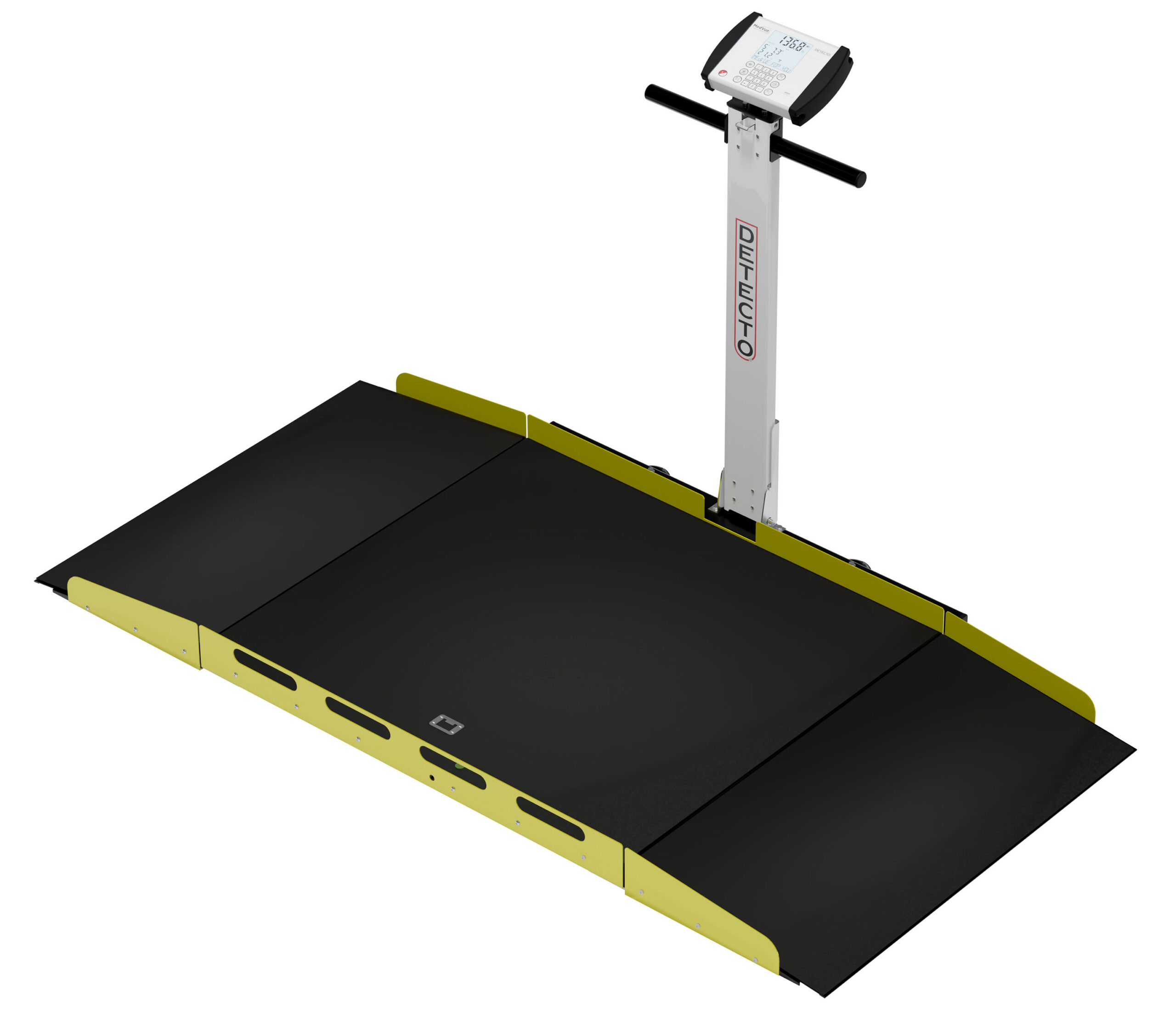

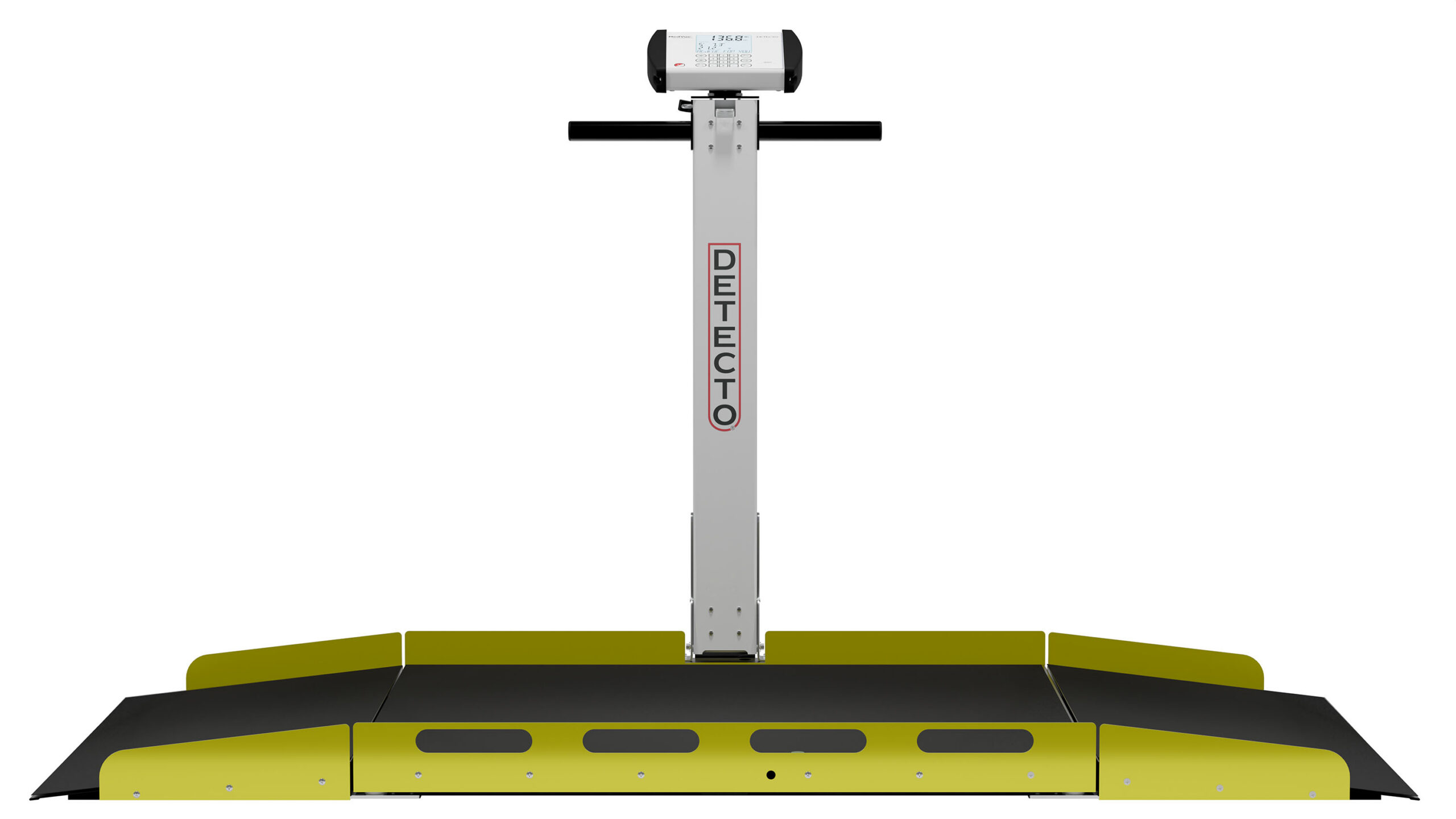

The Detecto 7150-AC is a USA-made, NTEP-certified ADA-Compliant Wheelchair Scale built for healthcare facilities preparing for the August 9, 2026 ADA enforcement deadline. With a 1,000 lb capacity, a 40″ x 36″ low-profile platform, and 1:8 shallow-angle dual ramps, it delivers safe roll-on weighing for patients in wheelchairs, walkers, or seated assistance — while keeping NTEP-certified medical dosage accuracy across 5,000 divisions.
ADA Compliance Deadline – August 9, 2026:
Under the updated ADA Title II Medical Diagnostic Equipment (MDE) standards, healthcare facilities must have at least 10% of patient weighing equipment ADA-compliant (20% for mobility and rehab facilities) by August 9, 2026. Facilities that fail to comply face Title II enforcement, civil penalties, and patient access lawsuits. The 7150-AC meets the full MDE Chapter 3 wheelchair scale requirements: 1:8 ramp slope, integrated side guide rails, low 2.2″ platform threshold, and 1,000 lb capacity for bariatric access.
ADA Compliant NTEP Approved TAA Compliant Made in USA
Why It Matters:
- NTEP Certified Medical Dosage Accuracy – 5,000 division resolution, legal-for-trade certified for clinical weight-based drug dosing
- 1,000 lb Capacity – Bariatric-ready, accommodates patient + wheelchair without recalibration

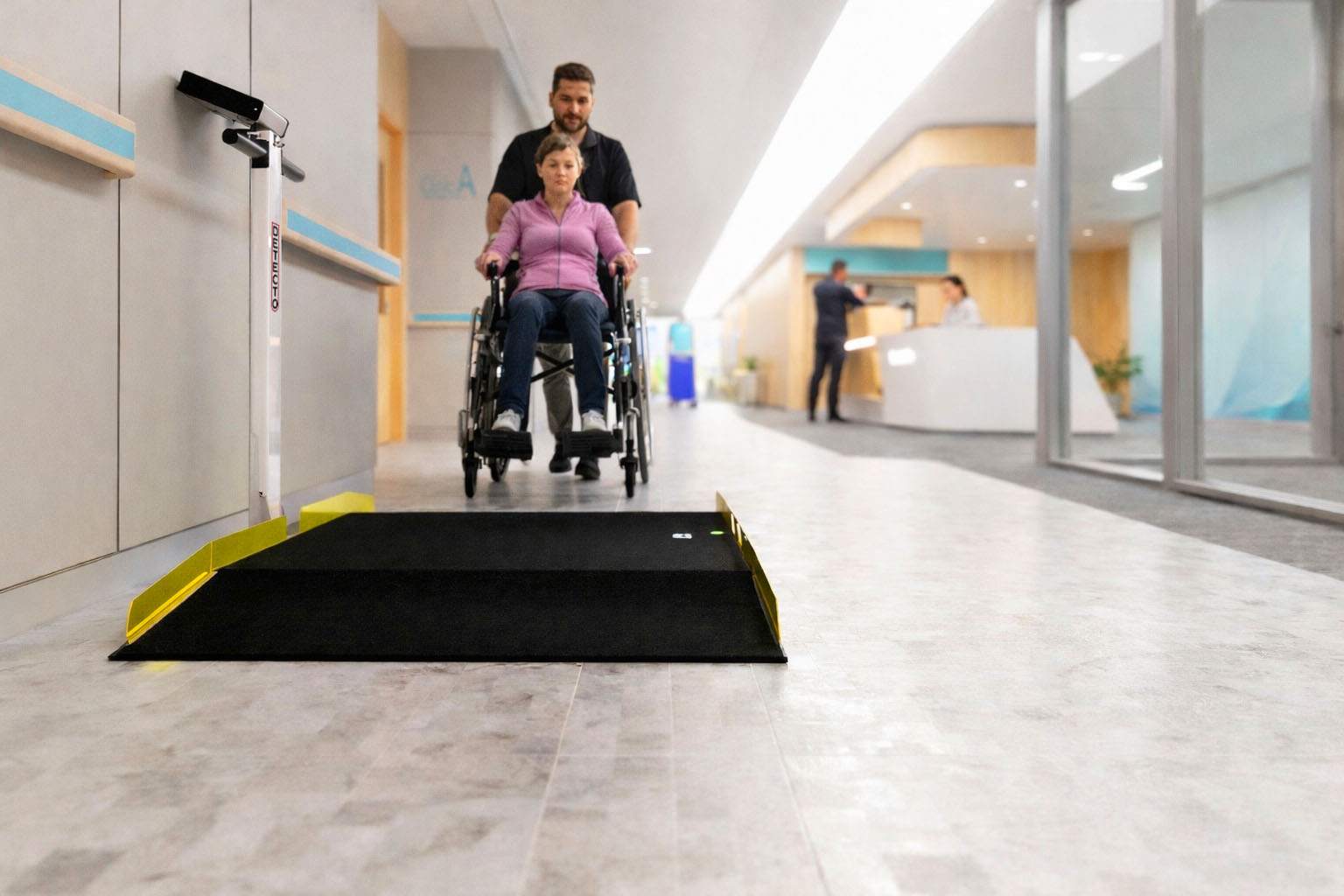

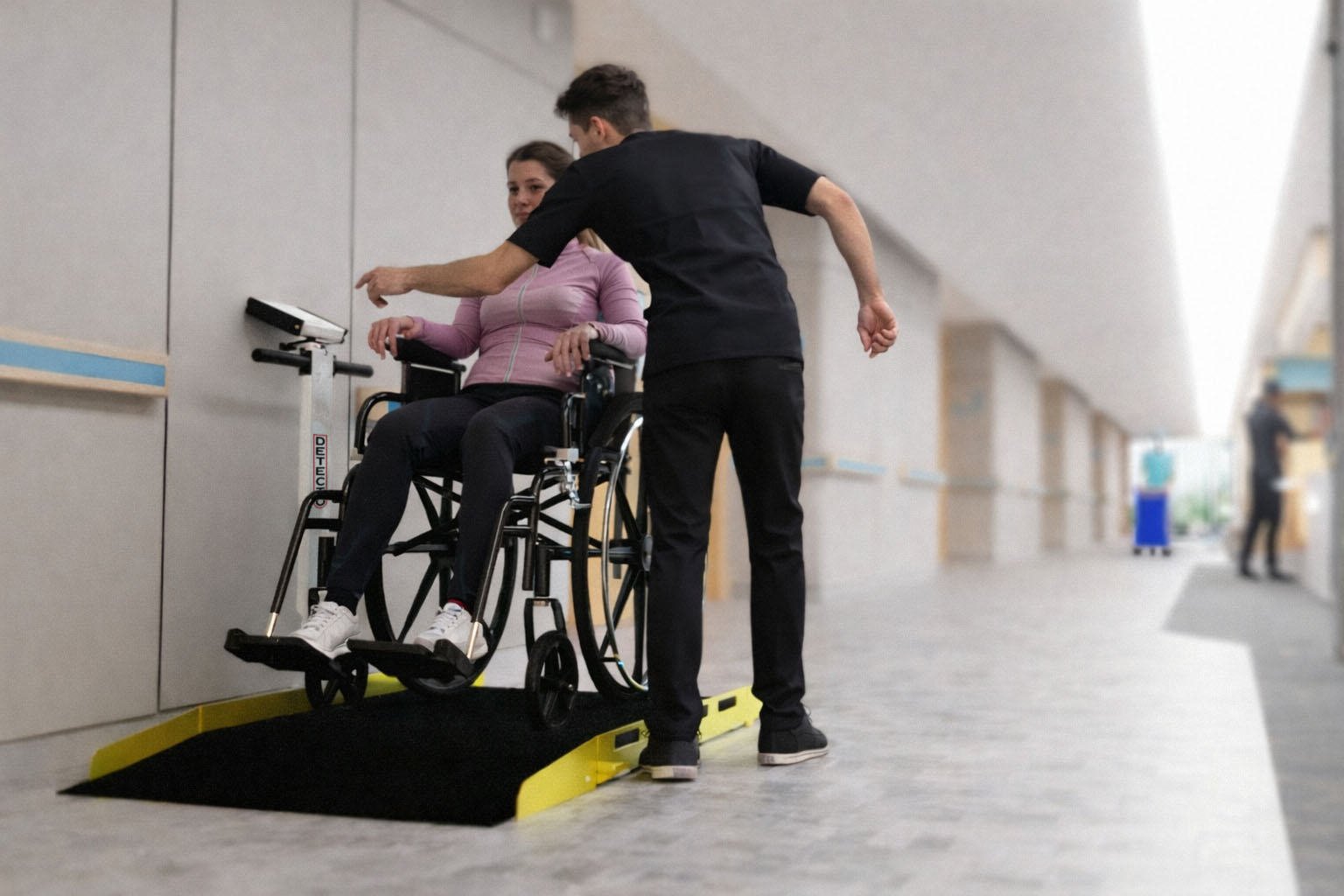

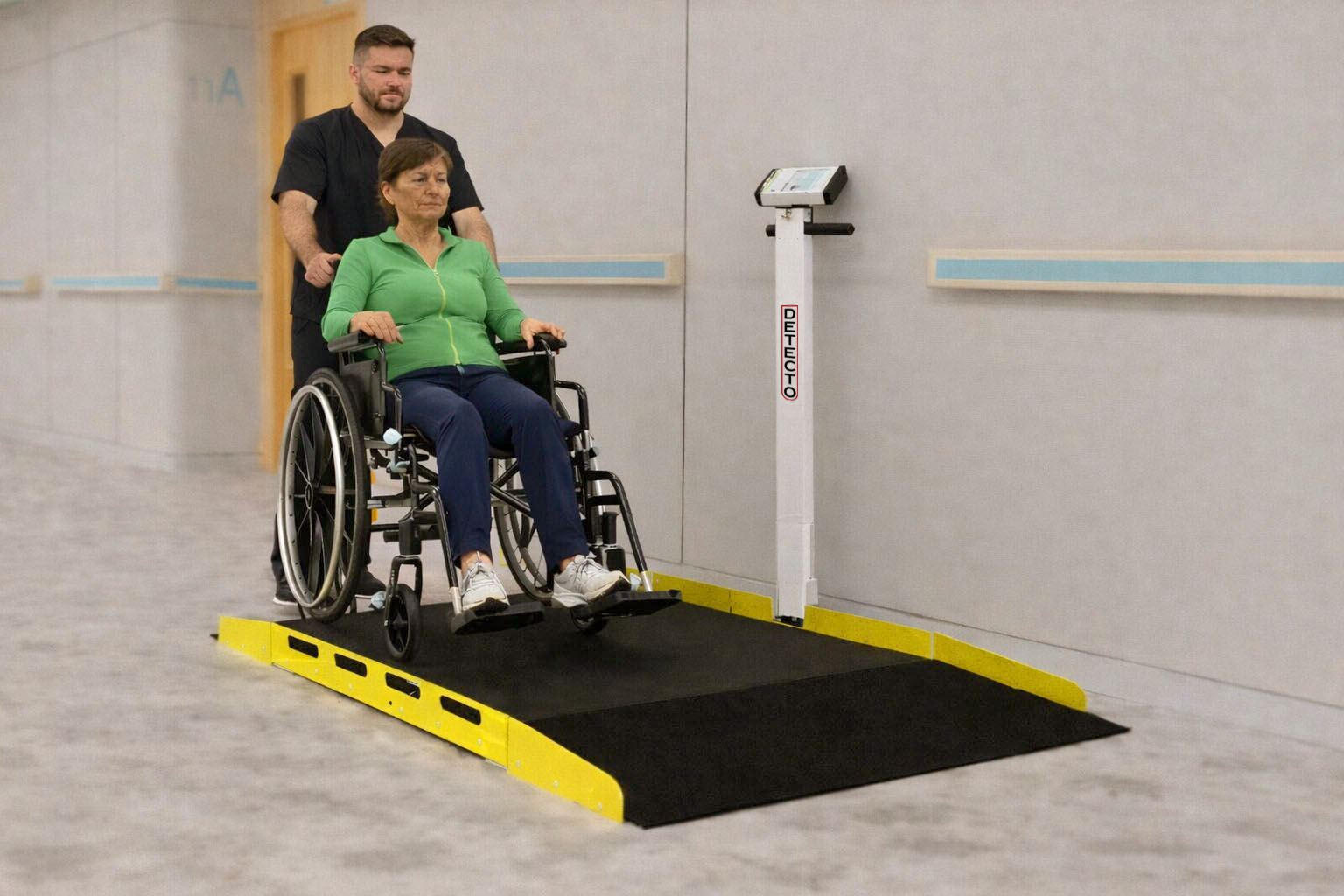

- 1:8 Shallow-Angle Dual Ramps – Safe two-way roll-on, eliminates wheelchair tipping risk and staff lifting strain
- Integrated Side Guide Rails – Keeps wheelchair properly aligned during weighing for repeatable accuracy
- Foldable + Two Integral Wheels – Folds to 11.4″ depth and rolls to next exam room in seconds
- EMR/EHR Ready – RS232 and USB output with optional Wi-Fi, Bluetooth, and Ethernet for direct EHR integration
- BMI Calculation – Built-in height-and-weight BMI display, no separate calculation step
- Quick-Release Collapsible Column – Drops the indicator column for tight storage or transport
- Made in USA – Built by Detecto / Cardinal Scale in Webb City, Missouri. TAA compliant for federal and VA contracts.
Standard Features:
- 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity and resolution
- 40″ W x 36″ D x 2.2″ H low-profile weighing platform
- 36″ x 17.4″ dual-access 1:8 shallow-angle wheelchair ramps (two-way roll-on)
- Integrated side guide rails for wheelchair alignment

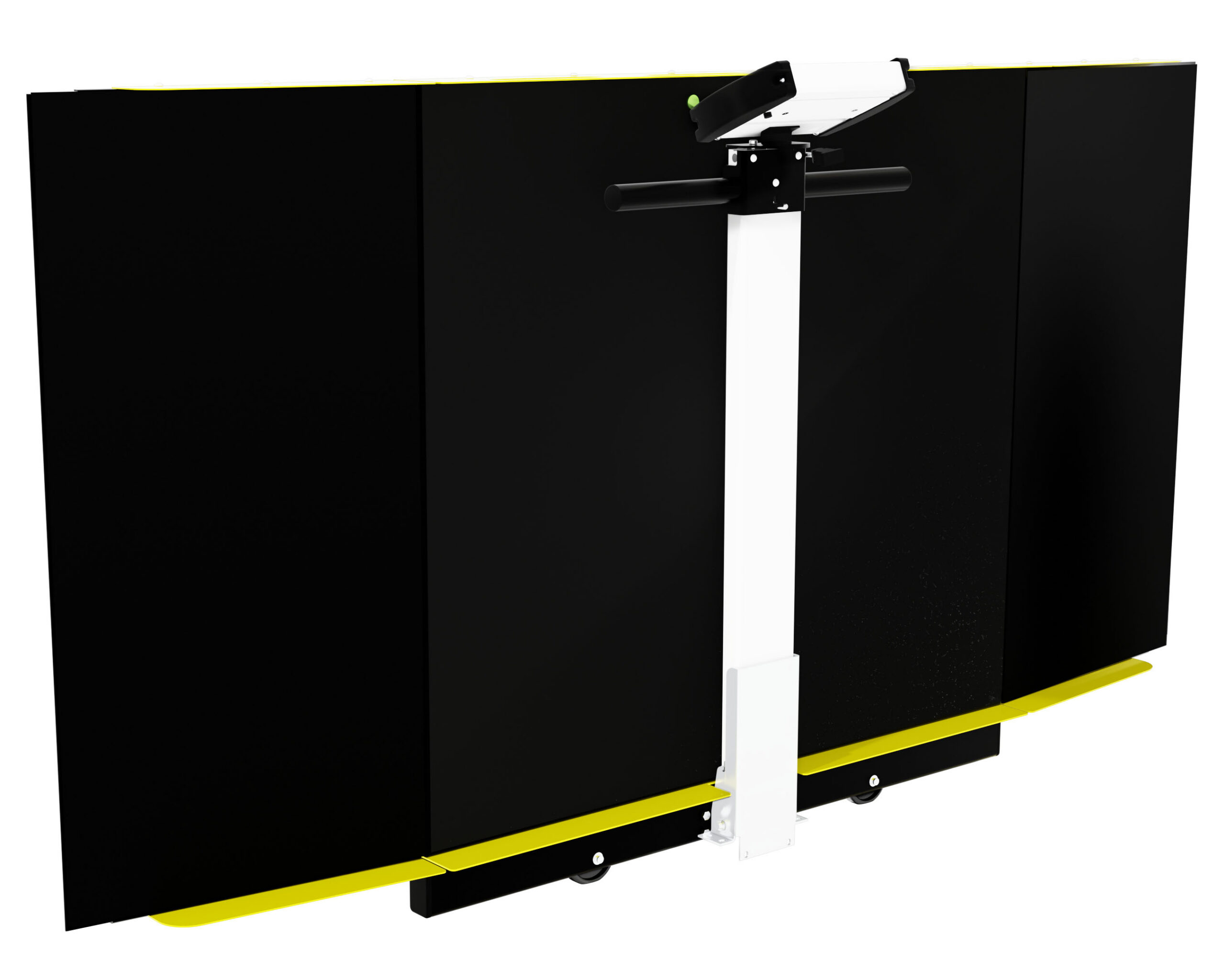

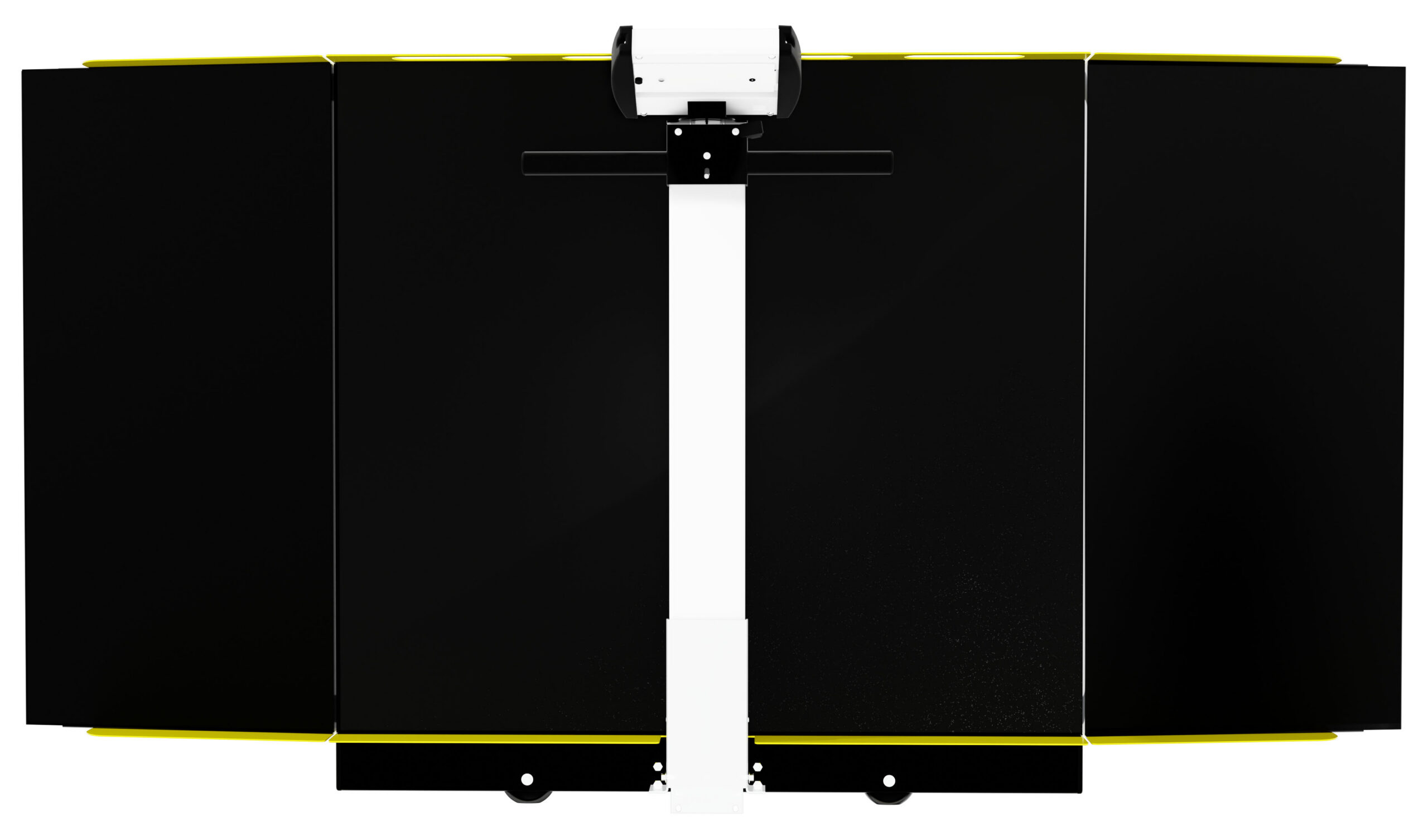

- Foldable construction – folds to 11.4″ depth for storage
- Two integral transport wheels and quick-release collapsible indicator column
- NTEP Certified – 5,000 division resolution (Class III)
- ADA Compliant per Medical Diagnostic Equipment (MDE) Chapter 3 standards
- TAA Compliant – eligible for federal, VA, and DoD purchasing
- Single-pass weighing with push-button tare
- Body Mass Index (BMI) calculation built in
- EMR / EHR ready – integrates directly with hospital records systems
- OIML EC Class III model also available for international use
- Ships 90% pre-assembled – minimal site setup
- Made in USA – Detecto / Cardinal Scale, Webb City, MO
Specifications:
- Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
- Platform Size: 40″ W x 36″ D x 2.2″ H
- Ramp Size: 36″ x 17.4″ (each, two ramps included)
- Folded Depth: 11.4″
- Overall Dimensions: 75″ W x 45″ H x 40″ D
- Net Weight: 143 lb / 65 kg
- Shipping Weight: 190 lb / 86 kg
- Display: 5-digit LCD, 7/8″ character height, 3.5″ W x 3″ H viewing area
- Keypad: 19-key color-coded sealed membrane
- Power: AC adapter (Model 6800-1045 included) or 6 C-cell batteries
- Connectivity: RS232 serial, USB (Wi-Fi, Bluetooth, Ethernet optional)
- Operating Temperature: 14 to 104 deg F / -10 to 40 deg C
- Country of Origin: USA (Webb City, Missouri)
- Certifications: NTEP, ADA Compliant, TAA Compliant
