Standard Features:

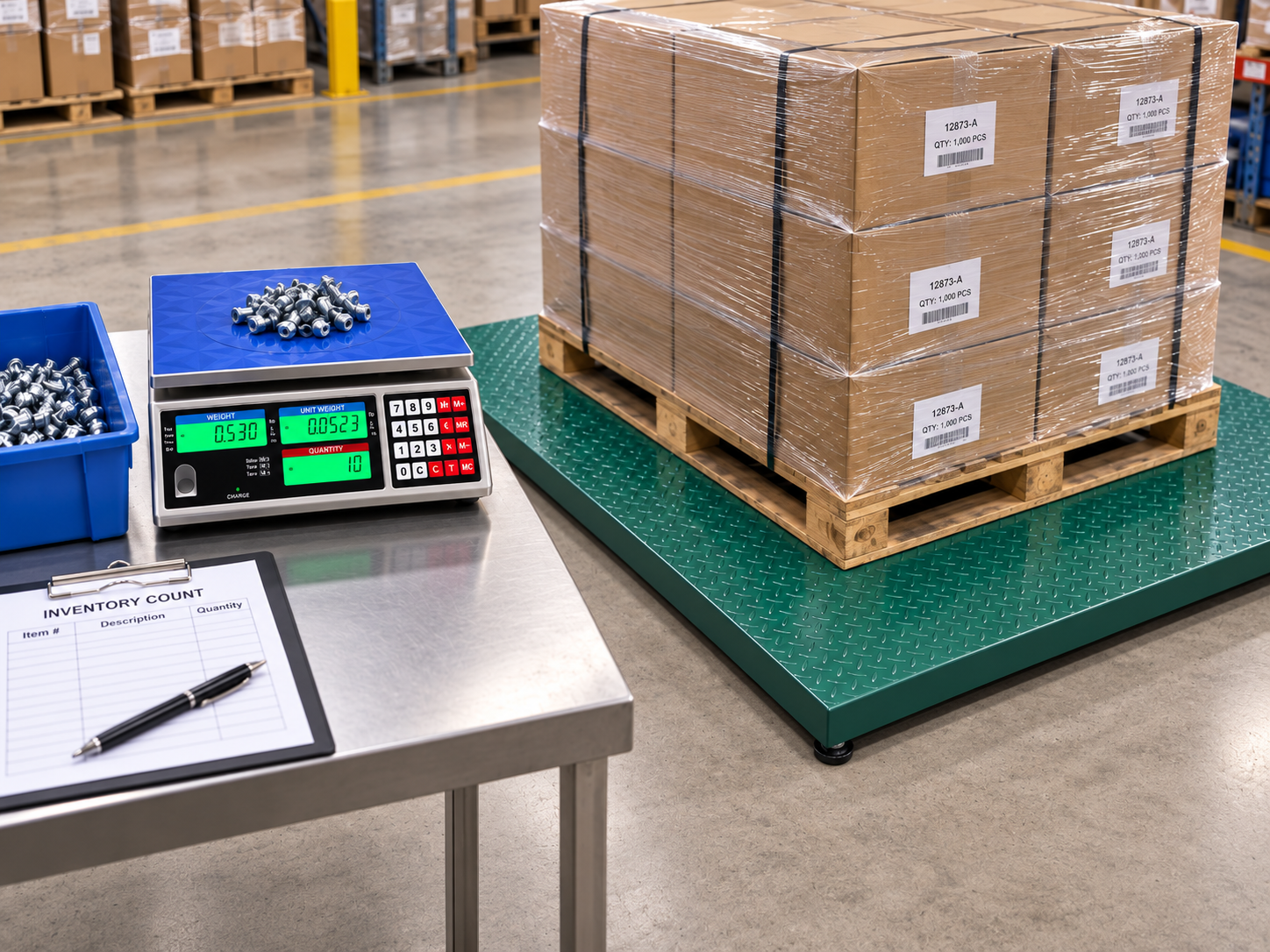

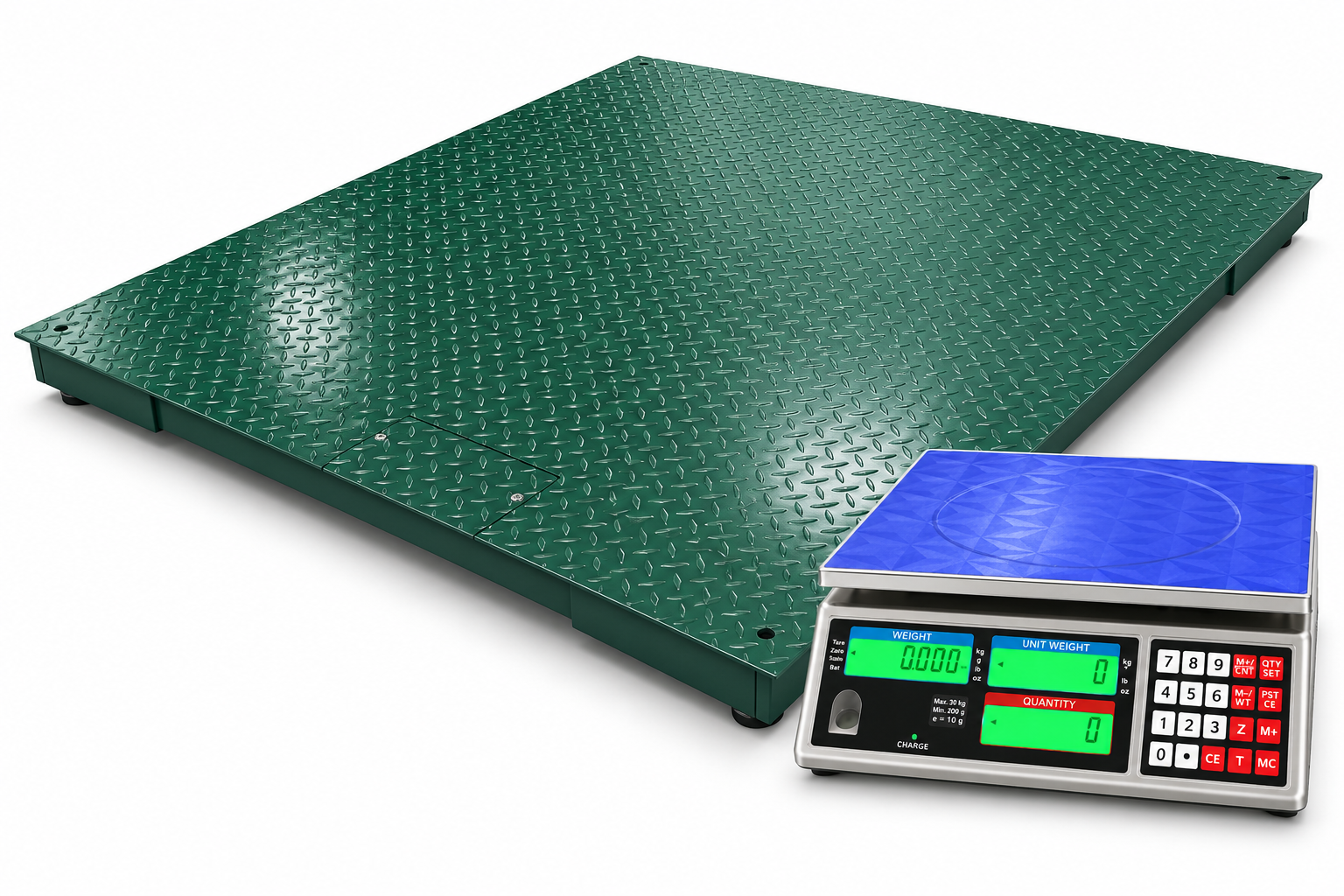

- Complete two-scale counting system — industrial floor scale + precision counting scale included
- Count small parts as light as 0.0002 lb with the included counting scale
- Floor scale capacities from 1,000 lb to 20,000 lb
- 12 platform sizes available — 24″ × 24″ through 84″ × 84″

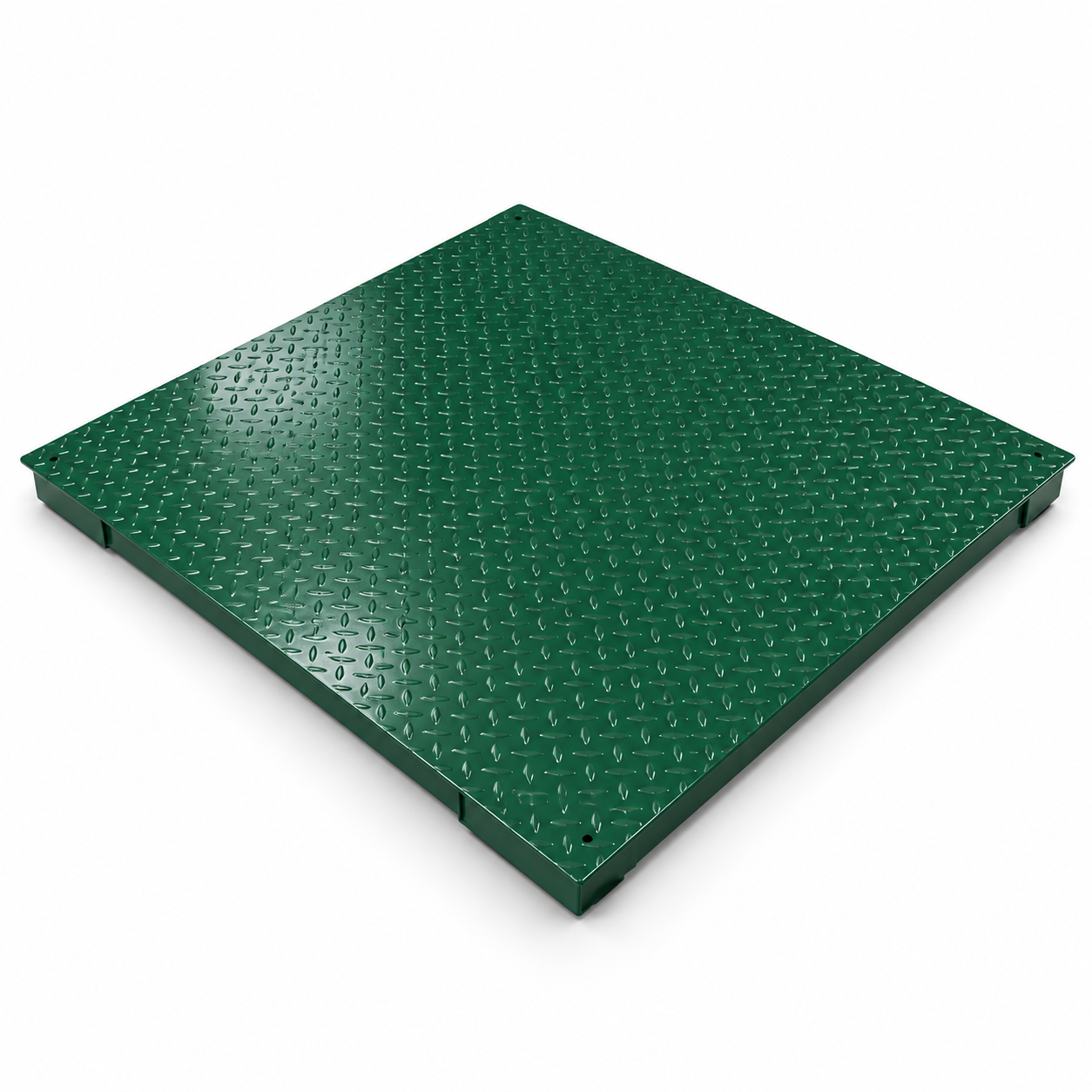

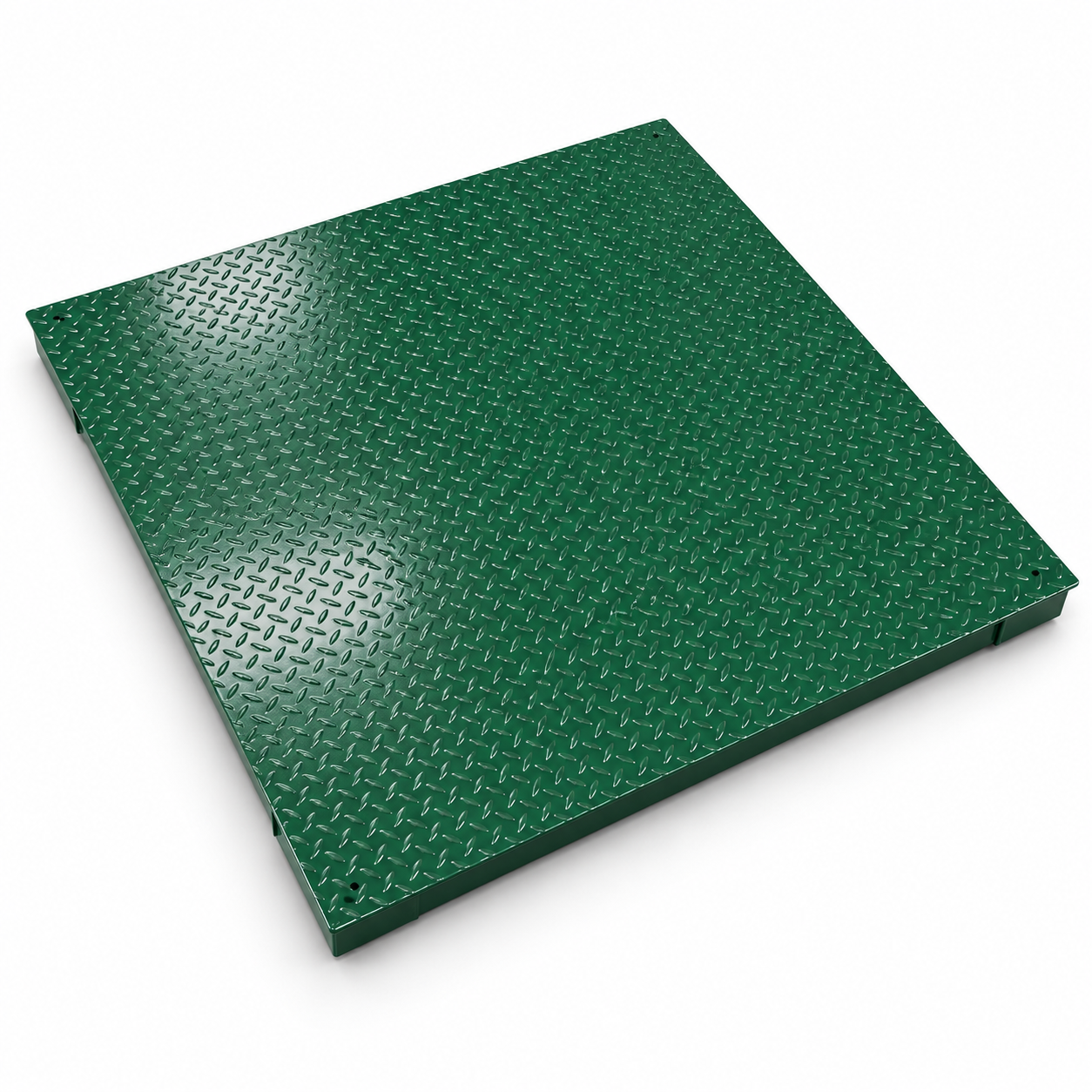

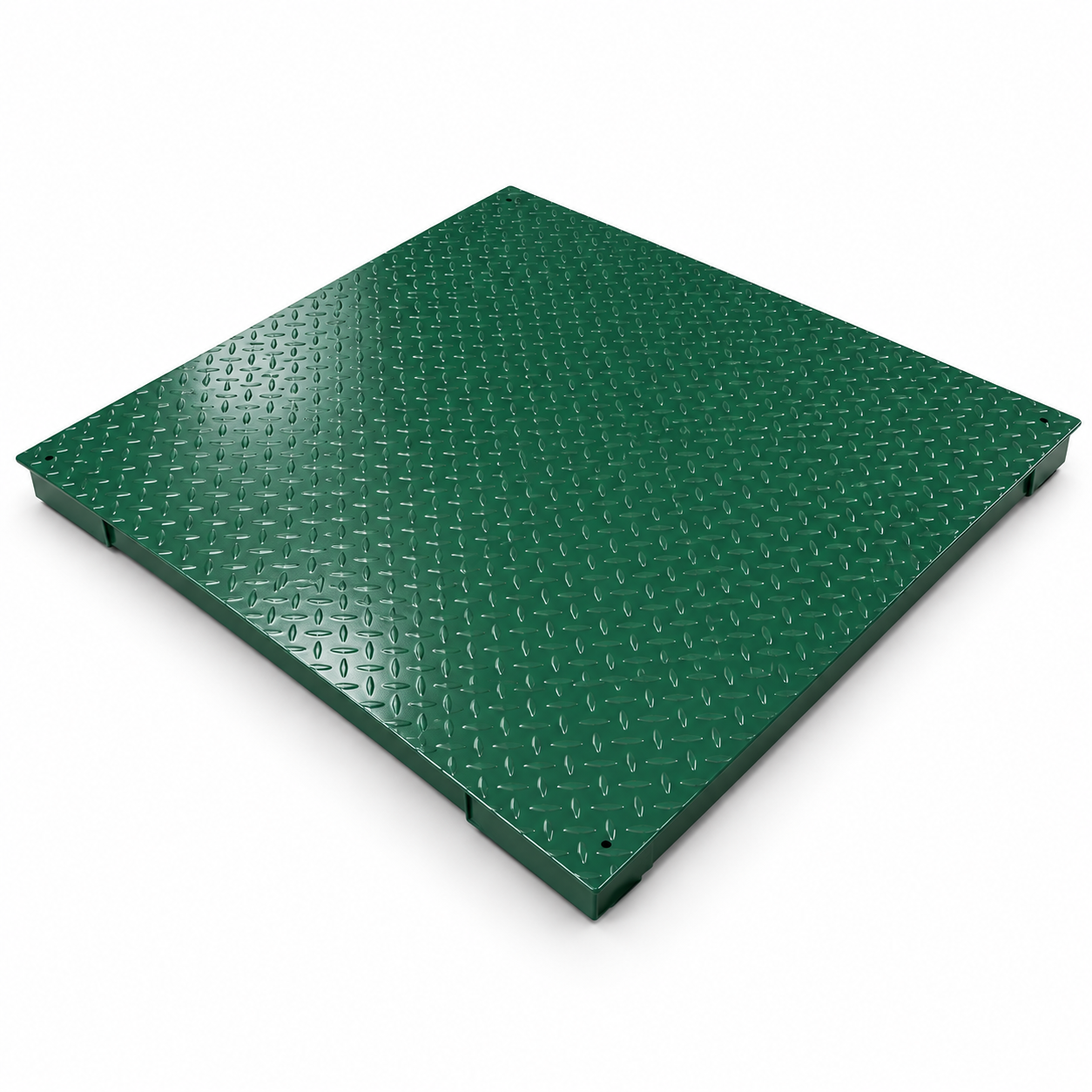

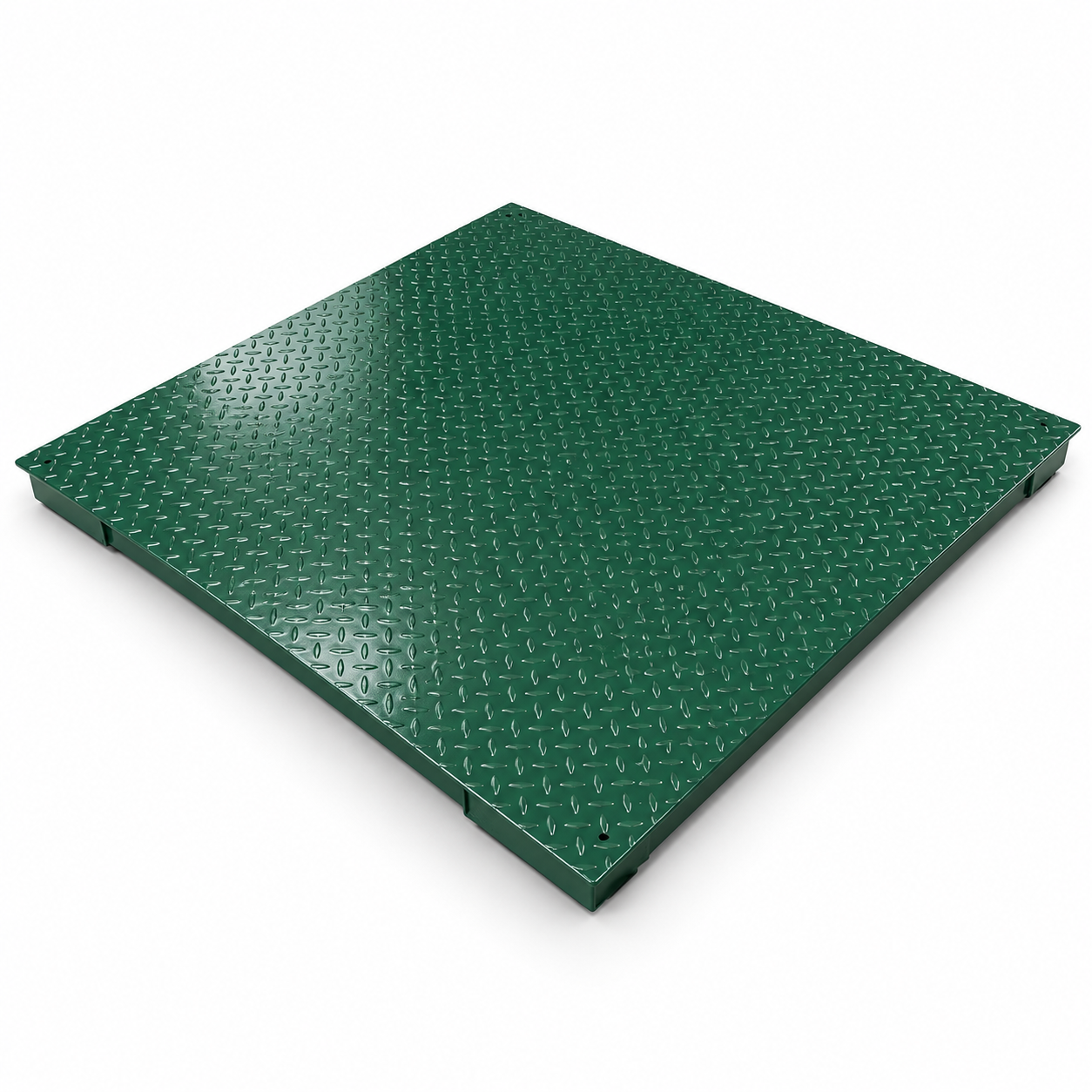

- Heavy-duty structural steel channel frame with diamond tread deck
- NEMA 4X ABS junction box — splash and dust resistant
- Adjustable swivel steel feet for leveling on uneven surfaces
- 15 ft load cell cable included

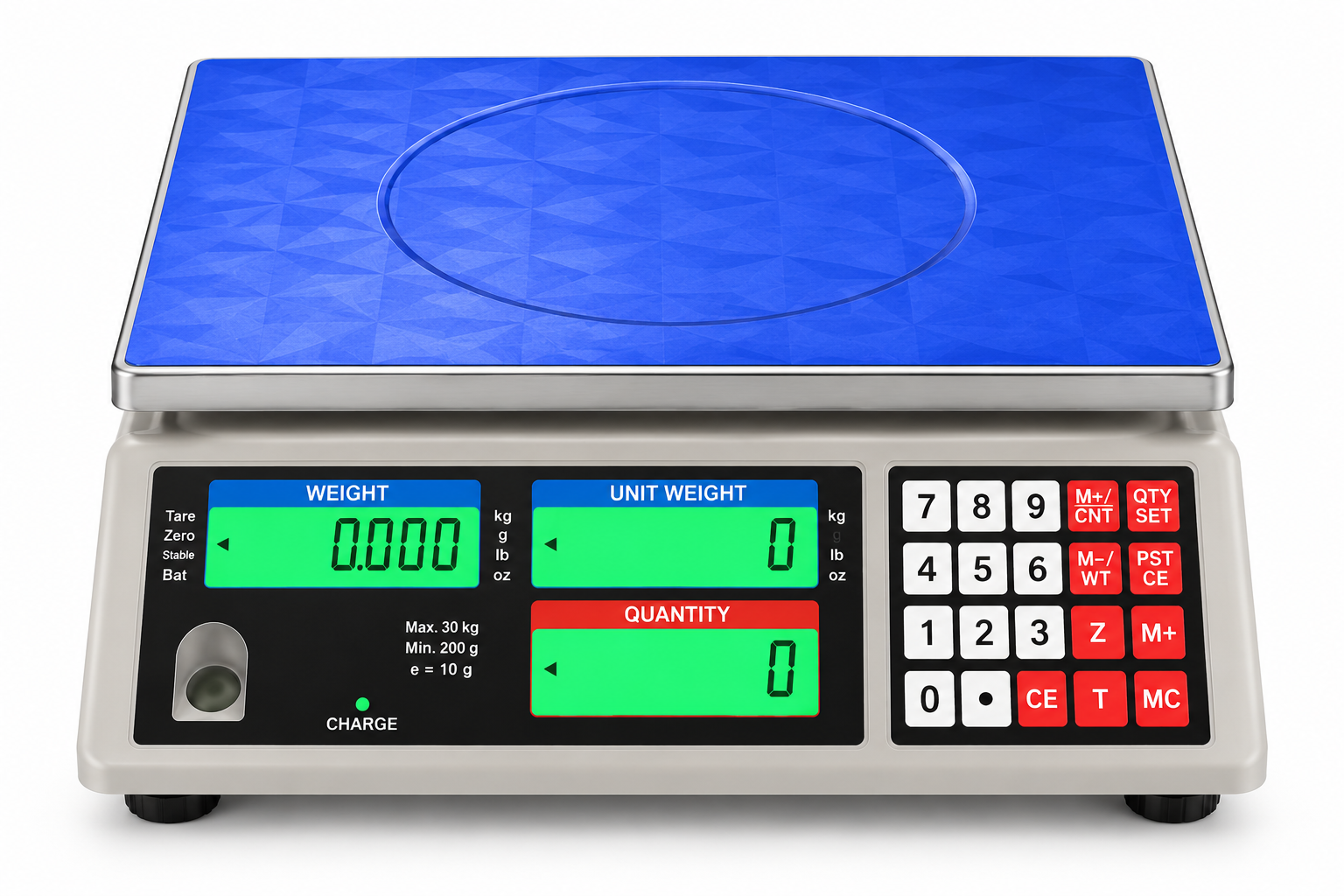

- Digital indicator displays Weight, Unit Weight, and Quantity simultaneously
- Optional ramps, bumper guards, and pit frames available
What’s Included:
- Industrial floor scale (selected platform size and capacity)

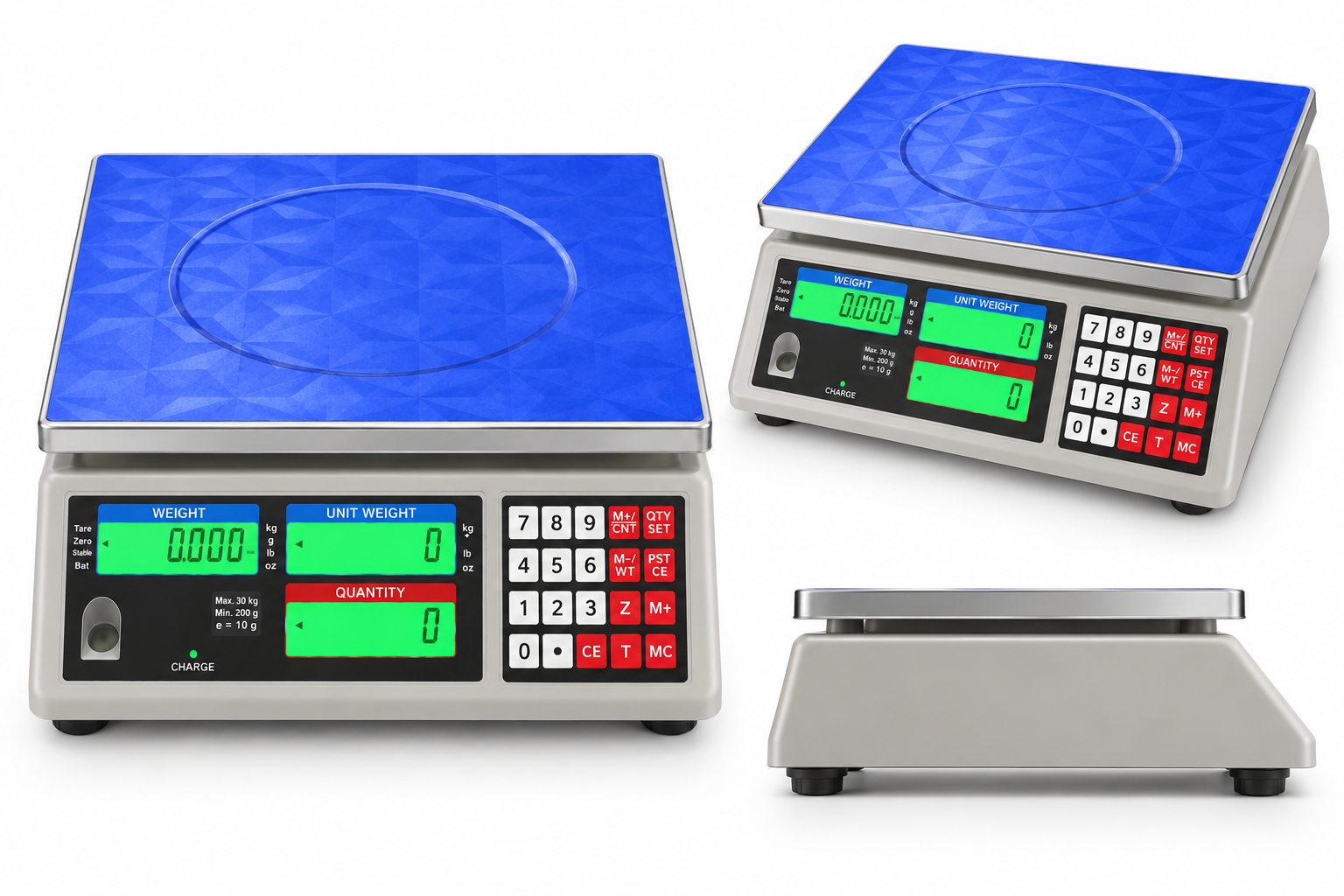

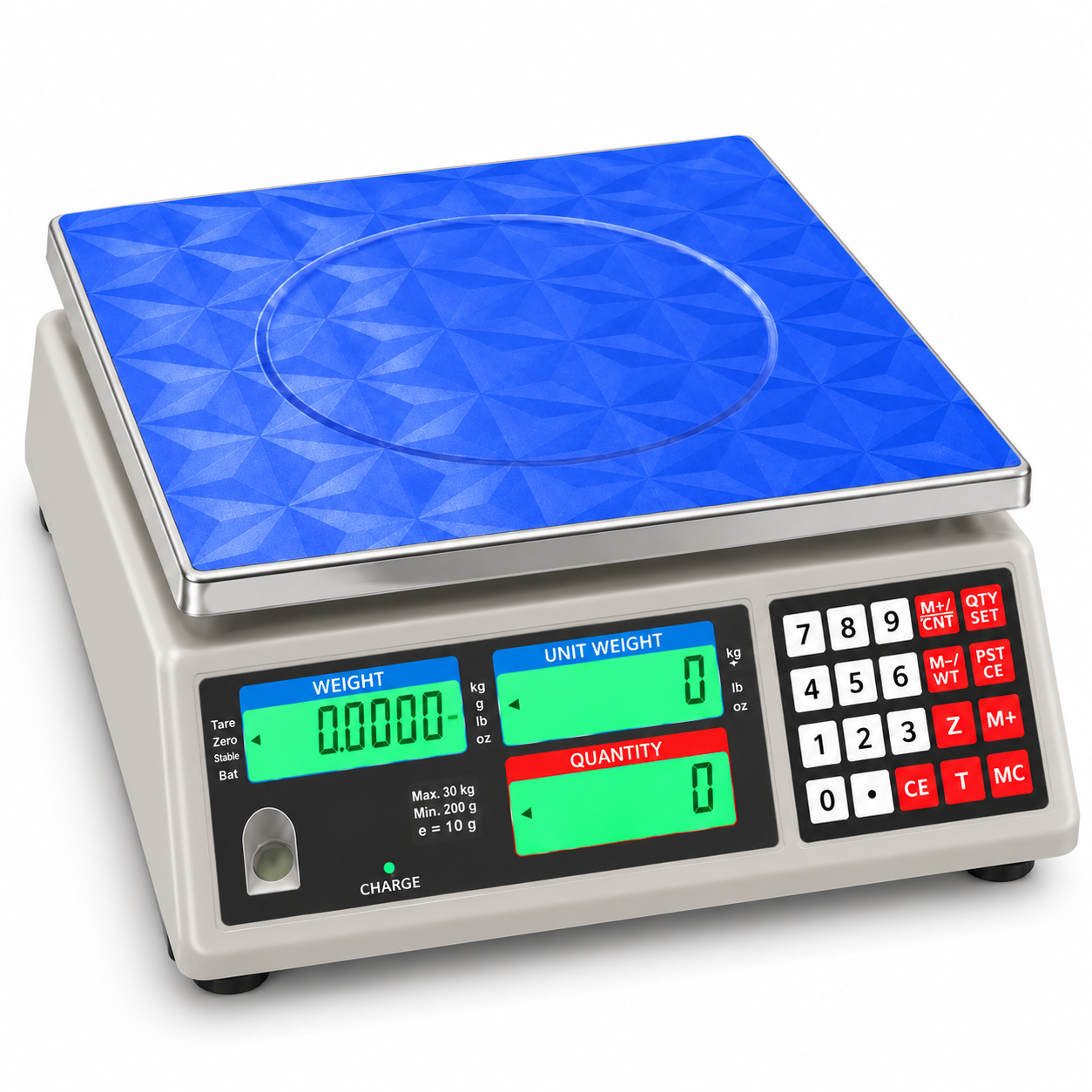

- Precision parts counting scale
- Digital weight indicator — Weight / Unit Weight / Quantity display
- NEMA 4X ABS junction box with excitation trim board
- 15 ft load cell cable
- Adjustable swivel steel feet
Common Applications:
- Fasteners, bolts, nuts, and industrial hardware
- Aviation and aerospace components
- Metal fabrications, stampings, and castings
- Plastic injection-molded parts
- Electronics and circuit board assembly inventory
- Pharmaceutical packaging components
Resources:
Specifications:
| Specification | US-MR-DC-1K | US-MR-DC-2.5K | US-MR-DC-5K | US-MR-DC-10K | US-MR-DC-20K |
|---|---|---|---|---|---|
| Floor Capacity | 1,000 lb | 2,500 lb | 5,000 lb | 10,000 lb | 20,000 lb |
| Floor Readability | 0.2 lb | 0.5 lb | 1 lb | 1 lb | 2 lb |
| Counting Scale Capacity | 6 lb | 13 lb | 33 lb | 66 lb | 66 lb |
| Counting Scale Readability | 0.0002 lb | 0.0004 lb | 0.001 lb | 0.002 lb | 0.002 lb |
| Platform Sizes Available | 24″×24″ – 84″×84″ | 24″×24″ – 84″×84″ | 24″×24″ – 84″×84″ | 24″×24″ – 84″×84″ | 48″×48″ – 84″×84″ |
| Frame | Structural steel channel | Structural steel channel | Structural steel channel | Structural steel channel | Structural steel channel |
| Deck | Diamond tread plate | Diamond tread plate | Diamond tread plate | Diamond tread plate | Diamond tread plate |
| Junction Box | NEMA 4X ABS | NEMA 4X ABS | NEMA 4X ABS | NEMA 4X ABS | NEMA 4X ABS |
| Load Cell Cable | 15 ft | 15 ft | 15 ft | 15 ft | 15 ft |
| Leveling Feet | Adjustable swivel steel | Adjustable swivel steel | Adjustable swivel steel | Adjustable swivel steel | Adjustable swivel steel |
