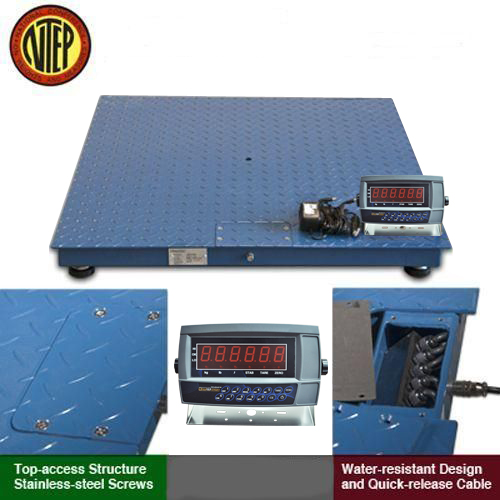

Standard Features:
- 10,000 lb (5,000 kg) maximum capacity across all platform sizes
- Four NTEP-approved alloy steel load cells — full accuracy across the entire load range
- Diamond plate steel deck construction for durability in warehouse and industrial environments
- Three platform sizes available: 4'×4', 5'×5', and 4'×6' — suits standard pallet footprints
- 2 lb (1 kg) readability — switches between lb and kg display with one button press
- Large LED digital indicator with easy-to-read display
- Adjustable leveling feet for stable placement on uneven floors
- On-floor or portable use — no pit required
- AC power with optional rechargeable battery backup
- Checkweighing and parts counting functions included
- RS-232 output for printer or PC connectivity
Resources:
Model Comparison:
| Specification | 4'×4' (48"×48") | 5'×5' (60"×60") | 4'×6' (48"×72") |
|---|---|---|---|
| Capacity | 10,000 lb | 10,000 lb | 10,000 lb |
| Readability | 2 lb | 2 lb | 2 lb |
| Platform Size | 48" × 48" | 60" × 60" | 48" × 72" |
| Construction | Diamond plate steel | Diamond plate steel | Diamond plate steel |
| Load Cells | 4 NTEP alloy steel | 4 NTEP alloy steel | 4 NTEP alloy steel |
| Display | LED indicator | LED indicator | LED indicator |
| NTEP | Yes | Yes | Yes |
