Key Features
- High Resolution Imaging: 256×192 uncooled vanadium oxide infrared detector captures detailed thermal variations with a wide field angle of 56°×42°.
- Real-Time Dual Imaging: Fusion of infrared and visible light imaging lets you locate and assess faults faster with high accuracy.
- Wide Temperature Range: Measures temperatures from -20°C to +550°C (-4°F to +1022°F) with ±2% or ±2°C accuracy.
- Fast Frame Rate: 8Hz thermal frame rate ensures smooth display of live thermal data.
- Custom Emissivity Settings: Adjustable from 0.01 to 1.00 for precise measurement across different surfaces and materials.

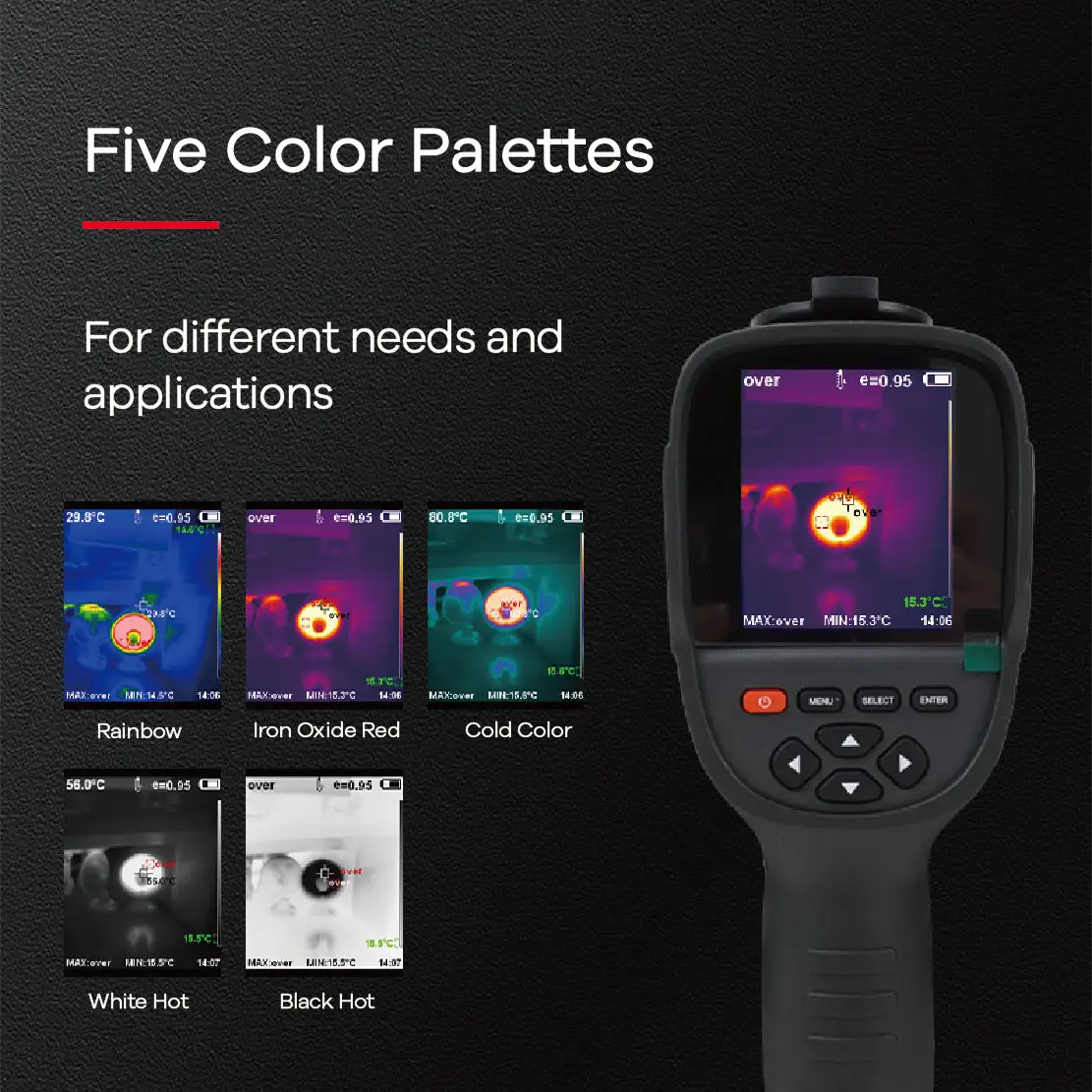

- Color Palettes: Choose from five viewing modes – rainbow, iron, cool color, white hot, and black hot – to best visualize thermal contrasts.

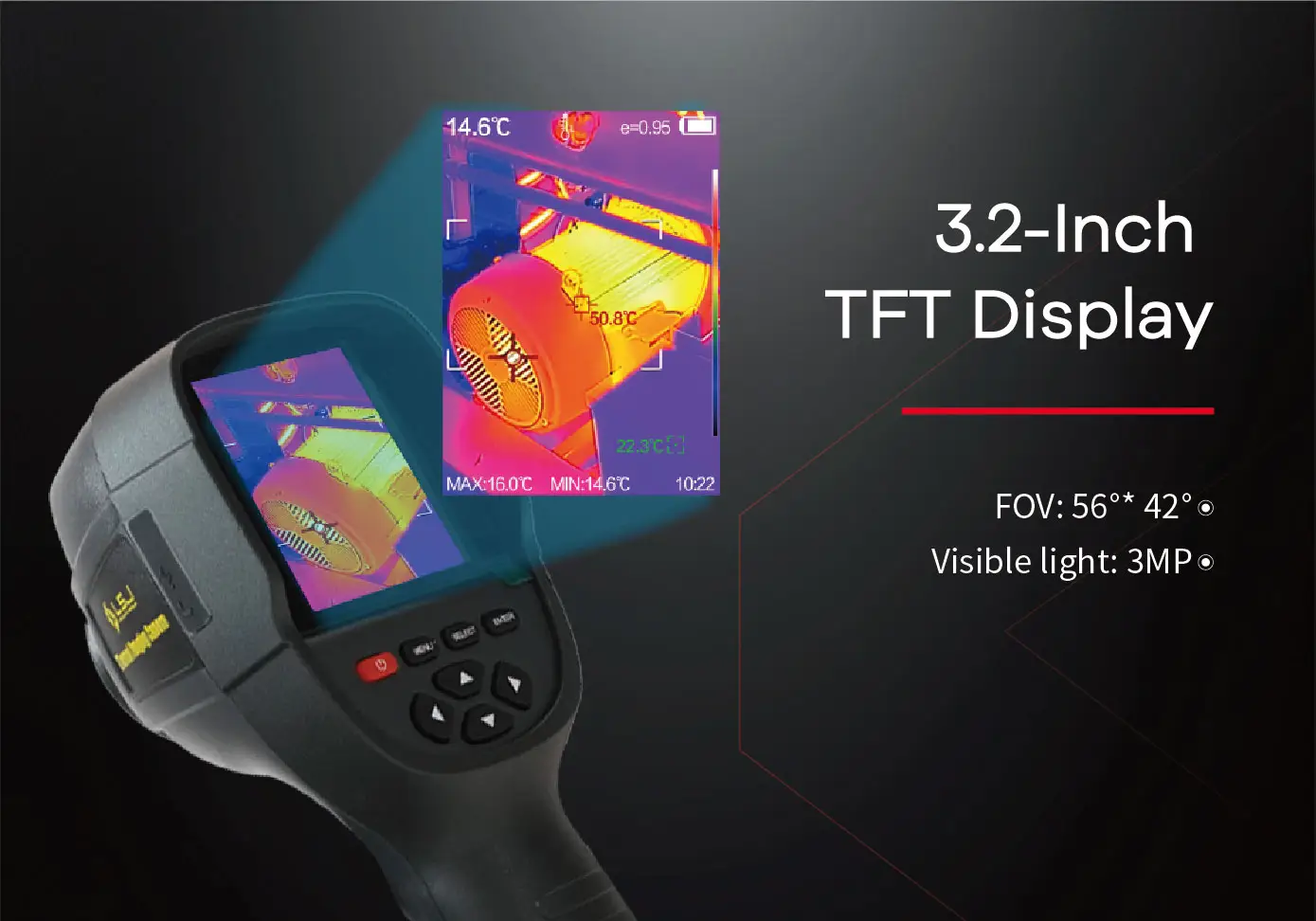

- 3.2-inch LCD Display: Clear viewing of results with a 240×320 resolution screen.
- Video and Photo Capture: Save photos in JPG and videos in MP4 format directly to built-in 8GB memory (6.6GB usable).
- Rechargeable Battery: 2000mAh lithium battery provides up to 3 hours of operation; USB Type-C interface supports convenient charging and data transfer.
- Offline Image Analysis: Export images to PC and analyze with included thermal imaging software.
Specifications
- Infrared Detector:
- Type: Uncooled focal plane
- Resolution: 256 × 192 pixels
- Spectral Range: 8–14 μm
- Pixel Size: 12 μm
- Temperature Measurement:
- Range: -20°C to +550°C (-4°F to 1022°F)
- Accuracy: ±2°C or ±2% of reading (whichever is greater)
- Measurement Mode: Center point, hotspot tracking, custom area tracking
- Emissivity: Adjustable from 0.01 to 1.00
- Image Display:
- Screen Size: 3.2-inch LCD display
- Screen Resolution: 240 × 320
- Color Palettes: Rainbow, Iron, Cool Color, White Hot, Black Hot
- Display Mode: Infrared, visible, fusion (infrared + visible)
- Thermal Image:
- Frame Rate: 8Hz
- Field of View (FOV): 56° × 42°
- Minimum Focusing Distance: 0.5m
- Thermal Sensitivity (NETD): < 60mK
- Visible Light Camera:
- Resolution: 640 × 480 pixels
- Storage and Media:
- Internal Memory: 8GB (approx. 6.6GB usable)
- Image Format: JPG
- Video Format: MP4
- Image Output: Via USB Type-C
- Battery:
- Type: Built-in lithium battery
- Capacity: 2000 mAh
- Operating Time: About 3 hours
- Charging Port: USB Type-C
- Other Features:
- Image Analysis Software: Supports PC-based thermal analysis
- Auto Power-Off: Selectable (3/5/10 minutes)
- Laser Pointer: No
- Physical Characteristics:
- Weight: Approx. 350g
- Dimensions: Not explicitly mentioned, but handheld and compact
- Environmental Parameters:
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
Applications
To power on, press and hold the main button for 3 seconds. Toggle between image modes or start capturing thermal images and videos via dedicated function keys. Export files via USB for further analysis.
- Electrical and mechanical inspections
- HVAC system diagnostics
- Firefighting and rescue
- Building energy audits
- Automotive diagnostics
What’s Included

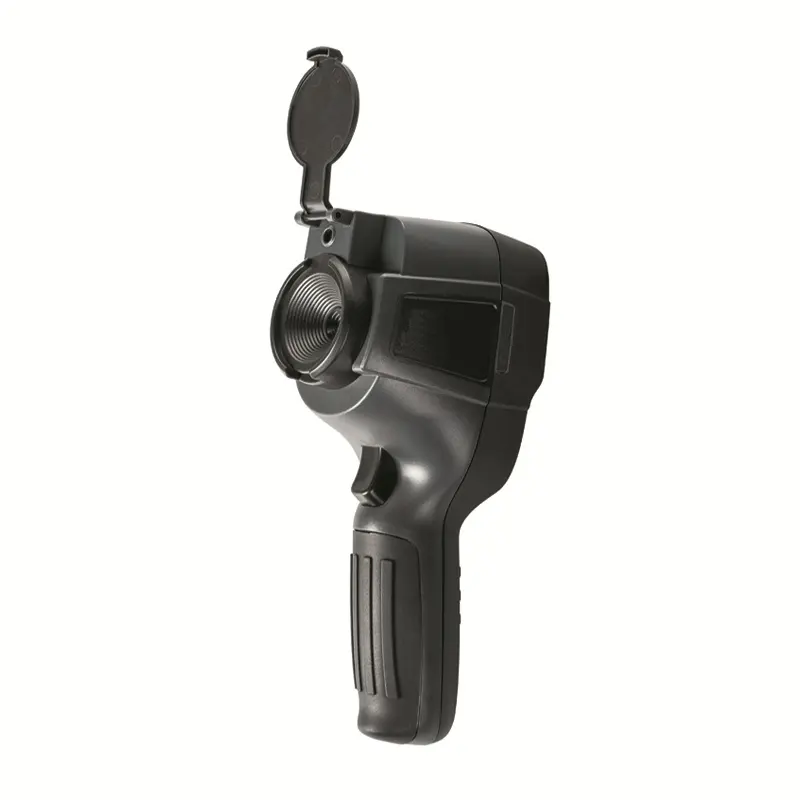

- E320 Thermal Camera
- USB Type-C Cable
- Built-in Rechargeable Battery
- User Manual
- Image Analysis Software
Why Choose LSJ E320
Professionals across industrial, electrical, and building sectors trust the E320 for its reliable performance, precision, and ease of use. It’s your go-to solution for preventive maintenance and real-time thermal diagnostics.
Warnings
- Do not disassemble or attempt repairs; service must be done by authorized technicians.
- Avoid exposure to moisture or extreme temperatures.
- Do not use damaged power cords or charge in wet environments.
- Do not place near heat sources like electric irons.
- If condensation occurs after exposure to temperature changes, allow the device to stabilize before use.
