Key Features

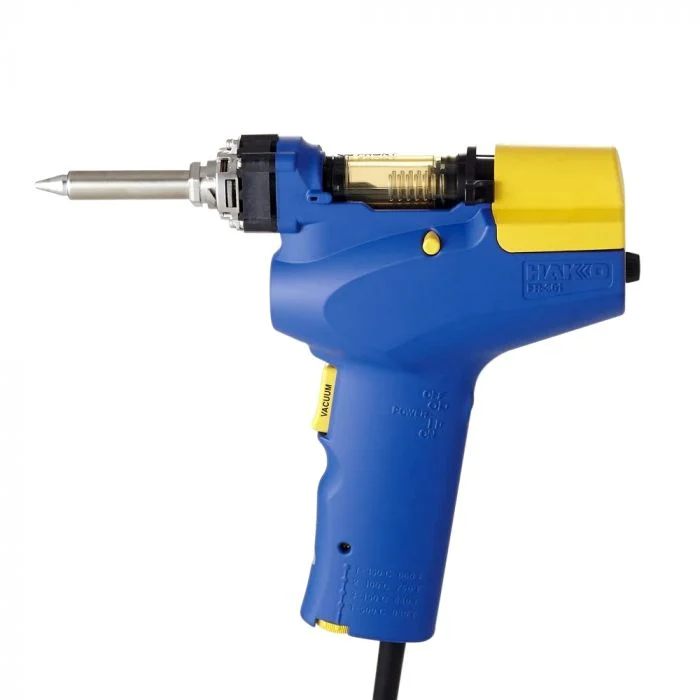

- All-in-one portable design – Combines heating element and vacuum pump in a single handheld unit.
- Ergonomic and lightweight – Comfortable grip allows for extended use with minimal fatigue.
- Fast heat-up time – Quickly reaches working temperature for efficient job turnaround.

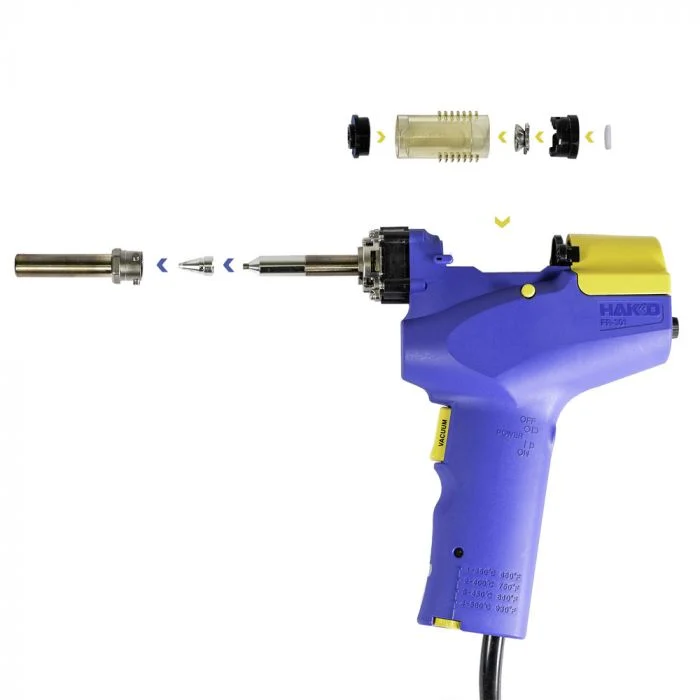

- Easy-to-clean structure – Simplified maintenance with easily accessible internal components.
- Built-in vacuum system – Strong suction ensures clean and complete solder removal.

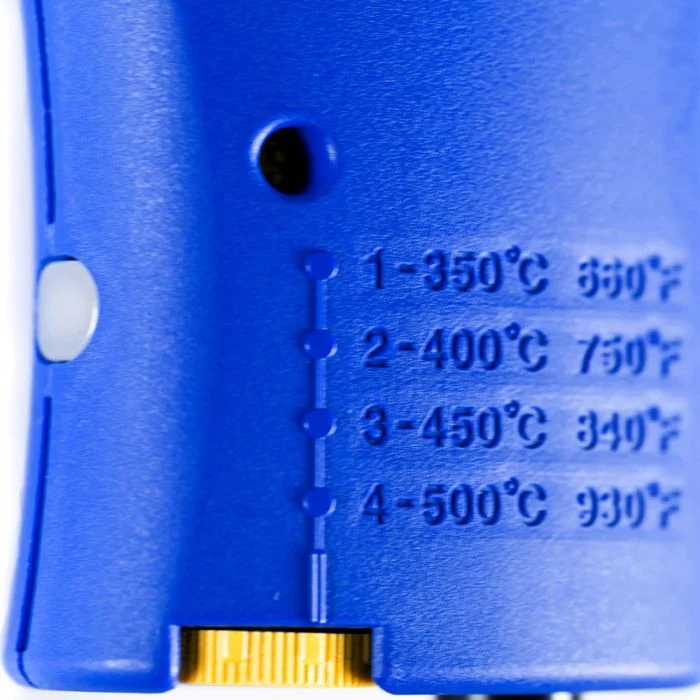

- Adjustable temperature control – Allows for precise settings to match various applications.
- Ideal for field or bench work – Portable size makes it perfect for both mobile and stationary tasks.
Specifications
| Station | |
| Model Name | FR-301 |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 140W |
| Temperature Range | 660 °F – 930 °F / 350 °C – 500 °C |
| Tip to Ground Resistance | < 2 Ω |
| Tip to Ground Potential | < 2 mV |
| Temperature Stability and Accuracy | Meets or exceeds IPC J-STD-001 |
| Heating Element | Ceramic |
| Vacuum Source | Single-Cylinder Diaphragm Pump |
| Vacuum Pressure | 81 kPa (24 in. Hg / 610 mm Hg) |
| Suction Flow | 11 L/min |
| Weight (w/o cord) | 1.1 lb. / 0.52 kg |
| Nozzles | N61 Series |

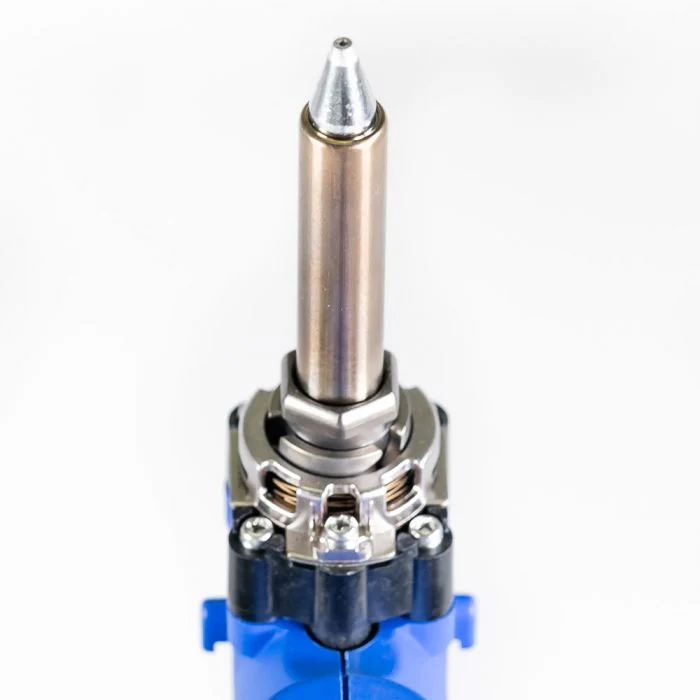

| Standard Nozzle | N61-08 (0.04 in. / Ø1.0 mm) included |
| Country of Origin | JPN |
| Safety Approval |  |
What’s In the Box?

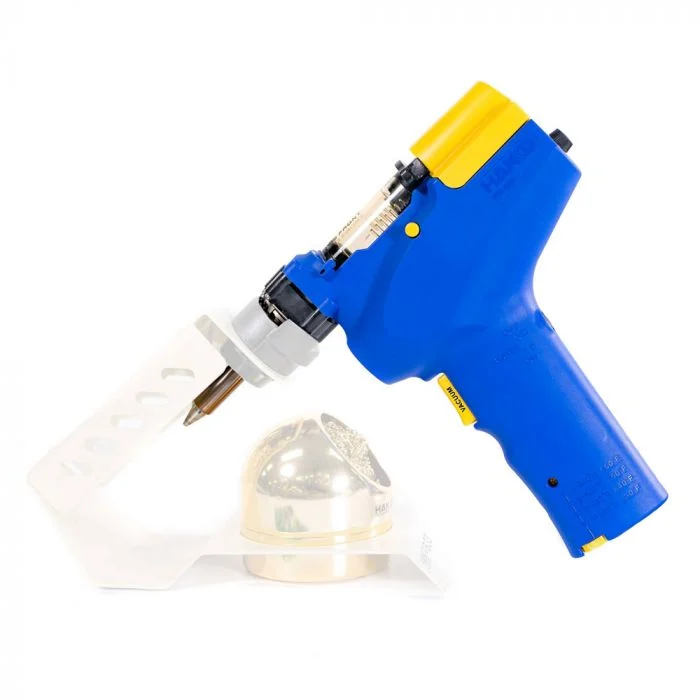

- 1 × FR-301 Portable Desoldering Tool

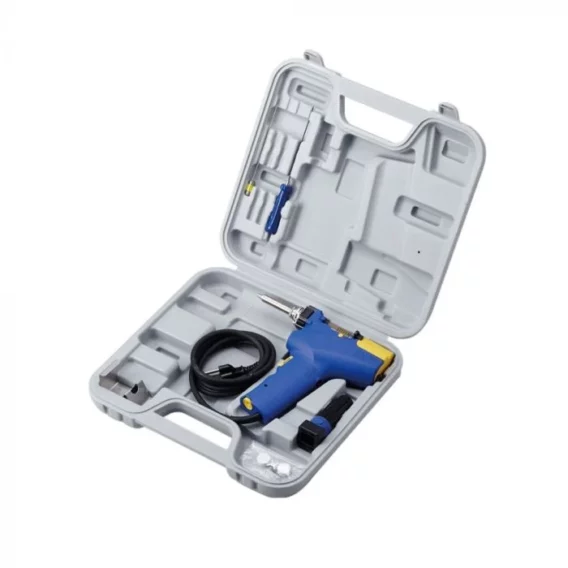

- 1 × Carrying Case
- 1 × Cleaning Pin Set
- 1 × Instruction Manual
- 1 × Standard Desoldering Tip
- 1 × Maintenance Tool Kit
