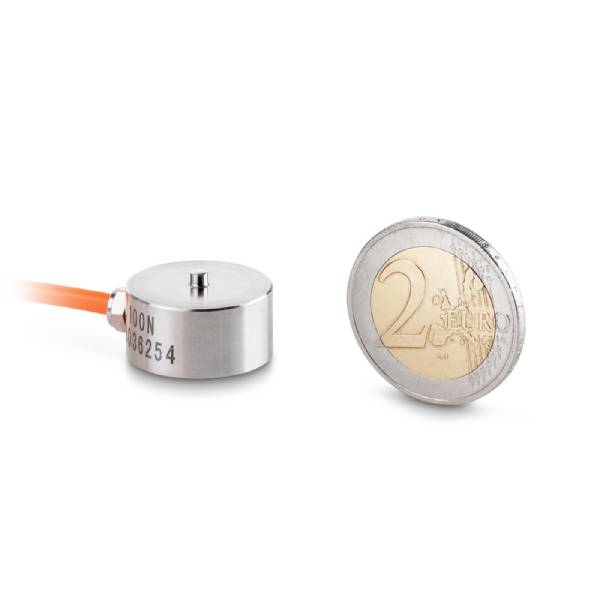

Specifications:
- Weighing capacity [Max]: 1000 kg
- Measuring range force [Max] (N): 10 kN
- Design: Load cell
- Directions of force: compression
- Measuring applications: force, mass
- Load cell – Combined error: 0.5%
- Load cell OIML class: G5
- Load cell – characteristic value – nominal: 1 mV/V
- IP protection – complete device: IP65
- Material: stainless steel
- Load cell connection: 4-wire
- Cable length: 2 m
- Mounting – force application: Thrust piece (from customer side)
- Mounting – force dissipation: 3 × threaded hole M4
Applications:
- Industrial Weighing Systems – Used in scales for accurate weight measurement in manufacturing and logistics.
- Laboratory Equipment – Integrated into precision instruments for scientific and research applications.
- Material Testing – Helps in force measurement for tensile and compression testing.
- Automation & Robotics – Used for force feedback in automated processes and robotic arms.
- Medical Devices – Applied in precision medical weighing systems, such as prosthetics and rehabilitation devices.
- Food Processing Industry – Ensures precise ingredient measurements in automated food production.
- Aerospace & Automotive – Utilized for load monitoring and safety testing in engineering applications.
- Agricultural Weighing Systems – Integrated into precision farming equipment for weighing crops and livestock.
- Logistics & Freight Weighing – Helps in load balancing and cargo weight verification.
- Pharmaceutical Industry – Ensures accurate dosing and weight control in drug manufacturing.
