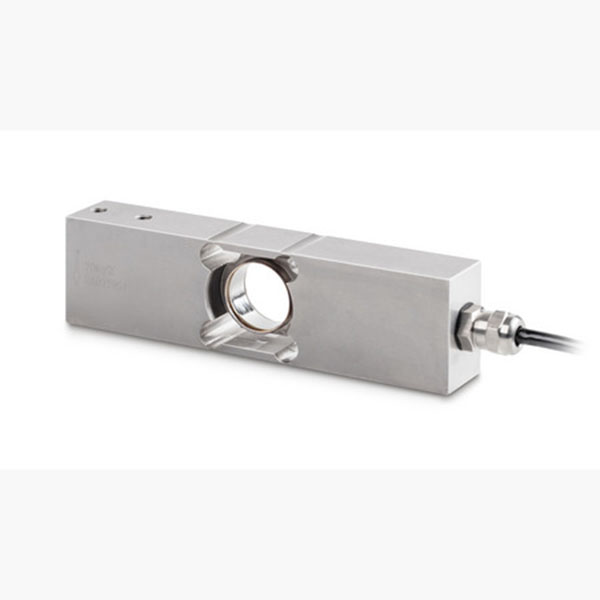

Specifications:
- Weighing capacity [Max]: 20 kg
- Design: Single point load cell
- Directions of force: Compression
- Measuring applications: Mass
- Load cell – Combined error: 0.023%
- Load cell OIML class: C3
- Load cell – Resolution (verifiable): 3000 e
- Load cell – Y-value: 10000
- Load cell – characteristic value – nominal: 2 mV/V
- IP protection – complete device: IP68, IP69K
- Material: Stainless Steel
- Load cell connection: 6-wire
- Cable length: 3 m
- Mounting – force application: Threaded hole M6
- Mounting – force dissipation: Threaded hole M6
Applications:
- Platform Scales – Suitable for scales with a platform size up to 400×400 mm.
- Checkweighers – Used in dynamic weighing systems to verify product weights.
- Industrial Weighing Systems – Ideal for harsh environments requiring high protection (IP68/IP69K).
- Food and Pharmaceutical Industry – Hygienic design makes it suitable for food processing and pharma applications.
- Process Automation – Integrated into automated systems for force or weight monitoring.
- Retail and Commercial Scales – Used in price-calculating and counting scales.
- Medical Weighing Devices – Integrated into medical scales for accurate patient weighing.
- Laboratory Equipment – Provides precision weighing in scientific applications.
- Aerospace and Automotive Testing – Used in force measurement for quality control.
- Agricultural Weighing – Applied in feed and livestock weighing systems.
