Specifications:
- Weighing capacity [Max]: 400 kg

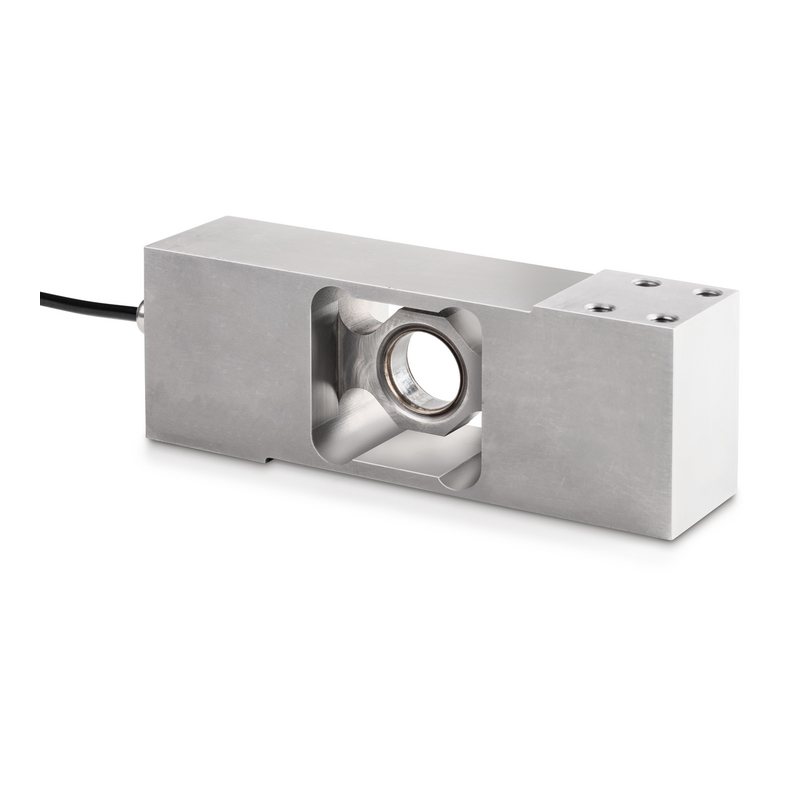

- Design: Singlepoint load cell
- Directions of force: Compression
- Measuring applications: Mass
- Load cell – Combined error: 0.023%
- Load cell OIML class: C3
- Load cell – Resolution (verifiable): 3000 e
- Load cell – Y-value: 10000
- Load cell – characteristic value – nominal: 2 mV/V
- IP protection – complete device: IP68, IP69K
- Material: stainless steel
- Load cell connection: 4-wire
- Cable length: 3 m
- Mounting – force application: 4 × threaded hole M8
- Mounting – force dissipation: 4 × threaded hole M8
Applications:
- Platform Scales: Suitable for industrial and commercial weighing platforms up to 800×800 mm.
- Bench Scales: Ideal for laboratory and production environments requiring compact, accurate weighing.
- Check weighers: Used in quality control processes to verify product weight consistency.
- Food Processing & Hygiene-Sensitive Applications: With IP68/IP69K protection, it withstands high-pressure cleaning and harsh environments.
- Packaging & Filling Machines: Ensures precise weight measurements in automated production lines.
