Specifications:
- Weighing capacity [Max]: 1000 kg
- Measuring range force [Max] (N): 10 kN

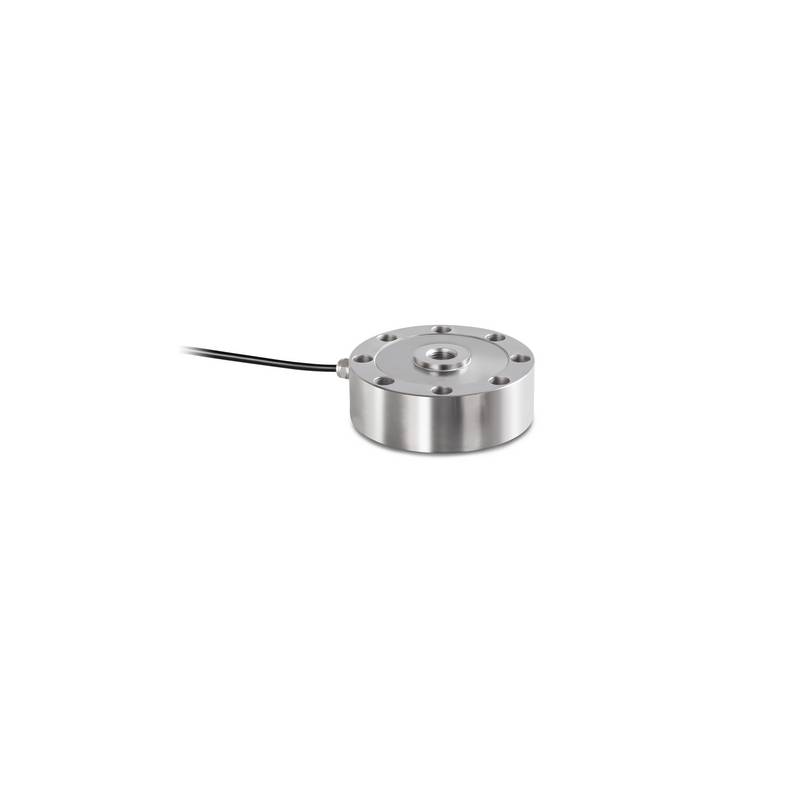

- Design: Load cell
- Directions of force: Tension, Compression
- Measuring applications: Force, Mass
- Load cell – Combined error: 0.05%
- Load cell OIML class: C1
- Load cell – characteristic value – nominal: 2 mV/V
- IP protection – complete device: IP68
- Material: Steel
- Load cell connection: 4-wire
- Cable length: 3 m
- Mounting – force application: Pressure piece, Threaded hole M16 × 1.5
- Mounting – force dissipation: 8 × through hole Ø 6.5 mm
Applications:
- Weight Measurement: Ideal for integration into weighing systems requiring accurate mass determination.
- Tensile and Compressive Force Measurement: Suitable for applications that involve measuring both pulling and pushing forces.
- Force Test Stands: Can be utilized in test stands to assess material strength and performance under different force conditions.
