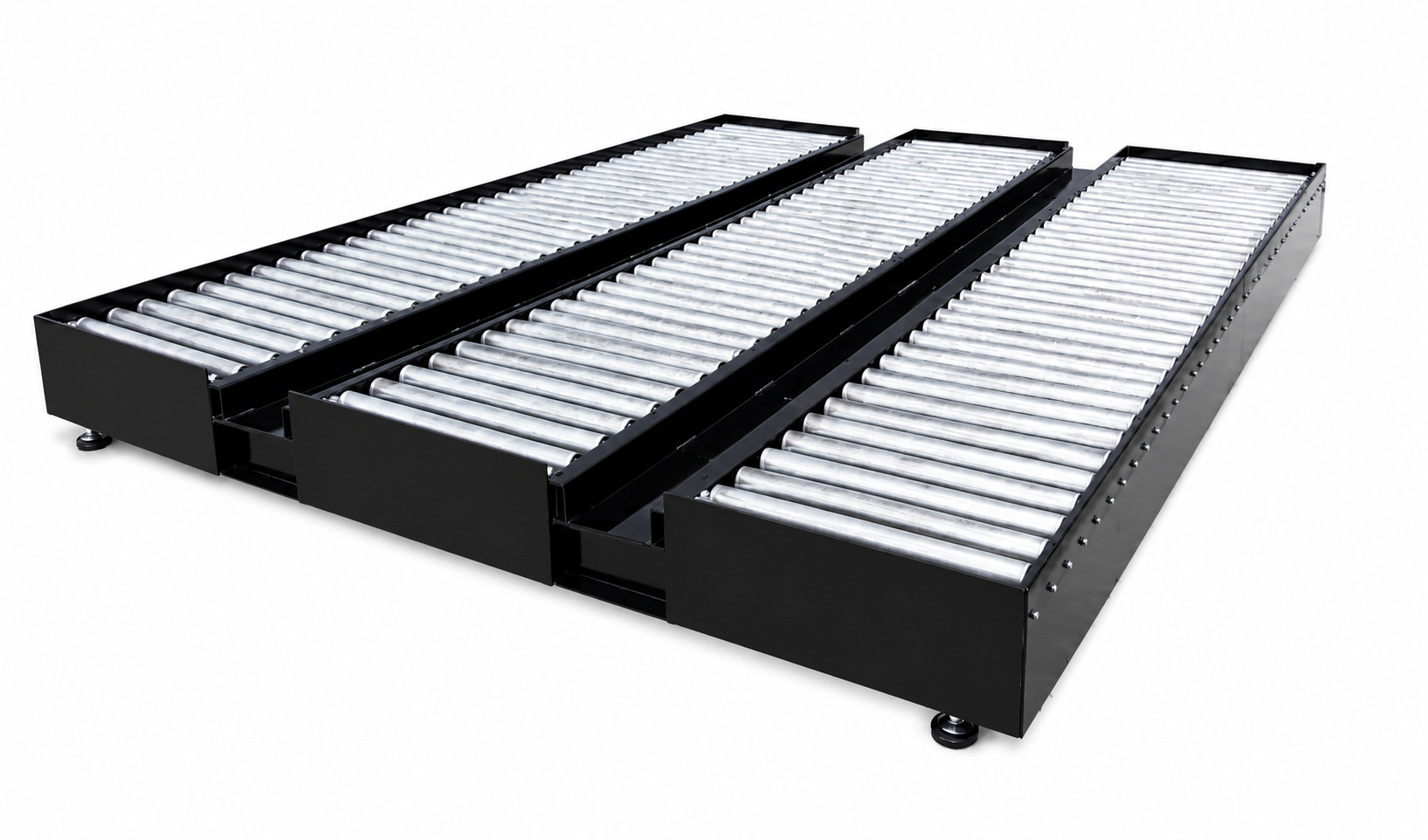

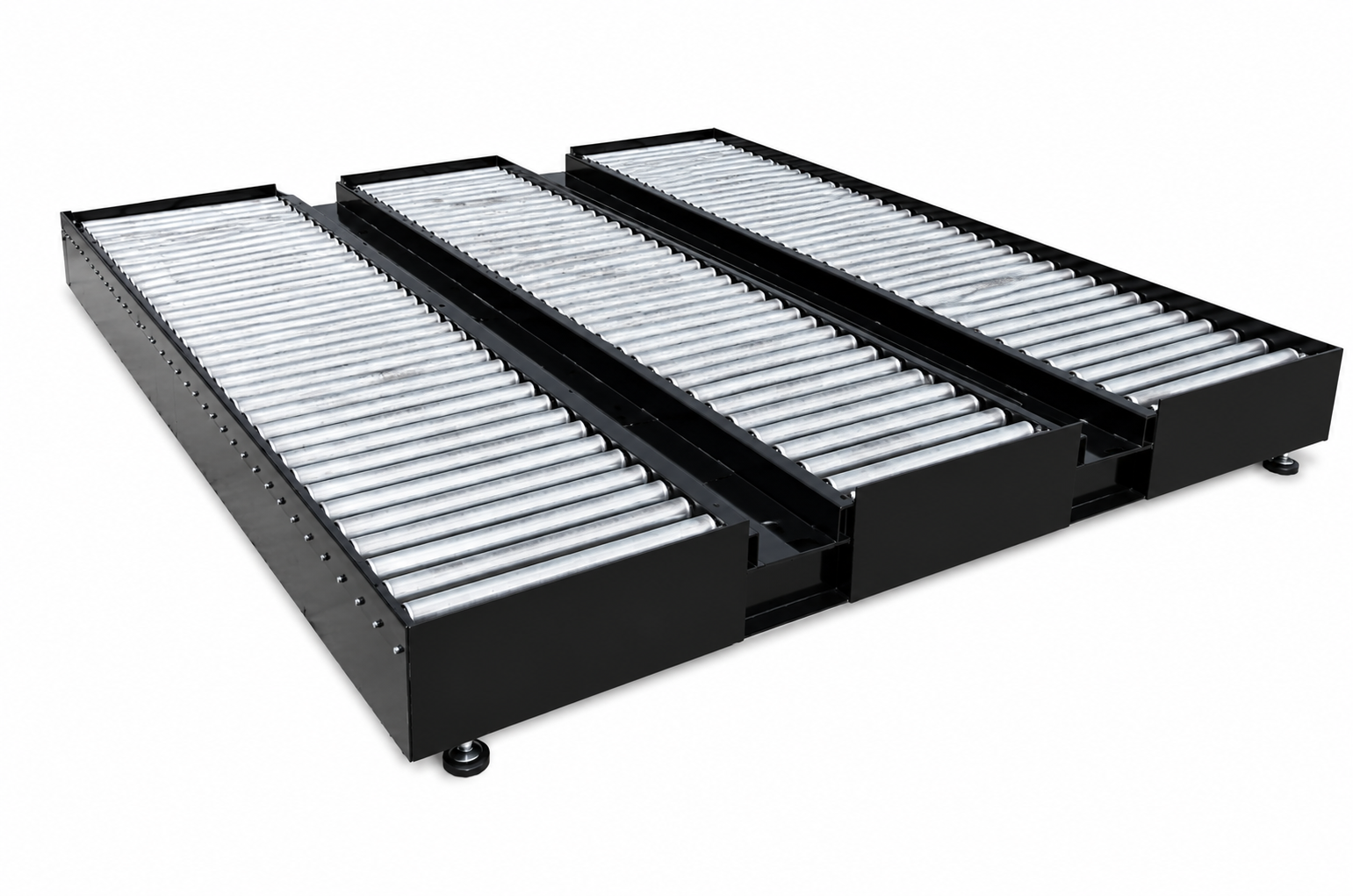

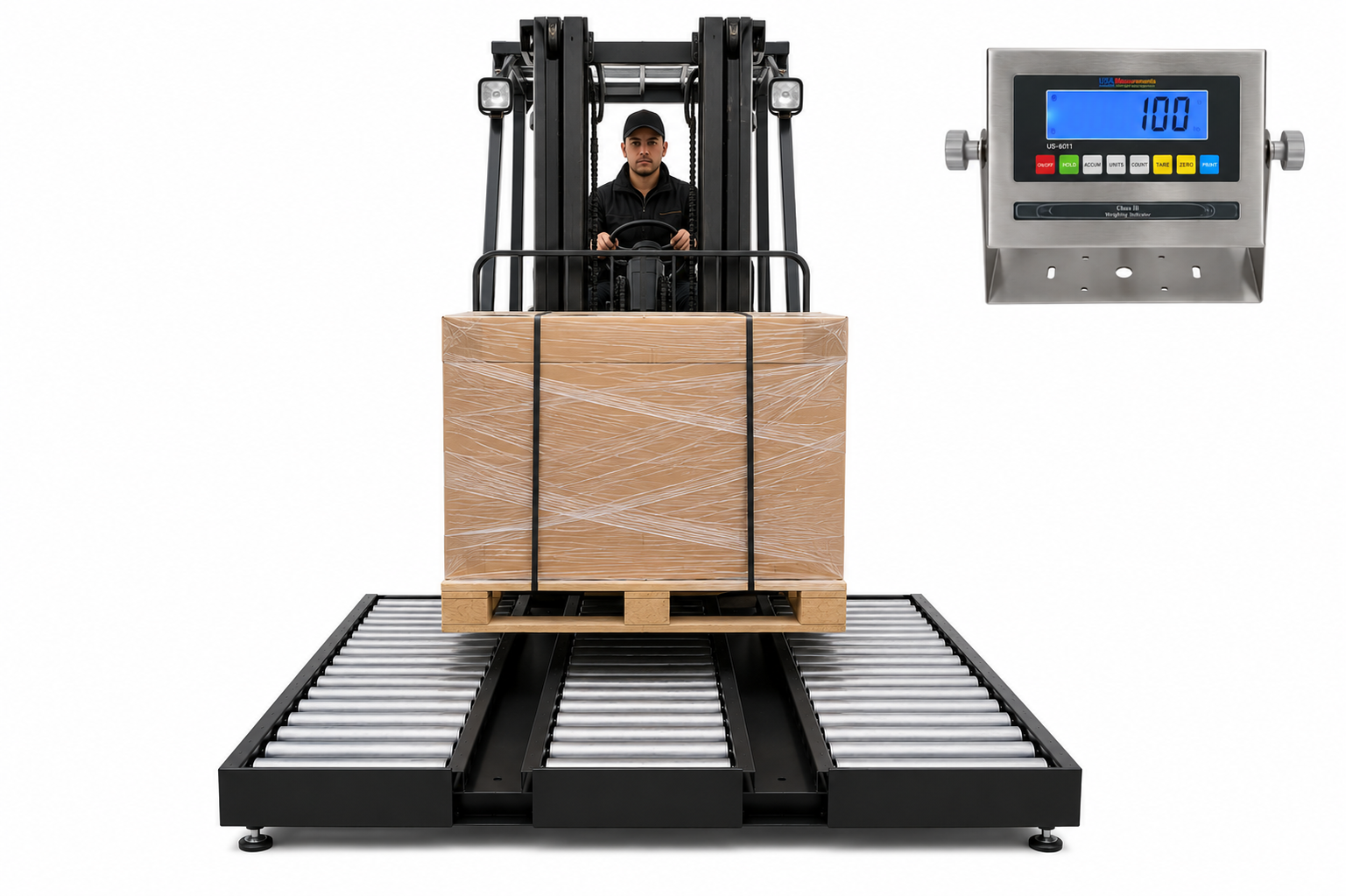

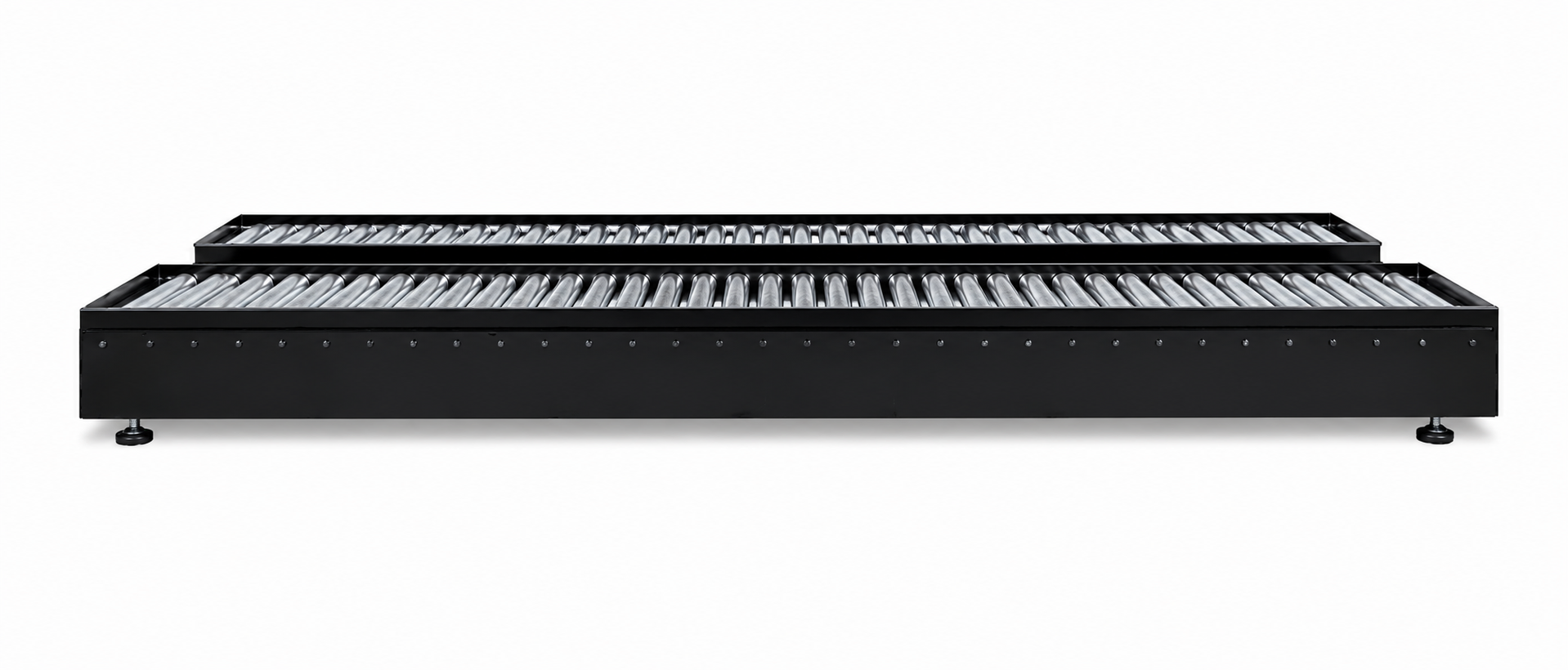

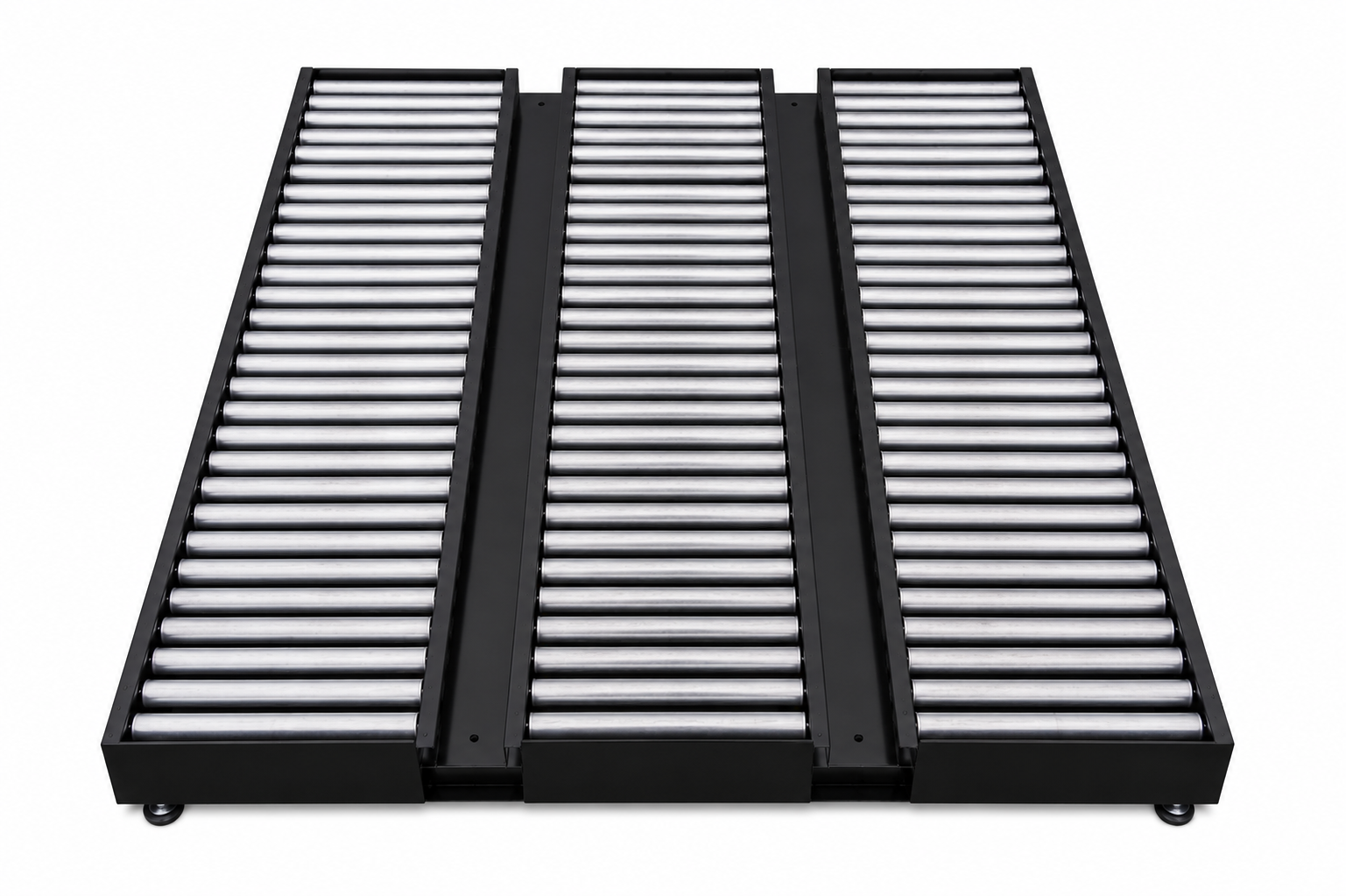

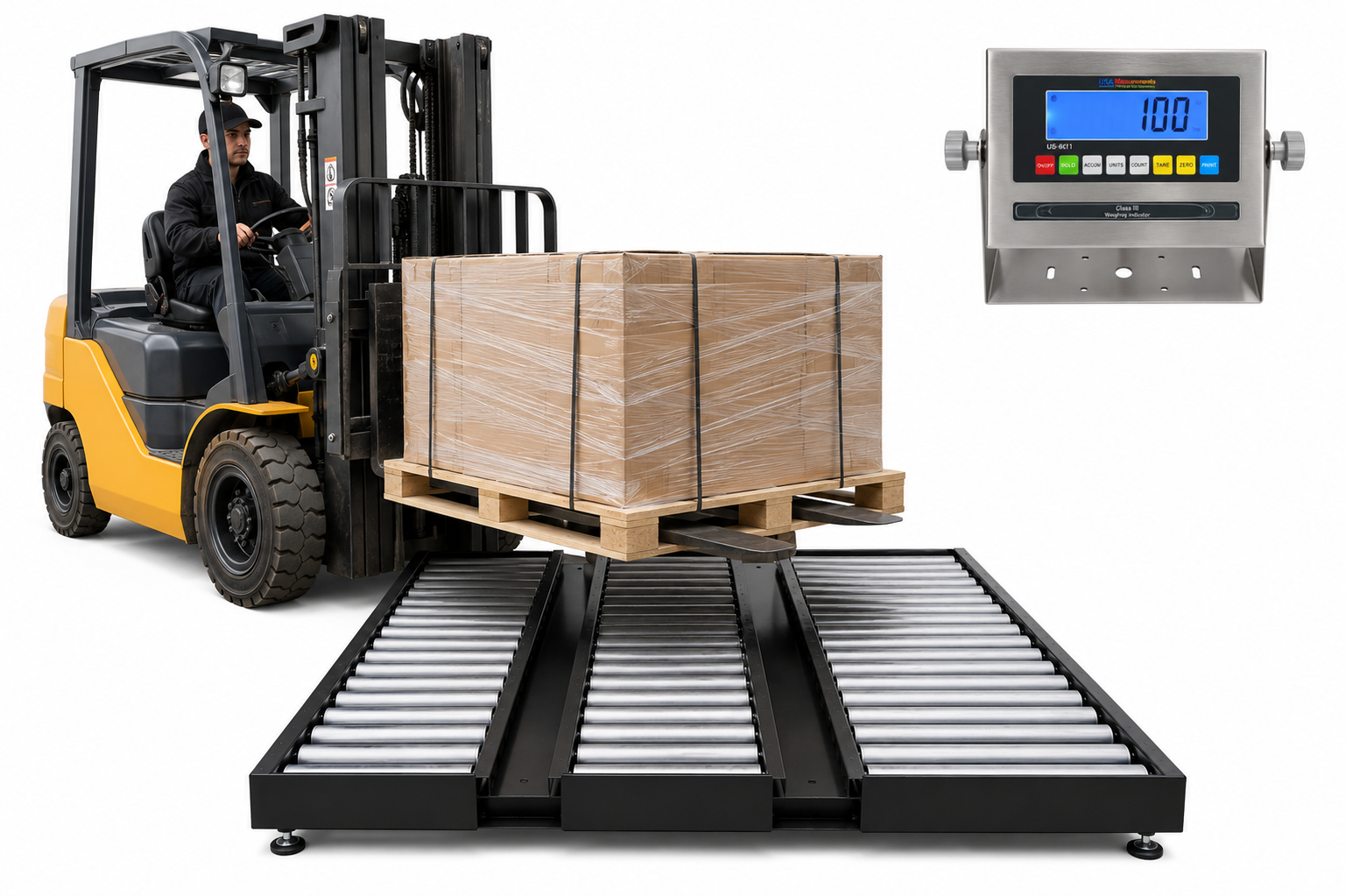

The USA Measurements LD3 Roller Deck Scale is designed to streamline material handling by combining weighing and product movement into one efficient process. Its heavy-duty steel roller deck allows pallets, carts, and containers to roll smoothly across the platform without forklift repositioning or manual lifting, reducing handling time and improving productivity.

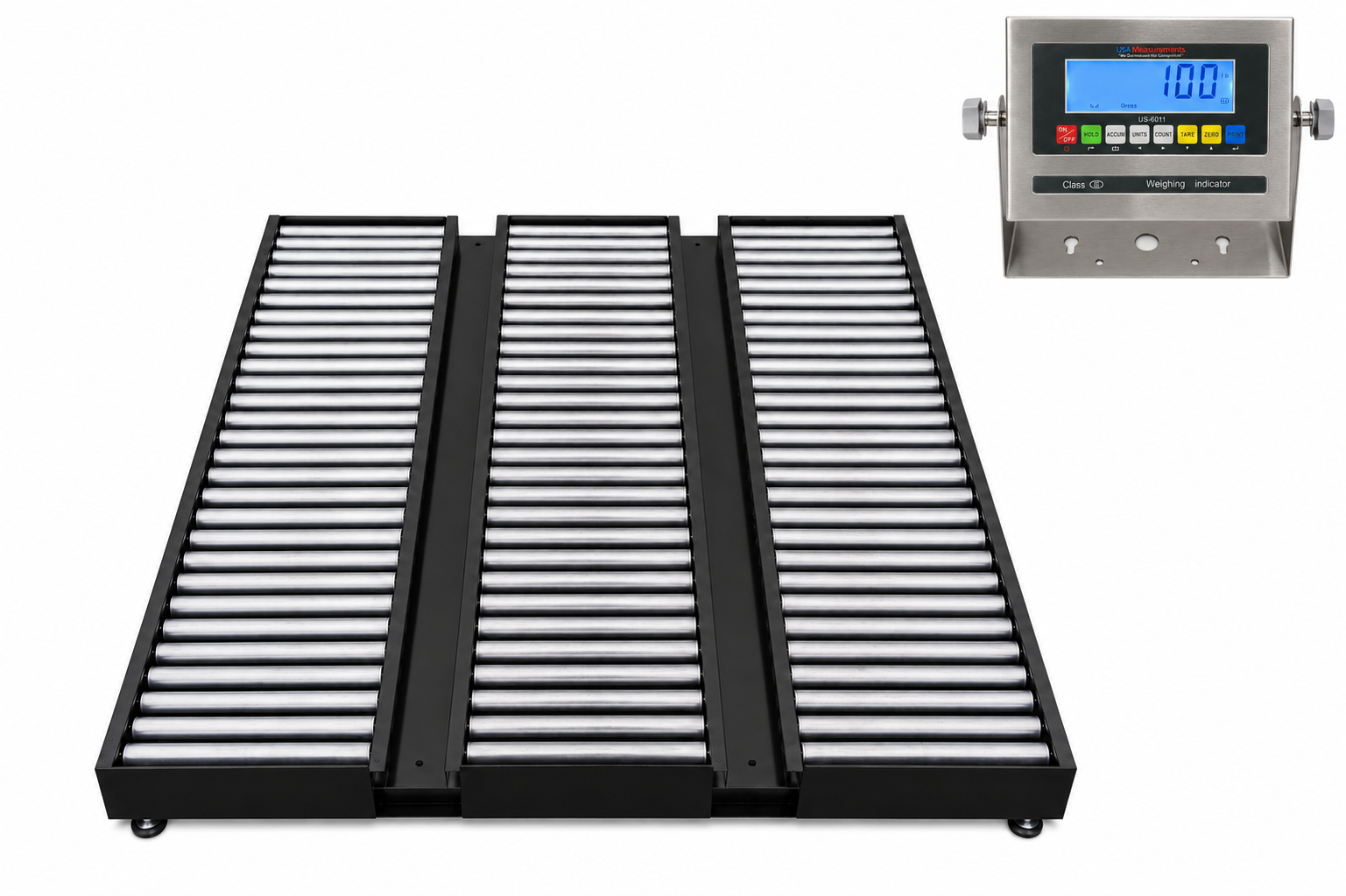

Each scale comes complete with the USA Measurements US-6011 LCD weighing indicator, four sealed alloy steel shear-beam load cells, and a NEMA 4X stainless steel junction box. Factory wired and ready for installation, the LD3 is built for reliable, high-volume weighing in shipping departments, fulfillment centers, freight terminals, manufacturing facilities, and warehouses. LEAD TIME 3-4 WEEKS TO SHIP.
Capacity Options:
- 120″ x 96″ platform, 10,000 lb x 1 lb, 20,000 lb x 5 lb, or 30,000 lb x 5 lb capacity
- 125″ x 96″ platform, 10,000 lb x 1 lb, 20,000 lb x 5 lb, or 30,000 lb x 5 lb capacity
- 129″ x 97″ platform, 10,000 lb x 1 lb, 20,000 lb x 5 lb, or 30,000 lb x 5 lb capacity
- 100″ x 132″ platform, 10,000 lb x 1 lb, 20,000 lb x 5 lb, or 30,000 lb x 5 lb capacity
- Custom sizes available, contact us for a quote.
Standard Features:

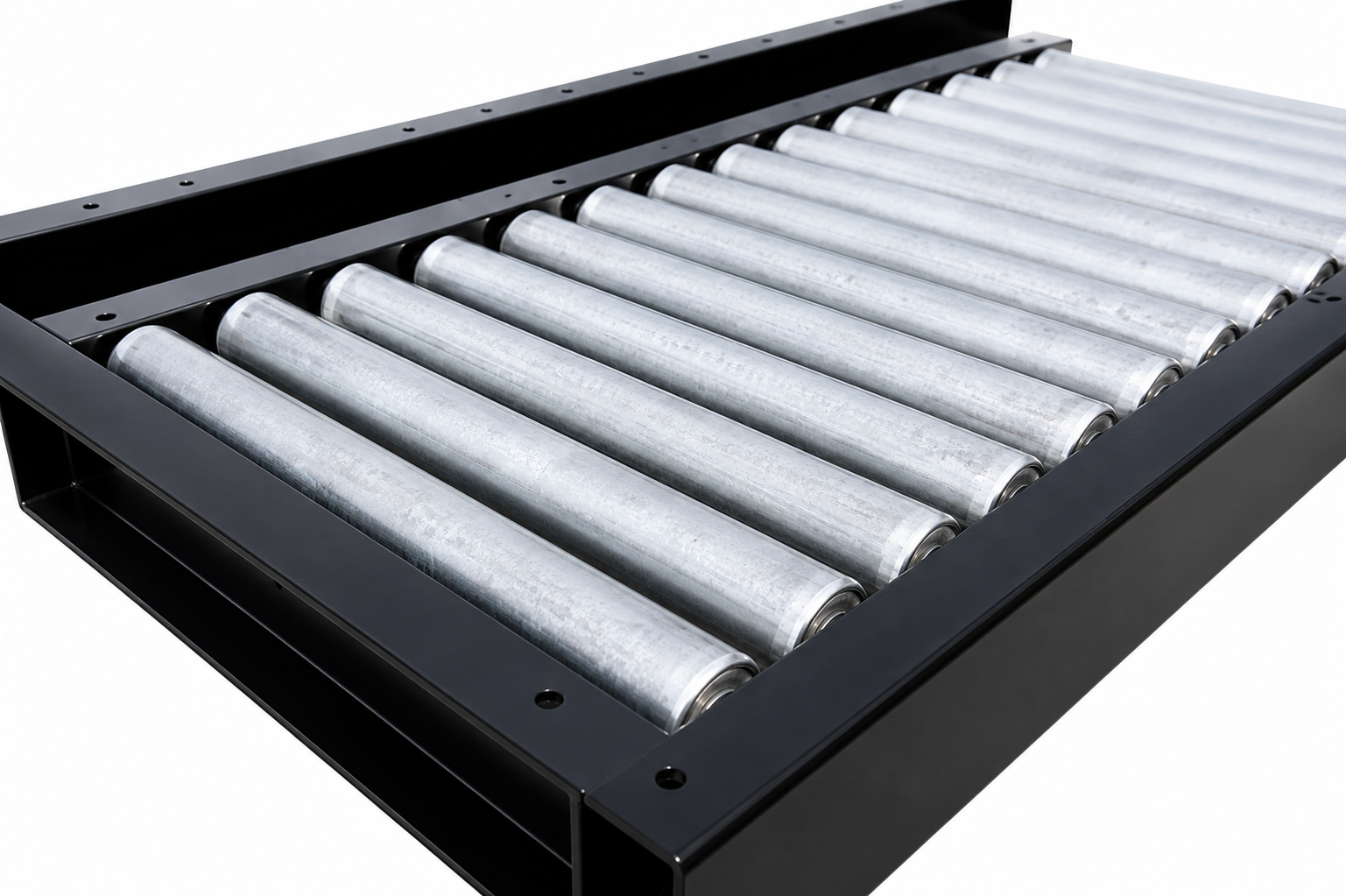

- Steel roller top for fast pallet and box on and off movement
- Heavy-duty industrial-grade steel frame and powder-coated finish

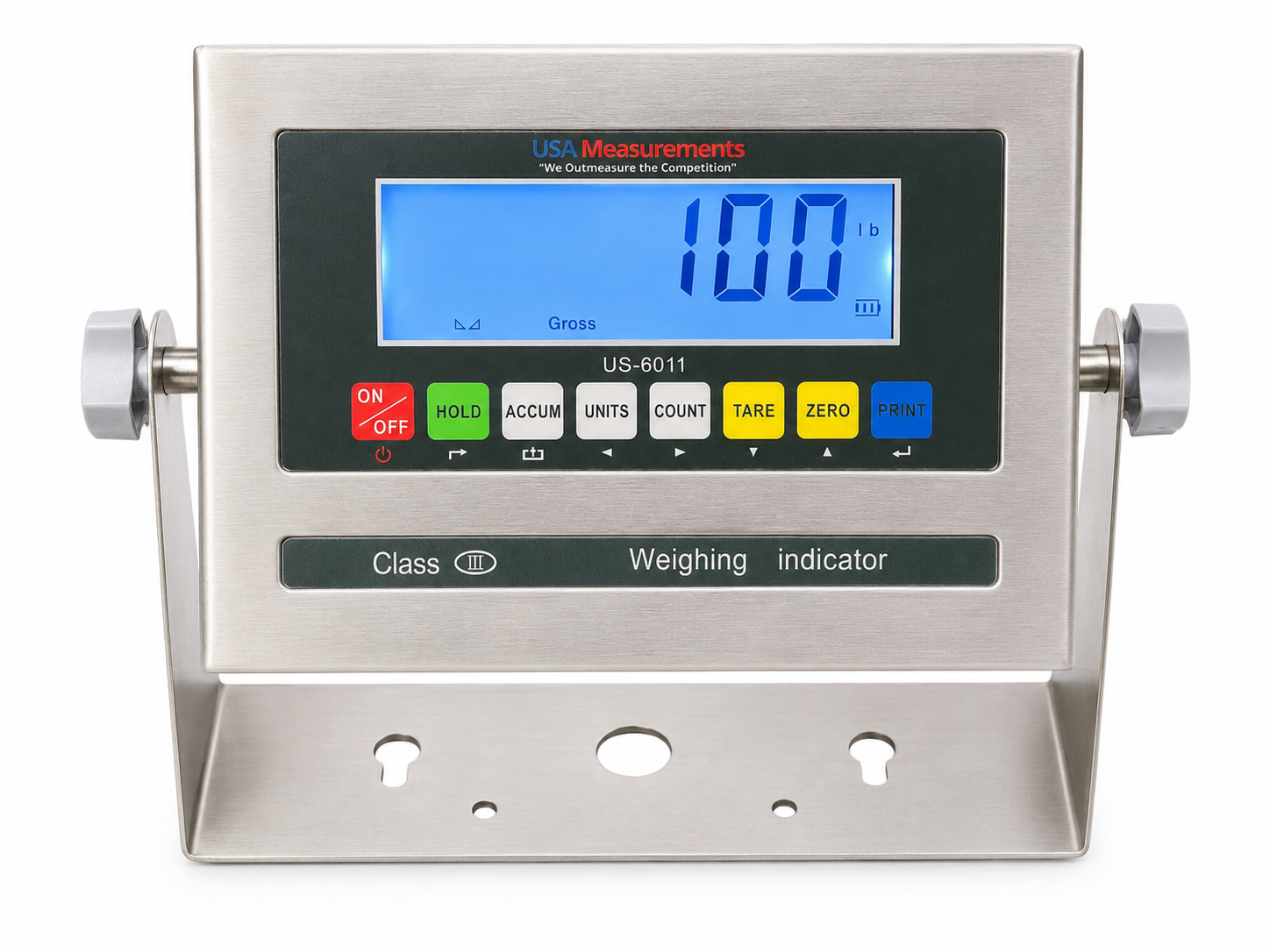

- US-6011 LCD weighing indicator included, stainless steel housing
- Four sealed alloy steel shear-beam load cells
- NEMA 4X stainless steel junction box for harsh warehouse environments
- Multiple weighing units, pound and kilogram
- Tare, Zero, Accumulator, Count, and Print functions standard
- RS-232 and USB connectivity for printer, scoreboard, and PC integration
- AC adapter included, optional rechargeable battery for portability
- Adjustable leveling feet for uneven warehouse floors
- Designed for high-volume continuous shipping and receiving use
Specifications:
- Platform Sizes: 120″ x 96″, 125″ x 96″, 129″ x 97″, 100″ x 132″ (custom sizes available)
- Capacity Options: 10,000 lb x 1 lb, 20,000 lb x 5 lb, 30,000 lb x 5 lb
- Load Cells: Four sealed alloy steel shear-beam
- Junction Box: NEMA 4X stainless steel
- Indicator: US-6011 LCD, stainless steel housing
- Power: AC adapter included, optional rechargeable battery
- Connectivity: RS-232, USB
- Weighing Units: Pound, Kilogram
- Brand: USA Measurements
- Manufacturer: USA Measurements
- Warranty: 5-year frame, 2-year electronics
