Key Features
- Temperature measurement range from -15°C to 550°C (5°F to 1022°F)
- Point, line, and area-based thermal analysis
- Photo and video capture in JPG and MP4 formats
- Language support in English, Chinese, and Russian
- Ultra-lightweight design at just 15g, with a compact body measuring 45×36.7×11.5mm
Specifications
- Infrared Detector: 256 × 192 resolution (Vanadium Oxide uncooled)
- Spectral Band: 8–14 µm
- Thermal Sensitivity (NETD): <50 mK
- Field of View (FOV): 56° × 42°
- Temperature Range: -15°C to 550°C (5°F to 1022°F)
- Measurement Accuracy: ±2°C or ±2% of reading
- Measurement Modes: Point, Line, Area

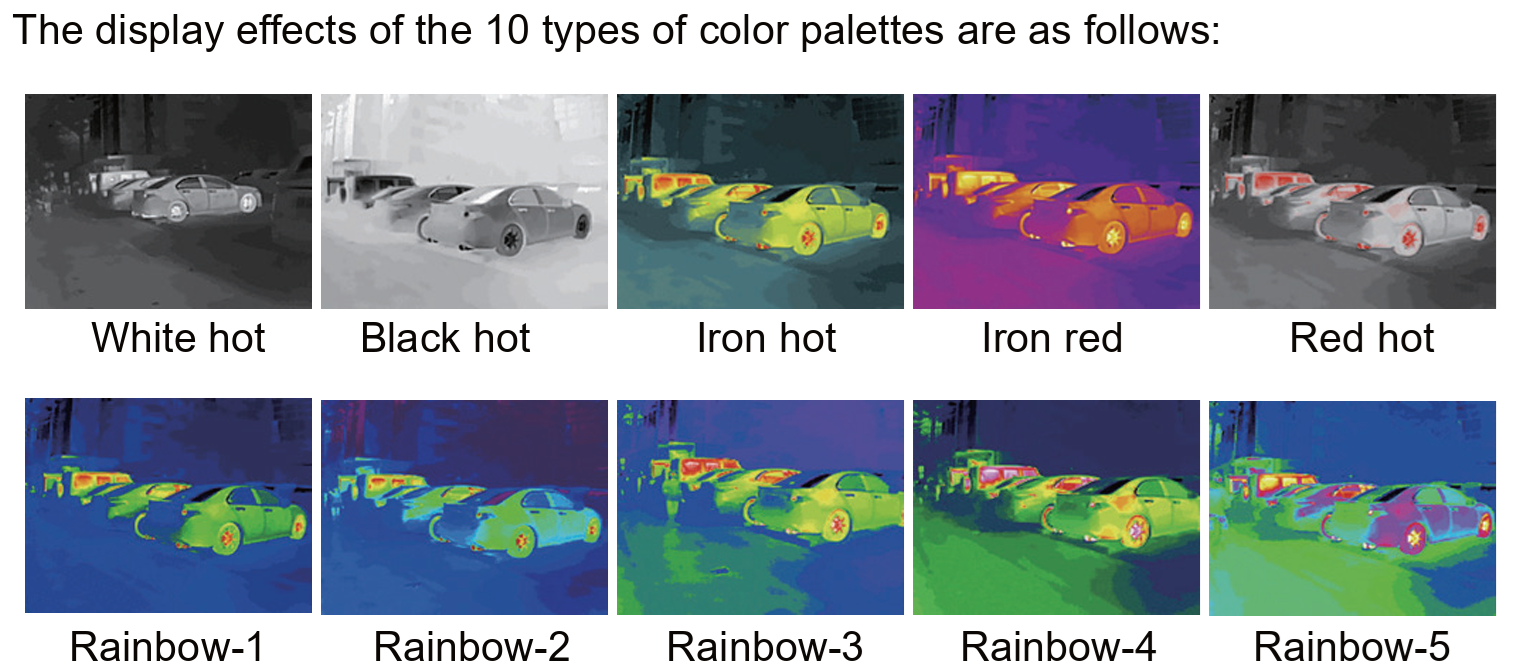

- Color Palettes: 10 options (e.g., White Hot, Rainbow, Iron Red)
- Image & Video Formats: JPG, MP4
- Language Support: English, Chinese, Russian
- Weight: 15g
- Dimensions: 45 × 36.7 × 11.5 mm
- Power Supply: USB Type-C (draws power from phone)
Applications
- Electrical diagnostics and circuit inspection
- Building and HVAC inspections
- Mechanical equipment maintenance
- Energy audits and insulation analysis
- Automotive troubleshooting
- Veterinary and agricultural thermal scanning
- Research and educational demonstrations
What’s Included
- Mini 4 Thermal Imager (USB Type-C interface)
- Protective storage case
- Quick start guide
- Access to Smart Thermal app (download required)
Why Choose LSJ Mini4
- High-Resolution Imaging: 256×192 IR detector ensures detailed thermal views
- Wide Temperature Range: Covers industrial and everyday inspection needs

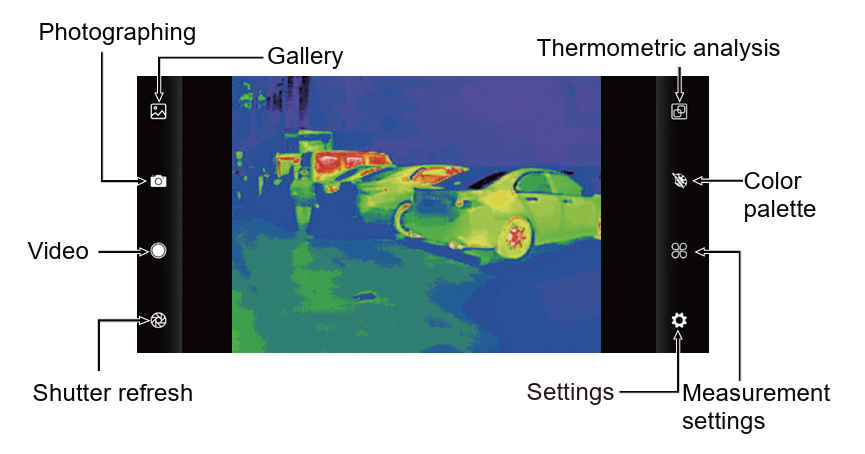

- User-Friendly App: Easy image capture, analysis, and sharing
- Pocket-Sized Power: Lightweight and compact for field work
- Multi-language Interface: Accessible to users worldwide
Safety & Usage Warnings
- Do not expose to intense radiation sources or direct sunlight.
- Avoid touching the lens or window to prevent damage.
- Keep the device dry and protect USB contacts from moisture.
- Do not attempt disassembly—seek authorized service support.
- Handle with care to avoid electrostatic discharge or drops.
