Standard Features:
- Manufactured in Lancaster, PA — Made in USA since 1908
- All 304 stainless steel construction — base, deck plate, load cells, and all hardware
- Shot blast smooth deckplate finish
- IP68 washdown protection — fully sealed against high-pressure washdown
- Remote SS NEMA 4X summing card j-box included
- 20' cable with CPC quick disconnect for easy connection to Pennsylvania Scale indicators
- NTEP approved, legal for trade — COC 90-097A3
- Measurement Canada approved — COC S.WA-4456 Rev. 3 & 4
- 100%+ overload protection
- 5-year limited warranty
- Ideal for food processing, pharmaceutical, chemical, and sanitary production environments
- Compatible with the Pennsylvania 7400 WD digital weight indicator

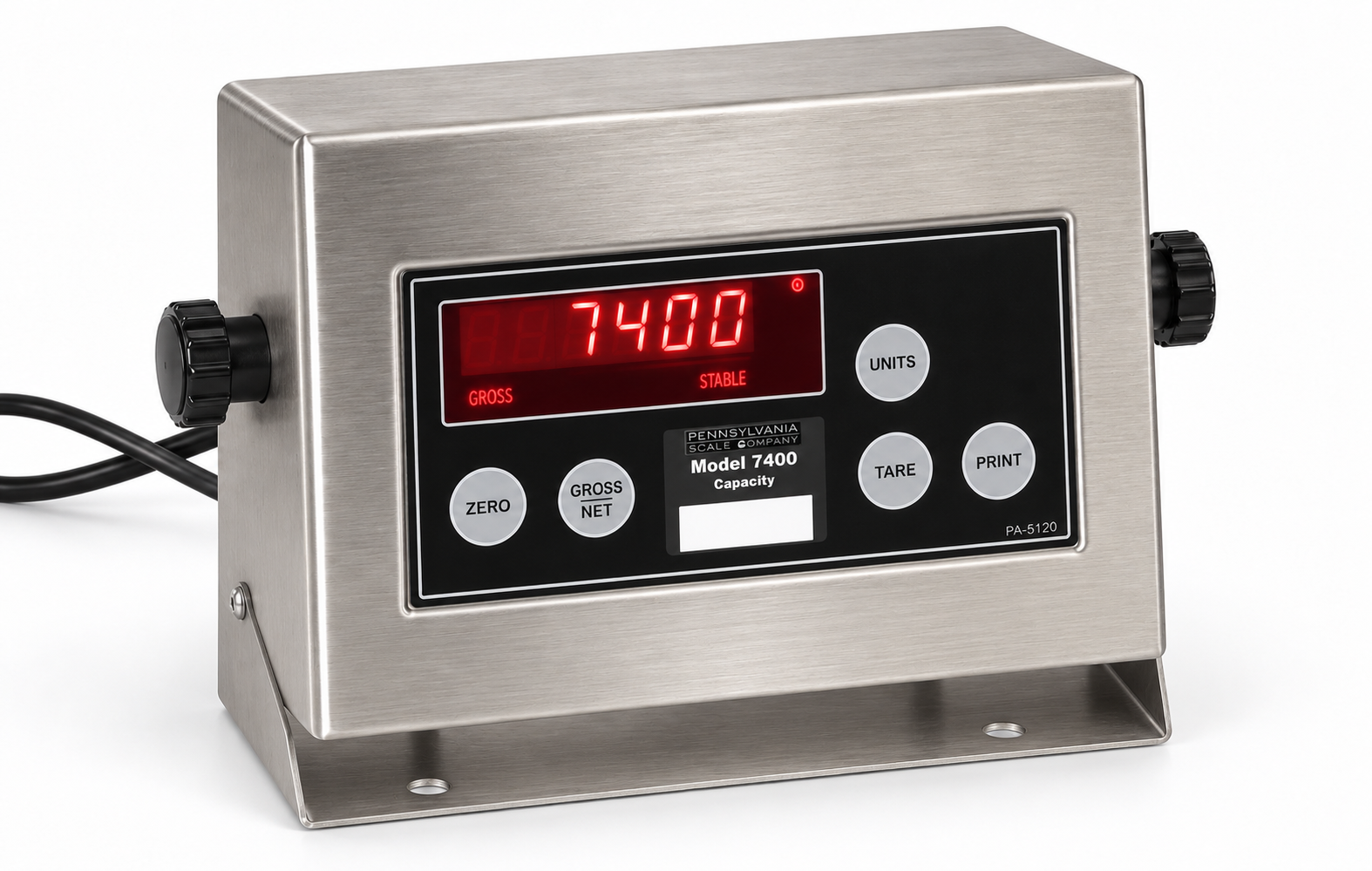

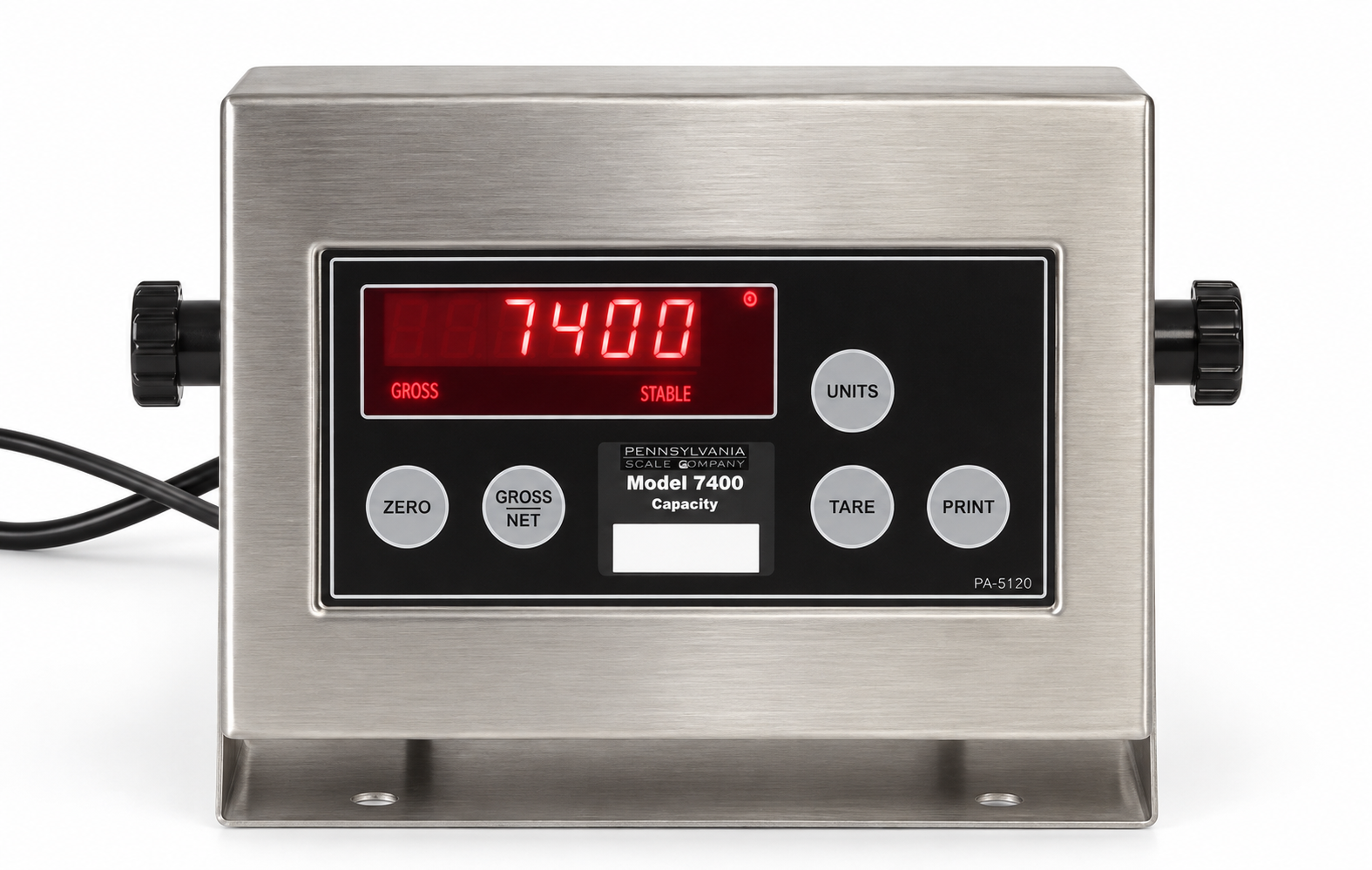

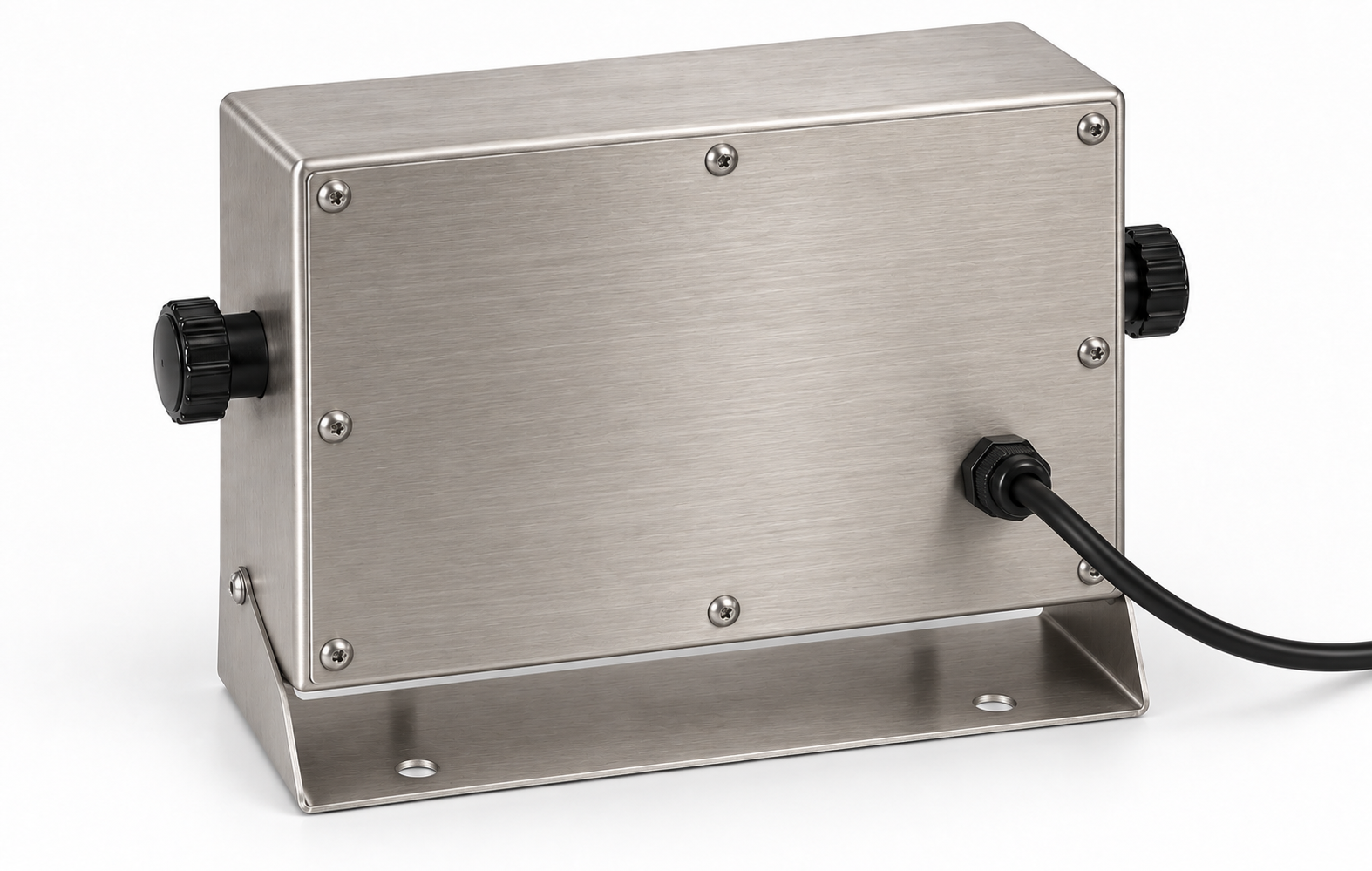

Standard Indicator Features — Pennsylvania 7400 WD:
- 304 stainless steel enclosure — NEMA 4X / IP66 washdown rated
- 24-bit delta sigma A/D converter — 1:16,777,216 internal counts for high resolution
- Six-digit, 0.6" LED display — large and easy to read in any lighting
- 5-button keypad: Zero, Gross/Net, Tare, Units, Print
- 30 updates per second — fast, stable weight readings
- RS-232C serial communication standard
- Optional Ethernet TCP/IP, analog output (0–10V / 4–20mA), and battery pack
- NTEP CoC 97-009A4; Measurement Canada AM-5647
- 5-year limited warranty
- Made in USA
Resources:
Specifications:
| Specification | SS6600 |
|---|---|
| Platform Material | All 304 stainless steel, smooth deckplate |
| Frame | Full tube stainless steel construction |
| Finish | Shot blast smooth deckplate |

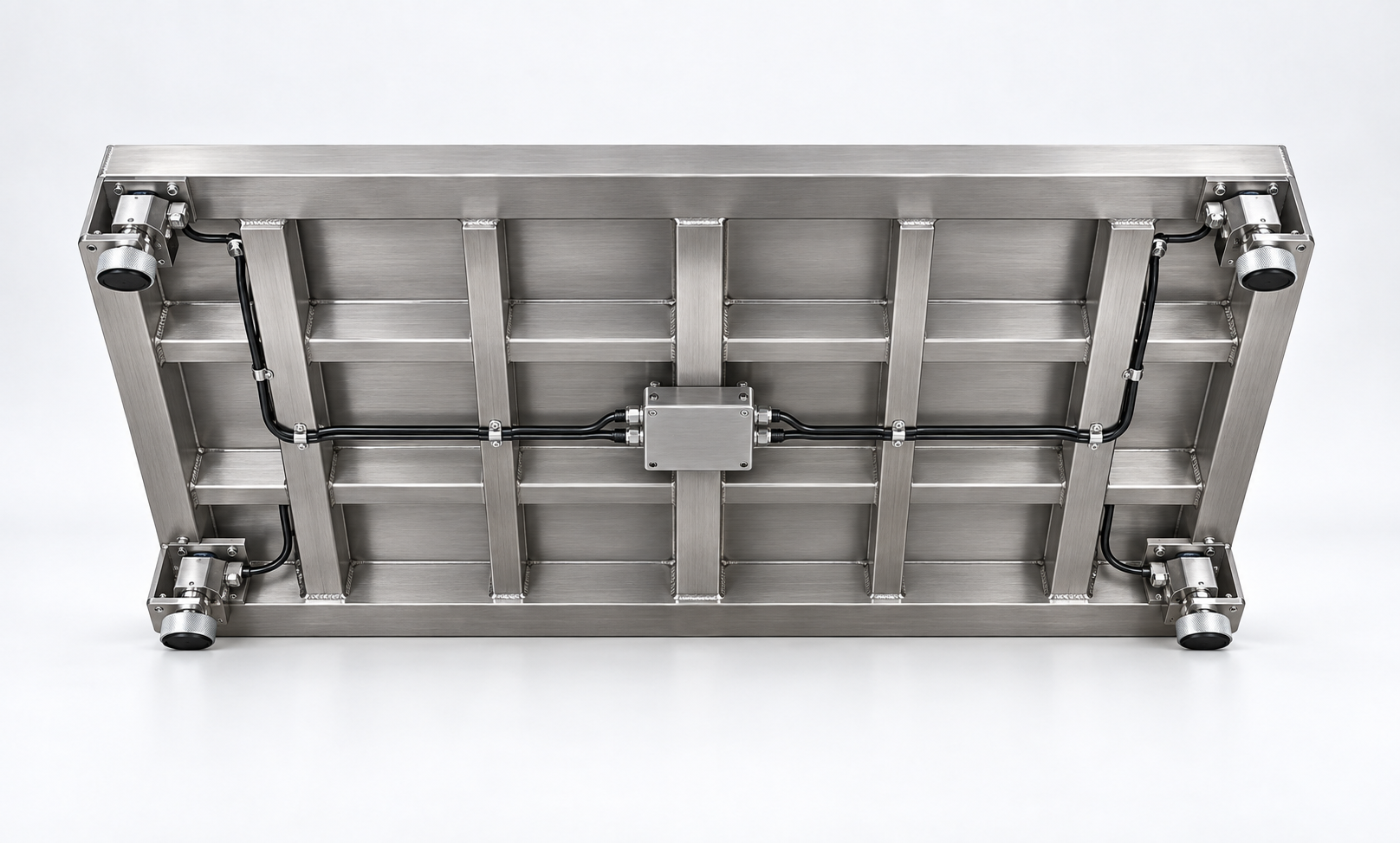

| Load Cells | Stainless steel shear beam, IP68 sealed |
| Washdown Rating | IP68 — fully sealed high-pressure washdown |
| Junction Box | Remote SS NEMA 4X summing card j-box |
| Platform Sizes | 24"×24" through 48"×48" |
| Capacities | 1,000 lb – 10,000 lb |
| Overload Protection | 100%+ rated capacity |
| Operating Temperature | 14°F – 104°F (−10°C to 40°C) |
| NTEP | Legal for trade — COC 90-097A3 |
| Measurement Canada | COC S.WA-4456 Rev. 3 & 4 |
| Warranty | 5-year limited |
| Origin | Made in USA — Lancaster, PA |
Product Overview:
7400 WD Indicator Calibration:
