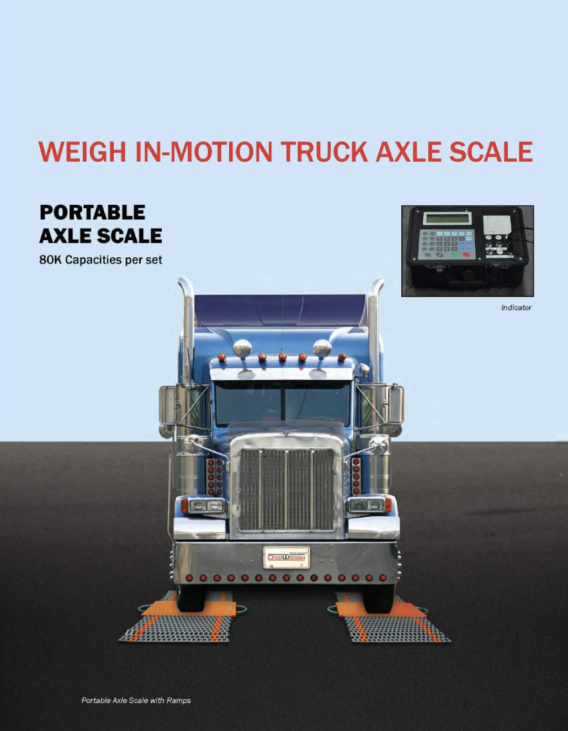

Prime heavy duty portable weighing in-motion axle scale set and an economical alternative solution to full size truck scales. Design for weighing tractor trailers, dump trucks, tri/quad axle trucks, and more. It is very easy for the installation and simple steps for the operation as well. Outstanding product features include the following:
Features:
Aluminum alloy raw material
Pad Size: 31.5″” x 13.78 x 0.87″
Ramp size: 31.5″ x 59″
80,000 lb Capacity for 2 pads
Light to carry
Use in raining or snowing environment
Seal protection for normal working environment
Load cell based with high Weighing In-Motion accuracy
OIML Standard
Static accuracy
Wide weighing pads even can carry one axle with 4 wheels
Load cell over load protection
120% overload protection
Built-in Cable protector
Built-in anti-electromagnetic interference to make sure weighing result would not be influenced.
Built-in auto compensation system to compensate weighing error on double joint axle or triple joint axle
One year warranty
Non-NTEP (Not Legal for Trade)
Specifications:
Rated Capacity
Dynamic weight: 40,000 lbs per pad (80,000 lbs per axle weight)
Static: 40,000 lbs per pad (80,000 lbs per axle weight)
Accuracy
Dynamic: accurate to >3% of gross vehicle weight, 95% CI
Static: wheel load accurate to 0.5% full scale nominal
Overload Capacity
125% full scale safe overload (electronics protected)
150% full scale ultimate overload (metal protected)
Temperature Range
-30ºC to 80ºC (operating), -10ºC to 60ºC (compensated based on an additional 0.05% to 0.10% FS static error for every 10ºC deviation from 20ºC)
Graduation
20 lb standard
Weight
84 lbs / pad (2 pads per system) tracking (73 lb each set)
Material
High Strength Aluminum (frame and weighing surface) and
Stainless Steel (bottom plate)
Ground Requirements
Fatigue limit and accuracy is significantly affected by the scale foundation. This scale system must be used on cement and pavement only and should be level within 1/8″ per square meter
Dimensions
Each Pad Dimension: 31.5″ x 13.78″ x 0.87 & Each Ramp Dimension: 31.5″ x 59″ x 0.87
Sealing Standard
IP-66: totally protected from dust; muddy conditions, protected from strong jets of water (Not for use in heavy down pours of rain for hours at a time)
Power
Dynamic scale is powered by Included AC adapter and built in rechargeable battery.
