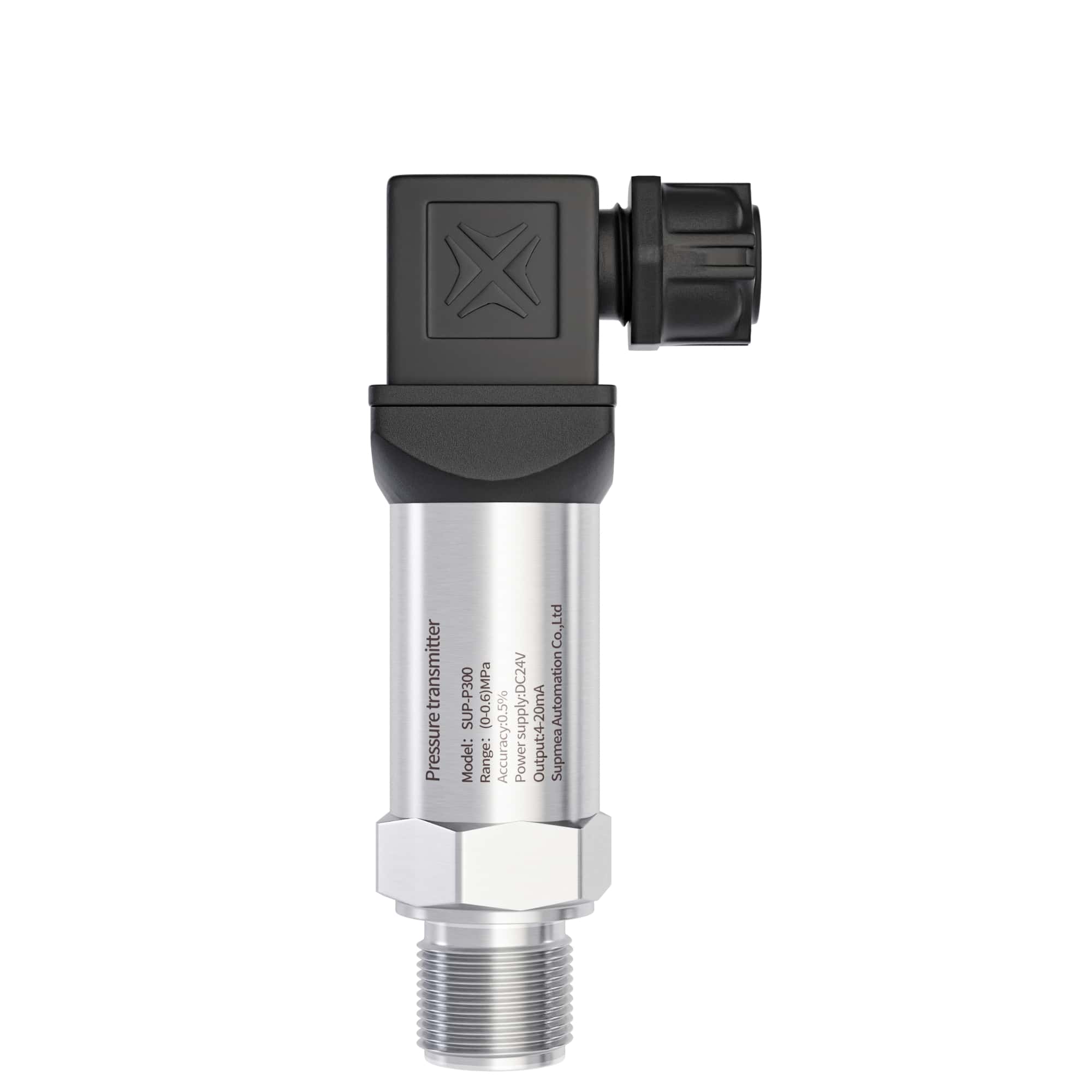

Features:
- High Accuracy and Stability – Provides precise and reliable pressure measurements up to 145 PSI, ensuring accurate control in critical applications.
- Piezoresistive Sensing Technology – Offers excellent measurement repeatability and stable performance in non-corrosive environments.
- Compact Design – Small and space-saving, ideal for installations where space is limited without compromising measurement quality.
- Stainless Steel Construction – Made with a SS304 body and SS316L diaphragm for superior durability and corrosion resistance, suitable for demanding industrial environments.
- Standard 4-20mA Output – Provides a widely compatible analog output signal, ideal for integration into control systems, data loggers, and industrial automation platforms.
- Simple Power Supply – Operates on a standard 24VDC supply for easy integration into existing systems.
- NPT 1/4″ Thread – Universal 1/4″ National Pipe Thread (NPT) makes installation straightforward and compatible with most pipelines and fittings.
- Flexible Cabling – Comes with a 2-meter (6.56 ft) low-noise cable for easy routing and long-distance signal transmission without interference.
- Wide Operating Temperature – Handles temperatures from -20°C to 85°C (-4°F to 185°F), suitable for various indoor and outdoor applications.
- Versatile Applications – Trusted for use in aerospace, automotive, medical equipment, HVAC, and general industrial machinery, providing cost-effective and dependable pressure monitoring across multiple industries.
Specifications:
- Signal output: 4-20mA
- Supply: 24VDC
- Thread: NPT 1/4 (1/4″ National Pipe Thread)
- Cable: 2m (6.56ft)
- Material: Body SS304 and SS316L diaphragm
- Temperature range: -20~85℃ (-4°F~185°F)
- PSI: 145 psi
Applications:
- Aerospace & Automotive Testing – Accurately monitor fluid and gas pressures in test benches, fuel systems, hydraulic circuits, and performance testing setups. The SUP-P300 ensures reliable data and stable operation even under dynamic conditions.
- Medical Equipment – Used in devices such as sterilizers, ventilators, and fluid control systems where precise and stable pressure measurement is essential for both patient safety and equipment performance.
- HVAC Systems – Ideal for monitoring air, refrigerant, or water pressure in heating, ventilation, and air conditioning systems. Helps optimize system efficiency, reduce energy costs, and maintain equipment longevity.
- Industrial Machinery & Process Control – Perfect for general industrial applications, including hydraulic and pneumatic systems, where consistent and accurate pressure measurement is needed to maintain smooth and safe operations.
- General Purpose & OEM Applications – Its compact design, wide operating temperature range, and standard 4-20mA signal make it an excellent choice for original equipment manufacturers and system integrators looking for a universal, easy-to-integrate pressure transmitter.
