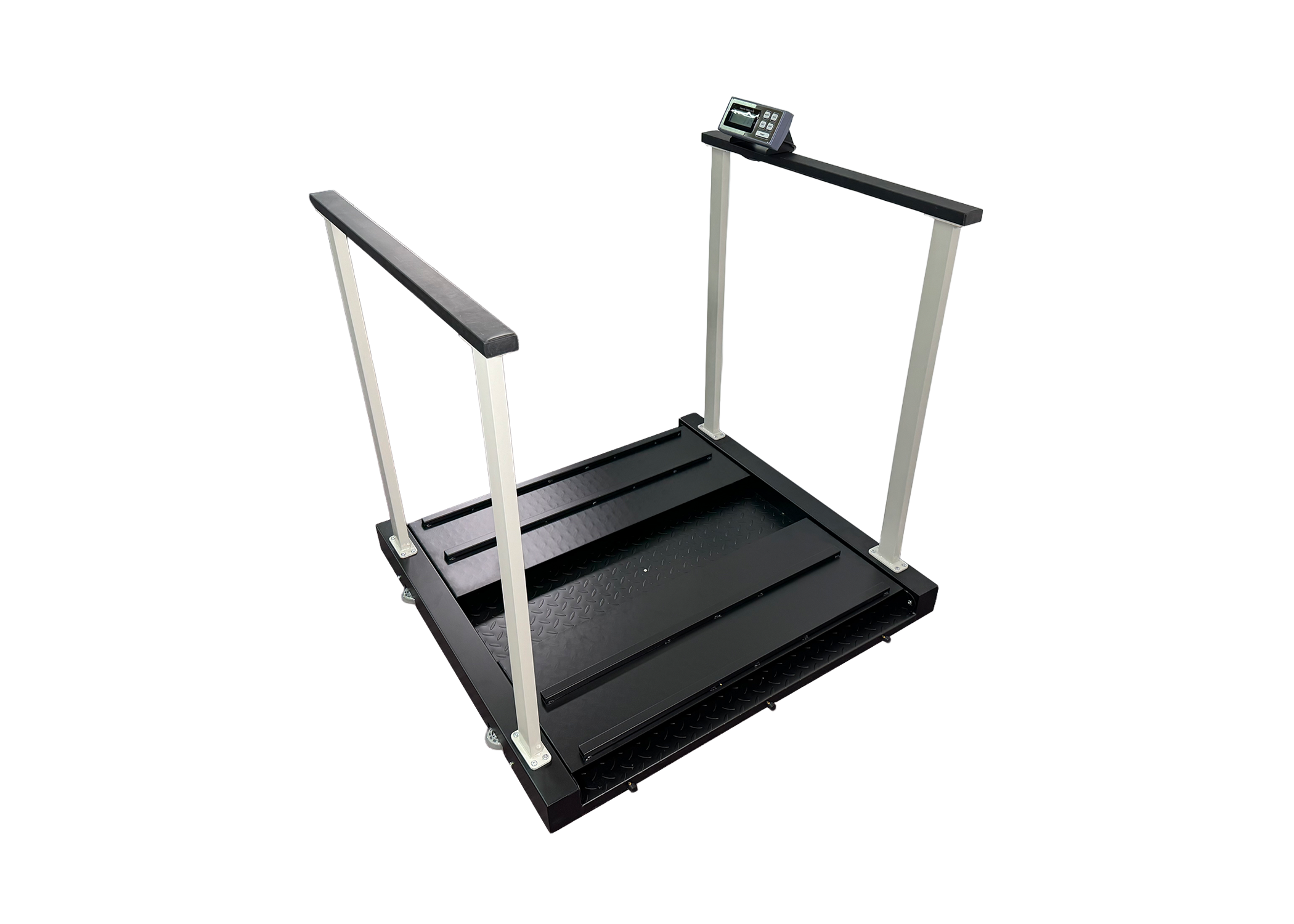

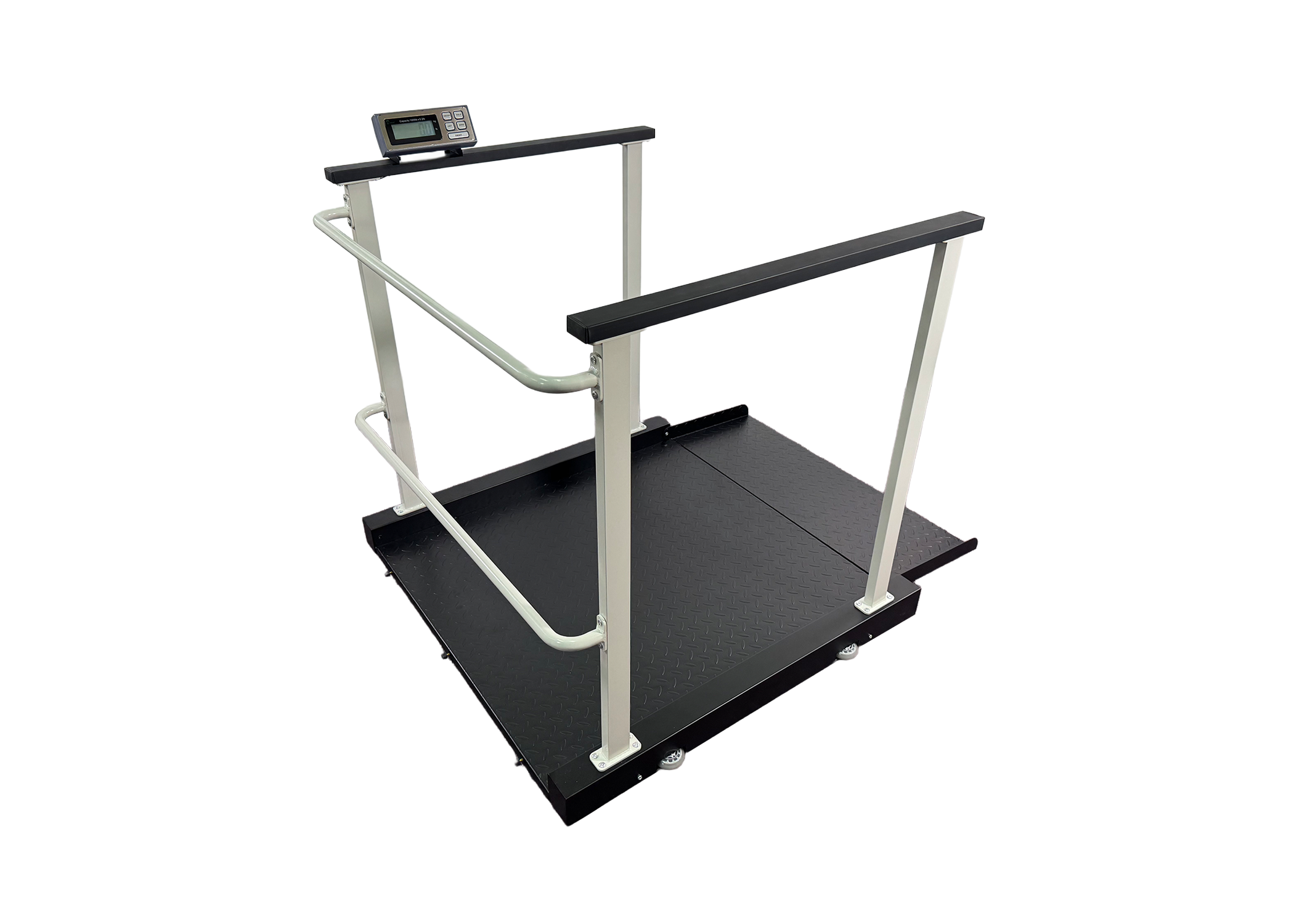

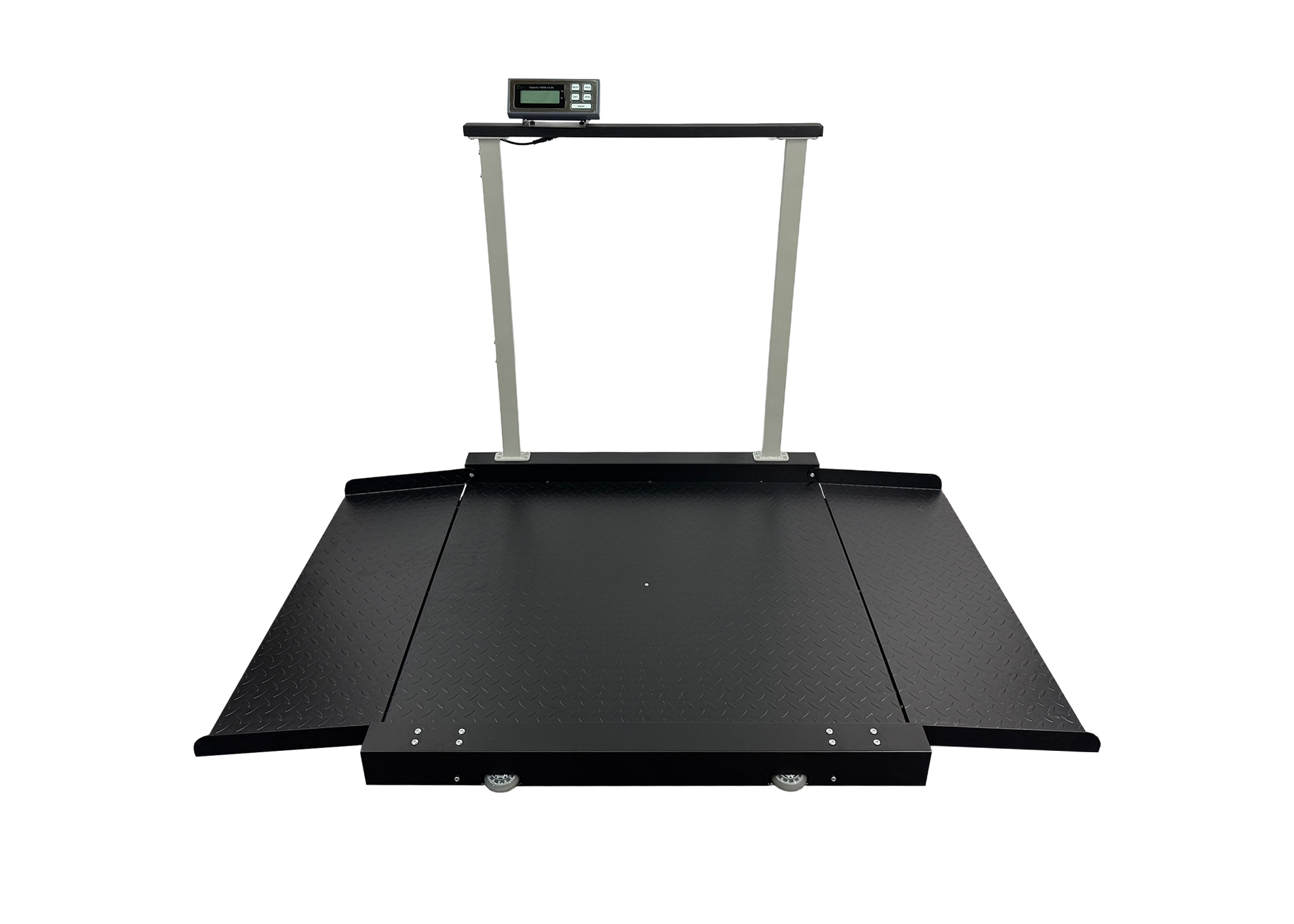

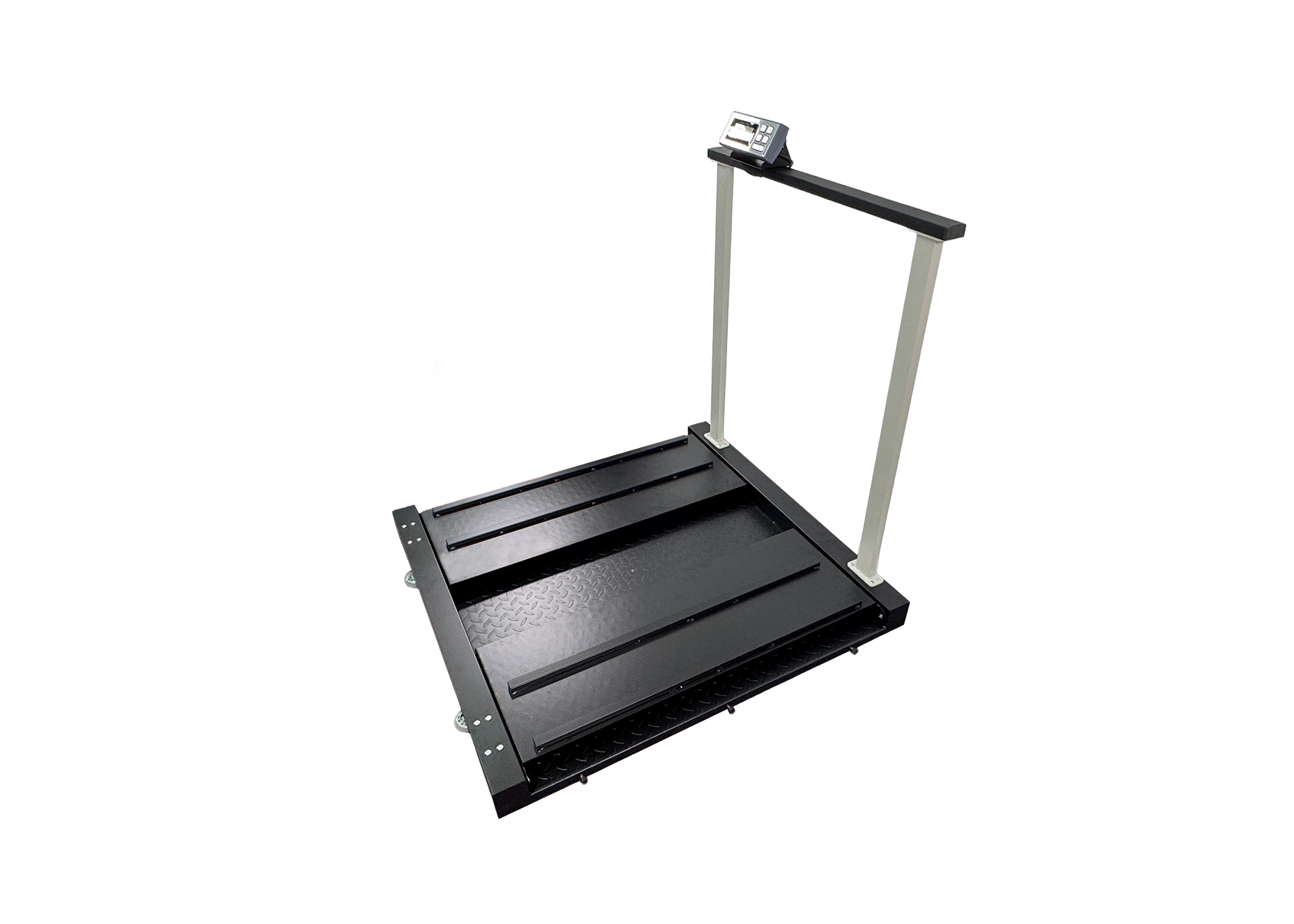

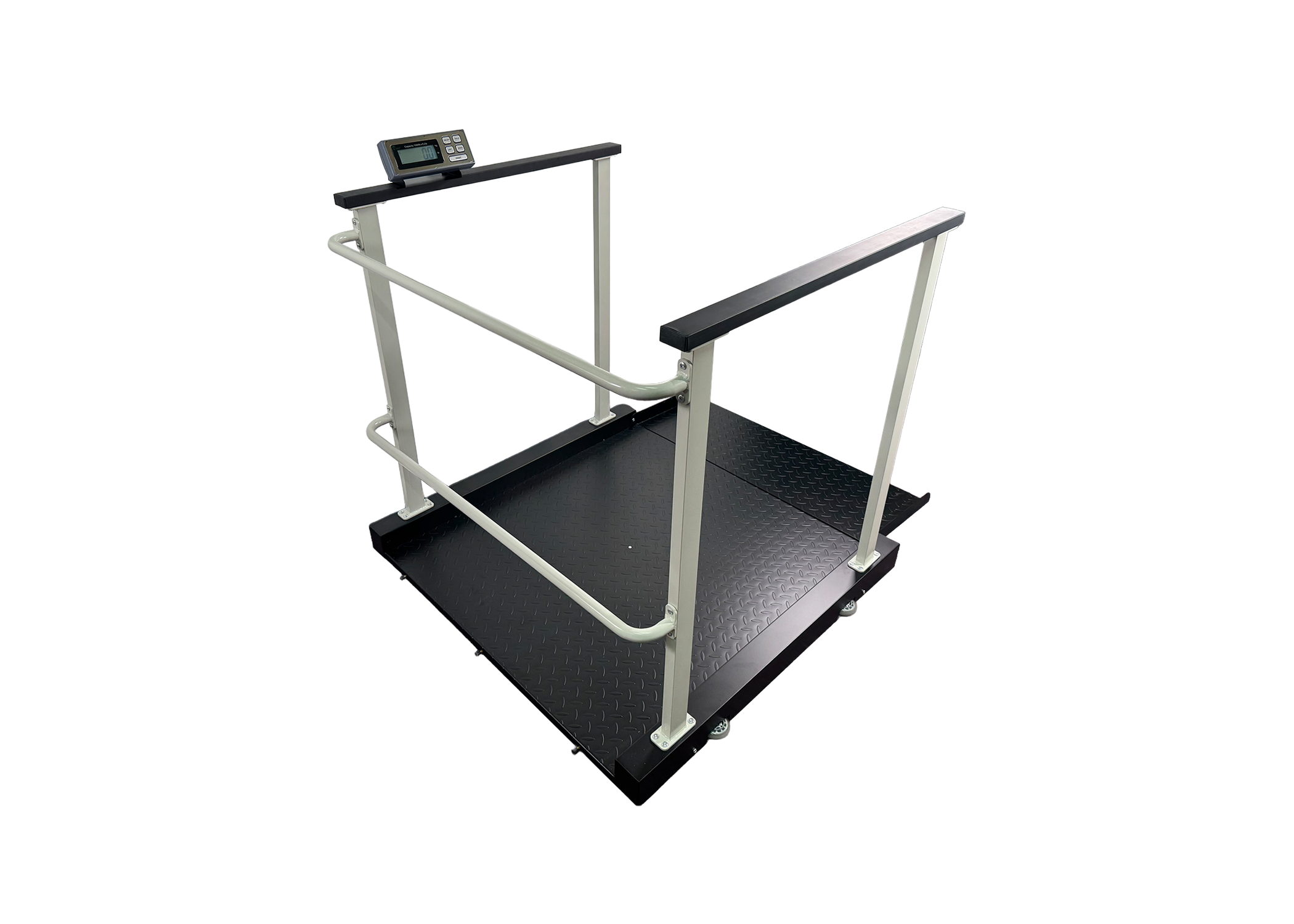

The Tree LWC-HR 1000 is a heavy-duty wheelchair and bariatric scale built for hospitals, clinics, rehabilitation centers, and care facilities that need accurate, accessible patient weighing. The scale features a spacious 40″ x 37″ weighing platform and a dual-purpose configuration: set it up with the included 3-point handrail system for bariatric stand-up weighing, or remove the cross rails to create a pass-through wheelchair configuration where the patient rolls in from one ramp and exits from the other — no turning required.
Designed to meet updated ADA requirements, the LWC-HR 1000 features a 2″ ramp edge and 1:10 ramp running slope for smooth, compliant wheelchair access. The HOLD function freezes the weight reading after the patient steps off or exits, making it easy to record measurements without rushing. RS232 connectivity enables seamless data transfer to EMR systems and computers. The scale runs on the included 9VDC adapter or 6 AA batteries for flexible placement anywhere in a facility. Backed by a 2-year manufacturer warranty.
Standard Features:
- 1,000 lb / 450 kg capacity with 0.2 lb / 0.1 kg readability
- Spacious 40″ x 37″ weighing platform accommodates standard and motorized wheelchairs and mobility scooters
- ADA compliant — 2″ ramp edge with 1:10 ramp running slope
- Dual-purpose configuration: 3-point handrail system for bariatric stand-up weighing, or pass-through configuration for wheelchair use
- 2 million internal resolution, 21-bit A/D processor
- HOLD function freezes display weight for easy patient recordkeeping
- RS232 data output for integration with computers and EMR systems
- Selectable auto backlight and auto shut-off
- AnyCal® external calibration software compatible
- 5-button keypad with selectable audible beeper
- Battery or AC powered — 6 x AA batteries (not included) or 9VDC adapter (included)
- Dimensions including ramps: 67.25″ x 37″ x 40.25″
- Rail height from scale base: 38.75″
- Operating environment: 32°F – 104°F (0°C – 40°C)
- 2-year manufacturer warranty
Specifications:
- Capacity: 1,000 lb
- Display Divisions: 5,000
- Internal Resolution: 2 Million
- Accuracy: ±3d
- Platform Size: 40″ x 37″
- Dimensions (Including Ramps): 67.25″ x 37″ x 40.25″
- Rail Height (from Scale Base): 38.75″
- Ramp Edge: 2″
- Ramp Running Slope: 1:10
- Indicator Display Size: 1.25″ x 3.625″
- A/D Processor: 21-bit
- A/D Update Speed: 10 Hz
- Stabilization Time: < 2 sec
- Calibration Software: AnyCal®
- Number of Keys: 5
- Memory: Zero
- RS232C: Yes
- USB: No
- Beeper: Yes, Selectable
- Auto Backlight: Yes, Selectable
- Auto Shut Off: Yes, Selectable
- Auto Hold: No
- Power: 6 x AA Batteries (not included) or 9VDC Adapter (included)
- Operating Environment: 0°C – 40°C / 32°F – 104°F
- Standard Accessories: Indicator, Manual, AC Adapter
- Additional Accessories: Handrail, Cross Rails, Allen Key
- Warranty: 2-Year Manufacturer Warranty
Resources
Capacity Options
| Model | Capacity | Readability | Accuracy | Platform Size |
|---|---|---|---|---|
| LWC-HR 1000 | 1,000 lb | 0.2 lb / 0.1 kg | ±3d | 40″ x 37″ |
