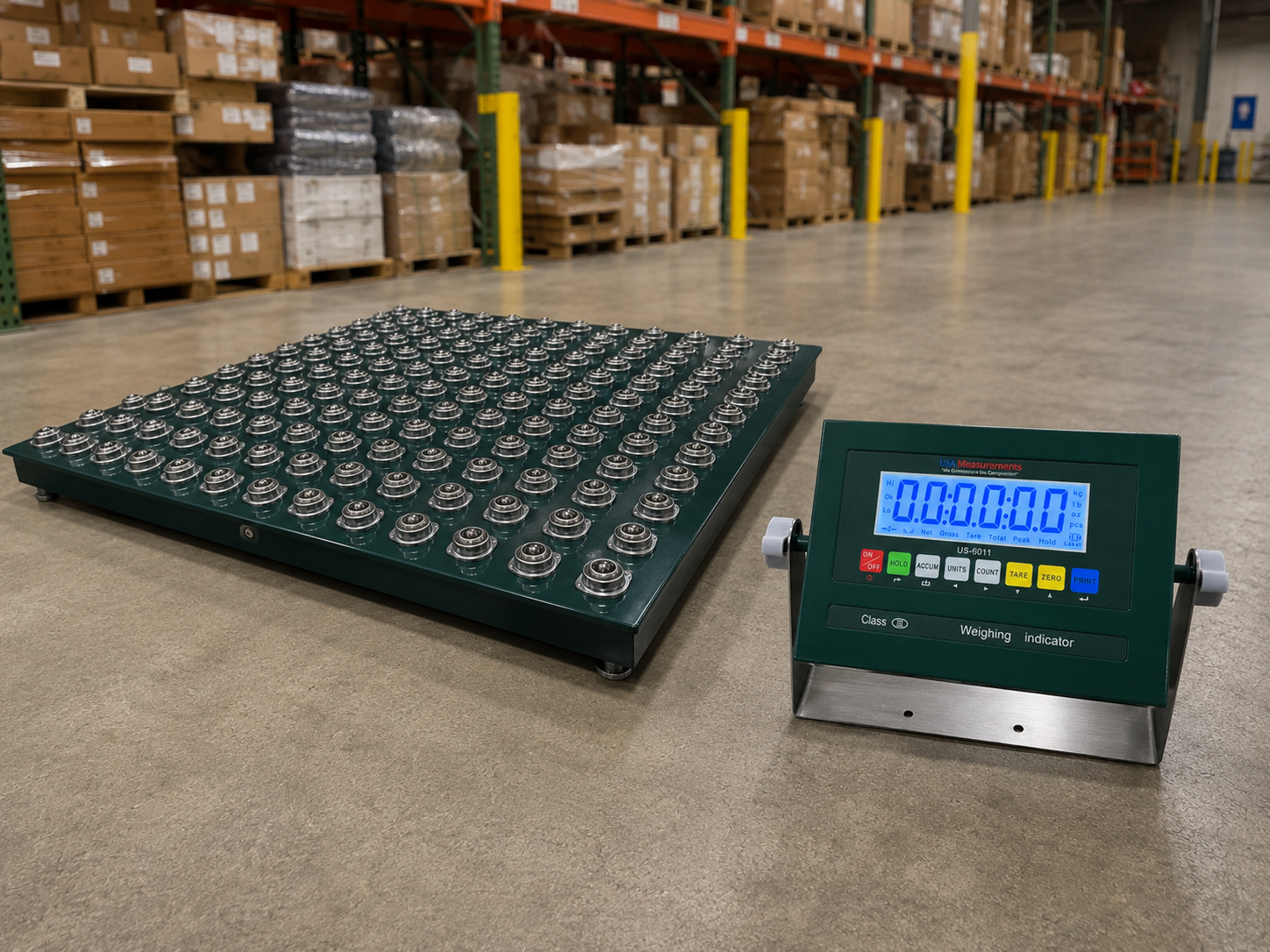

The USA Measurements Ball Transfer Floor Scale is built for one job: move heavy boxes and packages across the scale platform without anyone lifting them. The 48"x48" mild-steel deck is topped with a tight grid of 100+ stainless steel ball bearings so freight rolls in any direction. Pair two units with a roller conveyor line and you have a true weigh-in-motion-style staging point. Pick 5,000 lb or 10,000 lb of capacity, get the US-6011 indicator in the box, and enjoy free shipping.
Capacity Options:
- 5,000 lb (5,000 lb x 1 lb / 48"x48" Platform)
- 10,000 lb (10,000 lb x 2 lb / 48"x48" Platform)
Why a Ball Transfer Top:
- Roll boxes and packages across the platform with one hand — no lifting heavy freight onto the scale
- Bidirectional flow: loads can enter and exit on any of the four sides, ideal for L-shaped or T-shaped staging

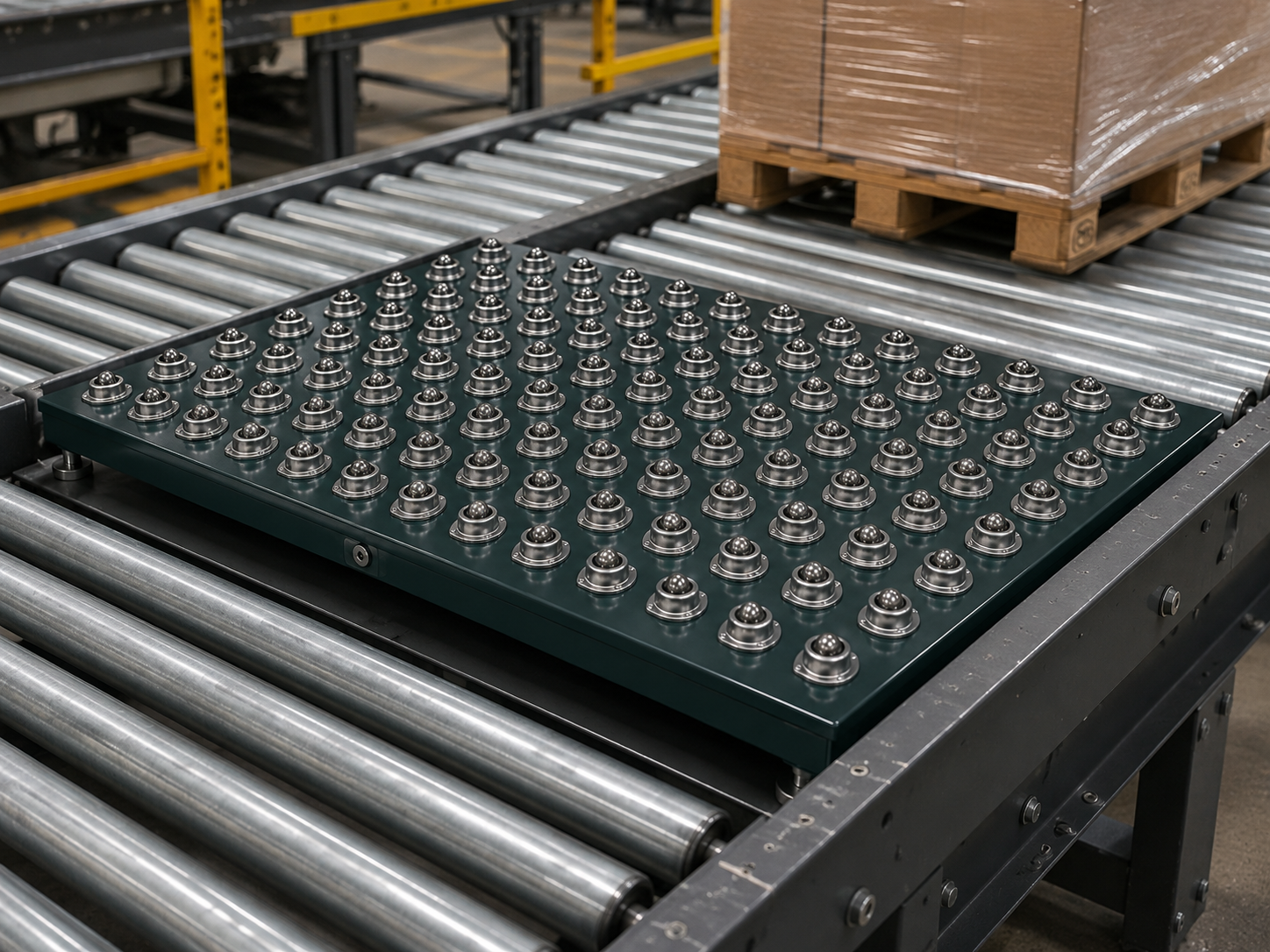

- Drops into a roller conveyor line at the same deck height, so shipping cells weigh without breaking flow
- Cuts cycle time at receiving stations versus a flat-top floor scale that requires a pallet jack lift
- Stainless steel ball bearings resist rust and stand up to warehouse wear
- Ergonomic — reduces lift injuries on high-throughput shipping docks
Standard Features:

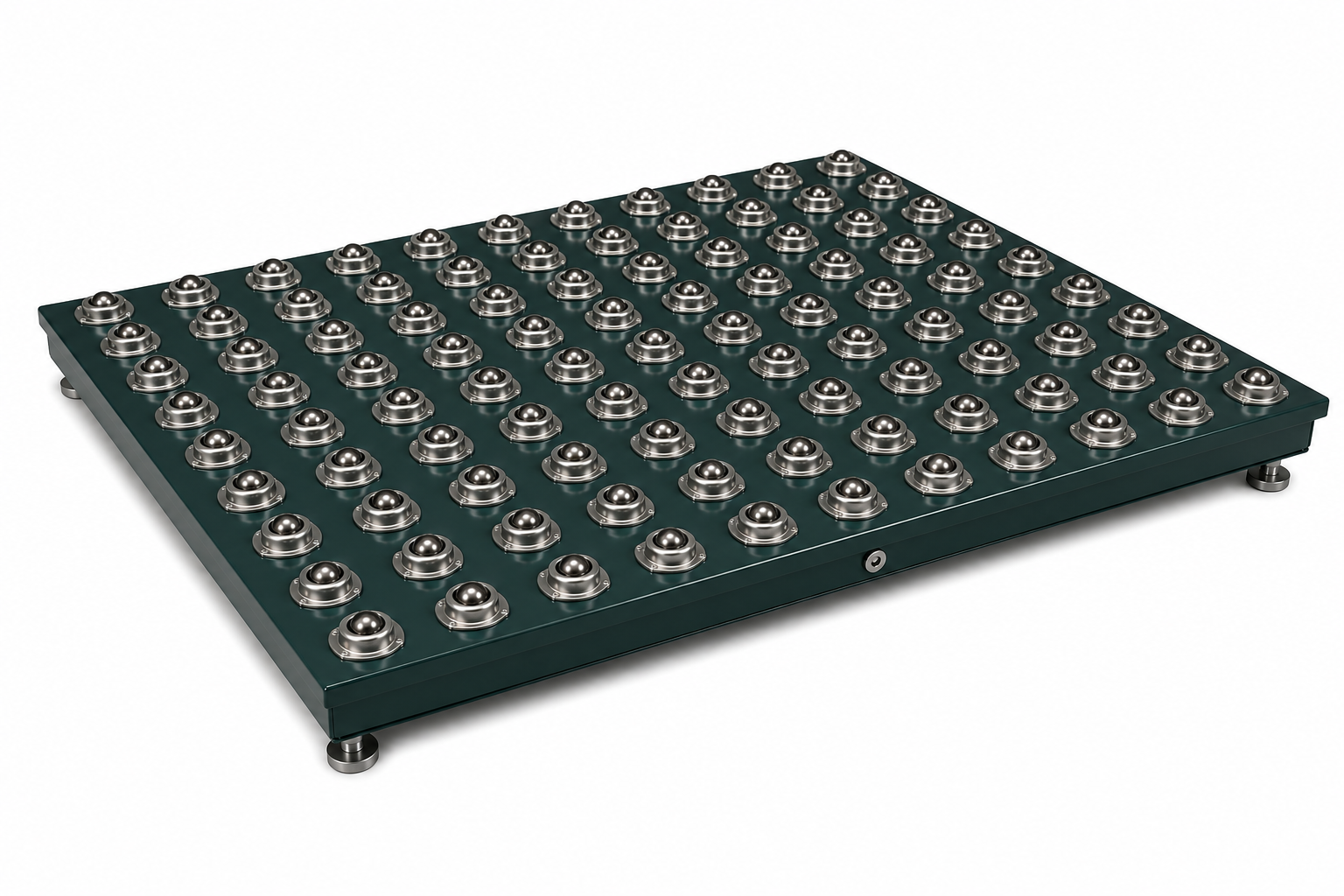

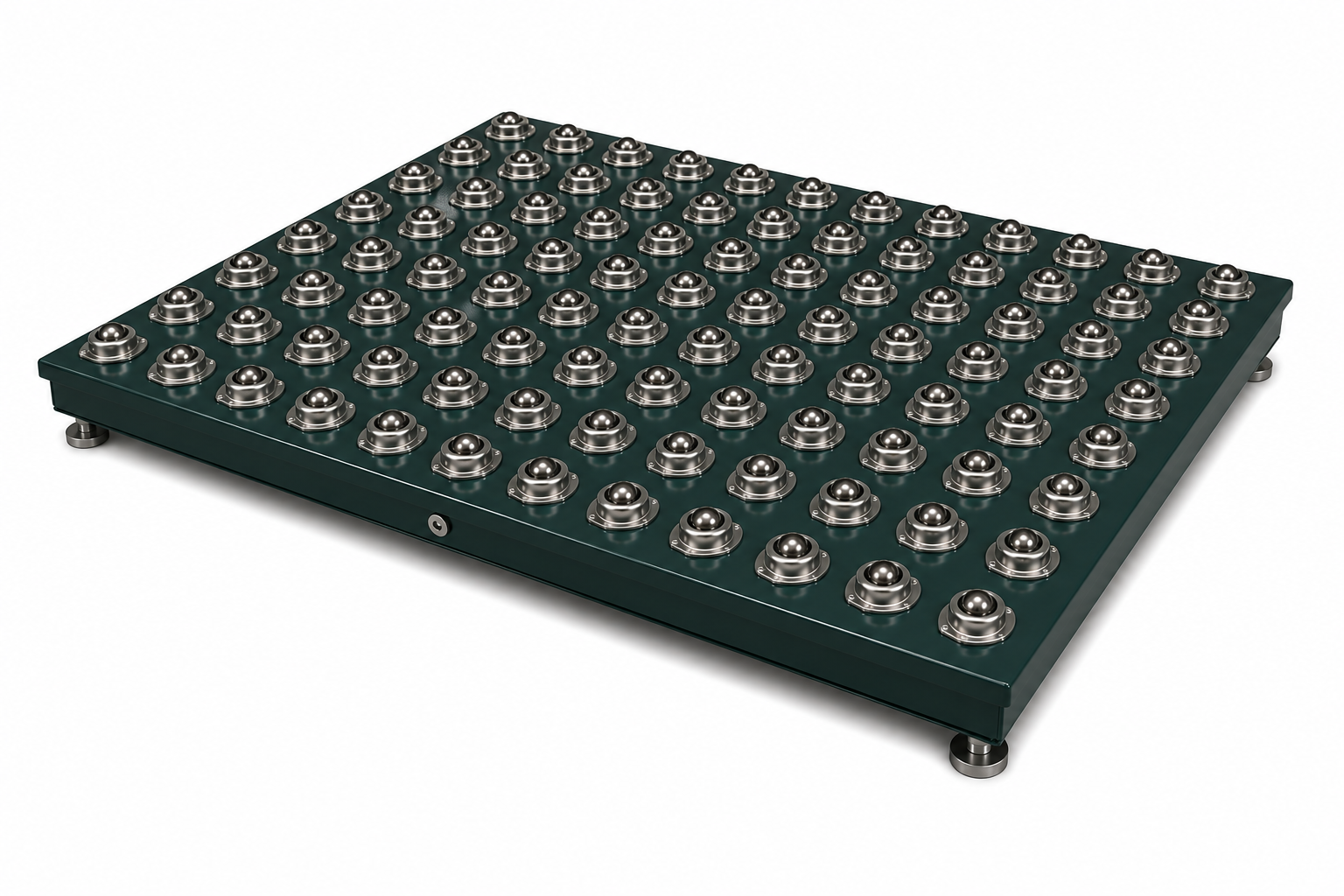

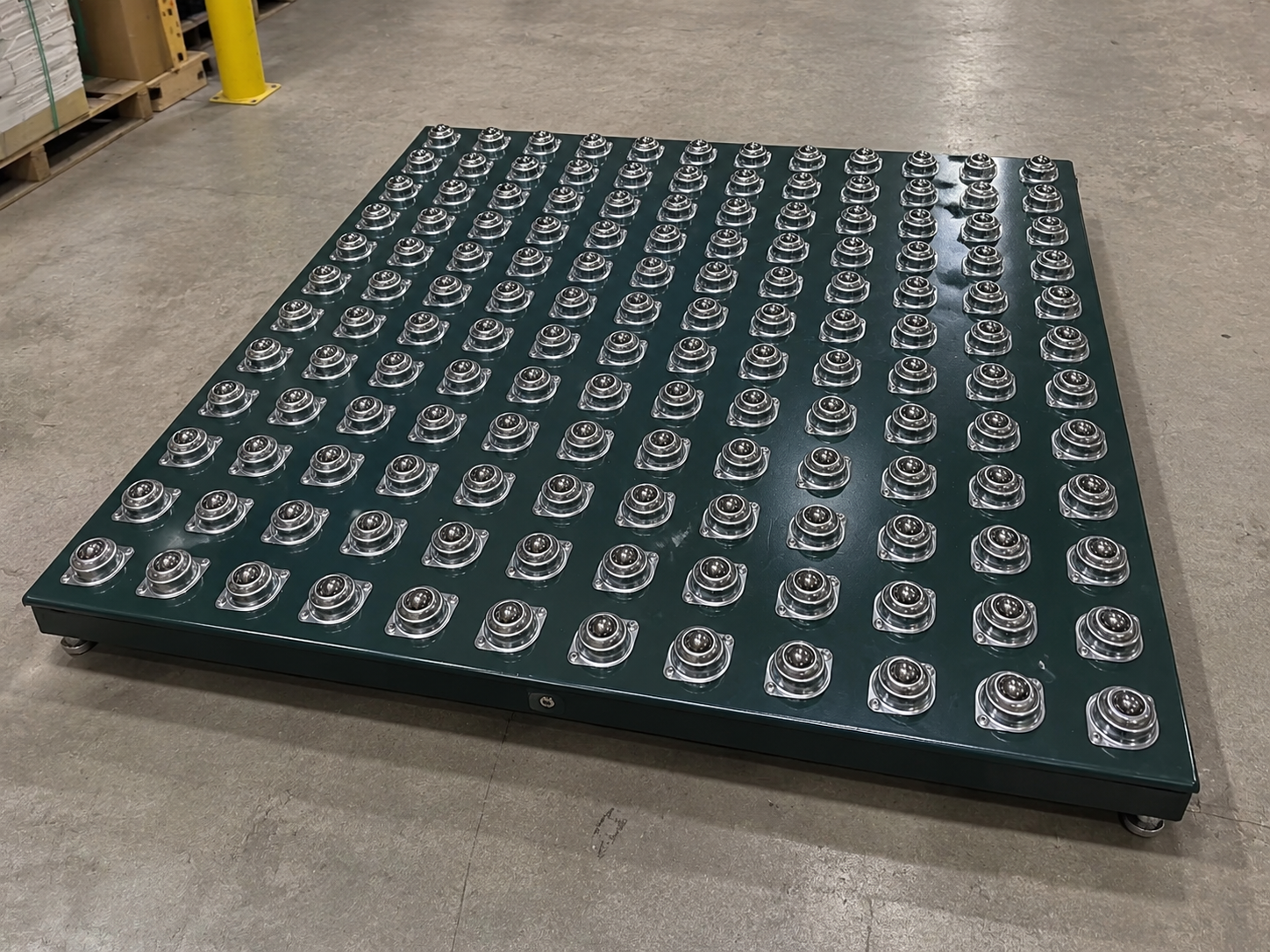

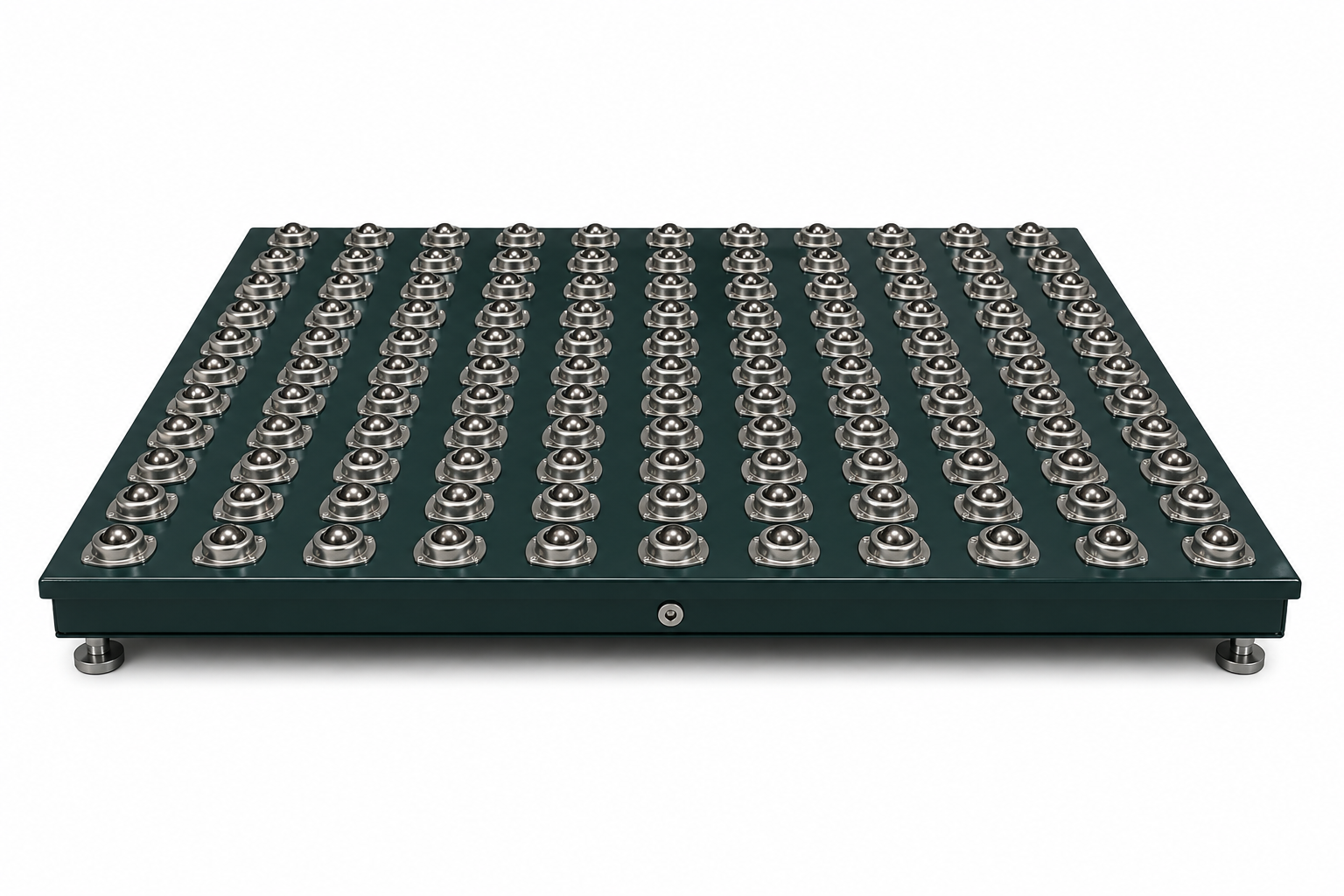

- 48"x48" platform, mild steel construction with industrial gloss finish

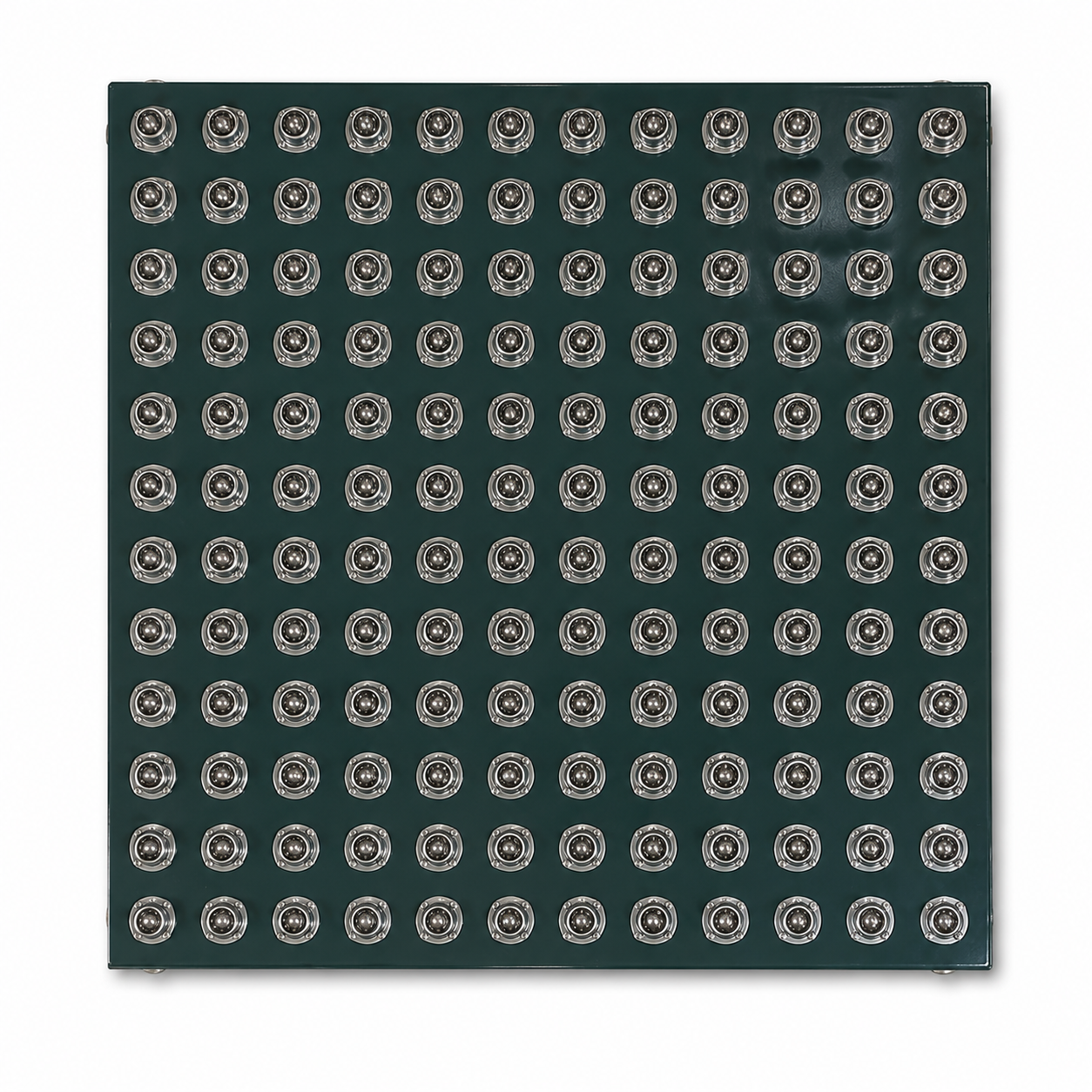

- 100+ stainless steel ball transfer bearings in a uniform grid pattern
- 4 sealed alloy steel shear-beam load cells, IP67 rated
- NEMA 4X stainless steel junction box with summing card and lightning protection

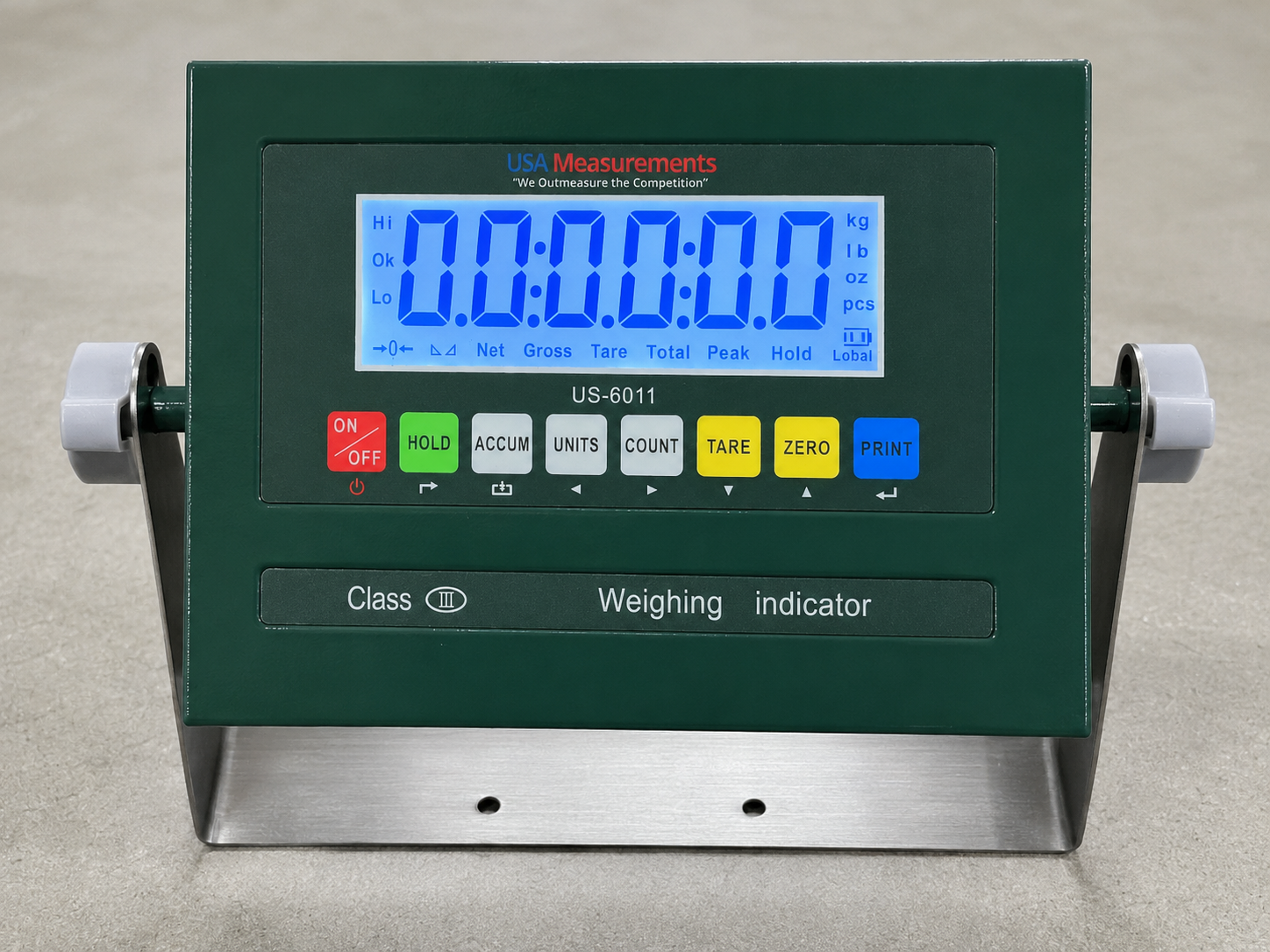

- US-6011 indicator: large backlit LCD, stainless steel face, tare, zero, units, count, hold, accumulator, print
- Dual RS-232 serial output for printer or PC connection
- 20 ft of armored interface cable from platform to indicator
- AC adapter included; rechargeable battery option available
- Non-NTEP — Not Legal for Trade (industrial / internal-use weighing only)
- Adjustable leveling feet on all four corners
- Pit-mountable for flush installation
- Includes ramp option (sold separately) for ground-level rolling load access
- 5-year warranty on the steel frame; 2-year warranty on the electronics
- Free shipping to the continental US
Specifications:
- Platform size: 48" x 48" (4' x 4')
- Platform height: approximately 3.5"
- Capacity: 5,000 lb or 10,000 lb (selectable)
- Resolution: 1 lb (5K model) or 2 lb (10K model)
- Load cells: 4 sealed alloy steel shear beam, IP67
- Junction box: NEMA 4X stainless steel, 4-cell summing
- Indicator: US-6011, LCD display, stainless face, 6-key keypad
- Connectivity: dual RS-232 serial
- Power: AC adapter (110V); optional rechargeable battery
- Cable: 20 ft armored, platform to indicator
- Operating temperature: 14°F to 104°F (-10°C to 40°C)
- Approvals: Non-NTEP (not legal-for-trade; industrial / internal-use weighing only)
- Warranty: 5-year steel frame, 2-year electronics
