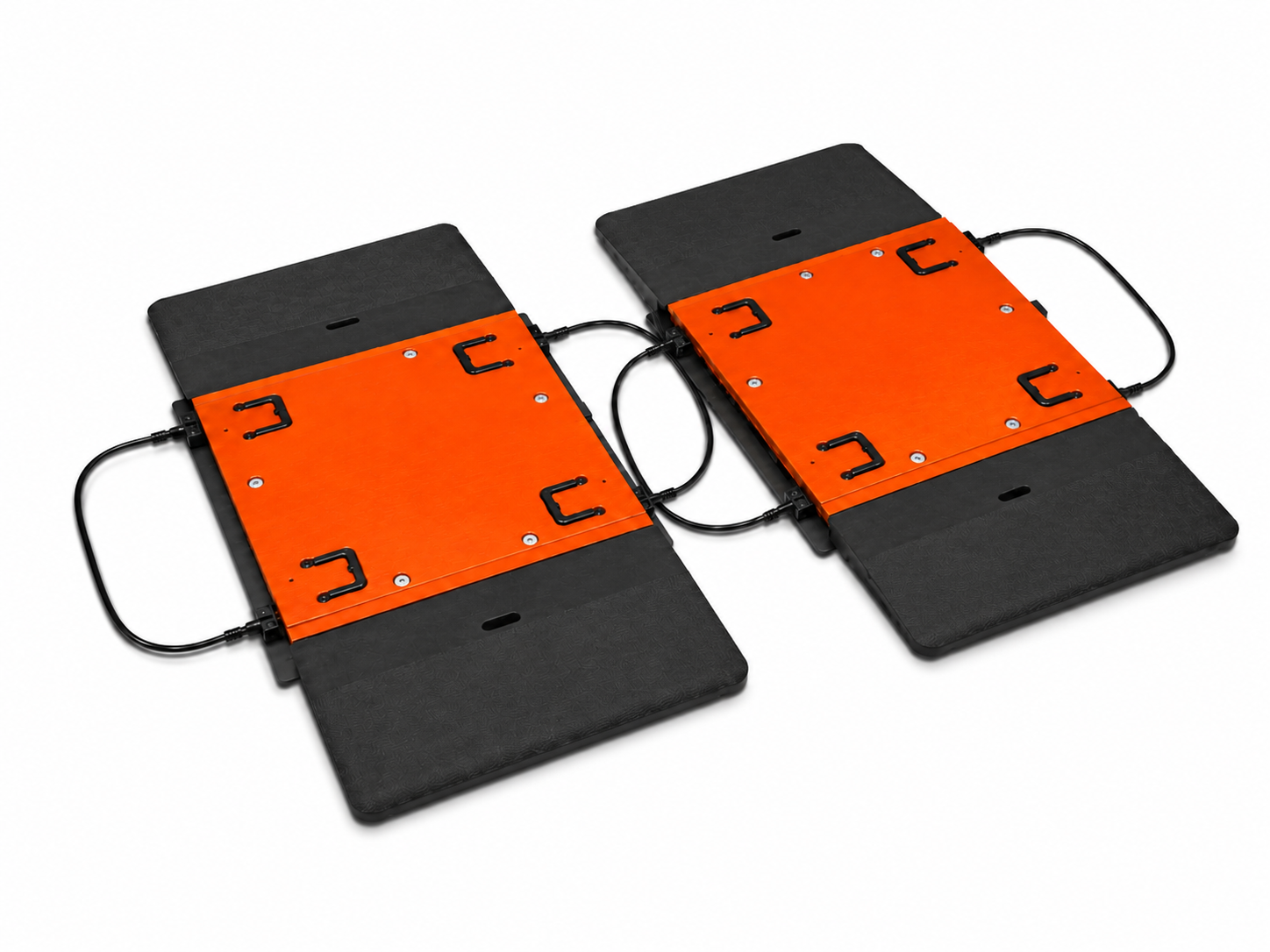

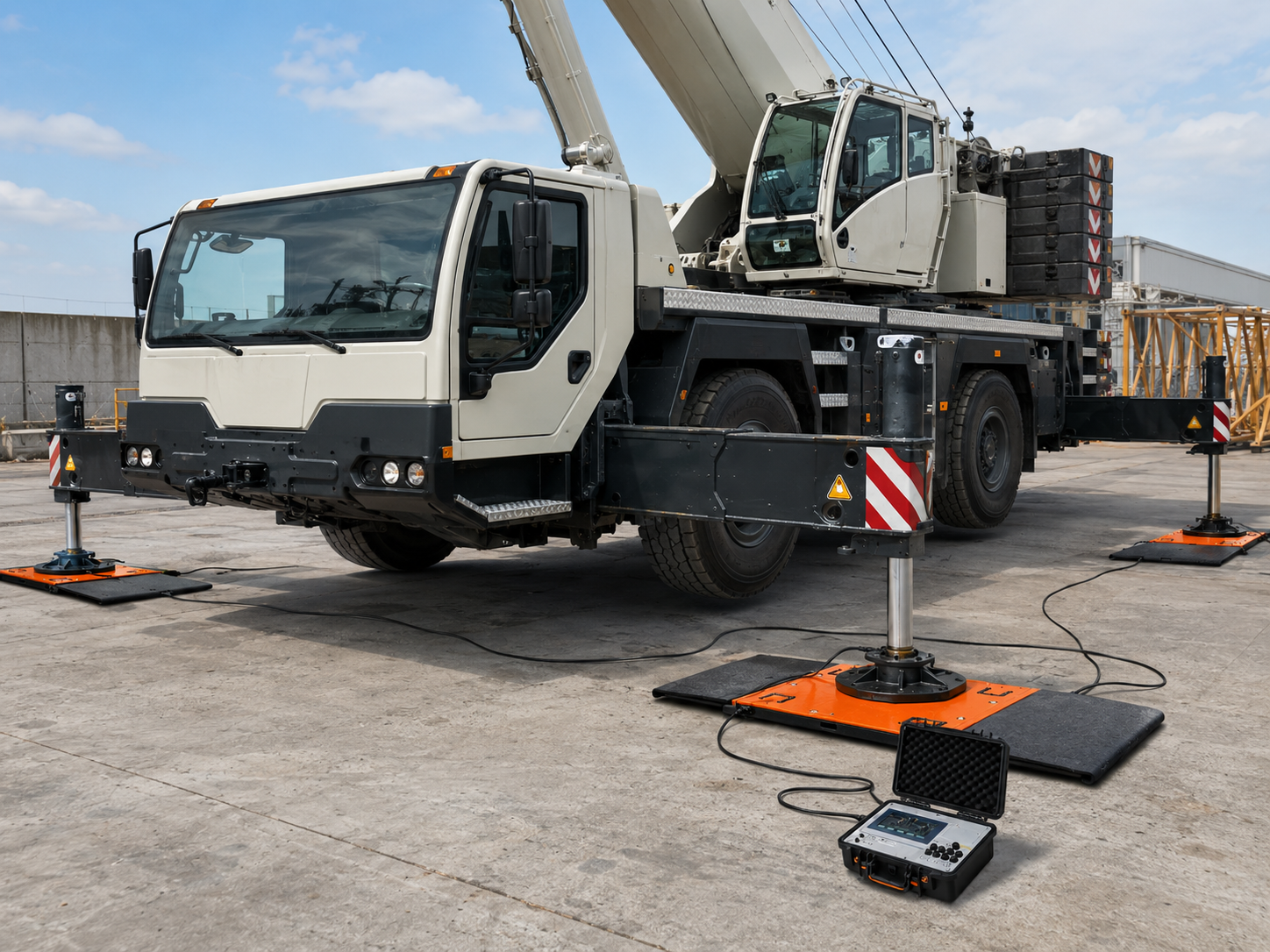

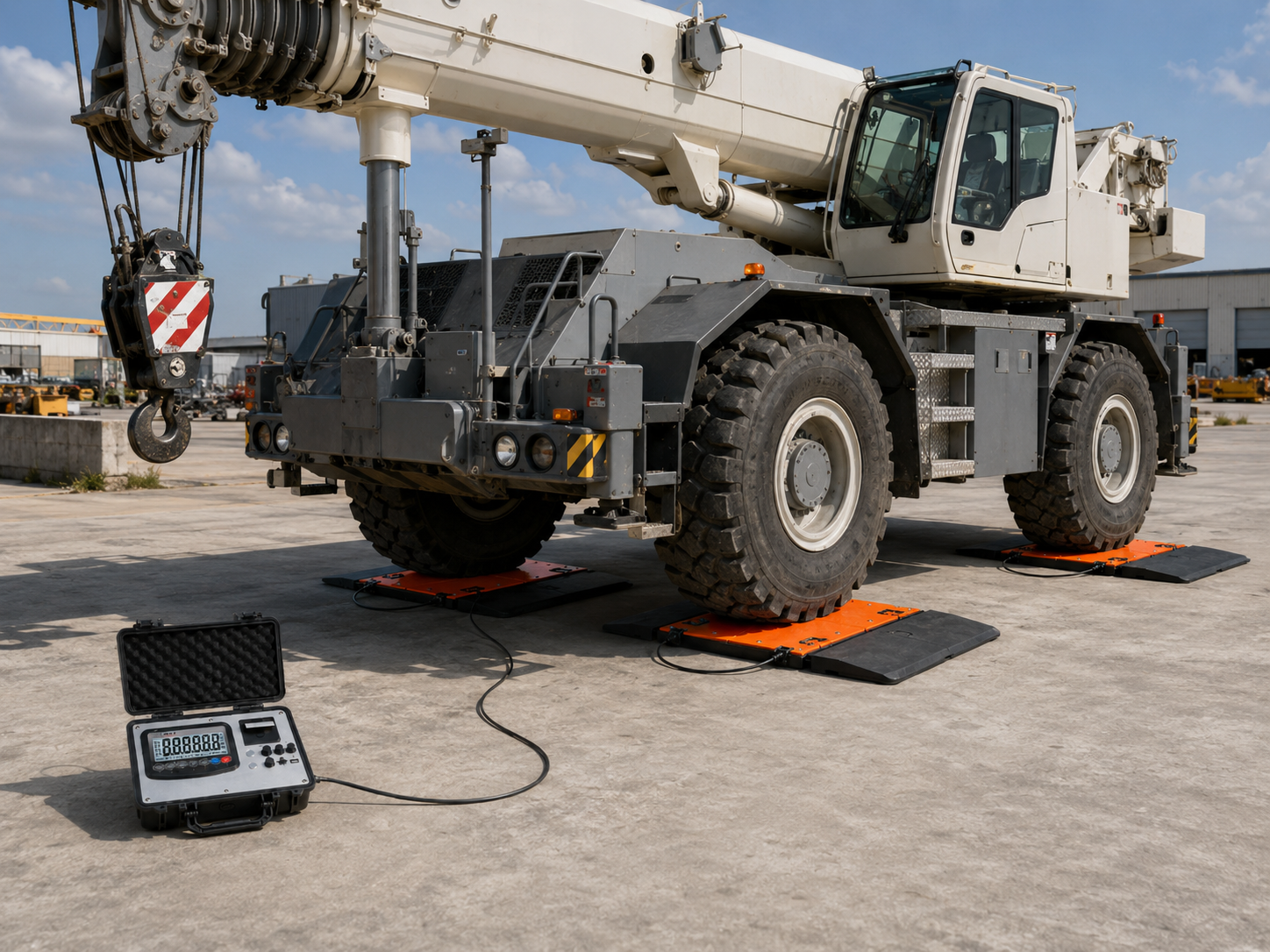

The USA Measurements King Kong is a portable, high-capacity weighing system built for two demanding jobs: verifying crane outrigger loads on lift plans and weighing large mining trucks such as the CAT 797F and 798. Four or six low-profile steel pads are placed under each load point, wired to a single portable indicator, and totaled on one screen for a fast static weight read. Lead time: 12-14 weeks (custom manufactured)
Capacity Options:
- US-KN4040-4-400K: 4-pad system, 400,000 lb total, 100 lb readability

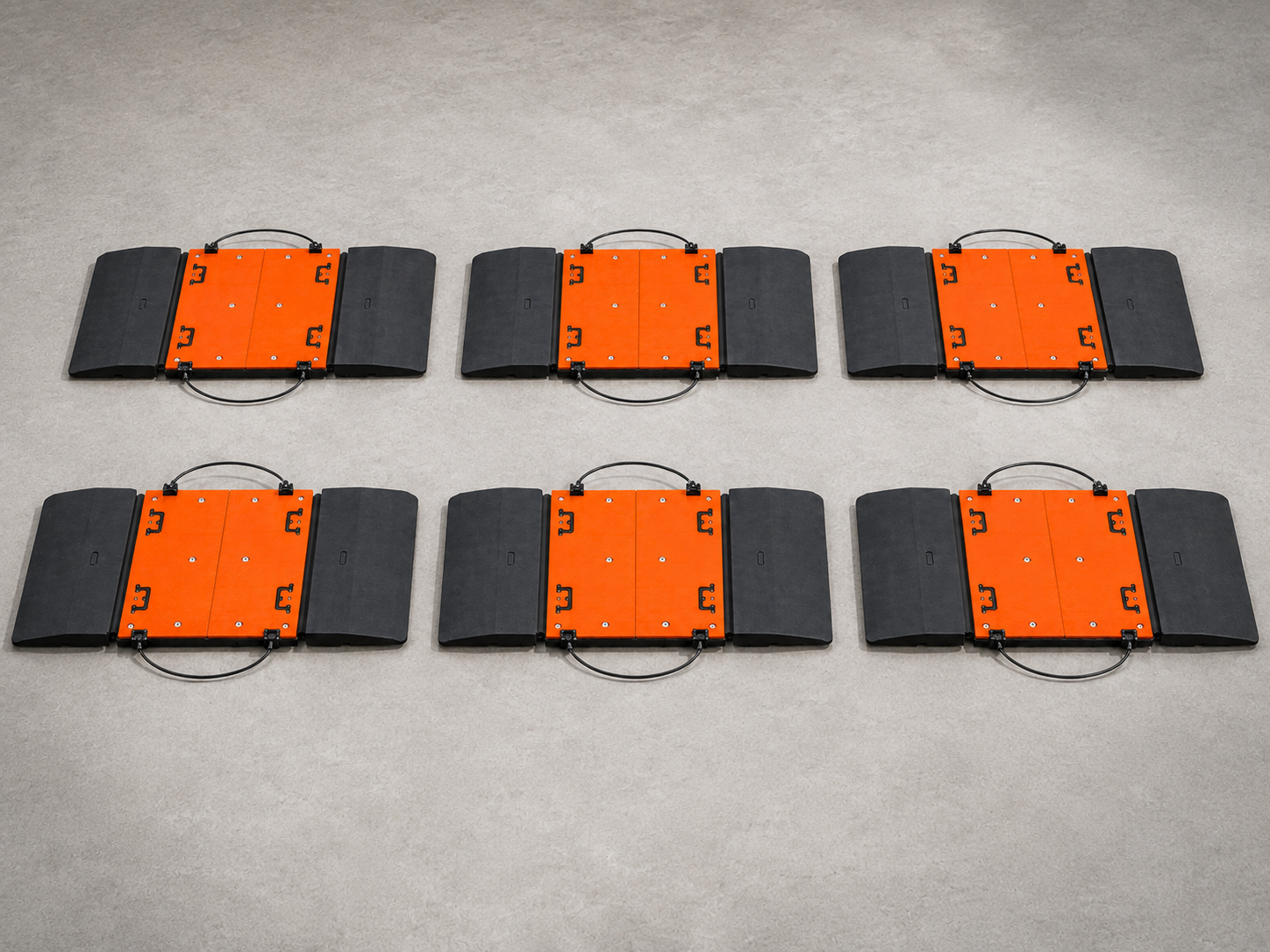

- US-KN4040-6-600K: 6-pad system, 600,000 lb total, 100 lb readability
- Each pad rated 100,000 lb, Class III accuracy
Standard Features:

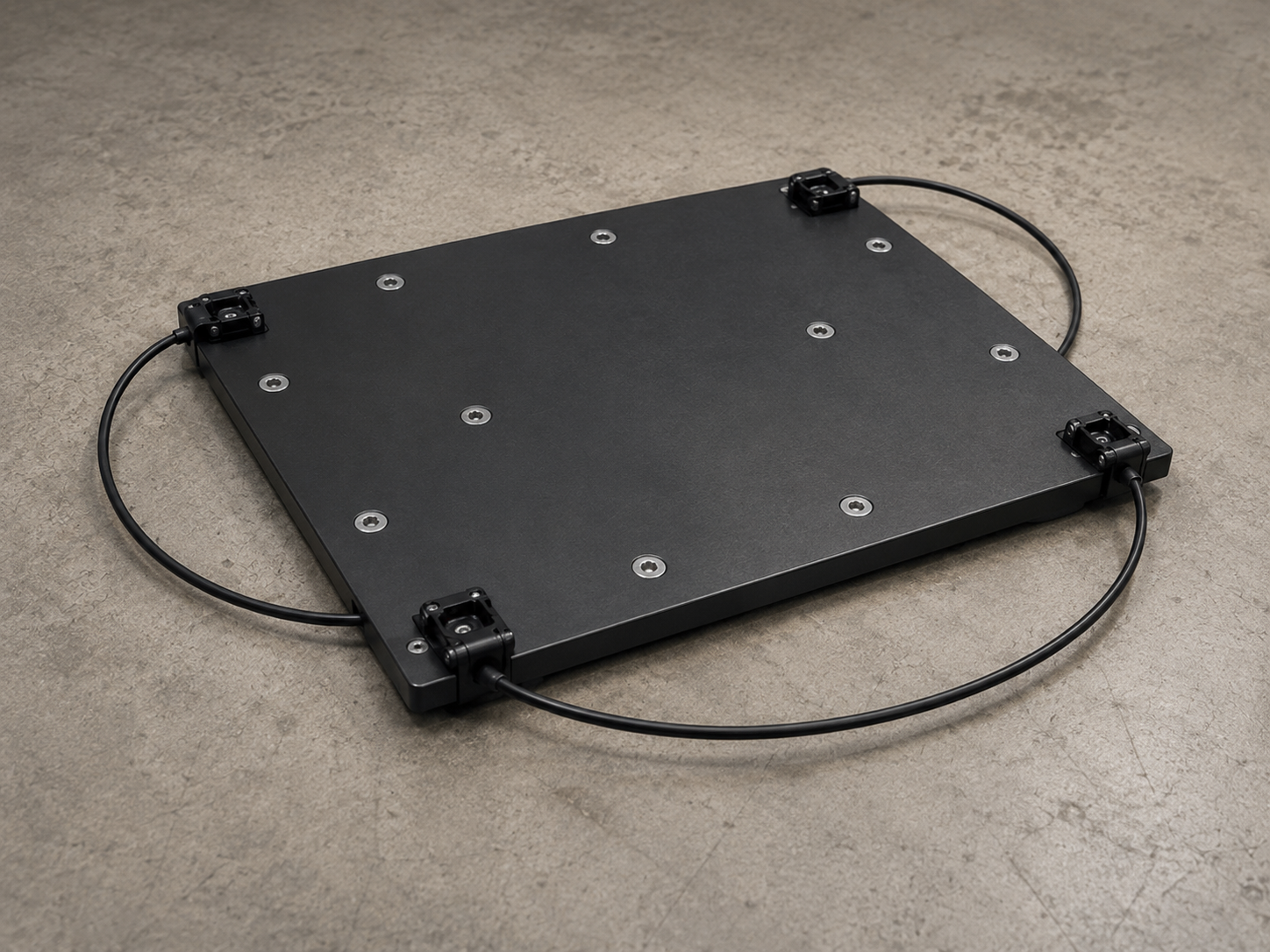

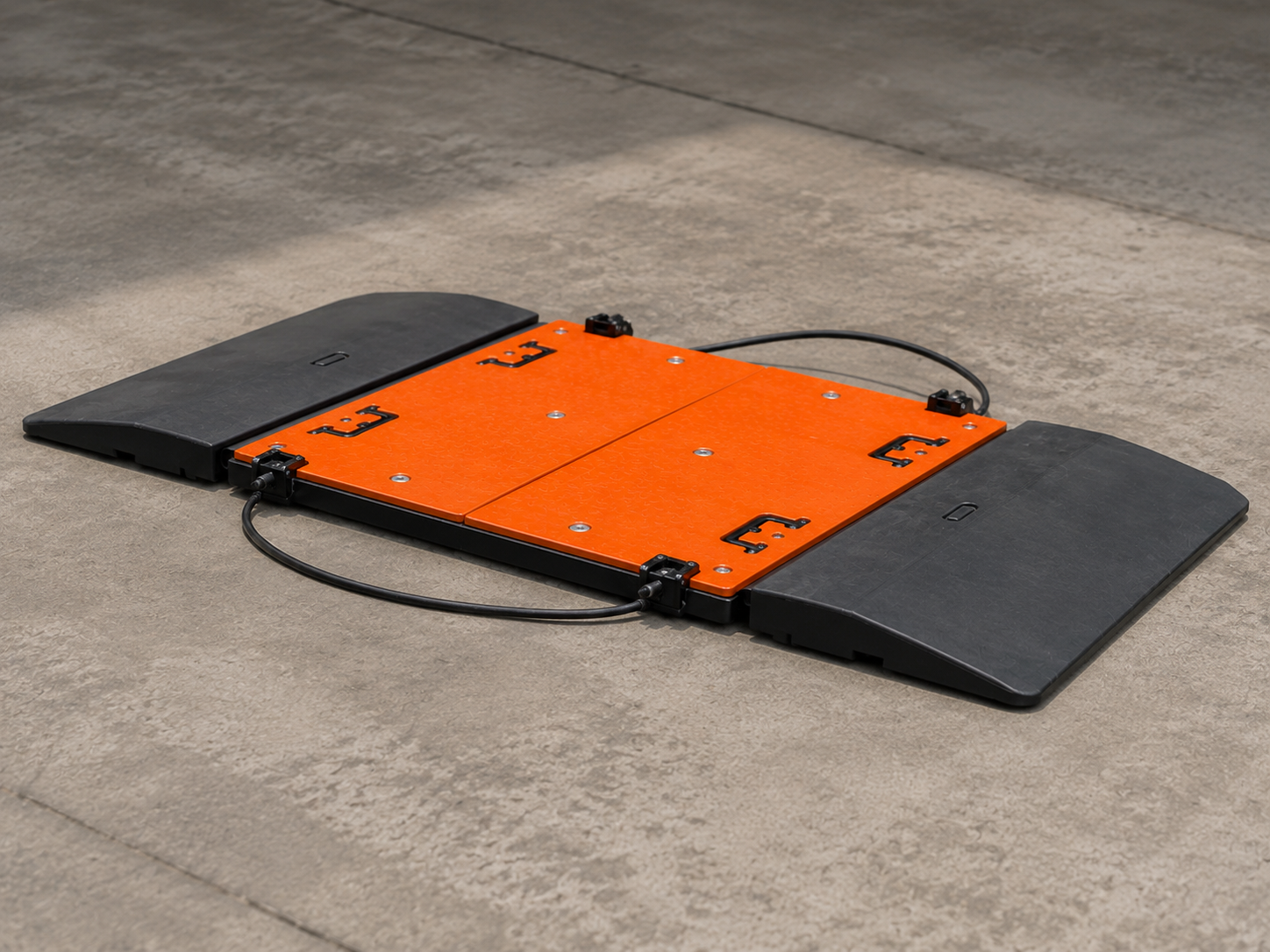

- Rugged low-profile weigh pads with IP68 sealed load cells

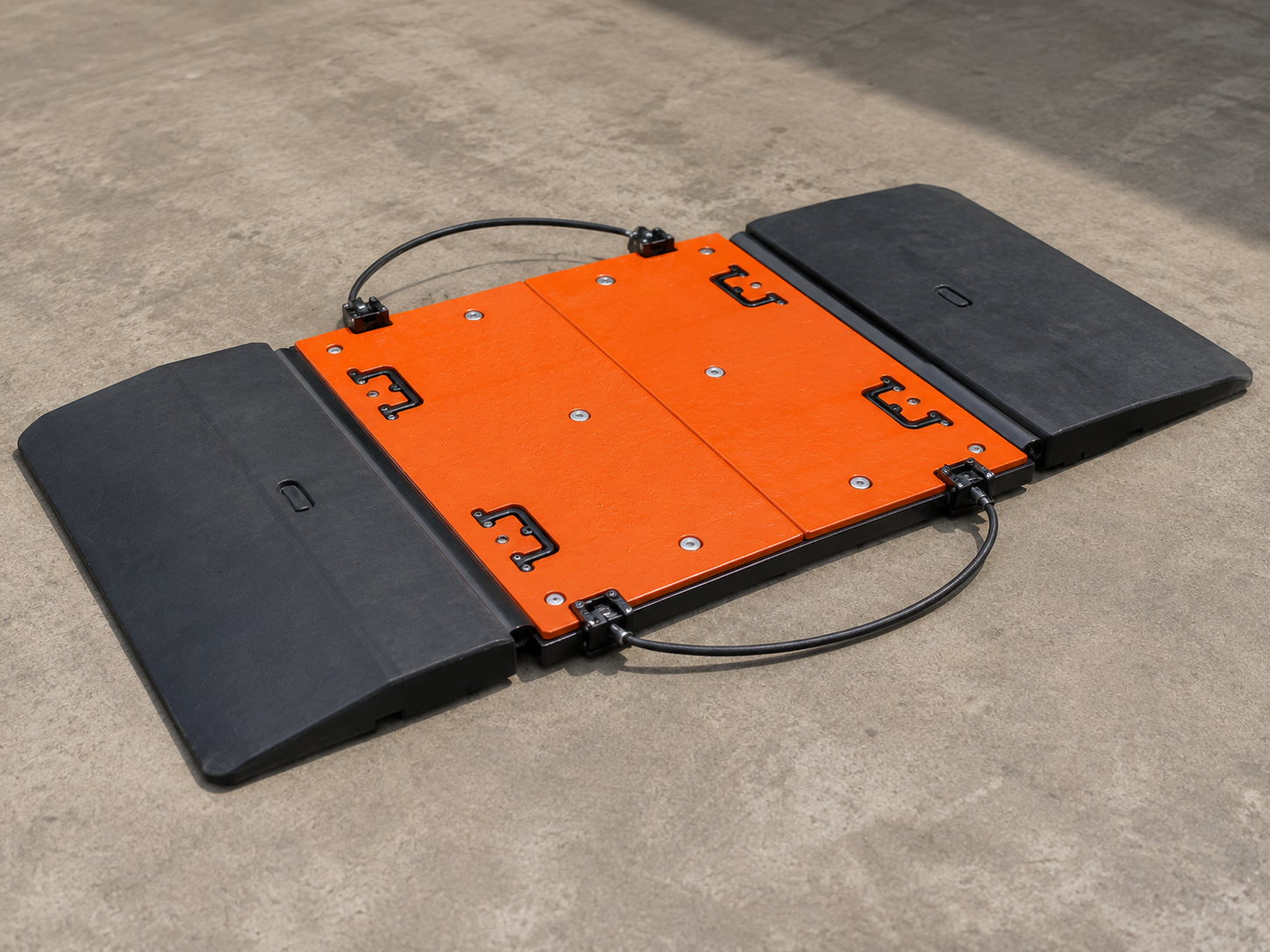

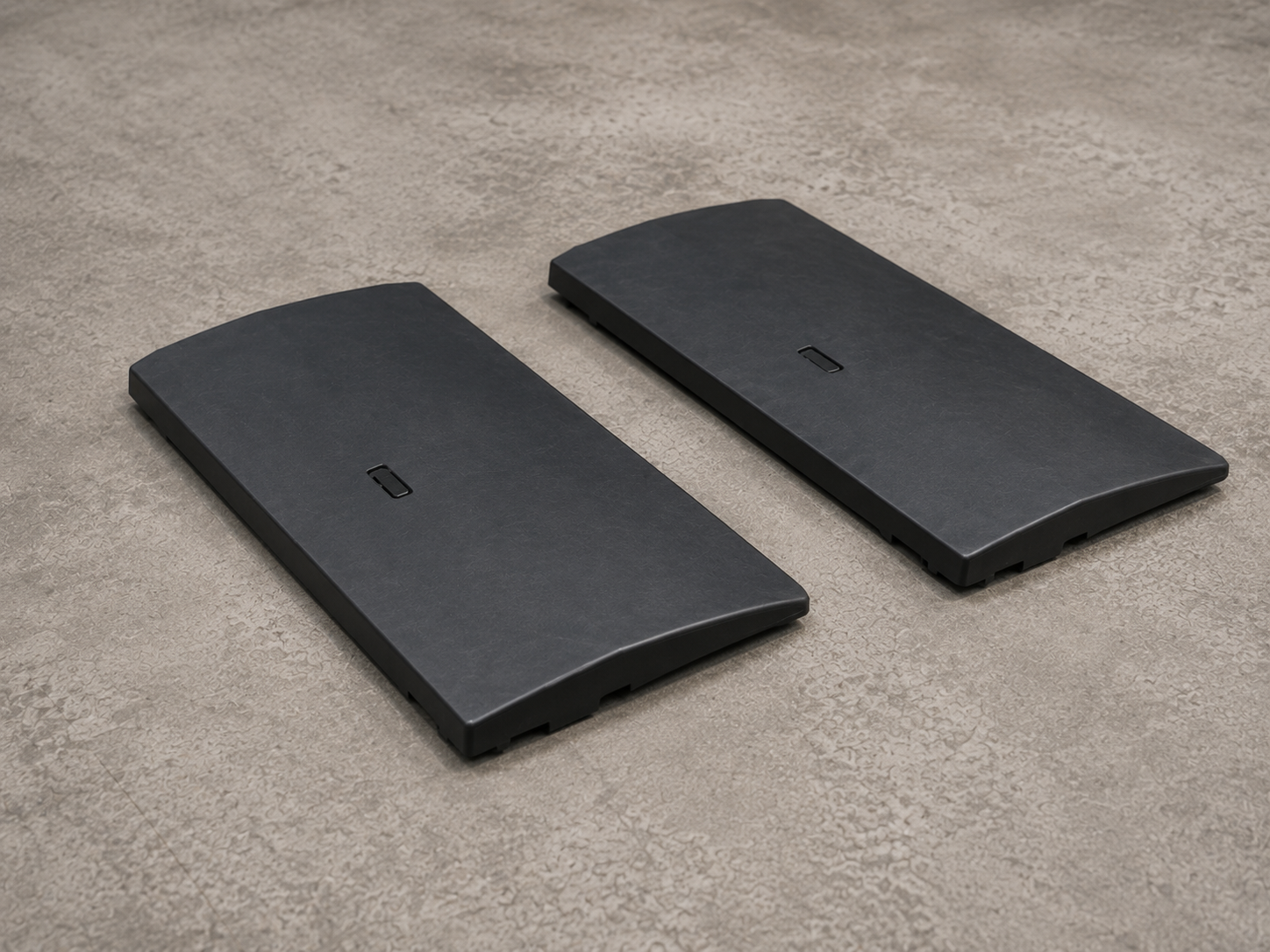

- Malaysian rubber ramps included for smooth drive-on / roll-on access
- Ramp angle 7.65 degrees for stable outrigger and tire loading

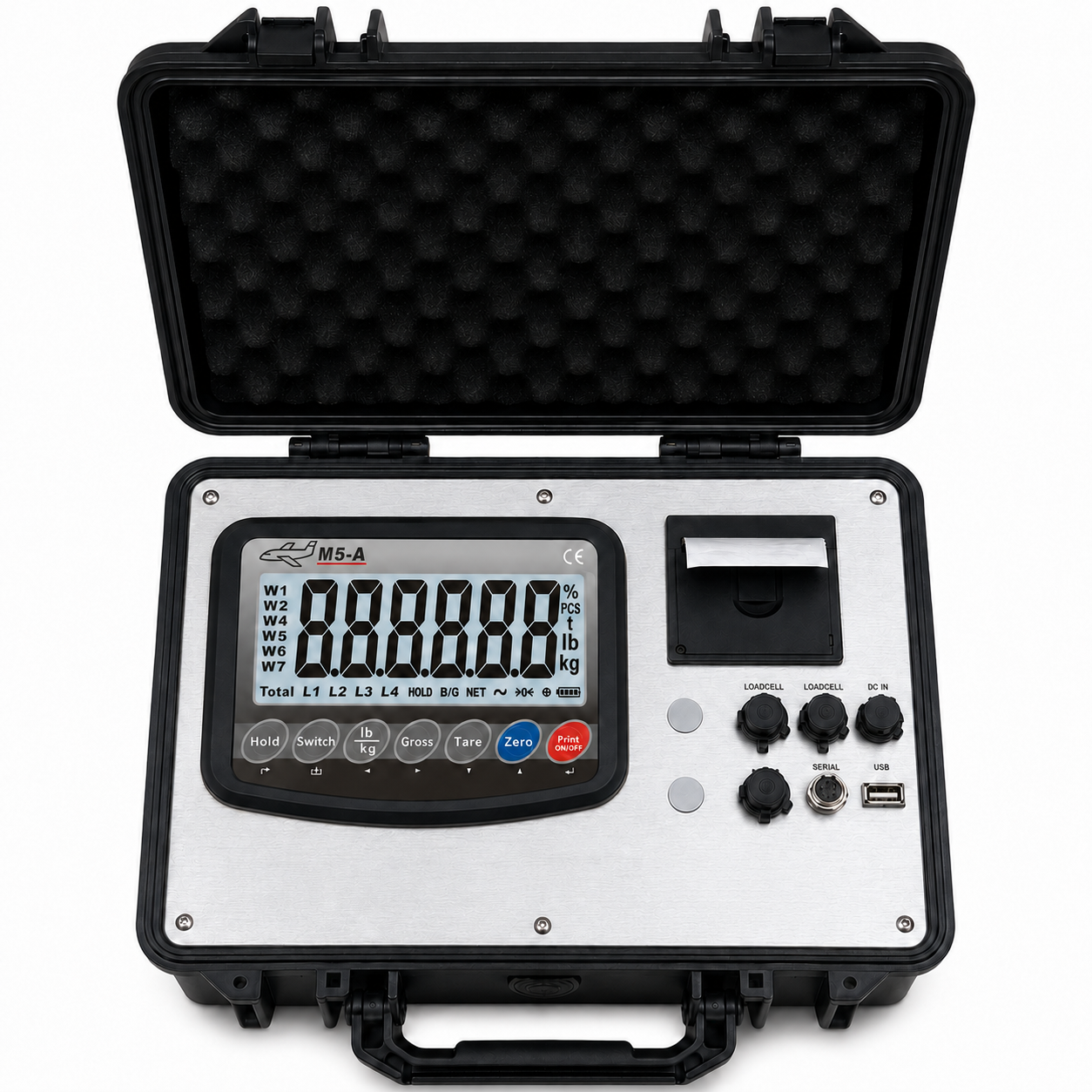

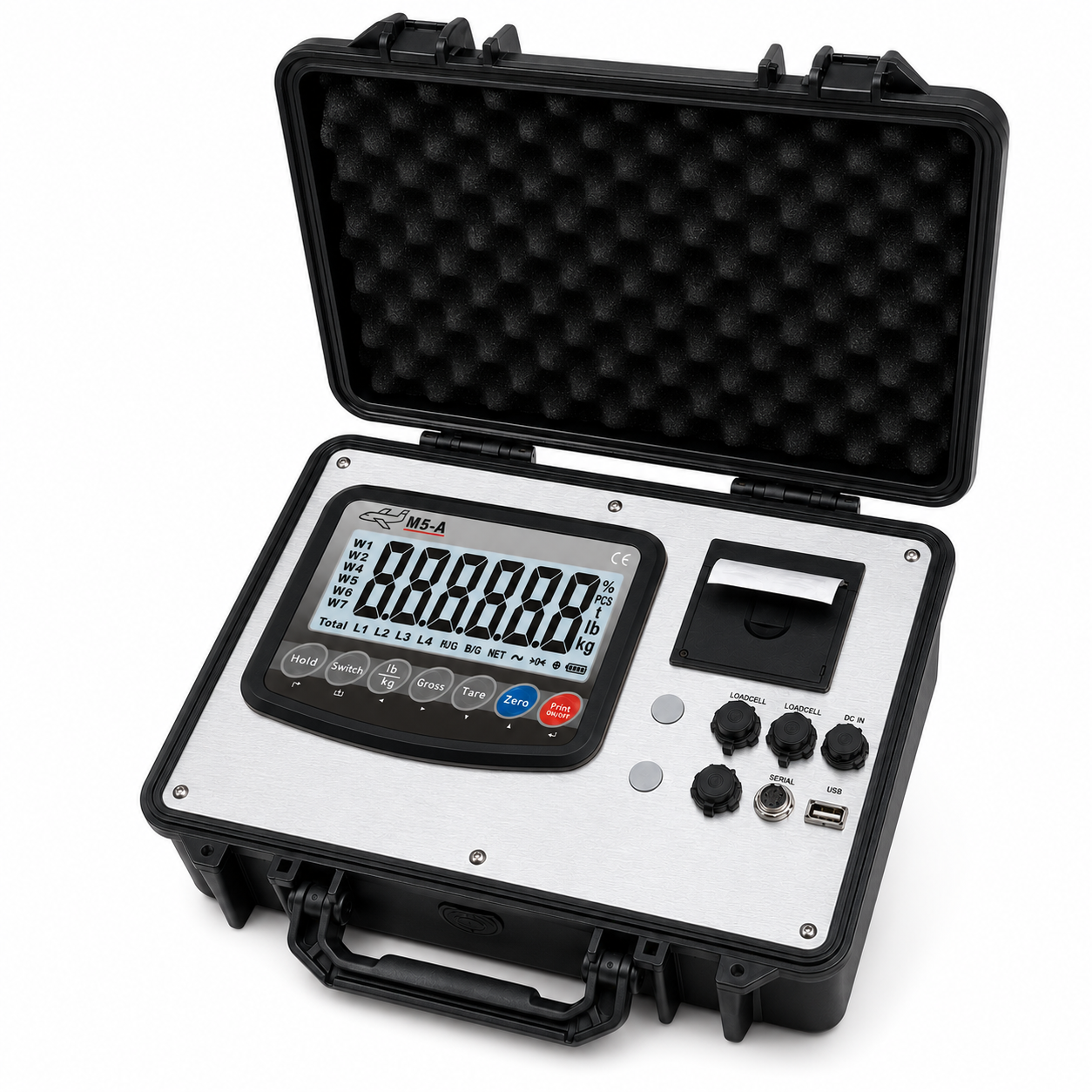

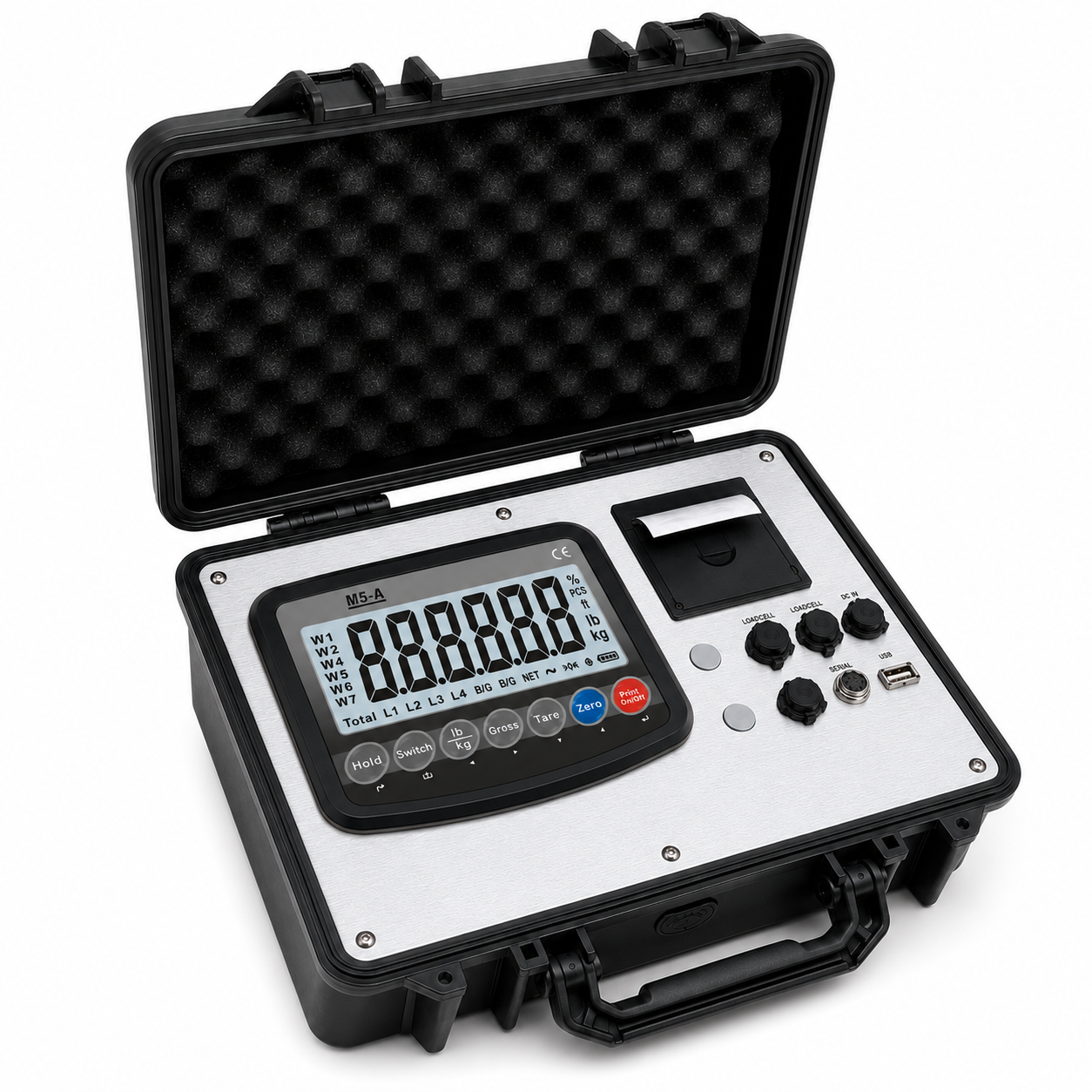

- M5-A wired portable weighing indicator with backlit LCD for signal stability
- Built-in thermal printer for on-site weight tickets
- Rechargeable battery, lb display, tare, zero, hold, RS-232 and USB output ports
- Indicator ships in an IP-rated hard transport case
- Static weighing (in-motion weighing not supported)

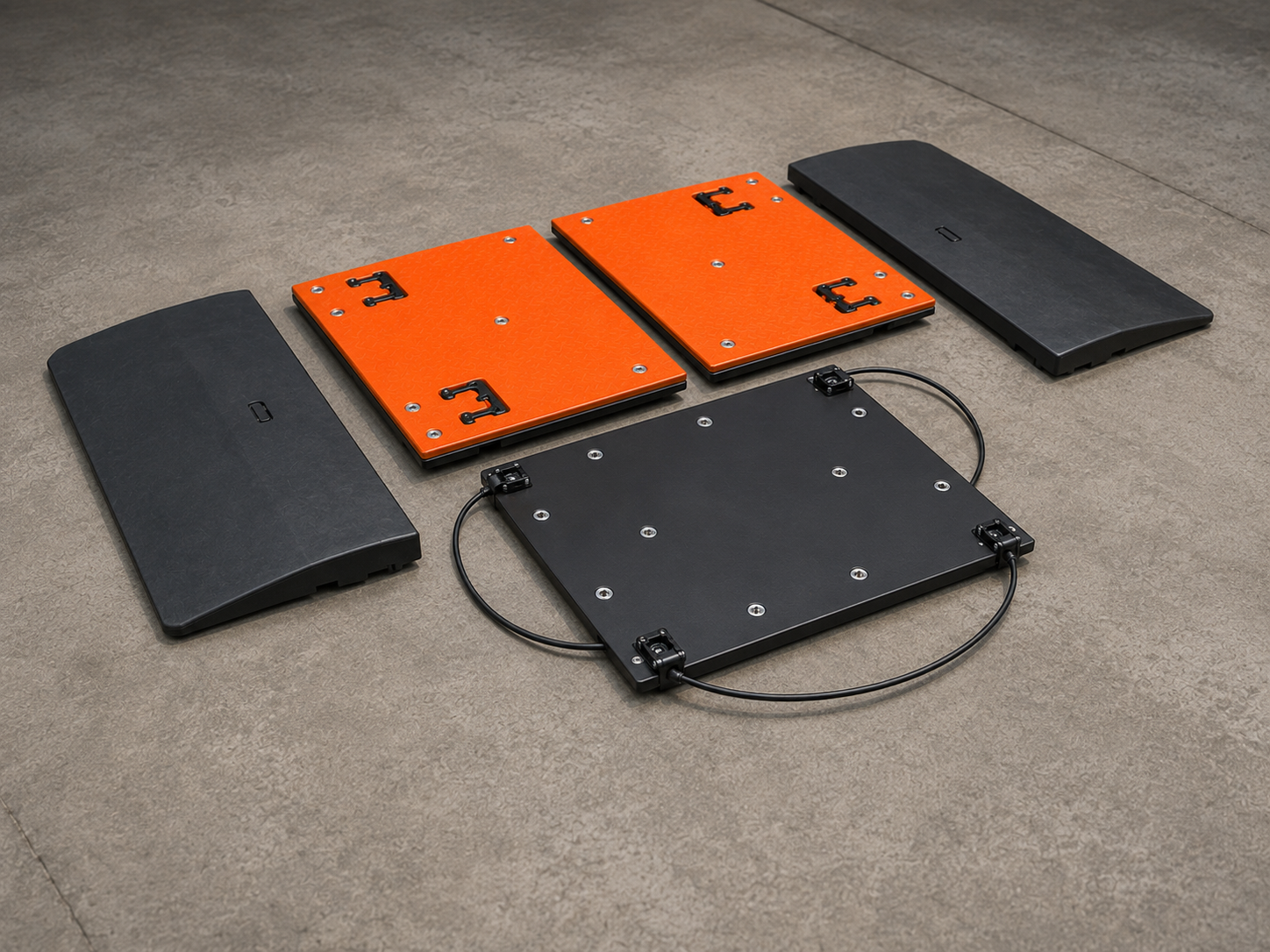

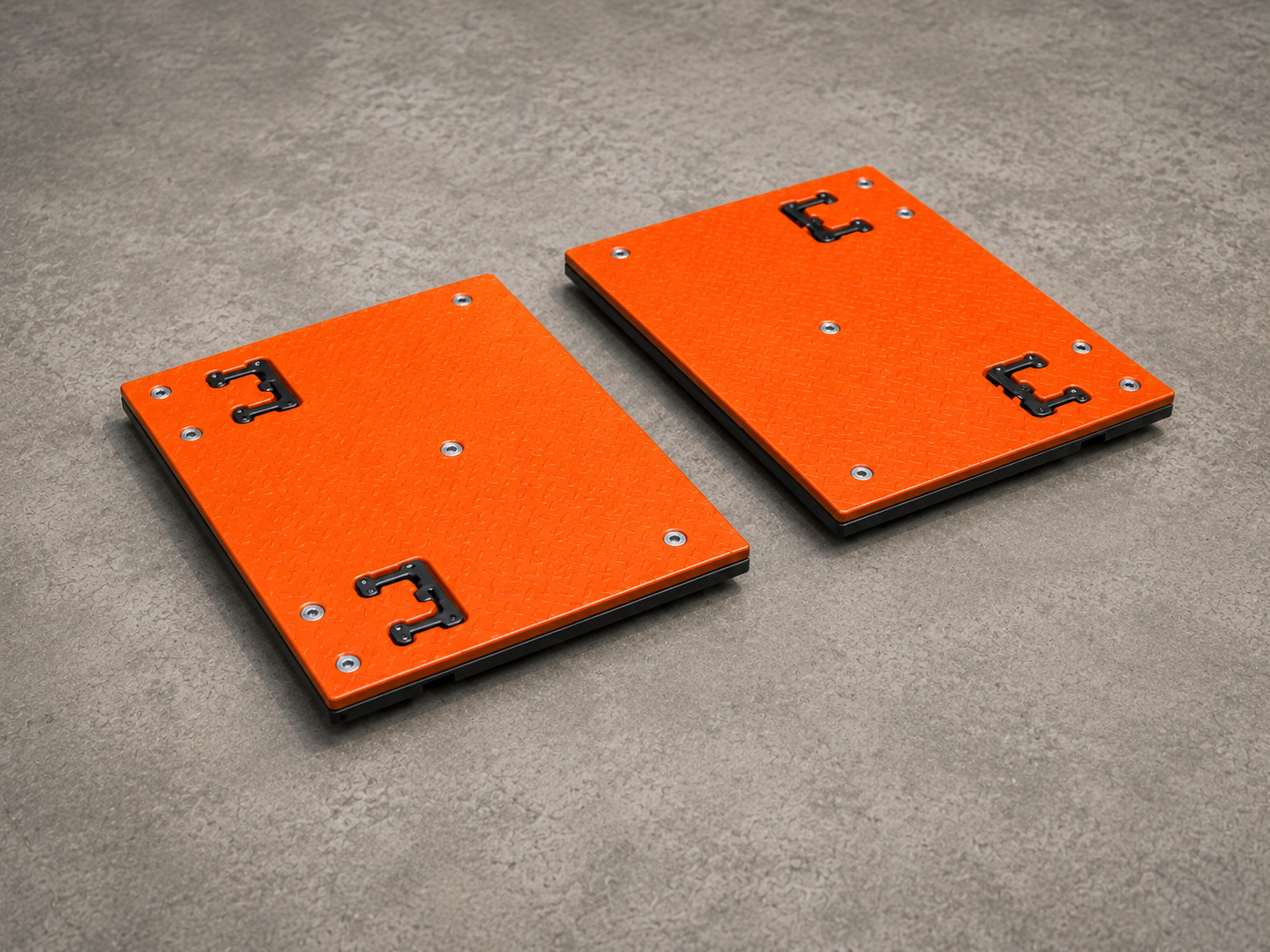

- Two build options: Modular Platform (default) or Single Platform (fully assembled deck)

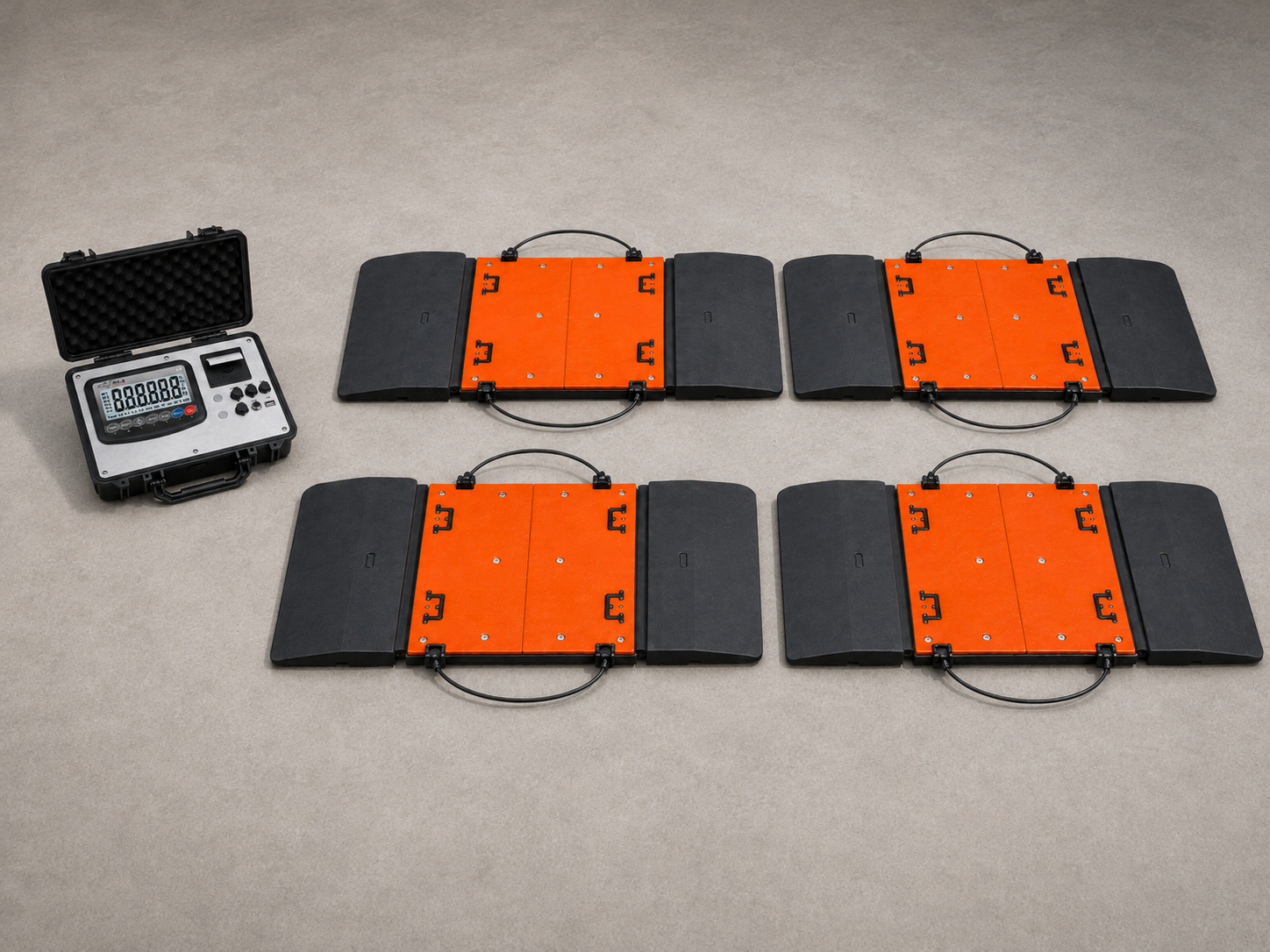

Package Includes:

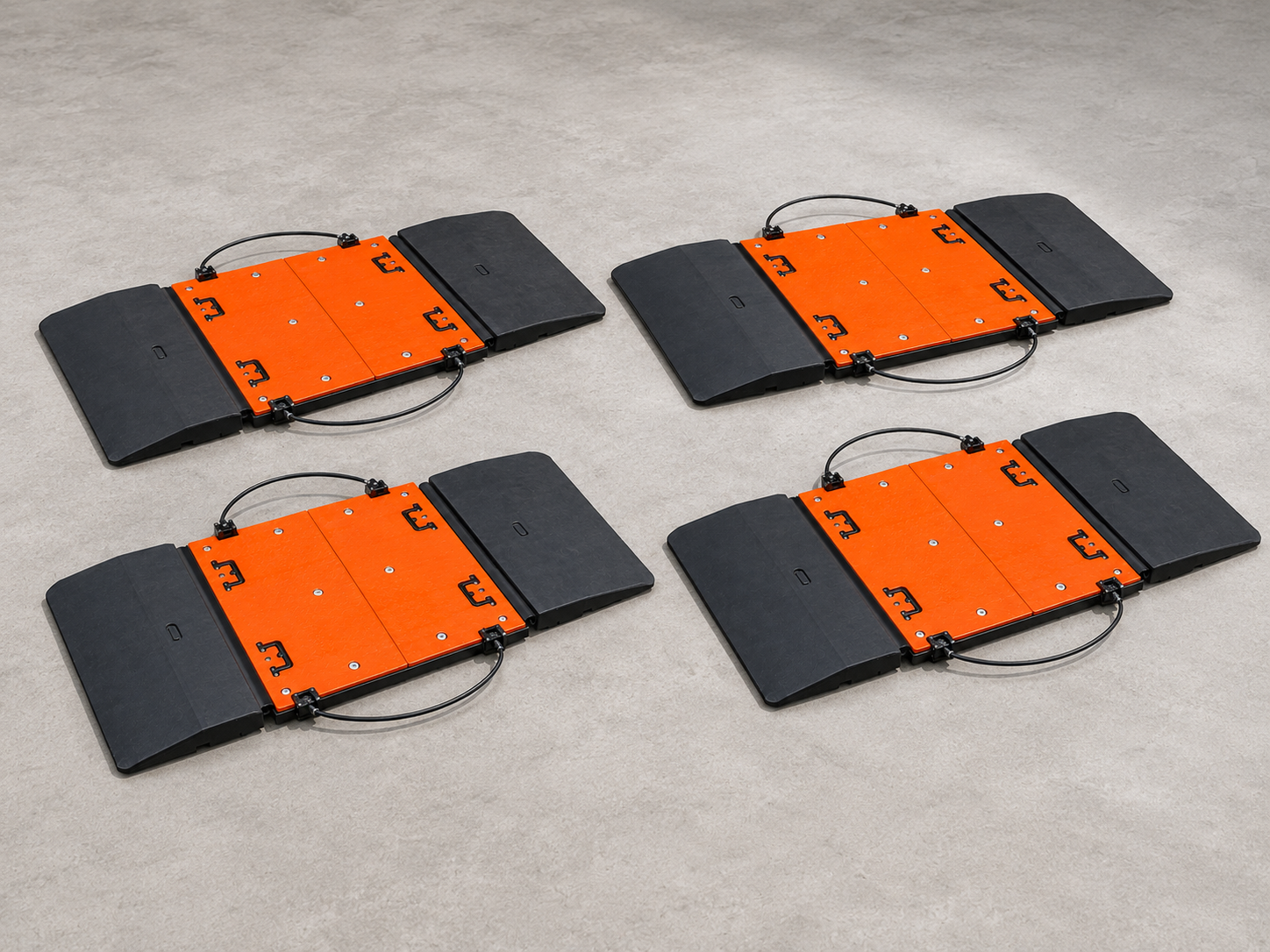

- 4 or 6 weighing pads (based on selected pad count)
- Carrying cases for pads
- Power supplies
- US-M5A wired weighing indicator
- Carry case for the indicator
- Interconnect cables
- Calibration certificate
Shipping:
- Each pad weighs approximately 600 lb
- Systems ship in heavy-duty wooden crates (2 pads + 1 indicator per crate, approximately 1,300 lb crated weight)
- 4-Pad system: 2 crates, approximately 2,500 lb total shipping weight
- 6-Pad system: 3 crates, approximately 3,700 lb total shipping weight
- LTL freight; forklift required for offload at destination
