Key Features
- Integrated 3-port system allows simultaneous connection of up to three tools
- Supports desoldering, soldering, and hot air operations from a single unit
- Compact footprint saves valuable workspace without compromising performance
- Digital display and user-friendly interface enable precise temperature control
- Built-in vacuum pump ensures efficient desoldering without external components
- Compatible with multiple Hakko handpieces for custom tool configurations
- Perfect for production lines, repair stations, and advanced rework environments
Specifications

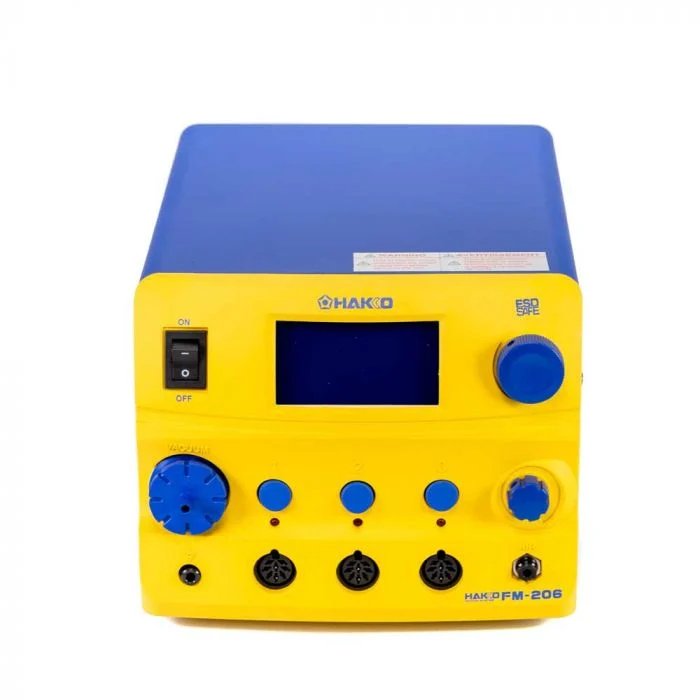

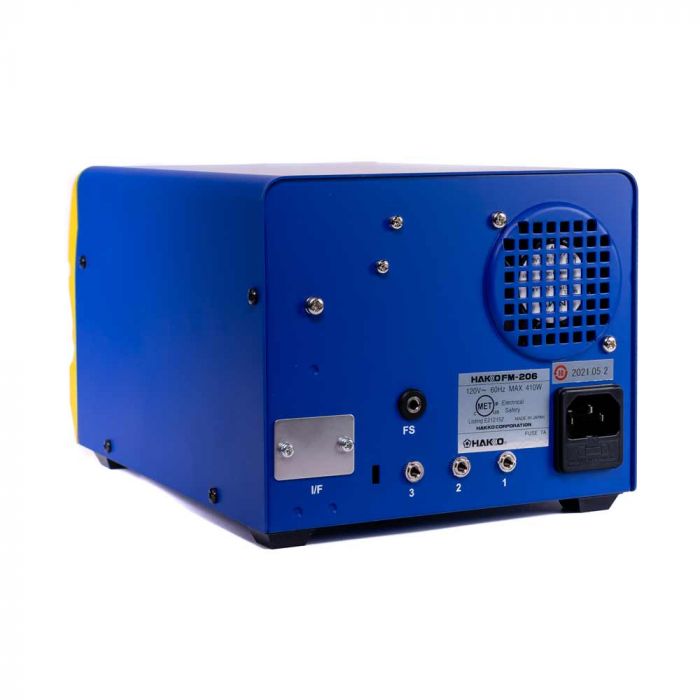

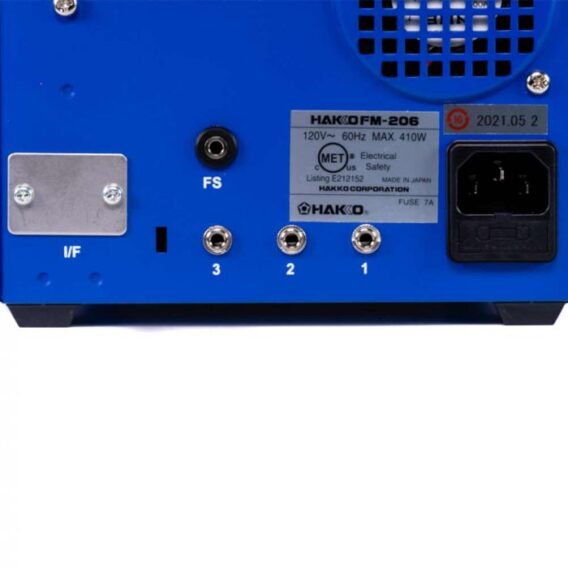

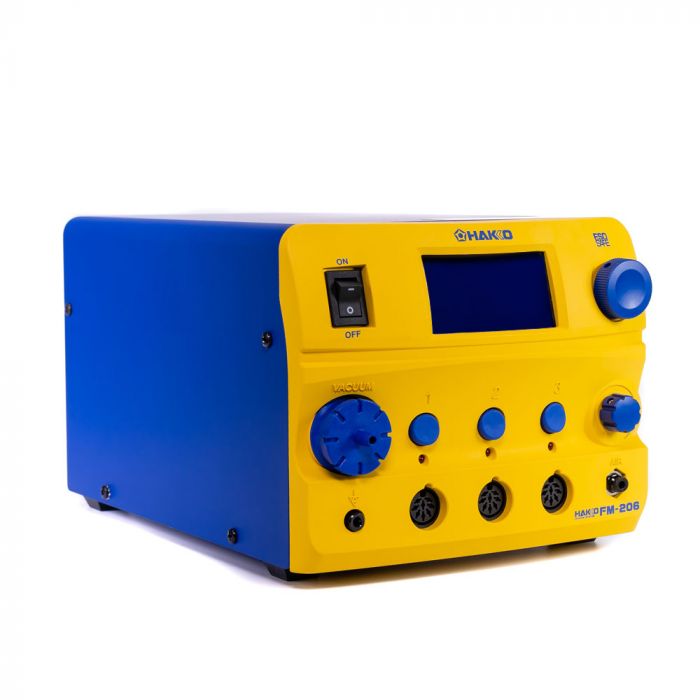

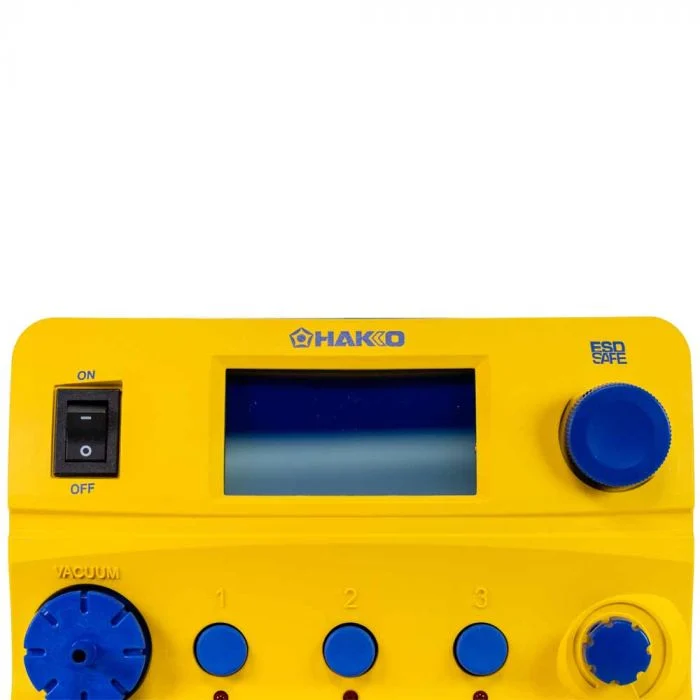

FM-206 3-Port Station Only
| Model Name | FM-206 |
| Input Voltage | 120 V |
| Power Consumption | 410W (max) |
| Temperature Stability | ±9 °F / ±5 °C |
| Temperature Range | subject to handpiece connected |
| Air Flow Capacity | 6L/min. Max (hot air) |
| Vacuum Generator | Diaphragm Pump System |
| Vacuum Pressure (max) | 80 kPa (600 mmHg) |
| Suction Flow | 14 L/min |
| Outer Dimensions (W x H x D) |
6.38 x 5.35 x 7.48 in. / 162 x 136 x 245 mm |
| Weight | 13.7 lb / 6.2 kg |
| Country of Origin | JPN |
| Safety Approval |  |
Handpieces

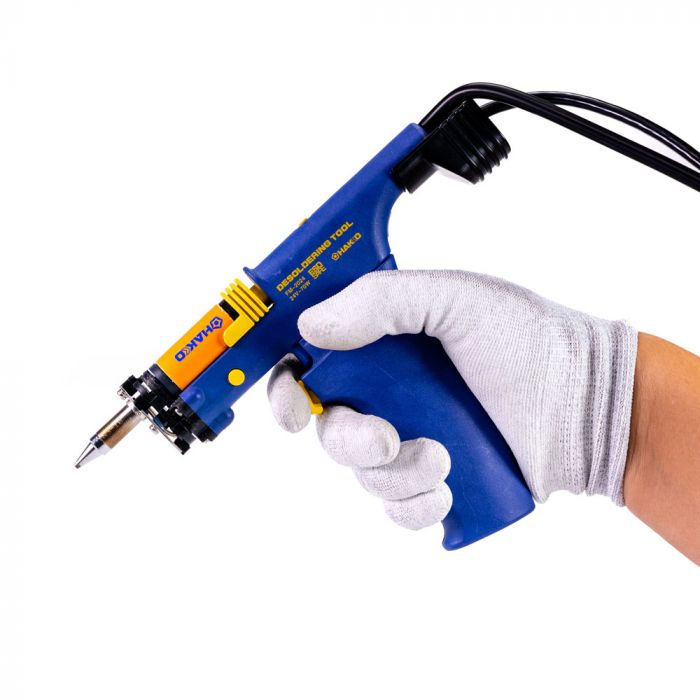

FM-2024 Desoldering Tool (uses N3 Series Nozzles)
| Model Name | FM-2024 |
| Power Consumption | 70W |
| Temperature Range | 660 °F – 840 °F / 350 °C – 450 °C |
| Tip-to-Ground Resistance | < 2 Ω |
| Tip-to-Ground Potential | < 2 mV |
| Total Length (w/o cord) | 180mm (w/ ø1.0 nozzle) |
| Weight (w/o cord) | 65g (w/ ø1.0 nozzle) |
| Cord | 1.2m |

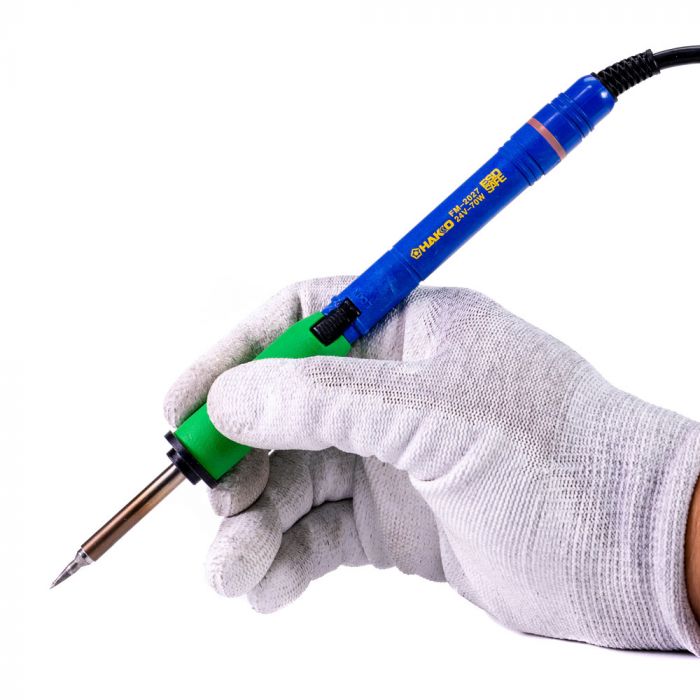

FM-2027 Soldering Iron (uses T15 Series tips)
| Model Name | FM-2027 |
| Power Consumption | 70W |
| Temperature Range | 400 °F – 840 °F / 200 °C -450 °C |
| Tip-to-Ground Resistance | < 2 Ω |
| Tip-to-Ground Potential | < 2 mV |
| Total Length (w/o cord) | 188mm (w/tip shape 2.4D) |
| Weight (w/o cord) | 30g |
| Cord | 1.2m |
FM-2029 Single Hot Air (uses N4 Series Nozzles)
| Model Name | FM-2029 |
| Power Consumption | 140W |
| Temperature Range | 200 °F – 1030 °F / 100 °C – 550 °C |
| Tip-to-Ground Resistance | < 2 Ω |
| Tip-to-Ground Potential | < 2 mV |
| Total Length (w/o cord) | 167 mm |
| Weight (w/o cord) | 35 g |
| Cord | 1.2 m |

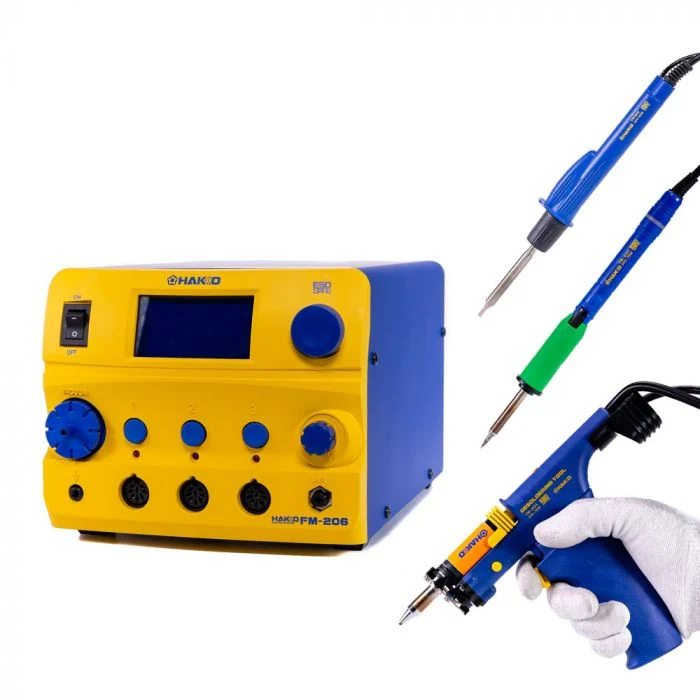

What’s In the Box?
- 1 x FM-206 Rework Station Unit
- 1 x Desoldering Tool (FM-2024)
- 1 x Soldering Iron (FM-2027)
- 1 x Hot Air Tool (FM-2029)
- 1 x Power Cord
- 1 x User Manual
