Key Features
- Operates up to three tools at once for soldering, desoldering, or hot air rework.
- Built-in vacuum pump for efficient and powerful desoldering.
- Compact footprint to maximize workspace efficiency.
- Digital temperature control for consistent performance.
- Auto-sleep and shutoff features extend tip life and conserve energy.
- Supports a wide range of Hakko handpieces for diverse applications.
- Airflow gauge and digital display for clear operational feedback.
Specifications

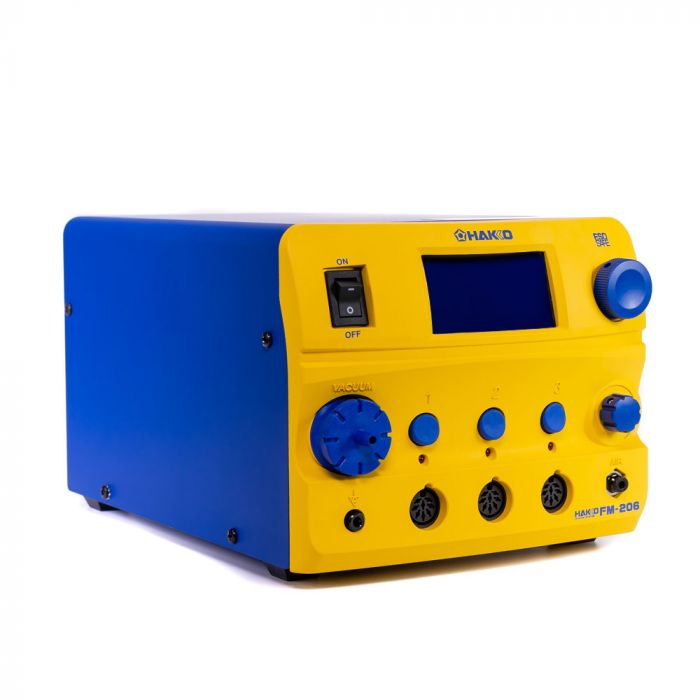

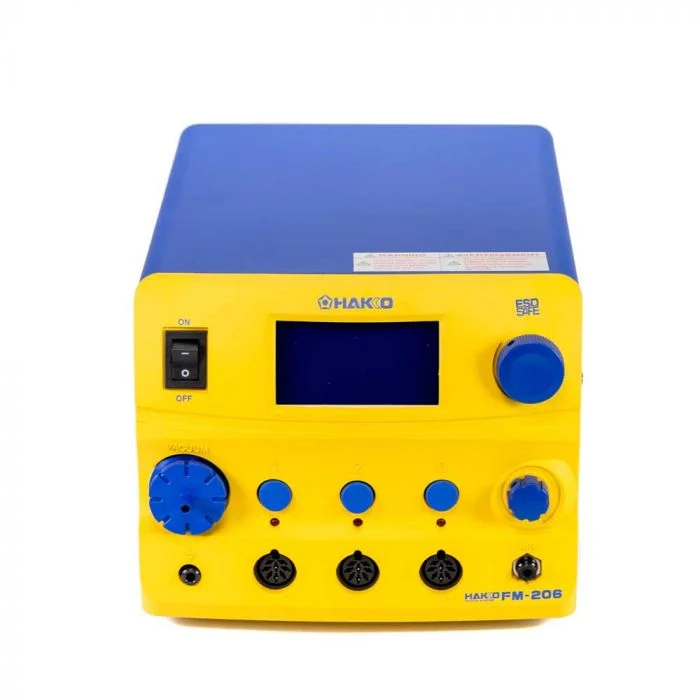

FM-206 3-Port Station Only
| Â Model Name | Â FM-206 |
| Â Input Voltage | Â 120 V |
| Â Power Consumption | Â 410W (max) |
|  Temperature Stability |  ±9 °F / ±5 °C |
| Â Temperature Range | Â subject to handpiece connected |
| Â Air Flow Capacity | Â 6L/min. Max (hot air) |
| Â Vacuum Generator | Â Diaphragm Pump System |
| Â Vacuum Pressure (max) | Â 80 kPa (600 mmHg) |
| Â Suction Flow | Â 14 L/min |
| Â Outer Dimensions (W x H x D) |
 6.38 x 5.35 x 7.48 in. / 162 x 136 x 245 mm |
| Â Weight | Â 13.7 lb / 6.2 kg |
| Â Country of Origin | Â JPN |
| Â Safety Approval |  |
Handpieces

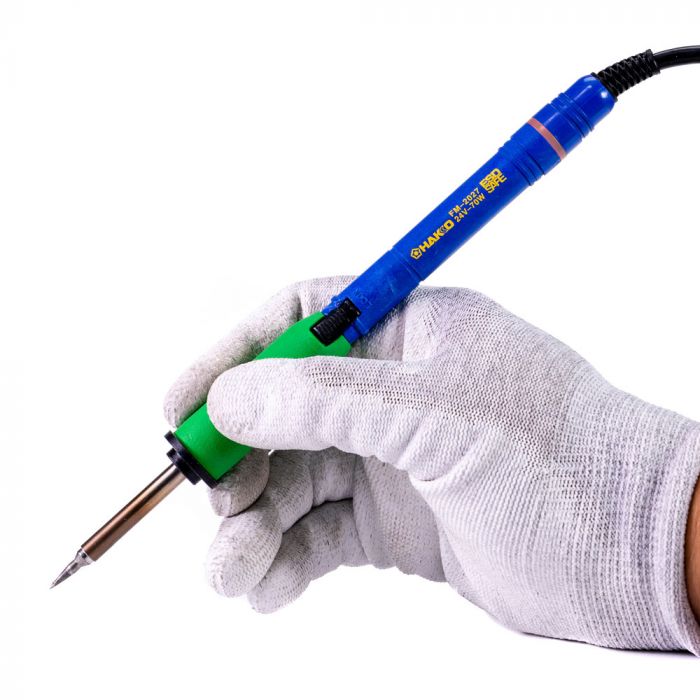

FM-2027 Soldering Iron (uses T15 Series tips)
| Â Model Name | Â FM-2027 |
| Â Power Consumption | Â 70W |
|  Temperature Range |   400 °F – 840 °F / 200 °C -450 °C |
|  Tip-to-Ground Resistance |  < 2 Ω |
| Â Tip-to-Ground Potential | Â < 2 mV |
| Â Total Length (w/o cord) | Â 188mm (w/tip shape 2.4D) |
| Â Weight (w/o cord) | Â 30g |
| Â Cord | Â 1.2m |

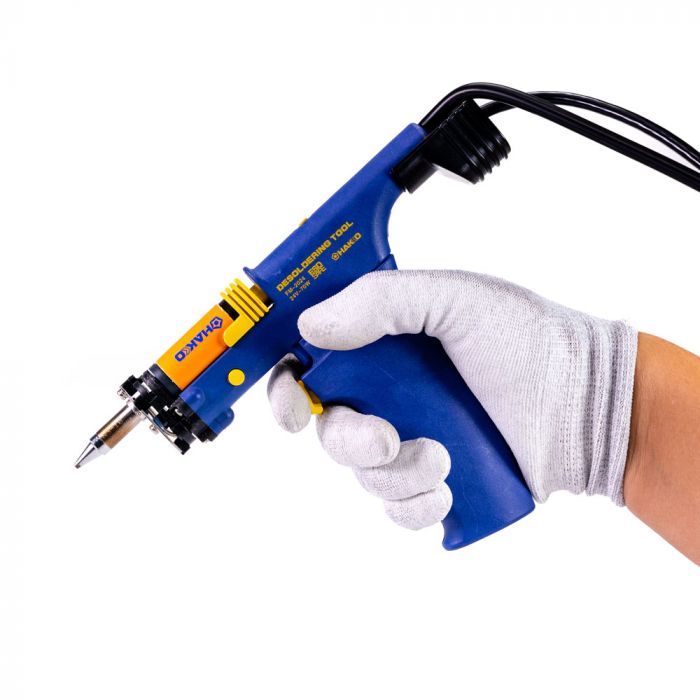

FM-2024 Desoldering Tool (uses N3 Series Nozzles)
| Â Model Name | Â FM-2024 |
| Â Power Consumption | Â 70W |
|  Temperature Range |  660 °F – 840 °F / 350 °C – 450 °C |
|  Tip-to-Ground Resistance |  < 2 Ω |
| Â Tip-to-Ground Potential | Â < 2 mV |
|  Total Length (w/o cord) |  180mm (w/ ø1.0 nozzle) |
|  Weight (w/o cord) |  65g (w/ ø1.0 nozzle) |
| Â Cord | Â 1.2m |

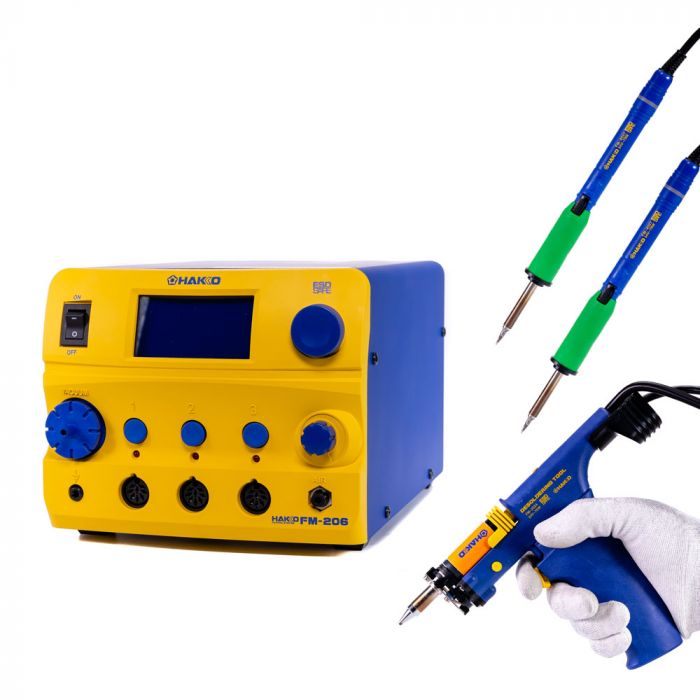

What’s In the Box?
- FM-206 Rework Station
- FM-2024 Desoldering Tool
- Two FM-2027 Soldering Tools
- Power Cord
- User Manual
