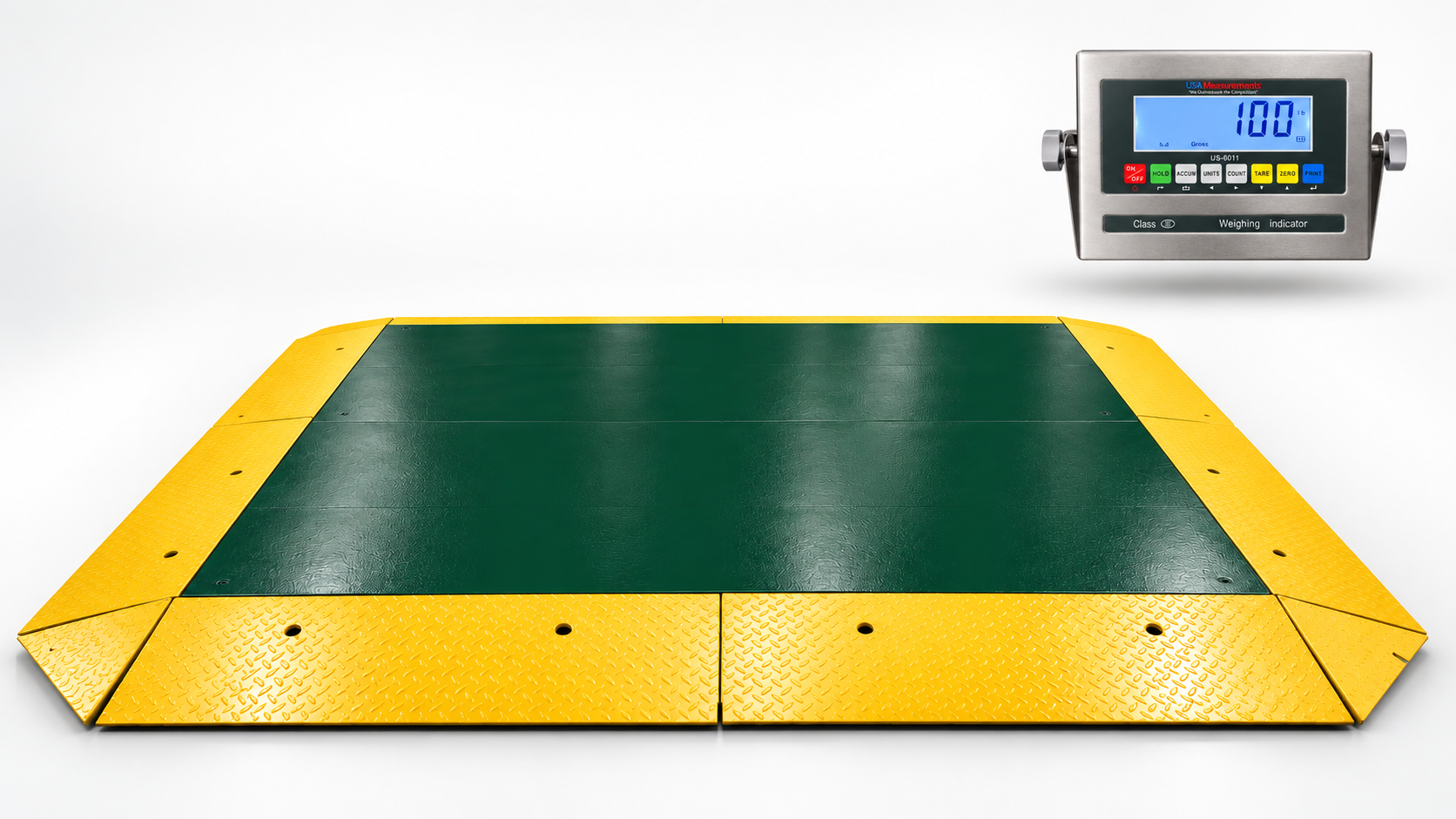

Standard Features:

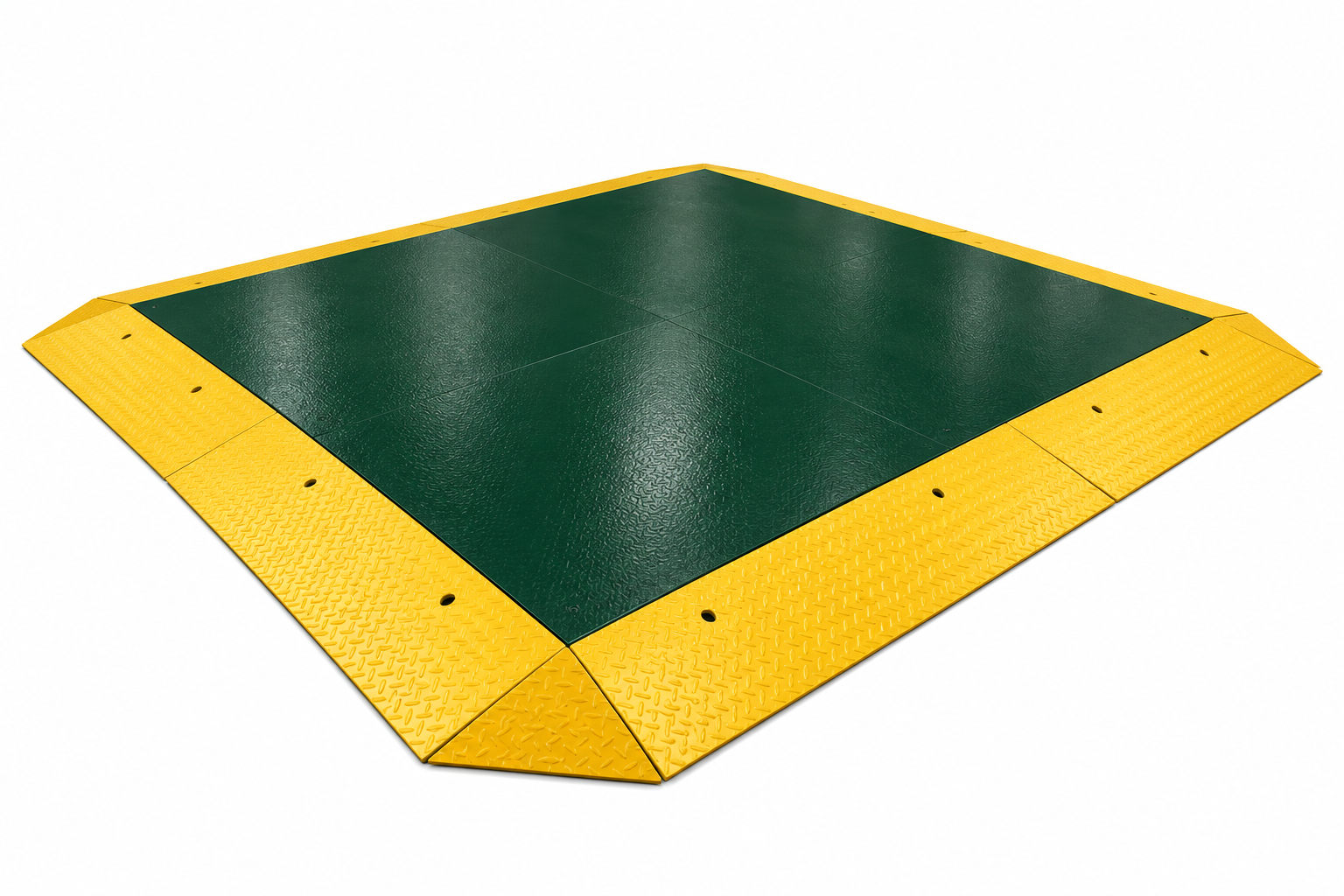

- Ultra-low 3.5″ deck height — pallet jacks roll on and off without ramps

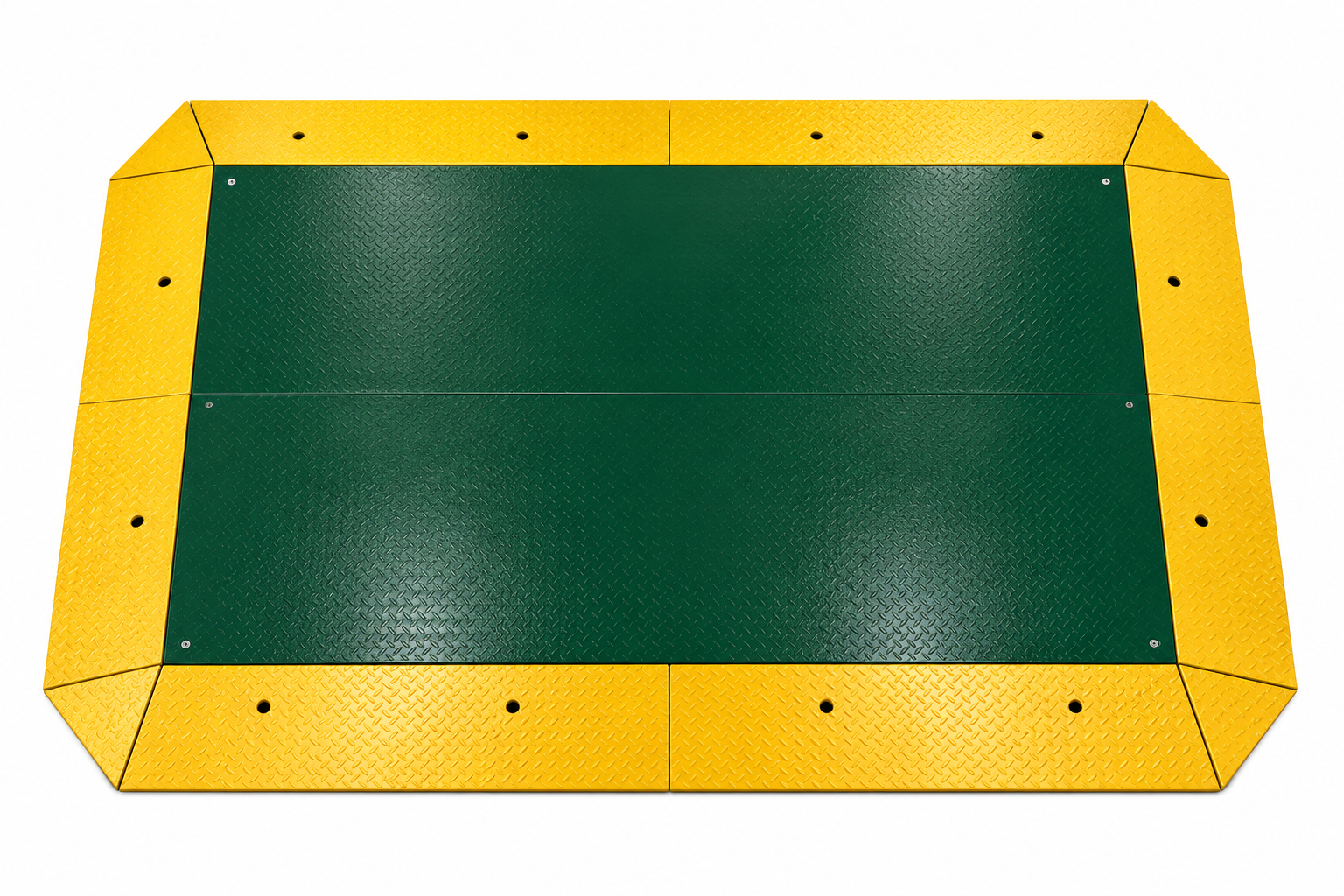

- Available in three platform sizes: 4′ × 4′, 5′ × 6′, and 10′ × 10′
- Capacities from 5,000 lb to 40,000 lb
- Heavy-duty steel construction with powder coat finish
- Four stainless steel load cells for accurate corner-to-corner readings
- 200% overload protection
- NTEP certified — legal for trade in all 50 states

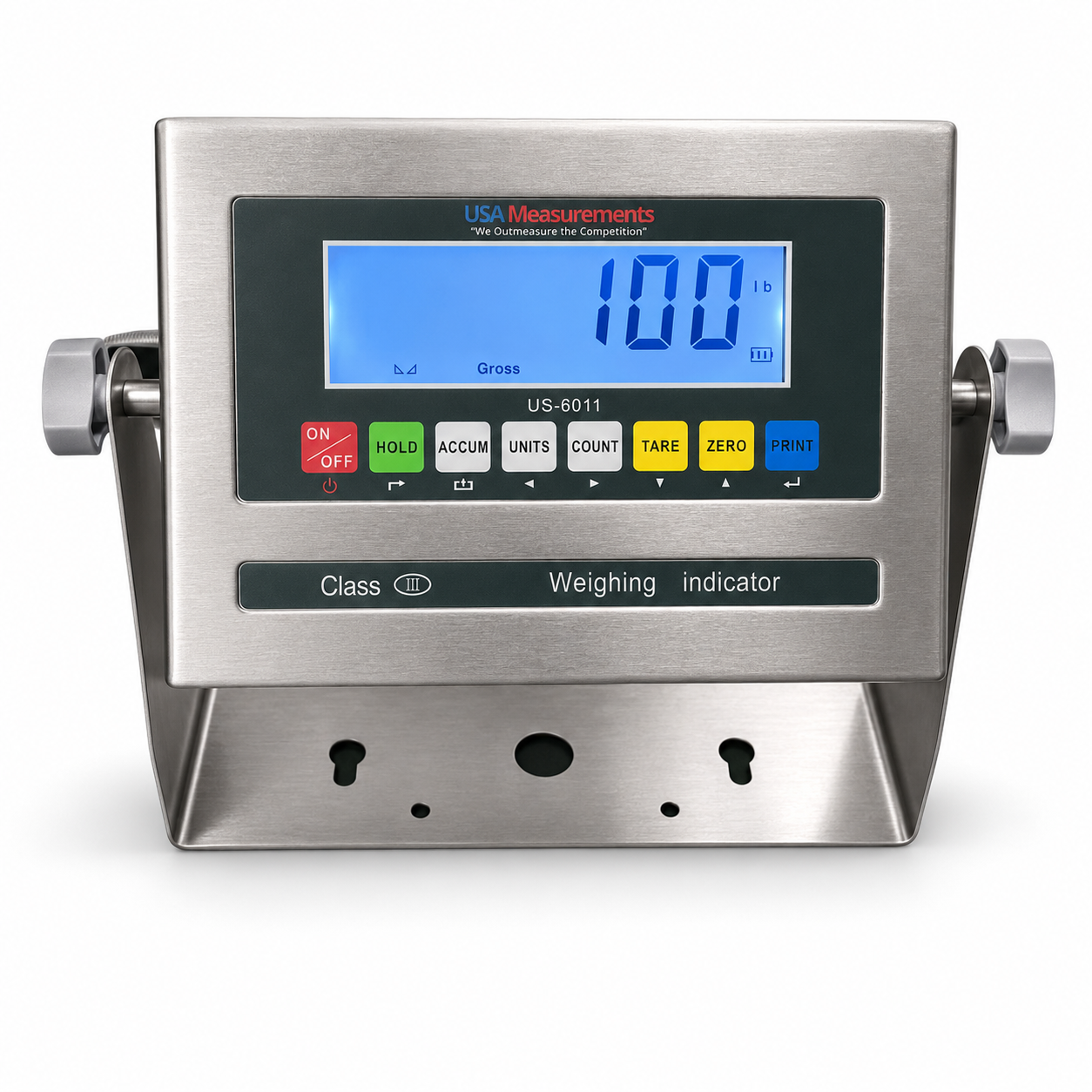

- Choose LCD or LED backlit display at checkout — same price
- IP65-rated junction box — water and dust resistant
- Adjustable leveling feet with bubble level
- USB and RS-232 connectivity included
- AC adapter included
- 5-year warranty
Common Applications:

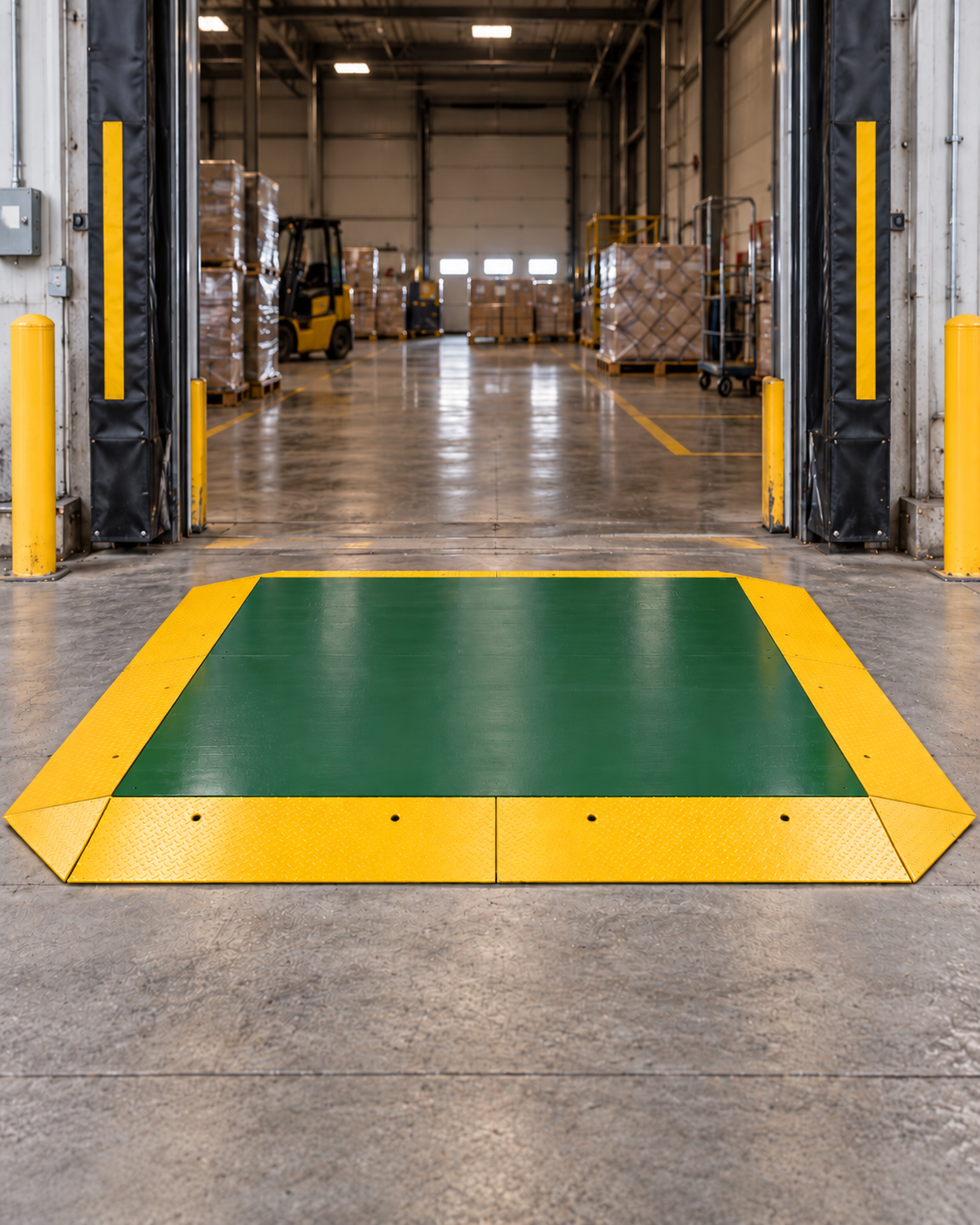

- Pallet and skid weighing at receiving docks

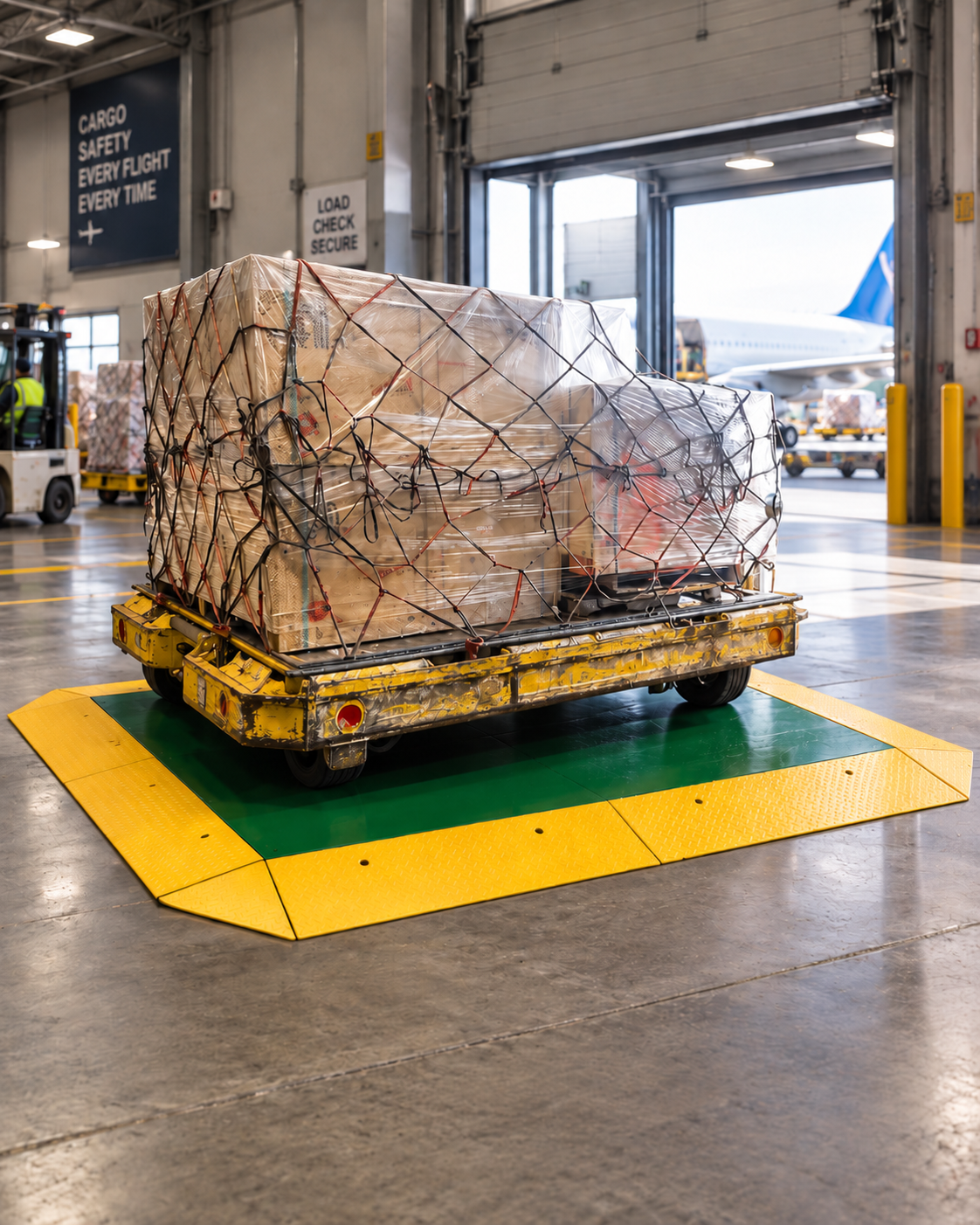

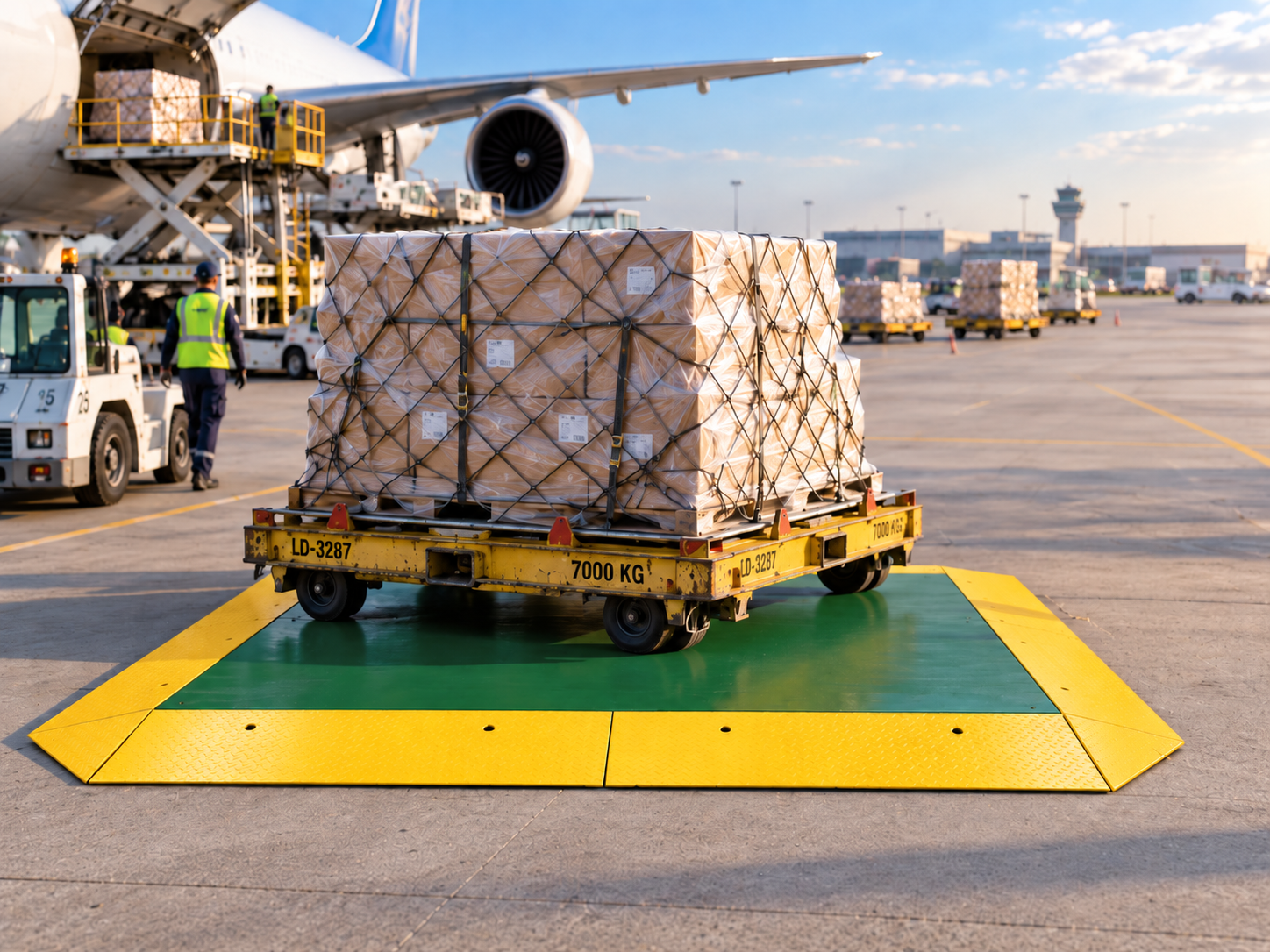

- Freight and shipping weight verification

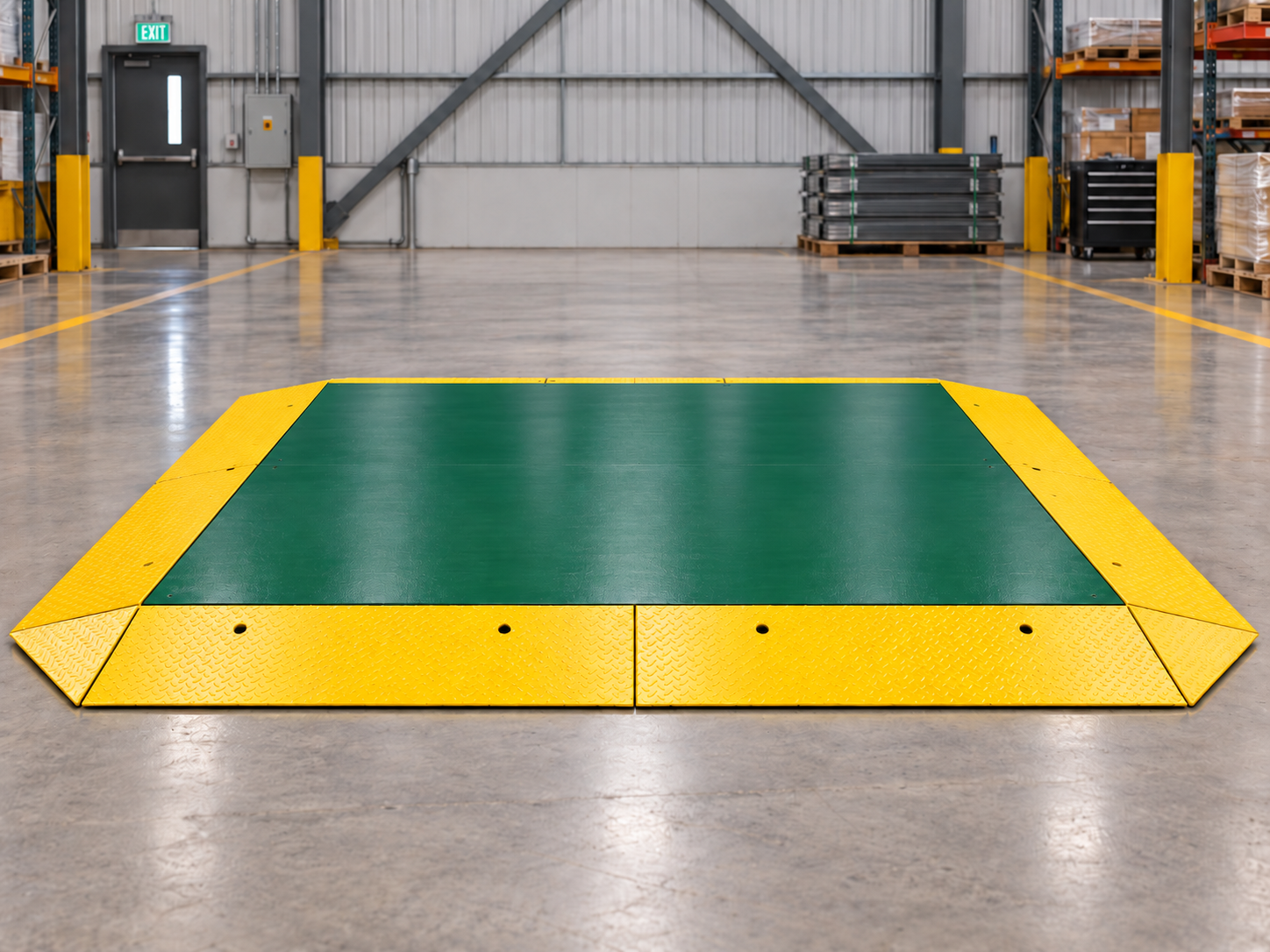

- Manufacturing and production floor checkweighing
- Recycling, scrap, and waste management
- Agricultural and feed mill use

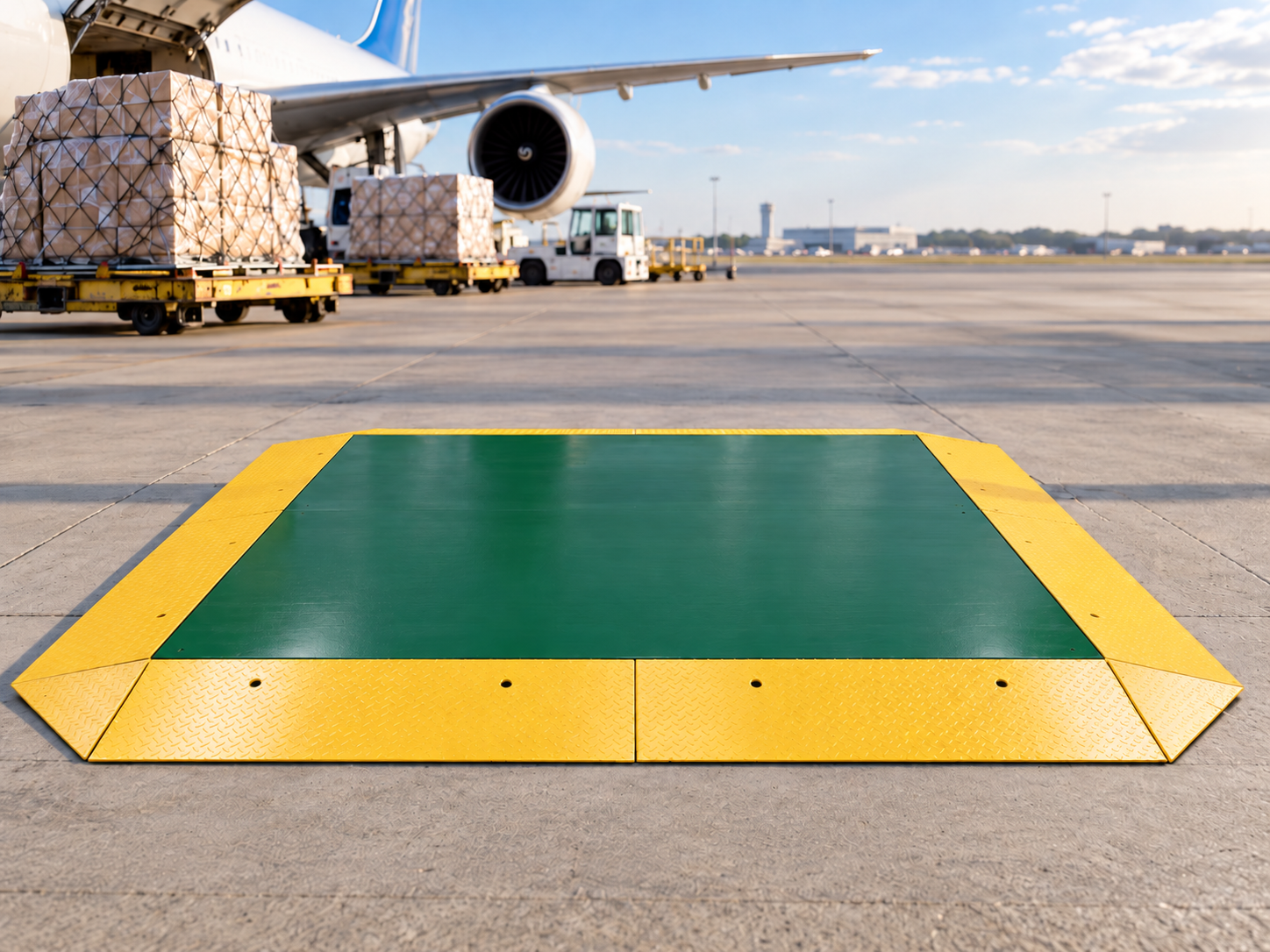

- Truck and freight terminal operations
Resources:
Specifications:
| Specification | US-PCS4848-5K | US-PCS4848-10K | US-PCS6072-20K | US-PCS6072-40K | US-PCS120120-20K | US-PCS120120-40K |
|---|---|---|---|---|---|---|
| Platform Size | 4′ × 4′ | 4′ × 4′ | 5′ × 6′ | 5′ × 6′ | 10′ × 10′ | 10′ × 10′ |
| Platform Dimensions | 48″ × 48″ | 48″ × 48″ | 60″ × 72″ | 60″ × 72″ | 120″ × 120″ | 120″ × 120″ |
| Capacity | 5,000 lb | 10,000 lb | 20,000 lb | 40,000 lb | 20,000 lb | 40,000 lb |
| Readability | 1 lb | 2 lb | 5 lb | 10 lb | 5 lb | 10 lb |
| Deck Height | 3.5″ | 3.5″ | 3.5″ | 3.5″ | 3.5″ | 3.5″ |
| Load Cells | 4 stainless steel | 4 stainless steel | 4 stainless steel | 4 stainless steel | 4 stainless steel | 4 stainless steel |
| Overload Protection | 200% | 200% | 200% | 200% | 200% | 200% |
| Display | LCD or LED | LCD or LED | LCD or LED | LCD or LED | LCD or LED | LCD or LED |
| Connectivity | USB, RS-232 | USB, RS-232 | USB, RS-232 | USB, RS-232 | USB, RS-232 | USB, RS-232 |
| Certification | NTEP | NTEP | NTEP | NTEP | NTEP | NTEP |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
