OP-916 Relay Output (Setpoint Functionality)

$1,095.00$2,995.00

Free Shipping

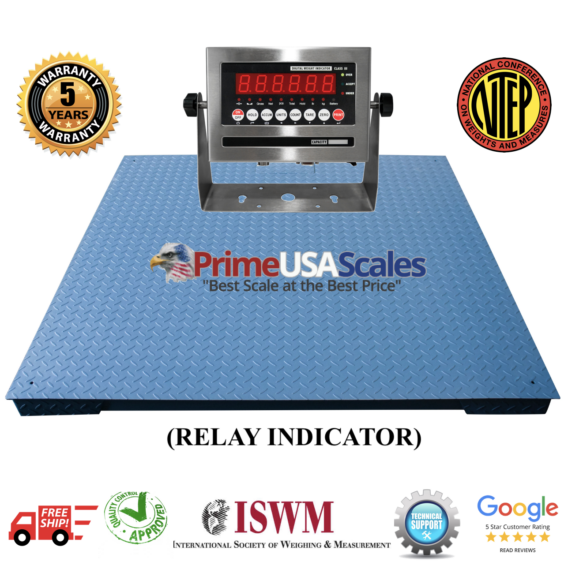

Prime USA Scales offers our OP-916 floor scale in a variety of sizes from 2’x2′ up to 7’x7′. Our floor scale features a variety of capacities from 1,000 lb up to 10,000 lb. This unique model offers our 4-20ma output relay indicator for batching applications. Setting target weights to fill bags, drums, feed, and many other uses.

The OP-900R1-12 relay indicator allows for target weight and relay functions. When a setpoint (target weight) is programmed into the digital indicator it will send an alarm to notify a user when the target weight has been reached. The indicator can also send electrical output signals to be used with relays to control the filling device. This will help to improve accuracy, target weight, and provide the user with repeatability. In many applications there may be multiple ingredients being dispensed into containers, drums, or sacks. Additional setpoints (target weights) can be used for each ingredient to produce a final batch.

Read More
Clear

Features:

  • Highest quality platform scale for industrial use
  • Welded steel with a tread plate construction
  • 200% overload protection
  • 20’ long heavy duty metal shielded cable for indicator
  • Includes OP-900R1-12 NTEP indicator with a 6 digit, 1” display
  • indicator is lb/kg selectable, with an optional rechargeable battery
  • Built-in RS-232 communication port
  • Factory Calibrated
  • Overload Protection

Indicator Features:

  • NTEP indicator with LED or LCD display
  • 1″ Tall backlit display
  • Optional Rechargeable battery (up to 100 hrs)
  • Metal casing (Stainless steel or washdown upgradeable)
  • AC adapter included
  • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Splash proof  keyboard and display
  • Connects to a remote display and printer
  • NTEP approved for 5,000 divisions
  • Displays up to 50,000 graduations
  • Full Duplex RS-232 Serial Port

Specifications:

  • Material: Painted Steel
  • Overload Protection: 200%
  • IP Rating: IP65
  • Power: AC/DC, built-in rechargeable
  • Optional battery (100 hrs)
  • Cable Length: 20 ft
  • 2 year limited warranty on electronics
  • 5 year limited warranty on platform
  • Approvals: Legal for Trade:
  • NTEP Certified at 5,000 divisions, Class III
