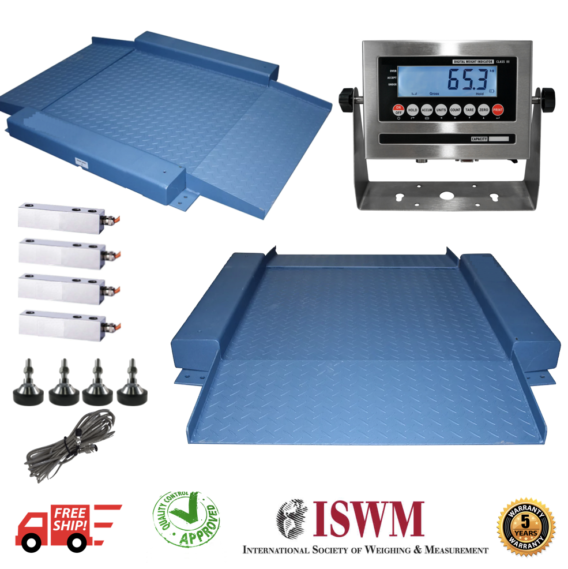

The package includes our US-6011SS-LED or US-6011SS-LCD digital indicator, which comes pre-calibrated with a 20′ steel braided cable, an AC power adapter, and an optional rechargeable battery with an 80-hour battery life. The unit is backed by a 2-year warranty on electronics and a 5-year warranty on the steel frame.
Features:
- Available in lengths from 30″ to 48″
- Capacity options: 1,000 lb to 10,000 lb
- Heavy-duty industrial design
- Live side rails for added stability
- 4 alloy steel shear beam load cells
- Side load design for durability
- ABS NEMA 4X junction box with signal trim summing board
- 20′ load cell cable included
- Rugged diamond tread plate deck
- 4 adjustable swivel steel feet
- Configured and calibrated with 5000 divisions
- 5-year warranty on steel frame
- 2-year warranty on electronics
Indicator Features:
- Stainless steel casing
- Includes AC adapter (optional battery available)
- Weighing units on LED version: (lb/kg)
- Weighing Units on LCD version: (lb/kg/oz/grams)
- Functions: Gross/Tare/Pre-Set Tare/Zero
- Multiple Hold functions available
- Count and accumulation weighing modes
- Overload/Underload alarm
- Power-saving mode
- Automatic date and time updates
- Gravity modification for different geographical locations
- 100% manual zero range setting
- Automatic error warning alarm
- Splash-proof keyboard and display
- Connects to a remote display
- Compatible with multiple printers
- Displays up to 50,000 graduations
- 1” LED or LCD display with backlight
- Includes mounting bracket and hardware
- Operates on 110V AC adapter (included)
- Full Duplex RS-232 serial port
- Supports up to six 350Ω load cells
Options:
- Thermal Printer
- Label Printer
- Indoor Remote Display 3″ Digits
- Indoor Remote Display 5″ Digits
- Outdoor Remote Display 6″ Digits
- Software
- Indicator Stand (stainless steel)
- Heavy Duty Indicator Stand
- Certificate of Calibration
- Intrinsically Safe Indicator
- Indicator with 4-20ma Output
- Indicator with Setpoint / Relay Function
