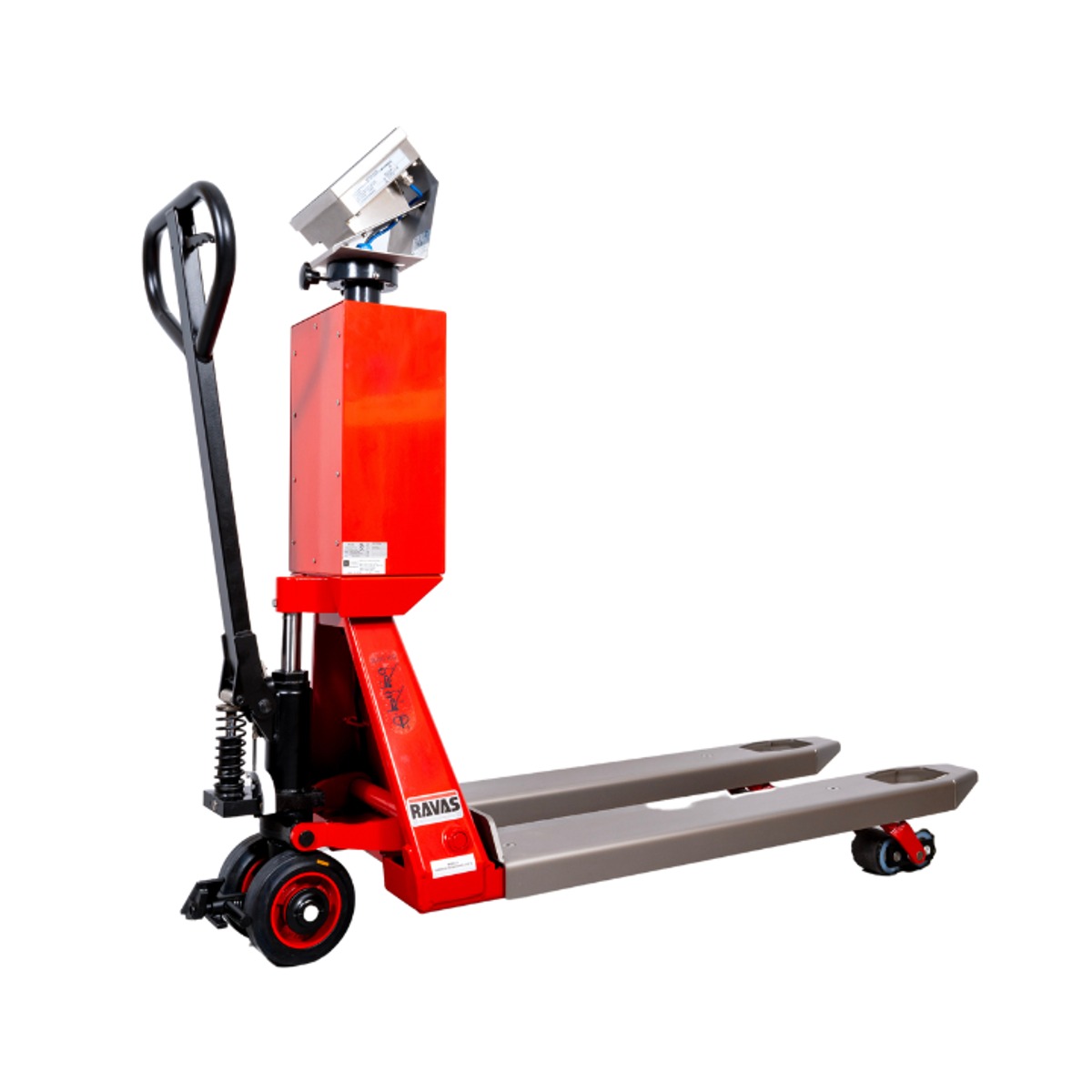

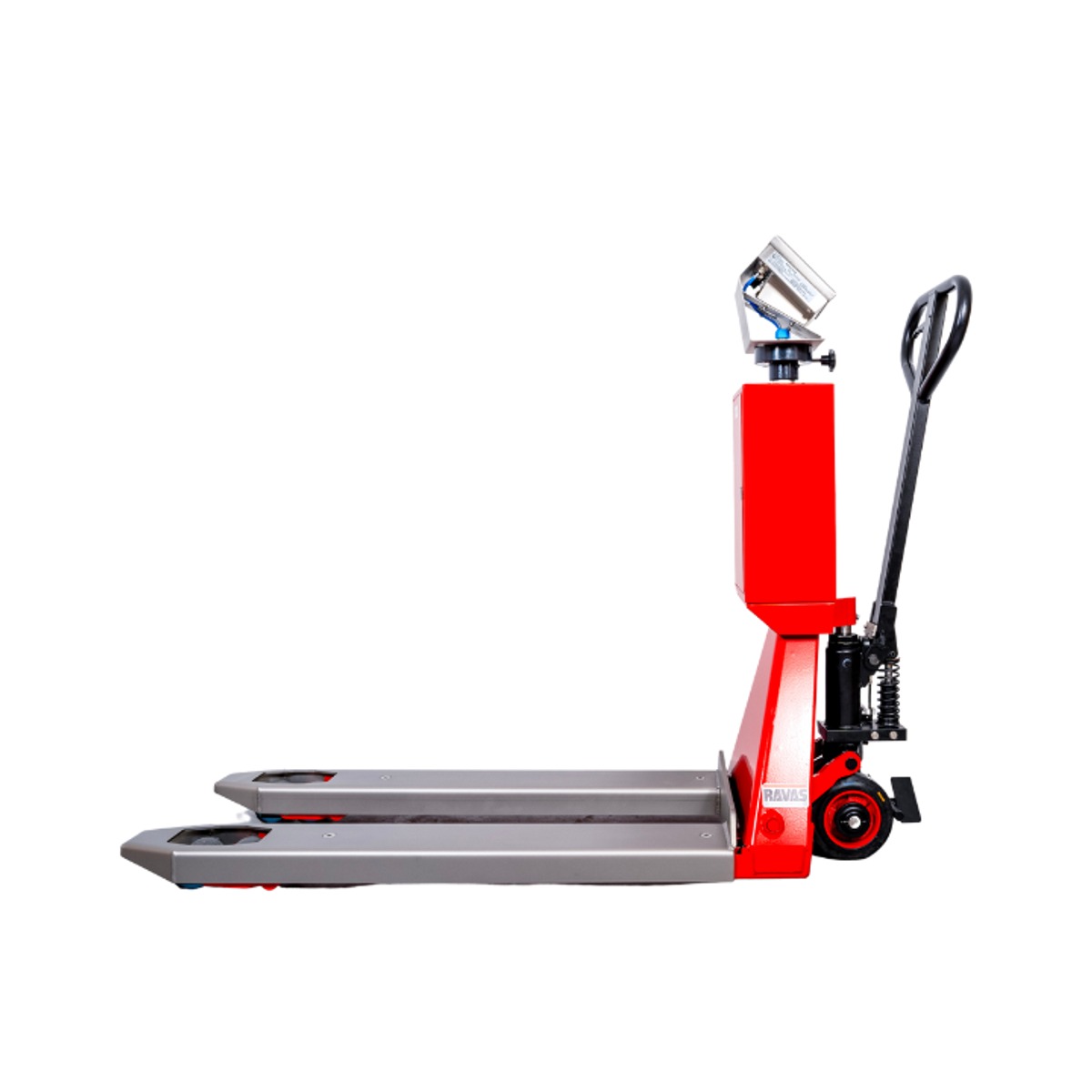

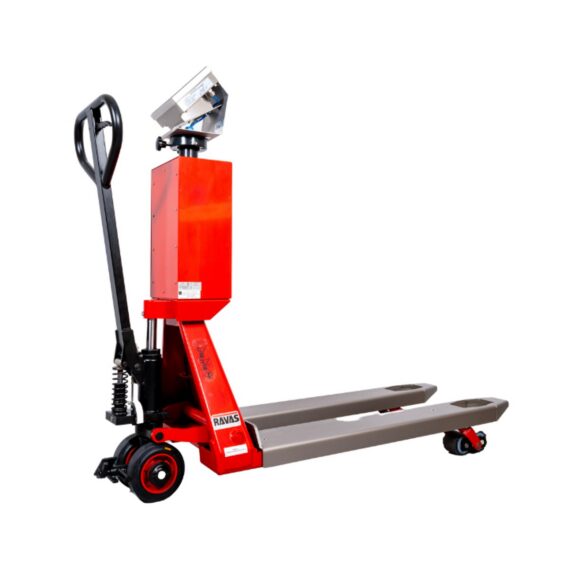

The RAVAS 2560 EXi is an explosion-proof hand pallet jack scale engineered by RAVAS for hazardous environments where a standard scale could ignite flammable vapors, dusts, or gases. ATEX-certified for Zone 1/21, equipped with antistatic wheels, stainless steel fork shoes, and intrinsically safe spark-free electronics, the 2560 EXi lets you weigh, mix, batch, and dose at the point of work inside chemical, pharmaceutical, paint, food, and oil & gas facilities without leaving the hazardous area. Distributed by RAVAS USA Inc. (Twinsburg, OH).
Safety & Compliance:
ATEX Certified Zone 1/21 — Classification: ATEX II 2 G Ex ib IIC T4 Gb / ATEX II 2 D Ex tb [ib] IIIC T60°C Db. FM Approval reference: FM 07 ATEX 0043. Designed for filling, mixing, dosing, and batch processes in:
- Chemical and petrochemical production
- Pharmaceutical manufacturing
- Paint and coatings blending
- Food processing with combustible dusts
- Oil & gas handling and refining
- Powder, solvent, and reactive material handling
Standard Features:
- ATEX Zone 1/21 certified for use in explosive gas and dust atmospheres

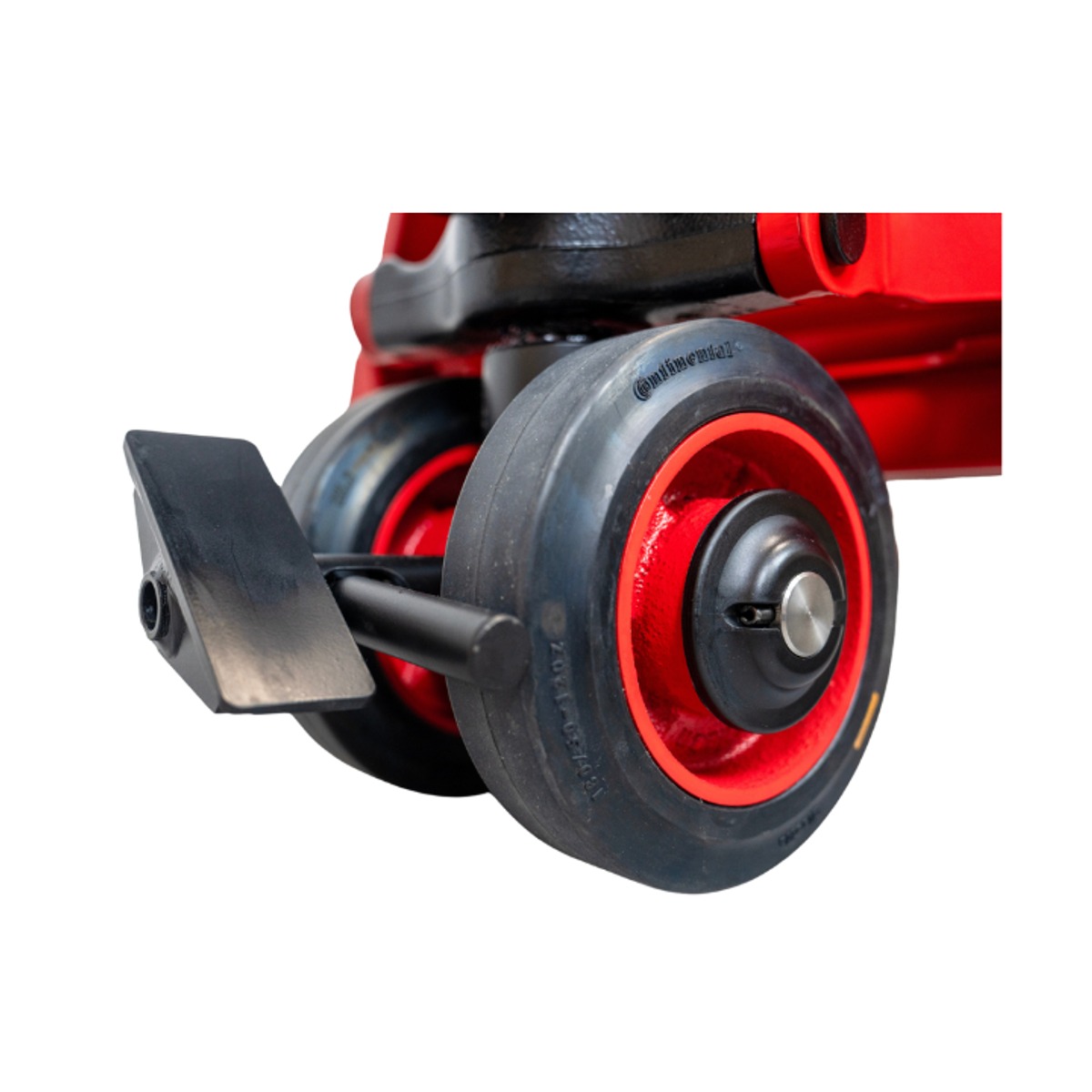

- Antistatic wheels (standard) to prevent static discharge
- Stainless steel fork shoes for corrosion resistance
- Intrinsically safe (Ex ib) spark-free electronics

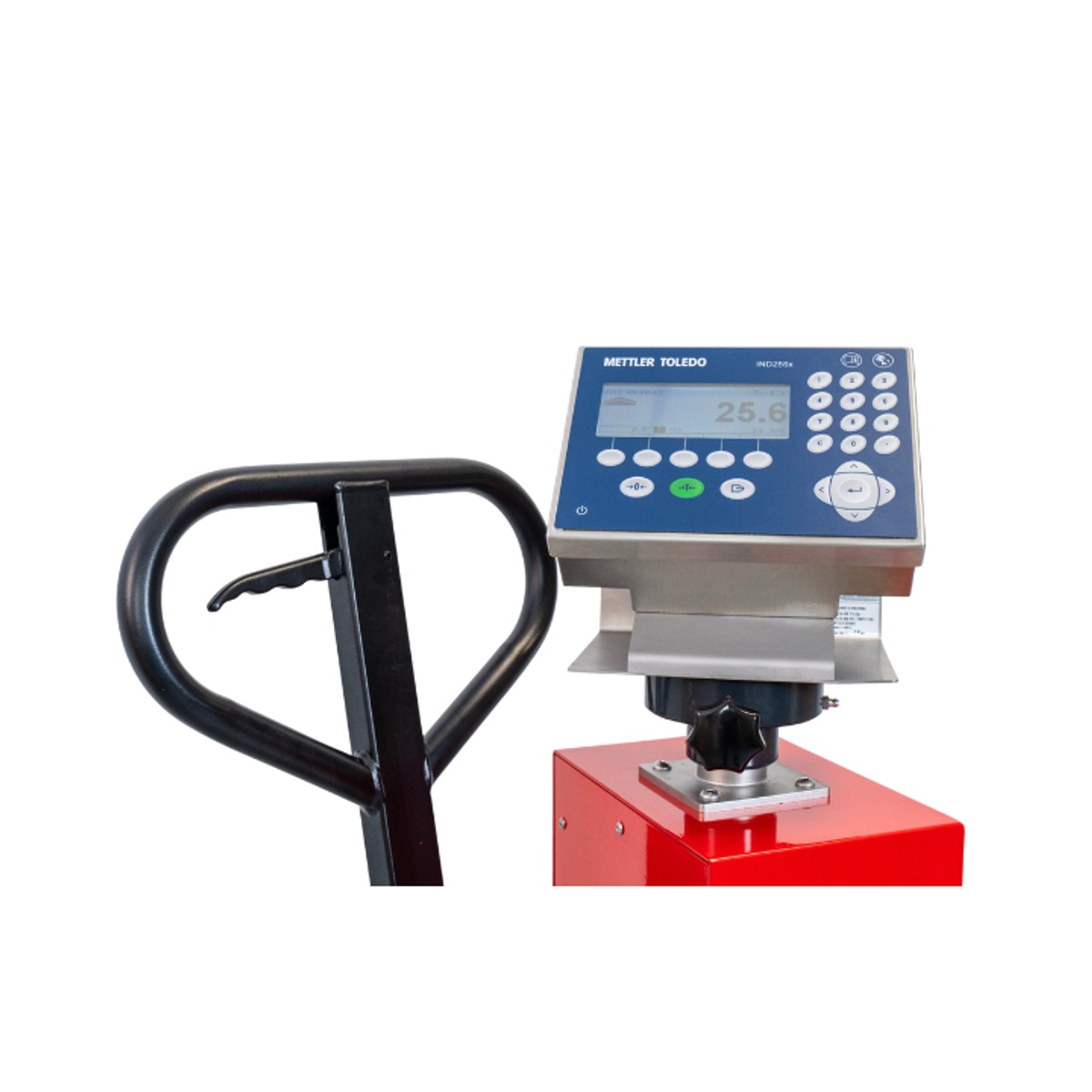

- Rotatable indicator head for visibility from any angle
- Backlit LCD display with 25 mm digit height
- Level switch disables the display if more than 2° out of level
- Exchangeable 10V / 8Ah Exi battery (swappable inside the Ex-area; charging outside)
- 60-hour battery life standard (40 hours with Wi-Fi option)
- Built by RAVAS Europe B.V., a 40+ year specialist in mobile weighing
Specifications:
- Weighing capacity: 4,400 lb (2,000 kg)
- Resolution: 0.5 lb to 2 lb (0.2 to 1 kg) configurable
- Maximum tolerance: 0.1% of the lifted load
- Display: LCD with backlight, 25 mm (1″) digit height, rotatable
- Power: Rechargeable 10V / 8Ah intrinsically safe (Exi) battery
- Battery life: 60 hours (40 hours with Wi-Fi)
- ATEX classification: II 2 G Ex ib IIC T4 Gb / II 2 D Ex tb [ib] IIIC T60°C Db
- Fork length: 47.5″ (1,220 mm) standard
- Construction: Steel frame with stainless steel fork shoes
- Wheels: Antistatic, ATEX-rated
- Engineered by RAVAS, distributed by RAVAS USA Inc.
Options:
- Fully stainless steel construction (2560 EXi INOX)
- OIML Class III calibration (legal-for-trade)
- Extra exchangeable Exi battery
- Wi-Fi connectivity
- Intrinsically safe thermal printer (requires Wi-Fi option)
