Package Features:
- (4) stainless shear beam Load Cells with 100% Overload protection
- Includes stainless steel mounting hardware to install scale kit
- Can be set-up for capacities from 1,000 lb to 80,000 lb
- Low Profile Design for Easy Installation
- Commonly used for scale repairs, tanks, hoppers, & silo’s
- Overall 200% Overload Protection
- More Load Cells can be added if needed

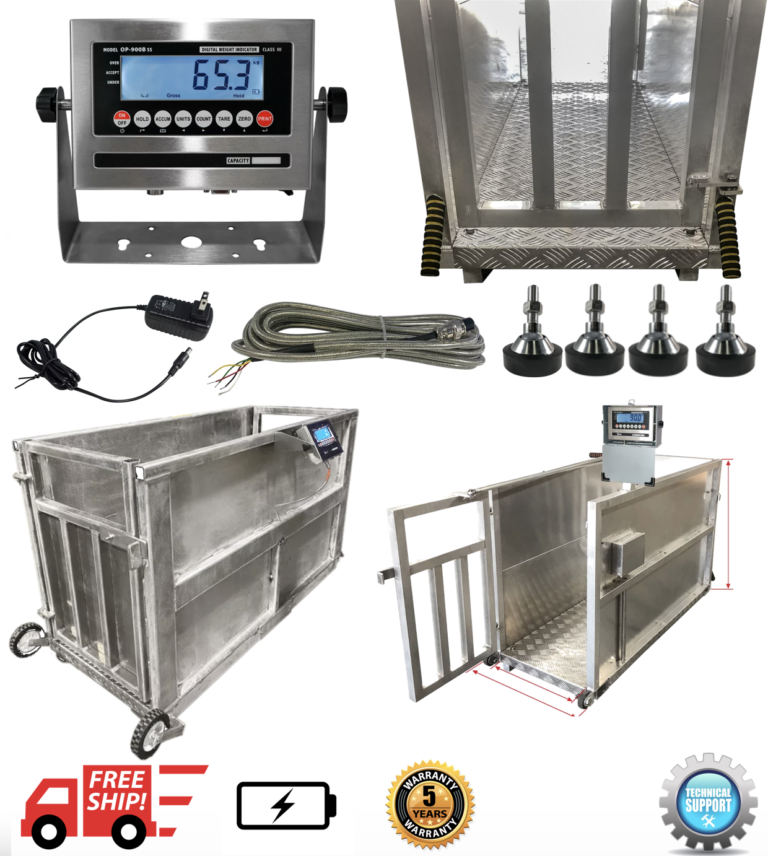

Scale Kit Includes:
- (4) Stainless Steel Hermetically Sealed Load Cells
- Stainless Steel Mounting hardware
- (1) Bright Stainless Steel LED or LCD display
- (1) Wall-mounting Bracket Stainless Steel
- Built in RS-232 Port
- (1) Stainless steel IP-67 four port junction box
- (4) Stainless Steel leveling feet
- 20ā Long stainless steel cable
US-6011 Indicator Features:
- Stainless Steel Enclosure
- 1ā Digit in LED or LCD
- Weighing Units LED: lb, kg
- Weighing Units: LCD lb, kg, oz, lb:oz, g
- Gross Weighing
- Multiple Tare Functions
- Pre-Set Tare Option
- Zero Button
- Multiple Hold Functions
- Counting Pieces Function
- Accumulation / Batch weighing
- Checking Weighing: Over/Under with alarm
- Power saving mode
- Automatic date and time update
- Modify gravity based on location
- 100% manual zero range setting
- Automatic error warning alarm
- Splash proof keyboard and display
- RS-232 Port for optional Scoreboard
- RS-232 Port for connecting to Printer
- Displays up to 50,000 graduations
- Includes Bracket & Mounting Hardware
- 110V Power Adapter Included
- Easy to Calibrate Indicator (5 Steps)
- Full Duplex RS-232 Serial Port
- Powers up to Six 350Ī© load cells
- 2 year Manufacturer warranty
- NTEP approved for 5,000 divisions
US-6011SS Indicator Package Includes:Ā
- US-6011SS Digital Indicator
- Rechargeable Battery
- Stainless Steel Mounting Bracket
- (2) Adjustable Knobs for Bracket
- Spare Connectors
- Plastic Splash Guard
- 15ā² Stainless Steel Braided Cable
- Power Adapter
- User Manual
Models / Capacity x Accuracy / NTEP Approved Kit:Ā
- US-HDSCN-SS-1K-LED – 1,000 lb x 0.2 lb
- US-HDSCN-SS-1K-LCD – 1,000 lb x 0.2 lb
- US-HDSCN-SS-2K-LED – 2,000 lb x 0.2 lb
- US-HDSCN-SS-2K-LCD – 2,000 lb x 0.2 lb
- US-HDSCN-SS-4K-LED – 4,000 lb x 0.5 lb
- US-HDSCN-SS-4K-LCD – 4,000 lb x 0.5 lb
- US-HDSCN-SS-5K-LED – 5,000 lb x 1 lb
- US-HDSCN-SS-5K-LCD – 5,000 lb x 1 lb
- US-HDSCN-SS-10K-LED – 10,000 lb x 1 lb
- US-HDSCN-SS-10K-LCD – 10,000 lb x 1 lb
- US-HDSCN-SS-20K-LED – 20,000 lb x 2 lb
- US-HDSCN-SS-20K-LCD – 20,000 lb x 2 lb
- US-HDSCN-SS-40K-LED – 40,000 lb x 5 lb
- US-HDSCN-SS-40K-LCD – 40,000 lb x 5 lb
- US-HDSCN-SS-60K-LED – 60,000 lb x 10 lb
- US-HDSCN-SS-60K-LCD – 60,000 lb x 10 lb
- US-HDSCN-SS-80K-LED – 80,000 lb x 20 lb
- US-HDSCN-SS-80K-LCD – 80,000 lb x 20 lb
Options:Ā
- Thermal Printer
- Label Printer
- Indoor Remote Display 3ā³ Digits
- Indoor Remote Display 5ā³ Digits
- Outdoor Remote Display 6ā³ Digits
- Software
- Indicator Stand (stainless steel)
- Heavy Duty Indicator StandĀ
- Certificate of CalibrationĀ
- Intrinsically Safe Indicator
- Indicator with 4-20ma Output
- Indicator with Setpoint / Relay Function
