Cardinal Rugged Weigh Floor Scale

$1,799.00$3,825.00

Free Shipping

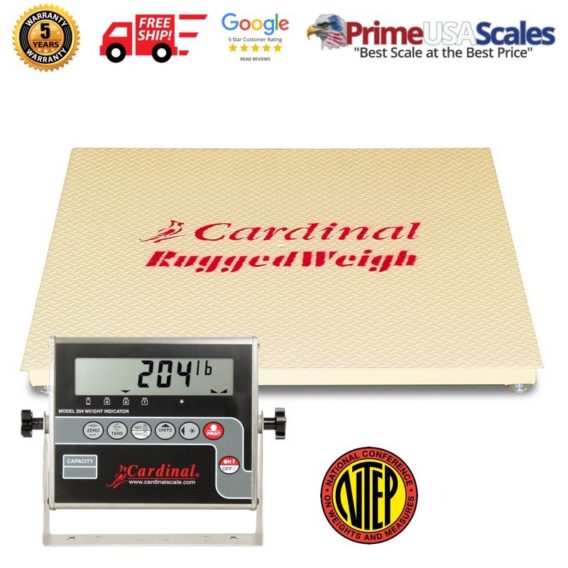

Prime USA Scales offers our USA made Cardinal RuggedWeigh electronic floor scales. This model features 3’x3′, 4’x4′, and 5’x5′ platform size in a 5,000 lb or 10,000 lb capacity. The scale is NTEP legal for trade, has adjustable height, load cell feet with flexible footing that compensates for uneven floors. The RuggedWeigh has a baked-on anti-corrosion polyester tan paint. It’s built with a low-profile design and flexible four-way approach. The unique channel construction underneath the scale deck completely guards the shear beam load cells, internal wiring, and stainless steel junction box for superior protection against any possible forklift damage.

Included with the RuggedWeigh floor scale is the 204 weighing Indicator. It is ideal for warehouse weighing operations. The stainless steel housing is highly durable and long lasting. Equipped with gross, tare, and net operations, this indicator is user friendly and reliable. The large LCD display is easy to read and operate. Pound and kilogram conversion, auto shutoff, RS232 output, flexible print formats, are a few of the functions incorporated into this indicator.

Features:

  • Adjustable Height 3.4″
  • Low Profile Load Cell Feet
  • Baked-on Polyester Tan Paint
  • Checkered Deck for Rugged Traction
  • Economically Priced
  • Optional Interlocking Ramps
  • Capacity: 5,000 lb or 10,000 lb
  • Accuracy: 1 lb
  • Pre-Calibrated with a Cardinal Indicator
  • Robotically-Welded for Accuracy
  • 2 Year Warrnaty on Electronics
  • 5 Year Warranty on Steel Frame
  • NTEP Approved (Legal for trade)

Indicator Specifications:

  • Display: 1″ (25mm) high, 6-digit, 7-segment LCD
  • Resolution: 5,000 divisions
  • Dimensions: 8″ W x 6 5/8″ H x 2 1/8″ D (204 mm x 168 mm x 54 mm)
  • Protection Rating: NEMA 12/IP55 stainless steel
  • Units Conversion: Pounds, kilograms, grams, and ounces
  • Load Cells: Up to 4, 350 ohm minimum resistance
  • Power: 115 VAC 60 Hz adapter or, 230 VAC 50/60 Hz, or 6 “C” cell alkaline or rechargeable Ni-Cad batteries
  • Selectable Parameters: Decimal point, filtering, weight, sample rate, baud rate
  • Temperature Range: 14 °F to 104 °F / -10 °C to 40 °C
  • Keypad: Color-coded membrane type, 7 keys
  • Standard I/O: (1) bi-directional RS232
  • Zero Tracking: 1 to 9d selectable
  • Zero Limit: 4% maximum range
  • Conversion Rate: 10 per second, max
  • Sensitivity: 1.2µV per division

Rugged Weigh Brochure

204 Indicator Brochure
