US-ESB “Easy Squeezy” Weigh Bar Scale

$1,195.00 $895.00

Free Shipping | Manufactured by USA Measurements | Ships Las Vegas, NV

USA Measurements weigh bar scales are easy to use and squeeze under a cattle chute. Any farmer or owner of livestock understand how important it is to weigh animals. We need to check the animals health, induce medicine, provide the right feed amount, and to sell at market. If you own a cattle chute our US-ESB-4810K is the ideal scale for weighing animals. Your chute will need a platform and our weigh bars will squeeze under your chute. Once mounted you can zero out the weight of the chute and get an accurate weight of the animal. WATCH OUR VIDEO BELOW.

Read More

Have Questions? Call us now: (800) 917-7205

My Personal Guarantee:

• easy to setup
• easy to use
• easy replacement parts
• easy calibration/phone support

• easy warranty support
• 30 day money back guarantee
• lowest price guarantee

CALL NOW 800-917-7205

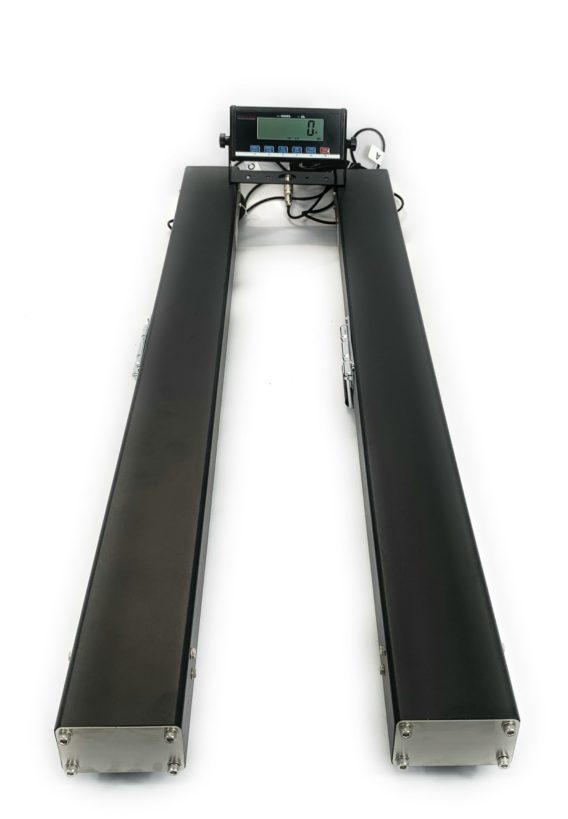

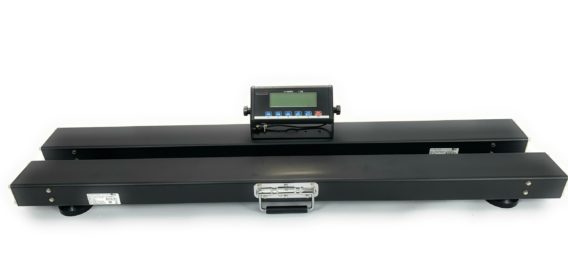

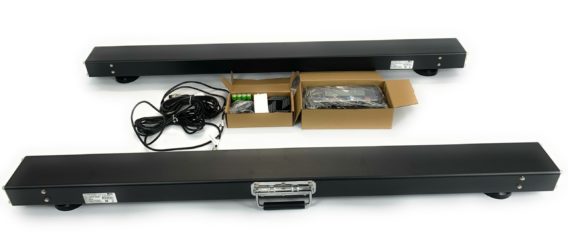

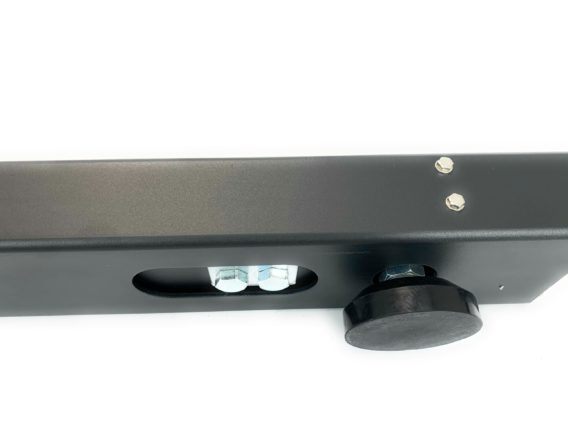

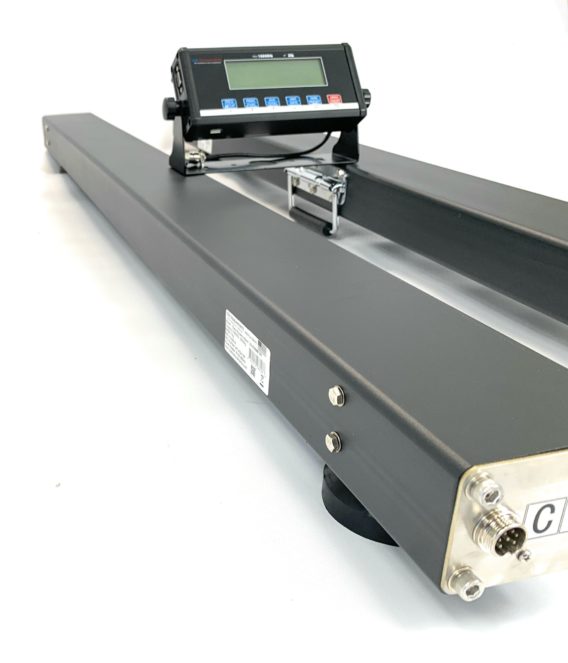

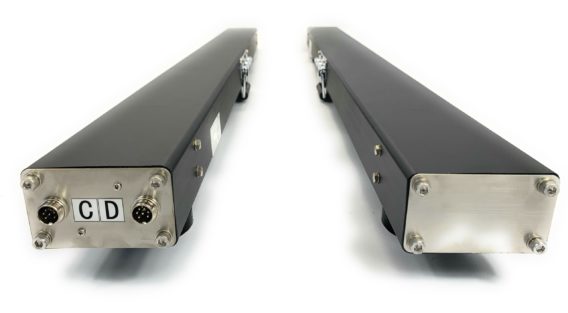

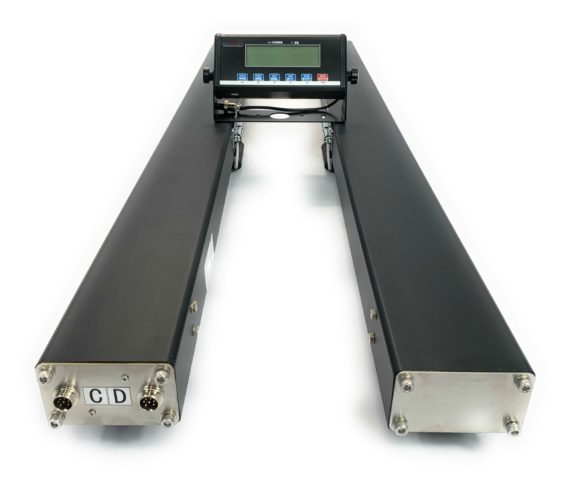

Each weigh bar is designed with carbon steel and measures 48” Long x 4” Wide x 3.5” High. The US-ESB series can be used in a variety of ways to mount under a cattle chute, attach to a platform, weigh pallets, or even portable applications. USA Measurements has designed this scale with a large 10,000 lb capacity to be used in a variety of applications. This can be used to weigh small animals or even large animals. Because the scale has a 1 lb overall accuracy. The US-ESB weigh bars can easily be moved to another location, and it can be easily stored when not being used.

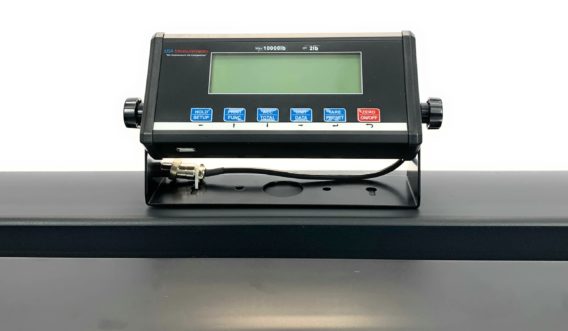

US-4011 Indicator: USA Measurements US-4011 LCD indicator features a large easy to read digital display. Our easy to use indicator can be used in a variety of weighing applications.  The indicator is commonly used with our  livestock scales. The US-4011 indicator powers up to (4) 350 ohm load cells, has a built in bright LCD display, and operates on AA batteries. Our US-4011 is user friendly and can be calibrated by any owner.

Features:

  • 10,000 lb overall capacity (5,000kg)
  • 1 lb Overall Accuracy (0.5 kg)
  • Bar Size: 48″ L x 4″ W x 3.5″ H
  • Units: Lb, Oz, Kg, Lb:oz, grams, % weight
  • 5 button operation
  • Com ports: USB & RS-232
  • Power: internal AC/DC adapter, AA Batteries
  • Accumulating function
  • Counting function
  • Animal weighing function
  • Non-NTEP (Not legal for trade)
  • Unit Weigh: 72 lb (36 lb per bar)
  • Operating Temp: -10°C to 40°C (14°F to 104°F)
  • Warranty: 5 Years Frame
  • Warranty: 2 Years Electronics
  • US-ESB4810K Weigh Bar Manual

Features:

  • LCD Backlight Display
  • Net, Total, Hold, Zero, & Peak
  • Units: Lb, Oz, Kg, Lb:oz, grams, % weight
  • Counting Function
  • Battery Powered
  • 110V Power Adapter
  • 4xAA Batteries (Included)
  • Check weigh Function (Hi/Ok/Lo)
  • USB and RS-232 Output
  • Powers (4) 350 ohm Load Cells
  • Dimensions: 9.5″x4.9″x2.5″
  • Operating Temp: -10°C to 40°C (14°F to 104°F)
  • US-4011 Indicator Manual
